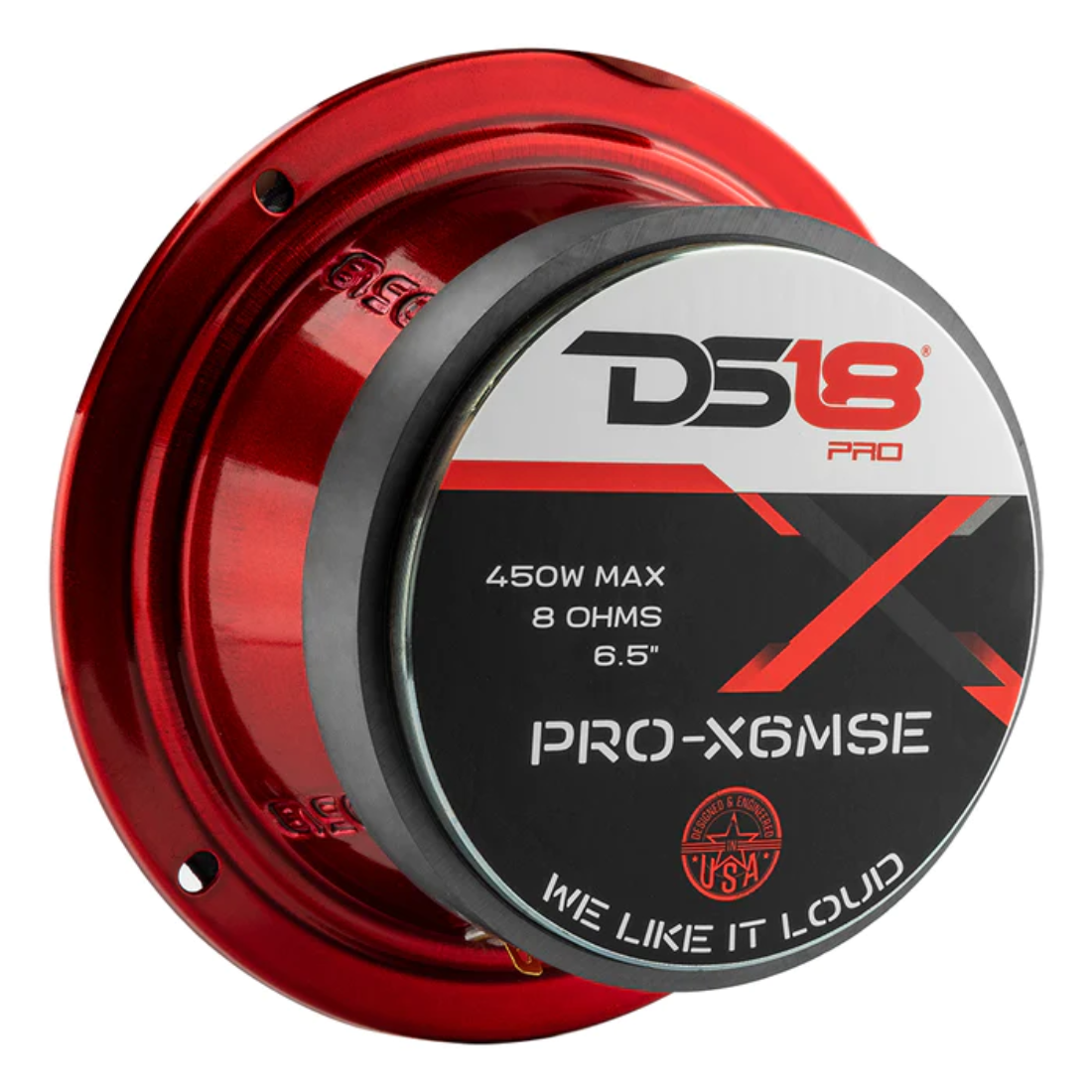

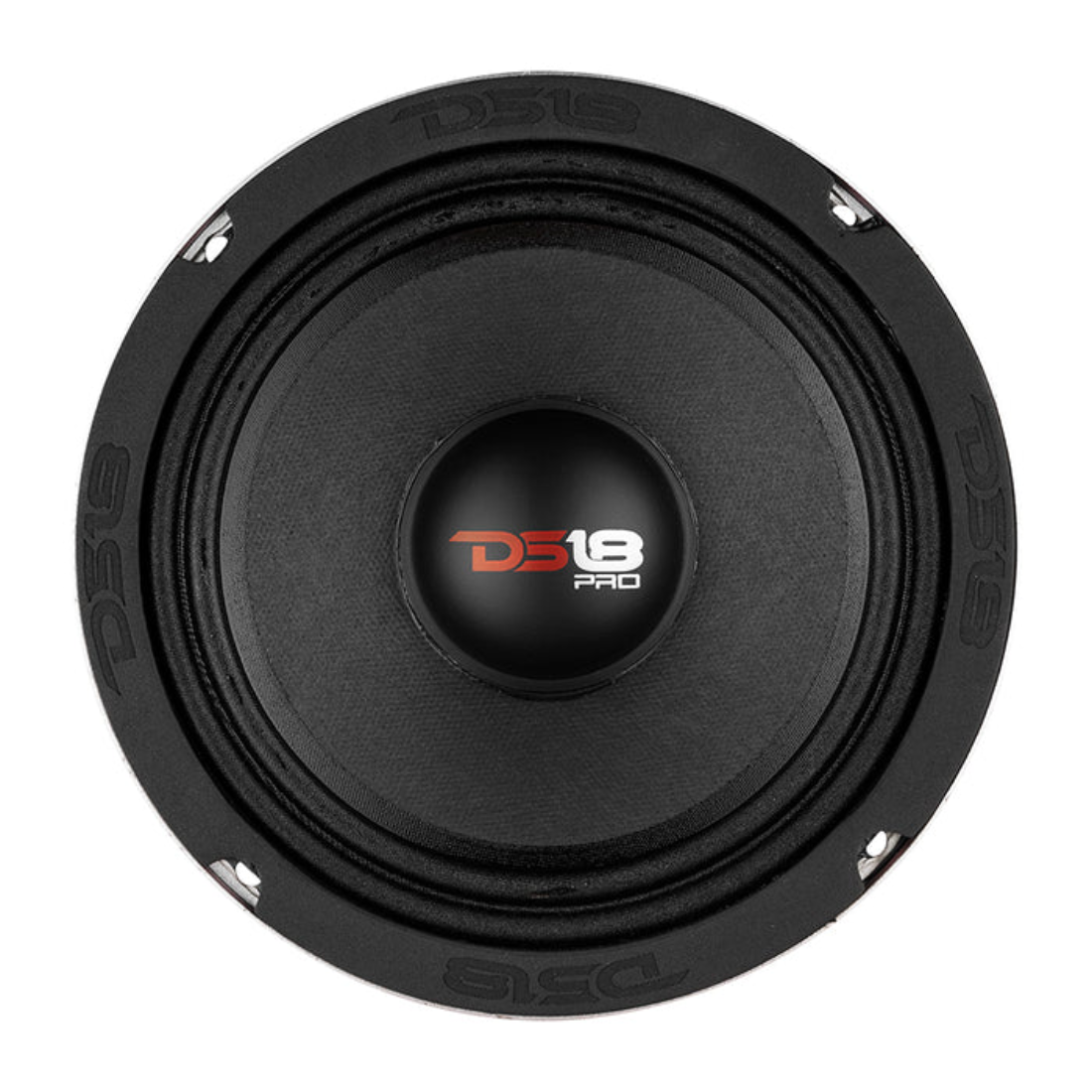

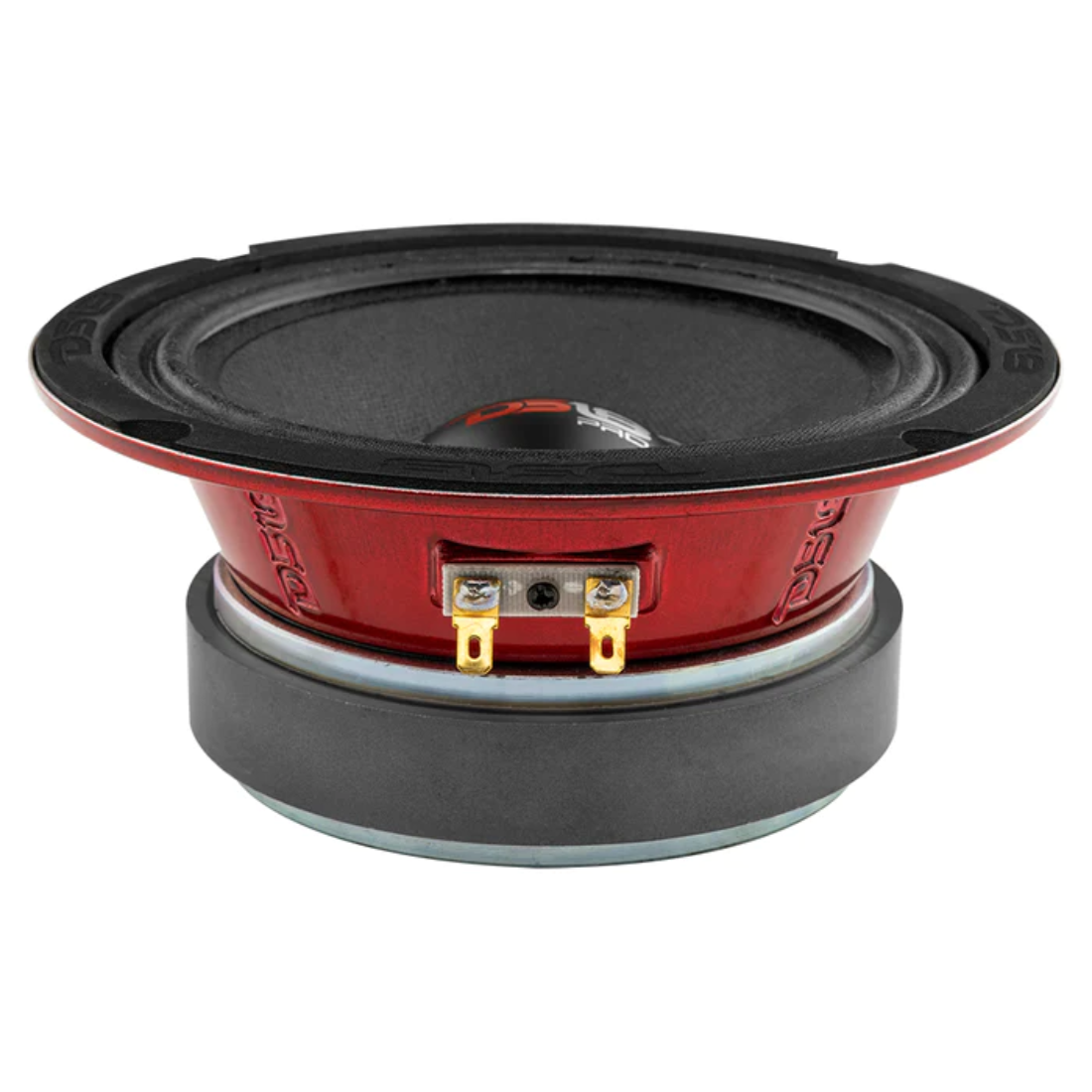

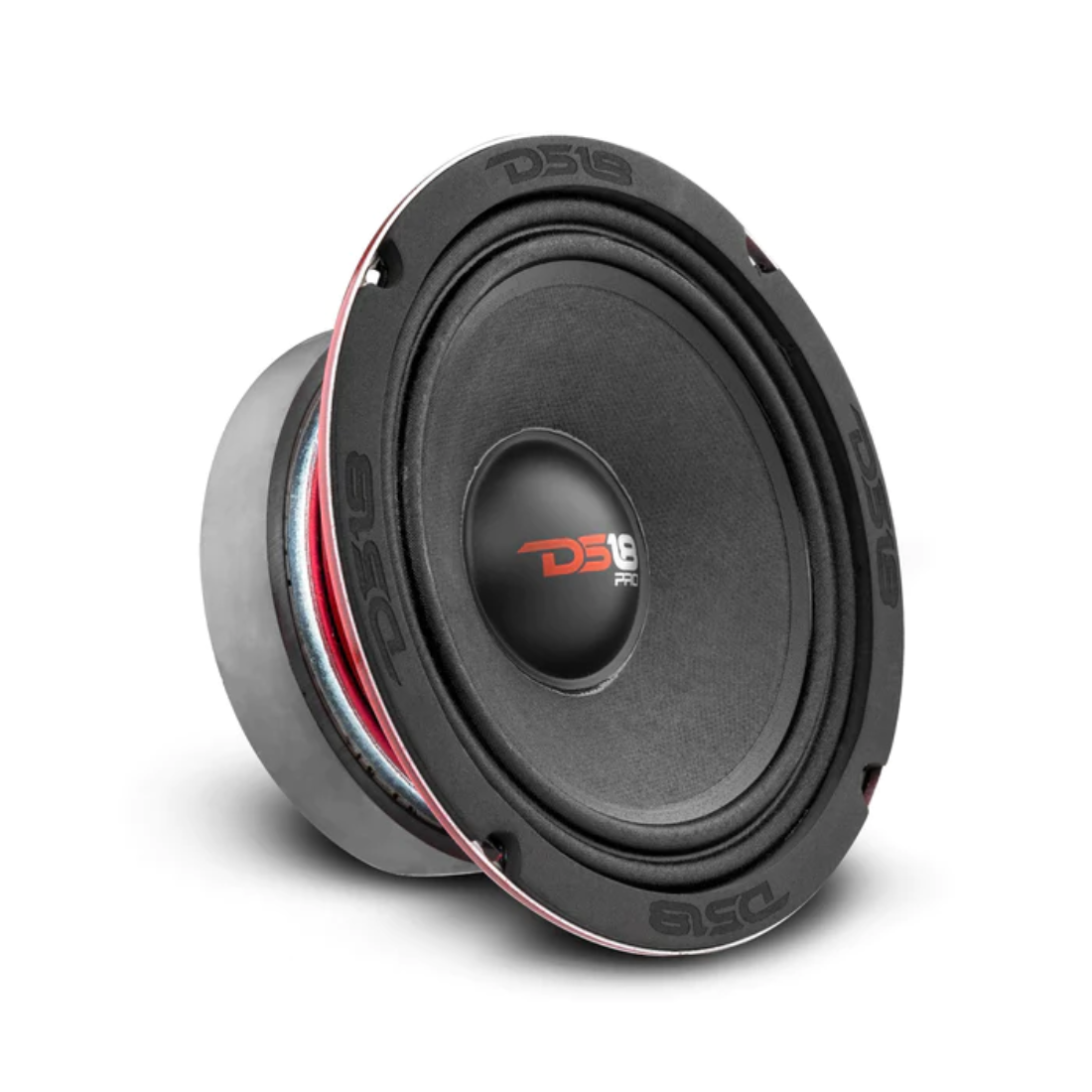

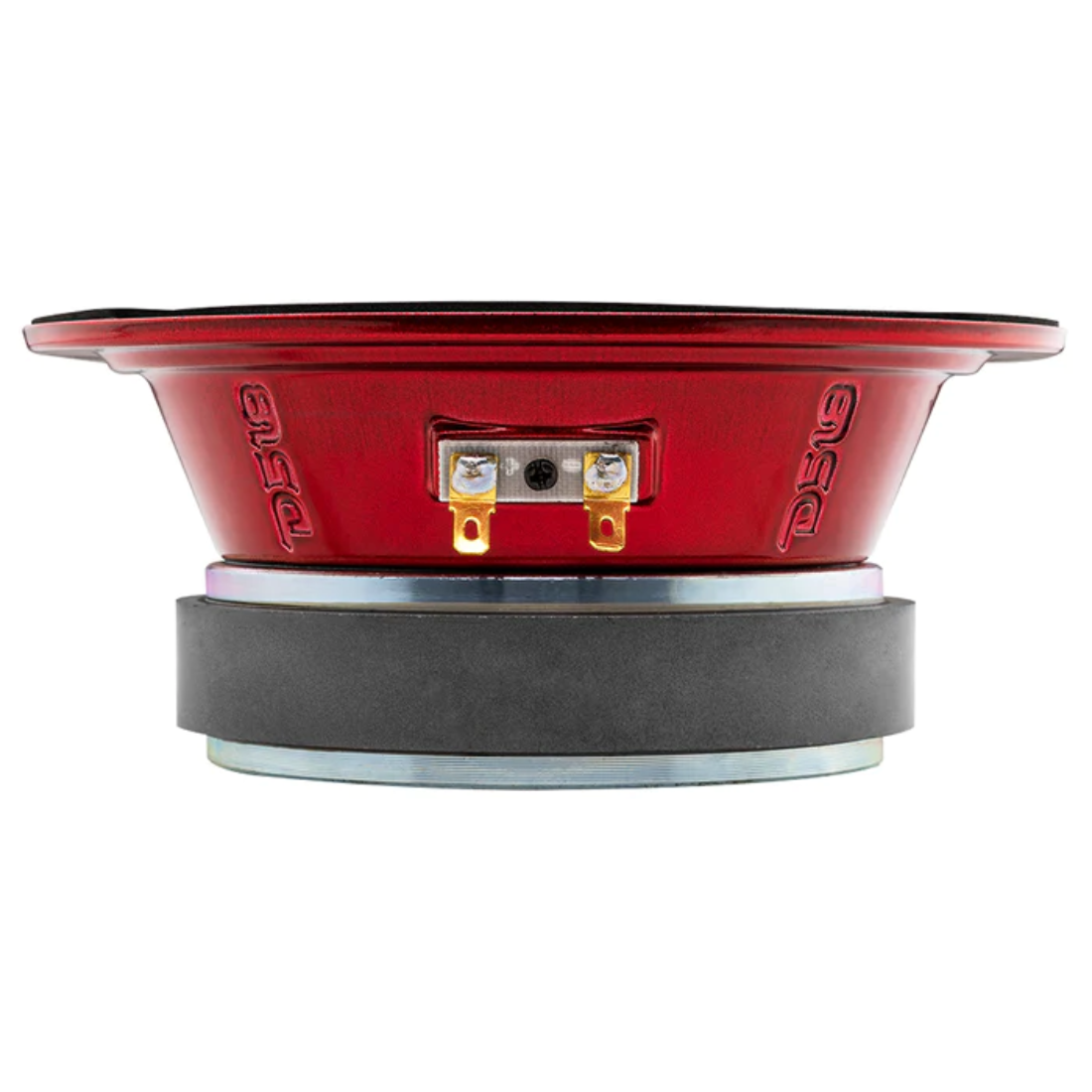

DS18 PRO-X6MSE 6.5" 500W Max 8-Ohms Sealed Back Midrange Car Audio Loudspeaker

Name: DS18 PRO-X6MSE 6.5" 500W Max 8-Ohms Sealed Back Midrange Car Audio Loudspeaker
Brand: DS18
SKU: PRO-X6MSE
Price: 47.95 USD
Availability: InStock

$47.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 PRO-X6MSE

6.5-Inch 500 Watts Max 8-Ohms Sealed Back Midrange Loudspeaker

Key Features:

6.5" Sealed Back Mid-Range
MAX Power: 500 Watts
RMS Power: 250 Watts
Impedance: 8-Ohm
Ferrite Magnet
95dB

Technical Specs:

SKU: PRO-X6MSE
Nominal Diameter: 6.5"
Nominal Impedance: 8 ohms
RMS Power Handling: 225W
Maximum Power Handling: 450W
Sensitivity (1w/1m): 95 dB
Frequency Response: 315-8KHz
Recommended Hi Pass Crossover: 550 Hz
Voice Coil Diameter: 1.5"38.6 mm
Voice Coil Former Material: KAPTON
Winding Material: CCA
Basket Material: Steel
Magnet Weight: 33 oz
Vas: 1.82 L
Xmax: 9 mm
Fs: 511 Hz
Qms: 10.782
Qes: 3.249
Qts: 2.427
Re: 5.1 ohms

Measurements:

Overall Diameter: 6.6"/168 mm
Front Mount Baffle Cutout: 5.7"144 mm
Mounting Depth: 2.63"/67 mm
Overall Depth: 2.83"/72mm
Product Weight: 5.5
Product Dimensions: 7.25 x 7.25 x 3.25
M/C Weight: 43 lbs
M/C Dimensions: 15.25 x 15.25 x 7.5
M/C QTY: 8
Sold In: Piece
