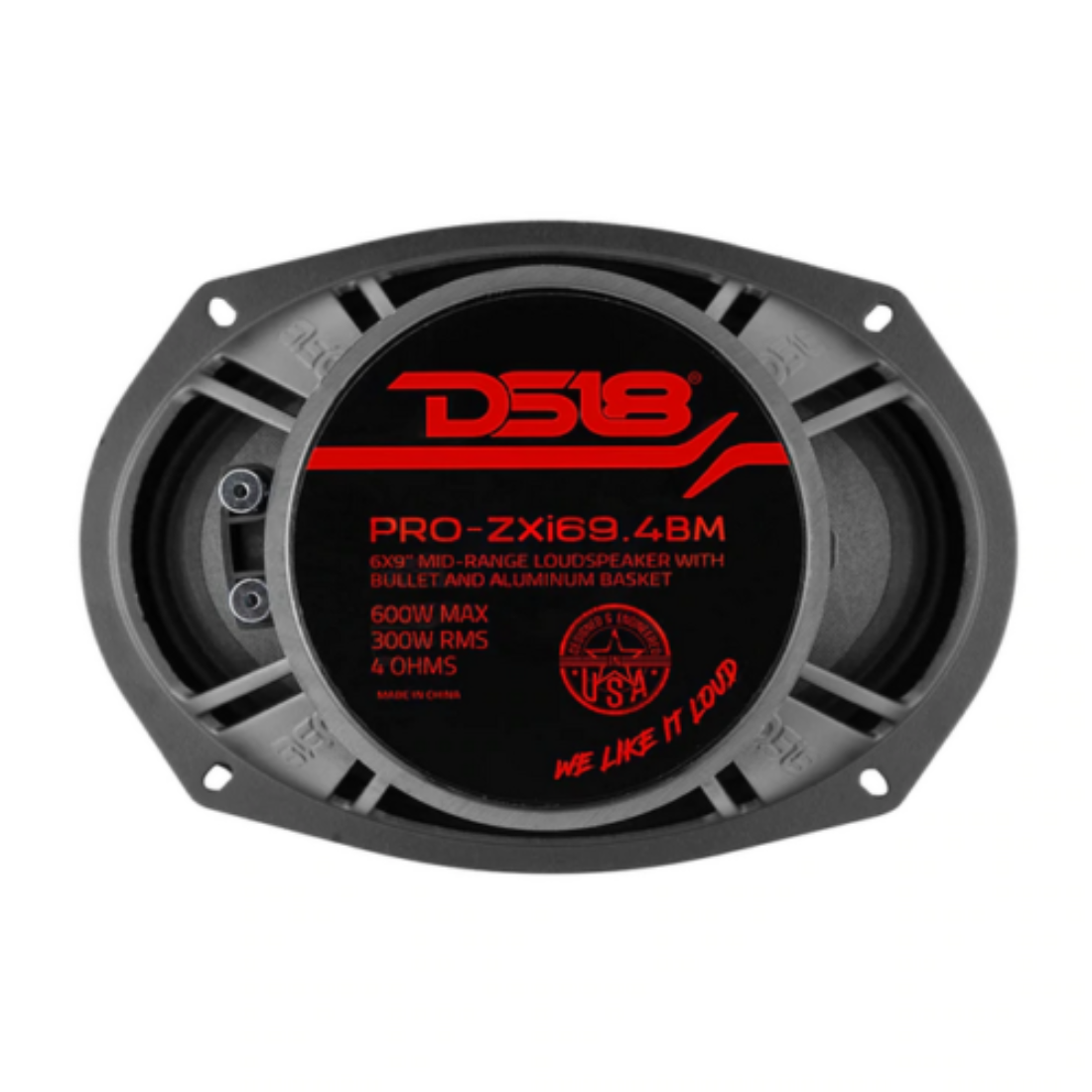

DS18 PRO-ZXI694BM 6" x 9" 600W Max 4-Ohms Car Audio Midrange Bullet Loudspeaker

DS18 PRO-ZXI694BM 6" x 9" 600W Max 4-Ohms Car Audio Midrange Bullet Loudspeaker

Regular price $82.95 USD
Regular price Sale price $82.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 PRO-ZXI694BM

6 x 9-Inch 600 Watts Max 4-Ohms Midrange Bullet Loudspeaker

Key Features:

  • 6 x 9" Mid-Range
  • MAX Power: 600 Watts
  • RMS Power: 300 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnet
  • With Bullet
Specifications:

  • Nominal Diameter: 6x9" / 152.4 x 228.6mm
  • Nominal Impedance: 4 OHMS
  • RMS Power Handing: 300 Watts
  • Maximum Power Handing: 600 Watts
  • Sensitivity (1w/1m): 98dB
  • Frequency Response: 80Hz - 12.5KHz
  • Recommended Hi Pass Crossover: 100 Hz
  • Voice Coil Diameter: 1.5" / 38.6mm
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Basket Material: Aluminum
  • Magnet Weight: 30 + 3 Oz
Thiele & Small Paramters:

  • Vas: 14.9L / 0.5271f
  • Xmax: 7.2mm
  • Fs: 100Hz
  • Qms: 10.64
  • Qes: 0.439
  • Qts: 0.421
  • Re: 3.6 ohms
Measurements:

  • Overall Diameter: 9.43x6.57" / 240x167mm
  • Front Mount Baffle Cutout: 8.74x6" / 222x153mm
  • Mounting Depth: 3.38" / 86mm
  • Overall Depth: 3.7" / 94mm
  • Product Weight: 6 lbs
  • Product Dimensions: 10.25 x 7.25 x 4.25
  • M/C Weight: 49 lbs
  • M/C Dimensions: 21 x 15.25 x 9.5
  • M/C: 8
  • Sold In: Piece
