Regular price $79.95
/
Shipping calculated at checkout.

BRAND NEW

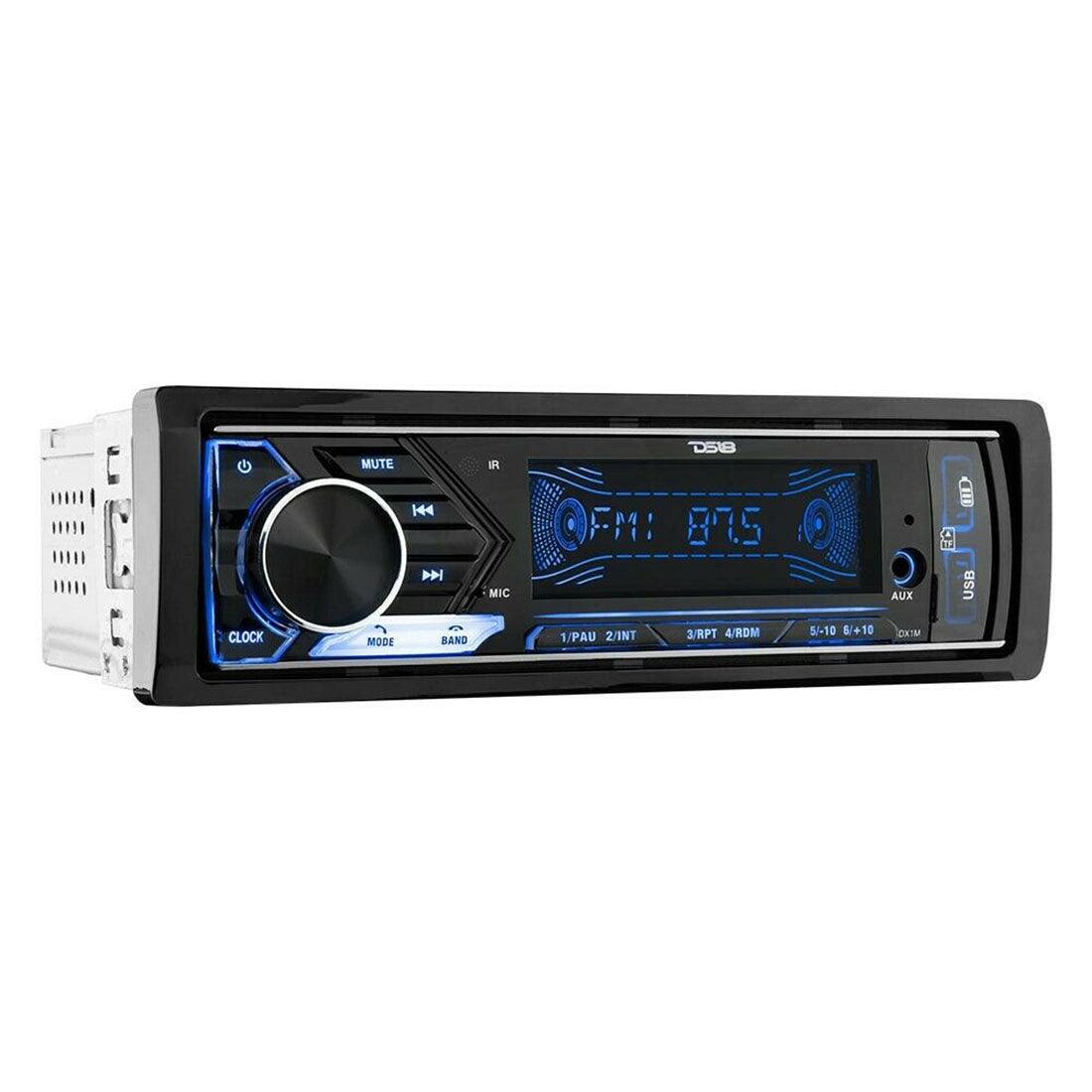

DS18 SDX1M

Single DIN In-Dash Car Stereo Head Unit Mechless Digital Media Receiver with Bluetooth, Dual USB

Key Features:

  • Mechless Single Din USB/BT Receiver
  • Single Din Perfect Fit Mounting
  • FM Radio: 18 Memory Locations
  • Source: USB, SD, BT Reader / Streamer
  • Supported Media Files: MP3, WMA, FLAC, MAV

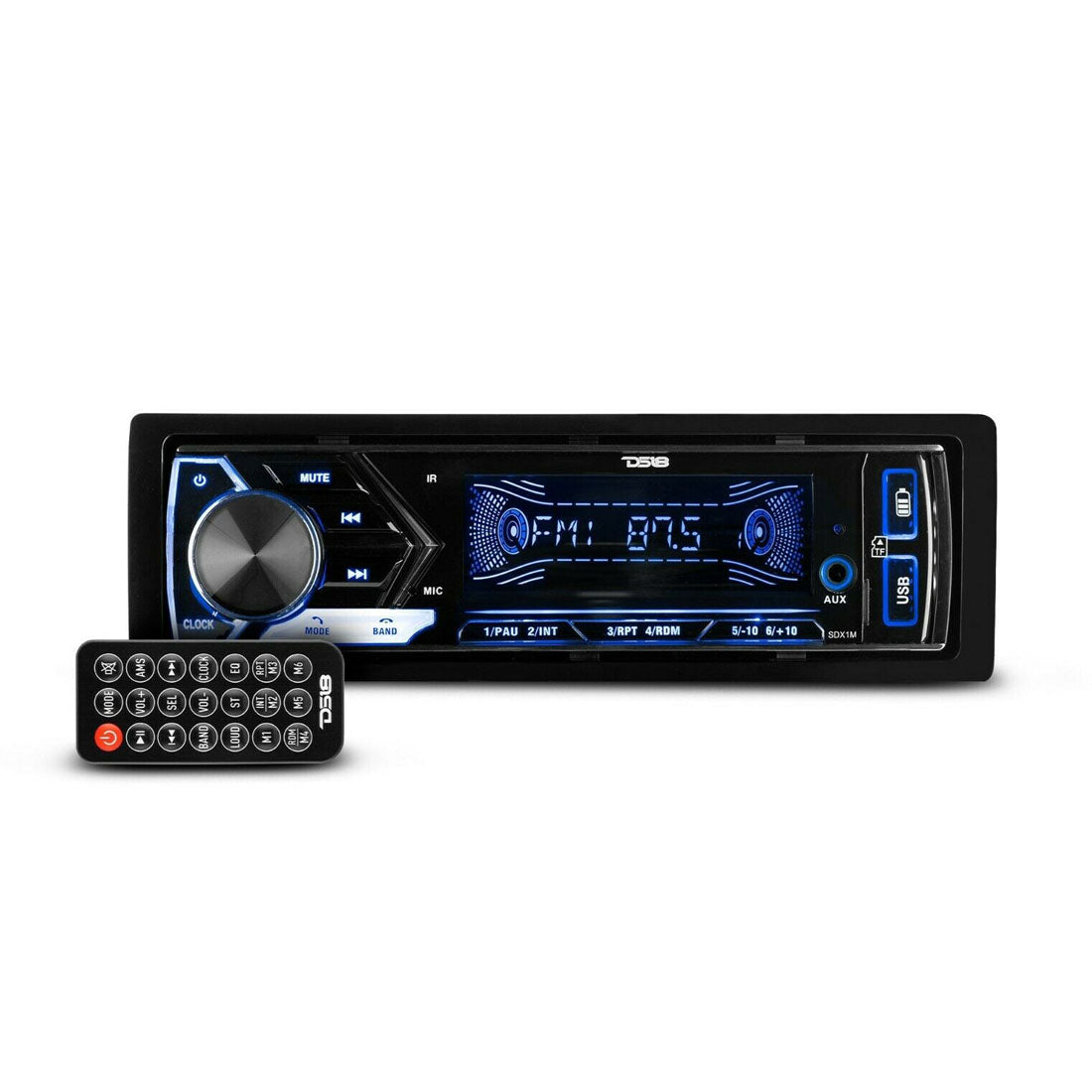

  • Remote control: Infared
  • RGB: 7 Selectable Colors
  • Display: 3" VA White Backlit
  • Power: 50 x 4 Watts Max
  • Equalizer: 2 Bands with Adjustable Bass, Treble, and Subwoofer
  • Pre-amp output: 7v
  • Inputs: USB, SD, BT, Front AUX
Technical Details:

GENERAL
Rated power source: 14.4V DC (11V to 16V operation)
Maximum Current Consumption: 10 Amp
Dimensions (W x H x DI: Chassis: 178mm x 50mm x 150mm
Bezel frame: 188mm x 58mm x 30mm
Weight: 15.9 Oz / 452 grams

DISPLAY
Screen Size: 3” / 75 x 25mm
Display Type: VA LCD
Temperature Operation: -20°C to +60°C (14°F to 140°F)

AUDIO
Maximum Power Output: 50W X 4 Ch @ 4 ohm (14.4v)
Continuos Power Output: 17W x 4 Ch @ 4 ohm (14.4v)
Pre-output Level: 7 Volts (14.4V)
Equalizer: 2 bands (Bass: 60Hz, Treble: 10KHz)
Gain: +/- 7dB
Preset EQ: Jazz / Rock / Pop / Classic
Audio Control: Volume / Balance / Fader / Loudness / Bass / Treble
Subwoofer Control: Vol (0-20) / Cut (80/120/160 Hz)
Signal to Noise Ratio: >60dB
THD: <0.3%
Frequency Response: 20Hz – 20Khz

TUNER
Frequency Range: FM: 87.5 ~ 107.9 KHz
Presets Memory: 18 Stations
Region: North America “USA”
Sensitivity Adjustment: LOC / DX & ST / Mono
Sensitivity: <20dB
Stereo Separation: >25dB

USB / SD PLAYER
Type/Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported: MP3, WMA, FLAC, MAV
Info Display Format: ID3 Tag
Memory Size Reader: Up to 64 Gb
Max Current Supply: 1.5 Amp (Charging USB port)
Number of USB Ports: 2 x Front (1 for Audio / 1 for Charging)
SD Slot: 1 x Front Micro SD

CONNECTIVITTY
Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls
Audio Protoco: A2DP v1.2 Sink (SNK)
Aux input: Front 3.5mm Jack Stereo Audio
Microphone: Built-In Microphone on faceplate
Remote Control: Frontal IR Receptor
