DS18 SMD-200.4AB 4-Channel 150W RMS x 4 @ 4-Ohms Class-AB Full Range Amplifier

DS18 SMD-200.4AB 4-Channel 150W RMS x 4 @ 4-Ohms Class-AB Full Range Amplifier

Regular price $399.95 USD
Regular price Sale price $399.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 SMD-200.4AB

4-Channel 150W RMS x 4 @ 4-Ohms Class-AB Full Range Car Audio Amplifier

Key Features:

  • 4 Channel Stereo Full Range
  • Exclusive SMD Design ~ Class AB
  • 2 - 4 Ohm Stable ~ 4 X 200 Watts @ 2 Ohms RMS
  • VM-1 Voltmeter ~ Fans ~ Input Selector
  • Acrylic Window ~ Digital LED Lighting w/ Remote
  • Bass Knob ~ LED Indicators ~ Made in Korea
Specifications:

  • SKU: SMD-200.4AB
  • RMS Power @ 4 ohm: 150W x 4
  • RMS Power @ 2 ohm: 200W x 4
  • RMS Power @ 1 ohm: N/A
  • RMS Power @ 4 ohm Bridge: 400W x 2
Audio Specs:

  • Operational Voltage: 8.5-16.5v
  • Frequency Response: 10Hz-24KHz
  • Signal to Noise Ratio: >98dB
  • Efficiency @ 4ohm: >62%
  • Damping Factor: 140
  • Input Impedance: 22K ohm
  • Channel Separation: >50dB
  • Total Harmonic Distortion (THD): 0.10%
  • Low Level Input Range: 200mV-6V
  • High Level Input: NO
  • Selectable X-Over: HPF/FULL/LPF
  • X-Over Filter Range: 50Hz-2KHz
  • Bass Boost Range: 0~9dB
  • Bass Boost Frequency: 30Hz-60Hz
  • Phase Selector: 0~180
Features:

  • Amplifier Class: Analog AB
  • Amplifier Type: Stereo Full-Range
  • Number of Channels: 4
  • Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
  • Led Indicator: Power / Protection / Clip
  • Power Input Terminal Size: 4 AWG
  • Recommended Fuse Size (Not Included): 120A
  • Cooling Fan: Yes
  • Thermal Protection: Yes
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes
  • Clipping Protection: Yes
  • Body Color / Finish: Black
  • Input Mode Selectable: Yes (2/4ch)
  • Metal Adjustment Knobs with Click Position: Yes
  • Professional Tiffany RCA Connectors: Yes
  • Remote Level Knob with Clip indicator: Yes (Metal Case)
  • Reliable Heavy-Duty Korean Board Design: Yes
  • High-Power Class AB Circuit Design: Yes
  • Exclusive SMD design with VM-1 Voltmeter: Yes
  • Front Acrylic Window and Digital RGB Lighting: Yes

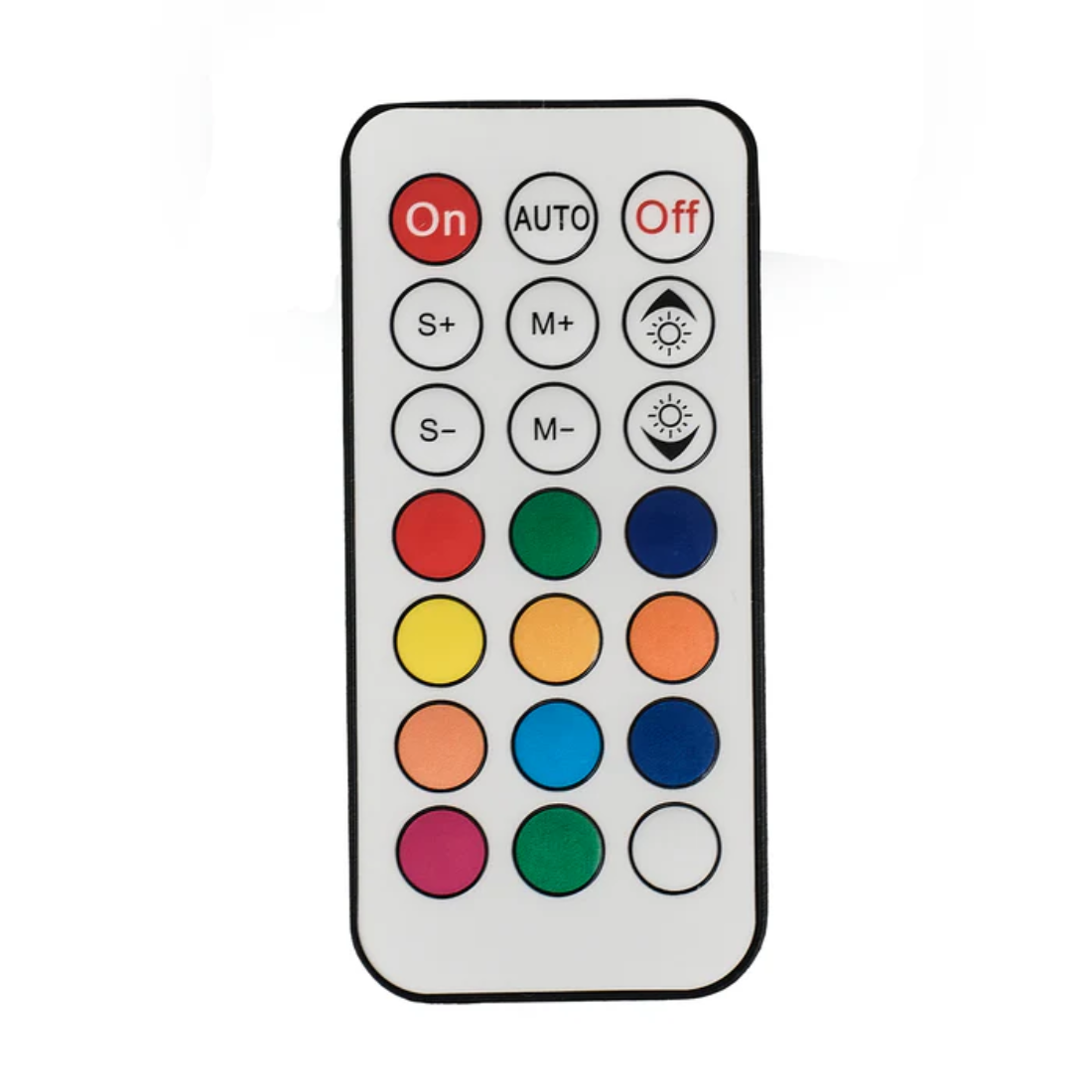

  • IR Remote Control for LED patterns and colors: Yes
Measurement:

  • Overall Length: 11" / 282mm
  • Overall Width: 9.15" / 232mm
  • Overall Height: 3" / 76mm
  • Heatsink Length: 9.4" / 240mm
  • Gross Single Unit Weight: 7.2Lb / 3.3Kg
