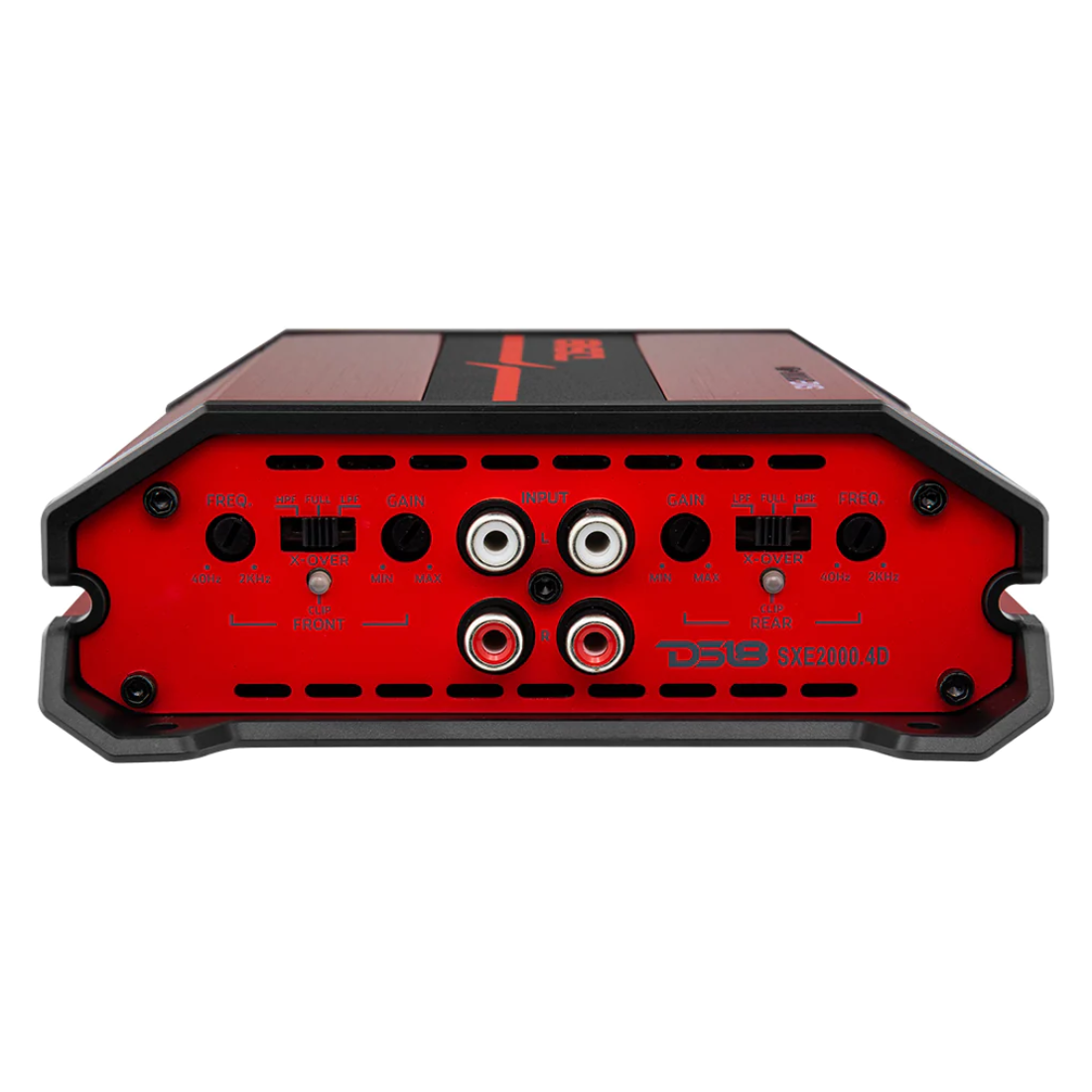

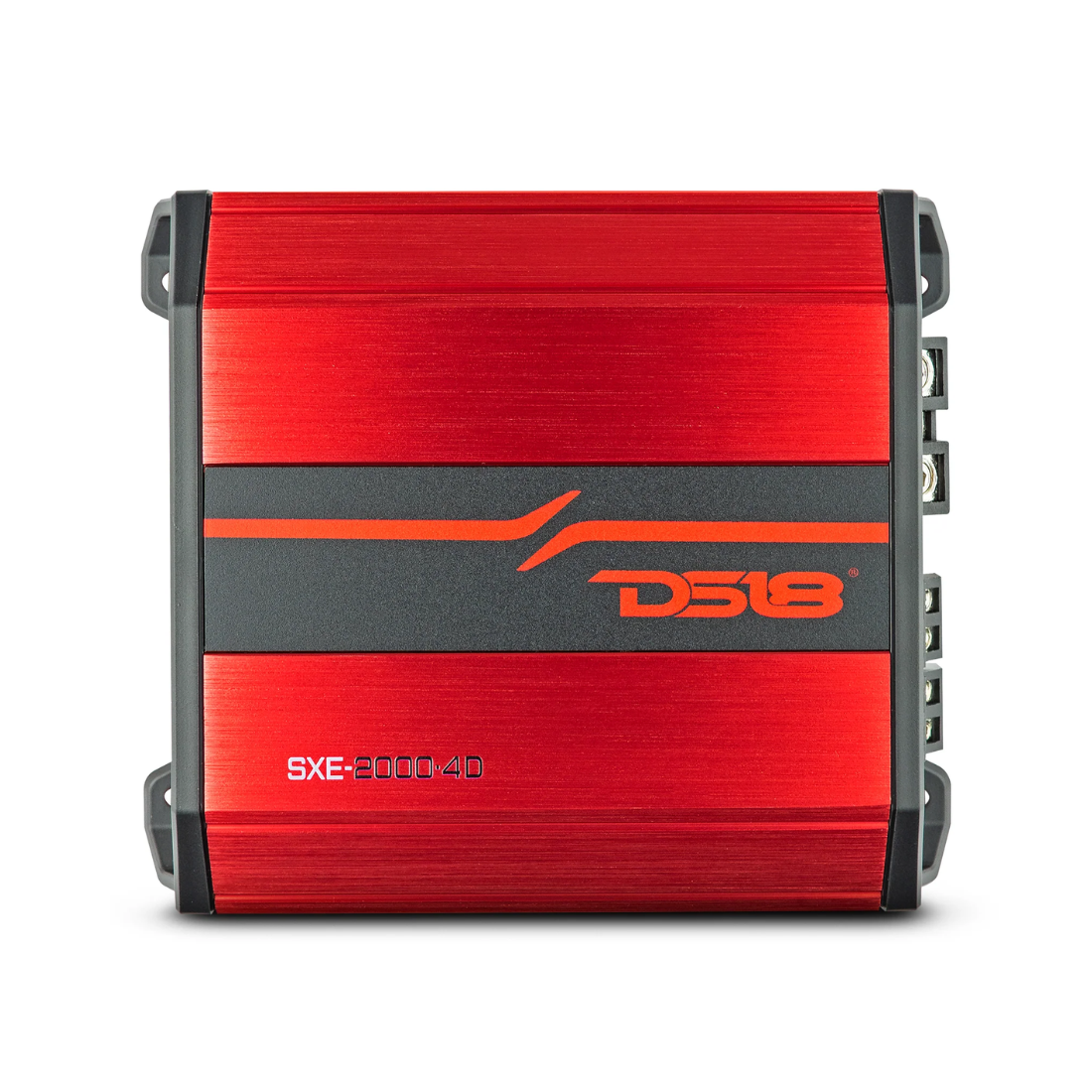

DS18 SXE-2000.4D/RD 4-Channel 2000W Peak Class-D Full-Range Car Amplifier (RED)

Name: DS18 SXE-2000.4D/RD 4-Channel 2000W Peak Class-D Full-Range Car Amplifier (RED)
Brand: DS18
SKU: SXE-2000.4D/RD
Price: 199.95 USD
Availability: InStock

$199.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 SXE-2000.4D (RED)

4-Channel 2000 Watts Peak Class-D Full-Range Amplifier

Key Features:

Amplifier Class: Digital (D)
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator: Power/Protect/Clip

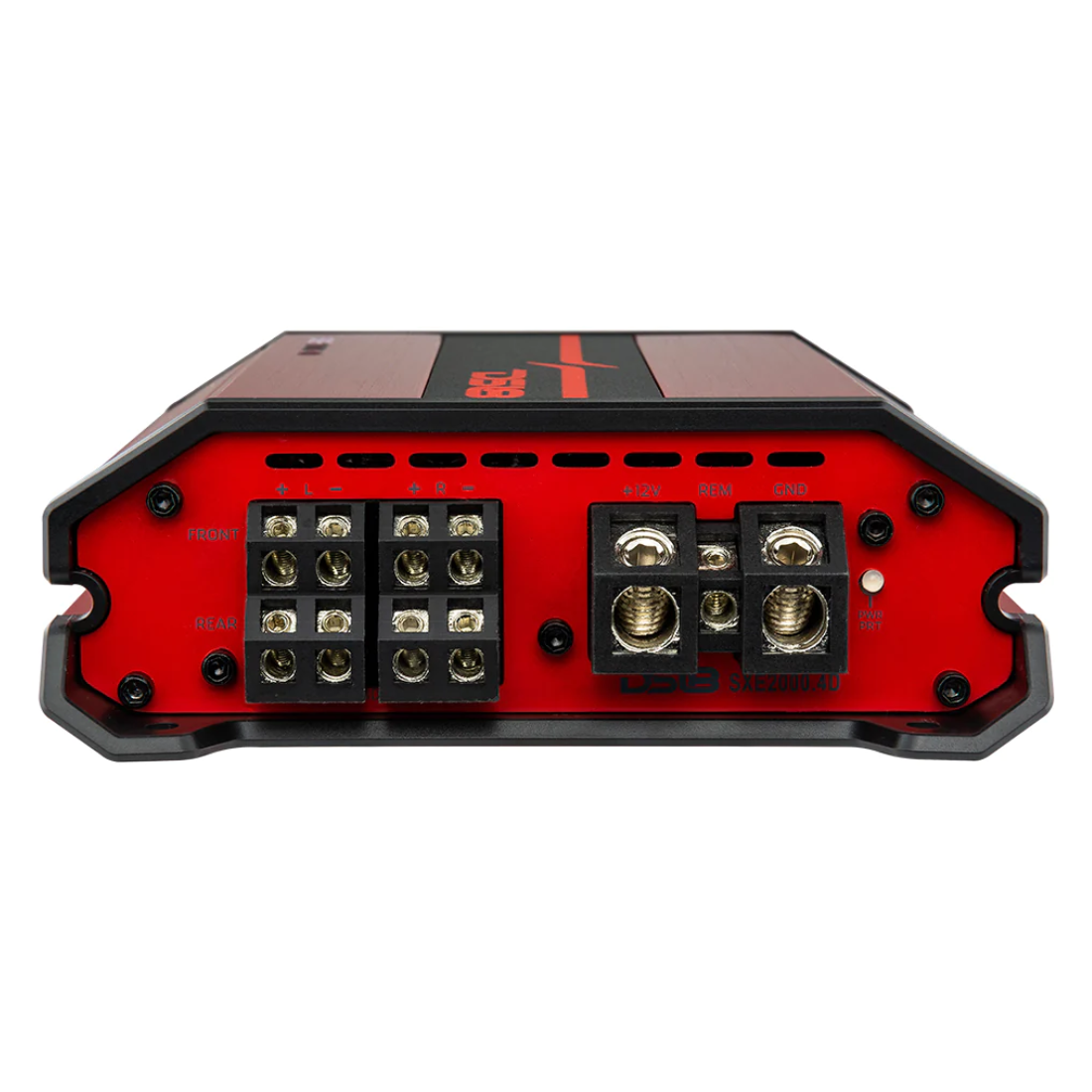

Power Input Terminal Size: 4Ga
Fuse Size: 1 x 40A (40A)
Remote Level Control: No
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (16.5v)
Clipping Protection: Yes
Body Color / Finish: Red / Black Brushed Aluminum

Specifications:

Total Watts (Peak): 2000W
RMS Power @ 4 Ohm: 4 x 100W
RMS Power @ 2 Ohm: 4 x 160W
RMS Power @ 1 Ohm: N/A
RMS Power @ 4 Ohm Bridge: 2 x 320W

Audio Features:

Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 90dB
Efficiency @ 4ohm: 90%
Damping Factor: 200
Input Impedance: 20kΩ
Channel Separation: 60dB
Total Harmonic Distortion (THD): 0.10%
Low-Level Input Range: 200mV-5V
High-Level Input: No
Selectable X-Over: HPF/FULL/LPF
X-Over Filter Range: 40HZ-2KHZ
Bass Boost Range: No
Bass Boost Frequency: No
Infrasonic Filter: No
Phase Selector: No

Measurement:

Overall Length: 6.4" / 164.3mm
Overall Wide: 5.5" / 140mm
Overall Height: 1.8" / 48mm
Heatsink Length: 5" / 127mm

Extra Features:

Compact Size to Easy Installation for Any Applications: Yes

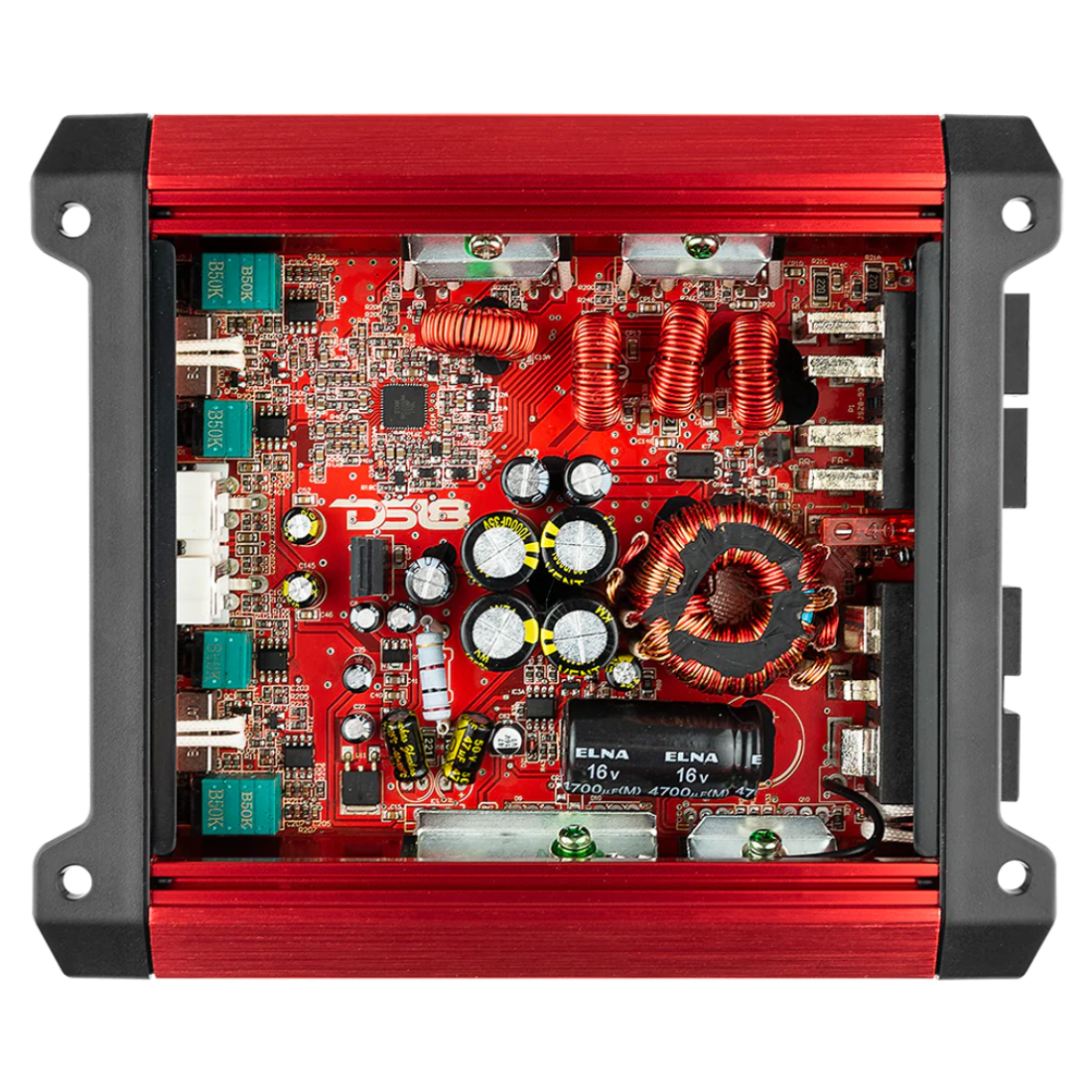

Stable/Reliable Two or Four-Layer Traces PCB Design: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
Remote Level Control with Clip Indicator: No
