DS18 SXE-4000.4D/RD 4000W Peak 4-Channel Class-D Full Range Car Amplifier (RED)

DS18 SXE-4000.4D/RD 4000W Peak 4-Channel Class-D Full Range Car Amplifier (RED)

Regular price $284.95 USD
Regular price Sale price $284.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 SXE-4000.4D (RED)

SXE Series | 4000 Watts Peak 4-Channel Class-D Full Range Car Audio Amplifier

Key Features:

  • Compact size for easy installation anywhere

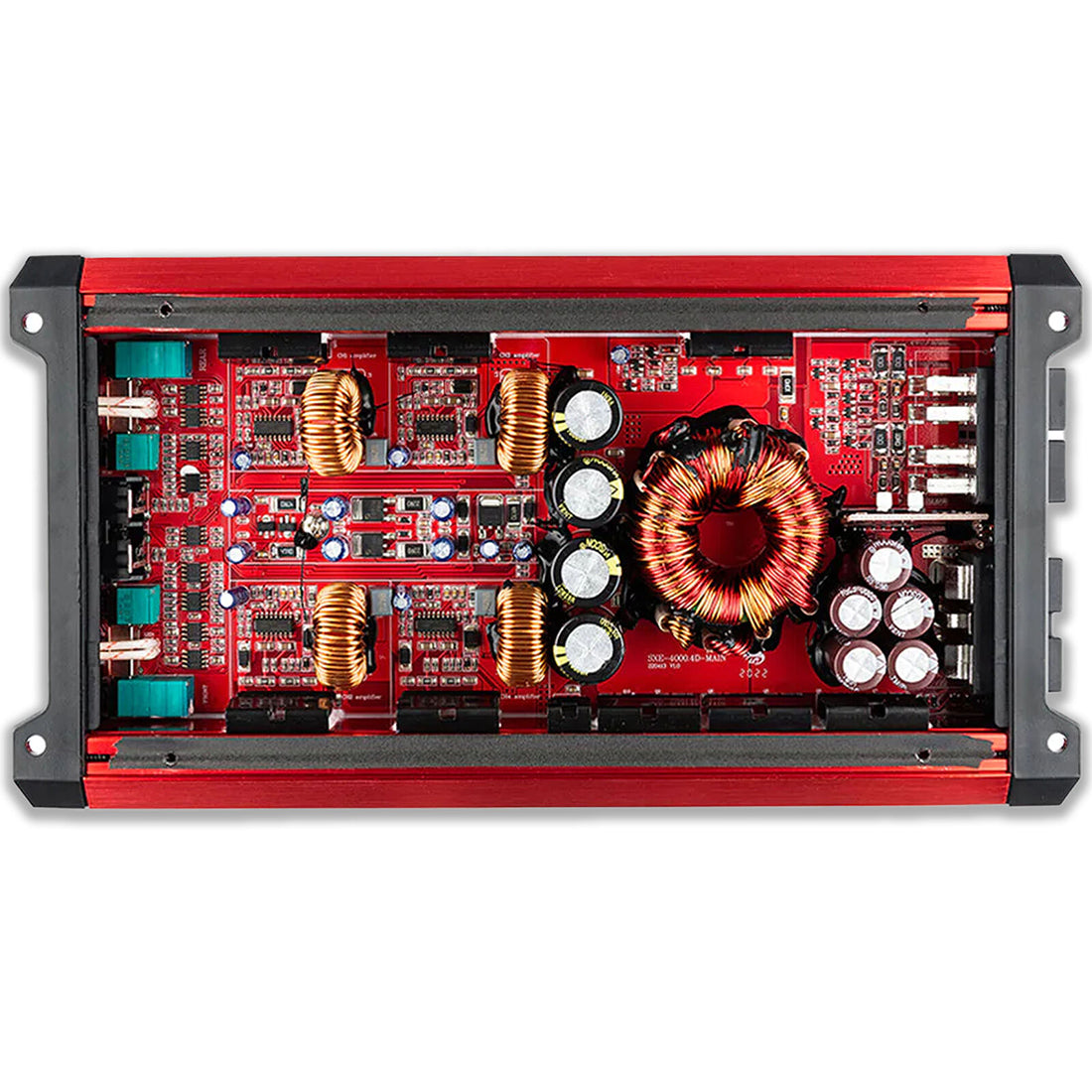

  • Stable Two or Four Layer-Traced PCB Design
  • Audio Precision Quality Control Verification

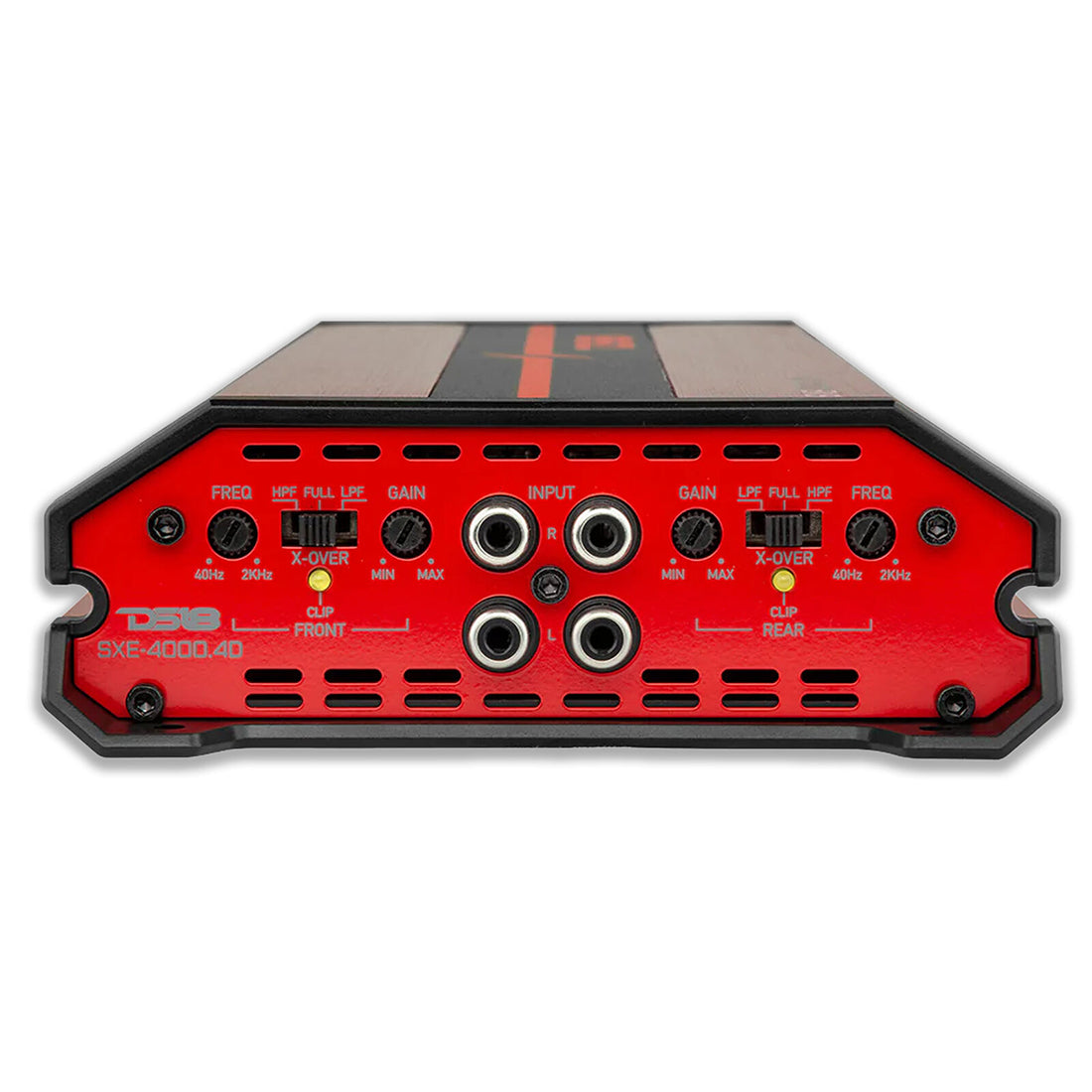

  • Full Adjustable HP/LP @ 12dB/oct Crossover
  • Various Forms of Electronic Protection
Specifications:

  • Amplifier Class: Digital (D)
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 4
  • Minimum Impedance: 2 Ohms Stereo / 4 Ohms Bridge
  • Led Indicator: Power/Protect/Clip
  • Power Input Terminal Size: 4 Ga
  • Fuse Size: External fuse
  • Remote Level Control: /
  • Cooling Fan: /
  • Voltmeter: /
  • Thermal Protection: Yes (80℃)
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (16.5v)
  • Clipping Protection: Yes
  • Body Color / Finish: Red / Black Brushed Aluminum
  • Total Watts (Peak): 4000W
  • RMS Power @ 4 ohms: 4 x 275W
  • RMS Power @ 2 ohms: 4 x 430W
  • RMS Power @ 1 ohm : /
  • RMS Power @ 4 ohms Bridge: 2 x 750W
  • Frequency Response: 10Hz-20KHz
  • Signal to Noise Ratio: 90dB
  • Efficiency @ 4 ohms: 86%
  • Damping Factor: 140
  • Input Impedance: 20kΩ
  • Channel Separation: 45dB
  • Total Harmonic Distortion (THD): 0.05%
  • Low-Level Input Range: 200mV-5V
  • High-Level Input: /
  • Selectable X-Over: HPF/FULL/LPF
  • X-Over Filter Range: 40Hz-2KHz
  • Bass Boost Range: /
  • Bass Boost Frequency: /
  • Infrasonic Filter: /
  • Phase Selector: /
  • Overall Length: 10.6" / 269mm
  • Overall Wide: 5.5" / 140mm
  • Overall Height: 1.8" / 48mm
  • Heatsink Length: 9.1" / 232mm
  • Gross Single Unit Weight: 2.05Kg
