DS18

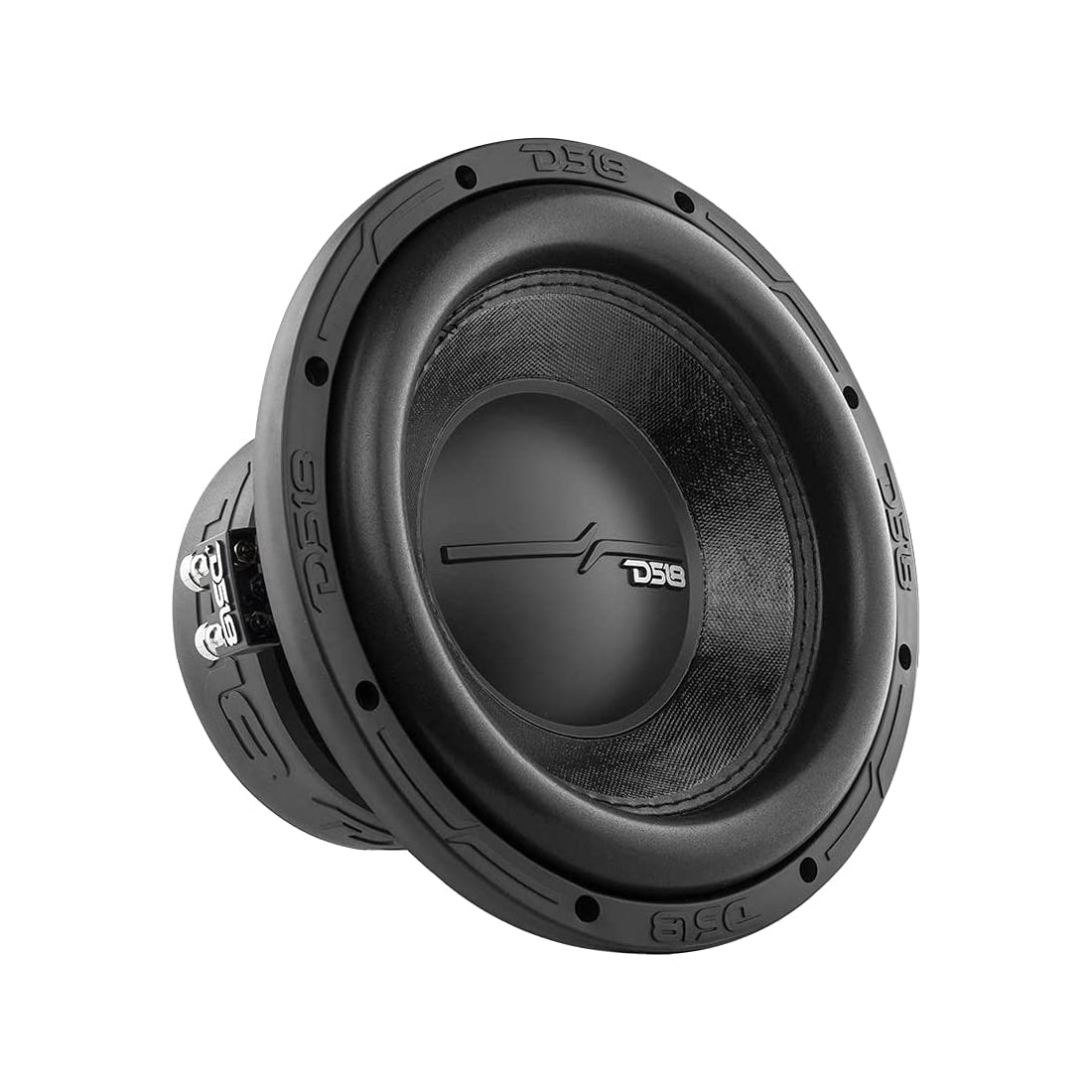

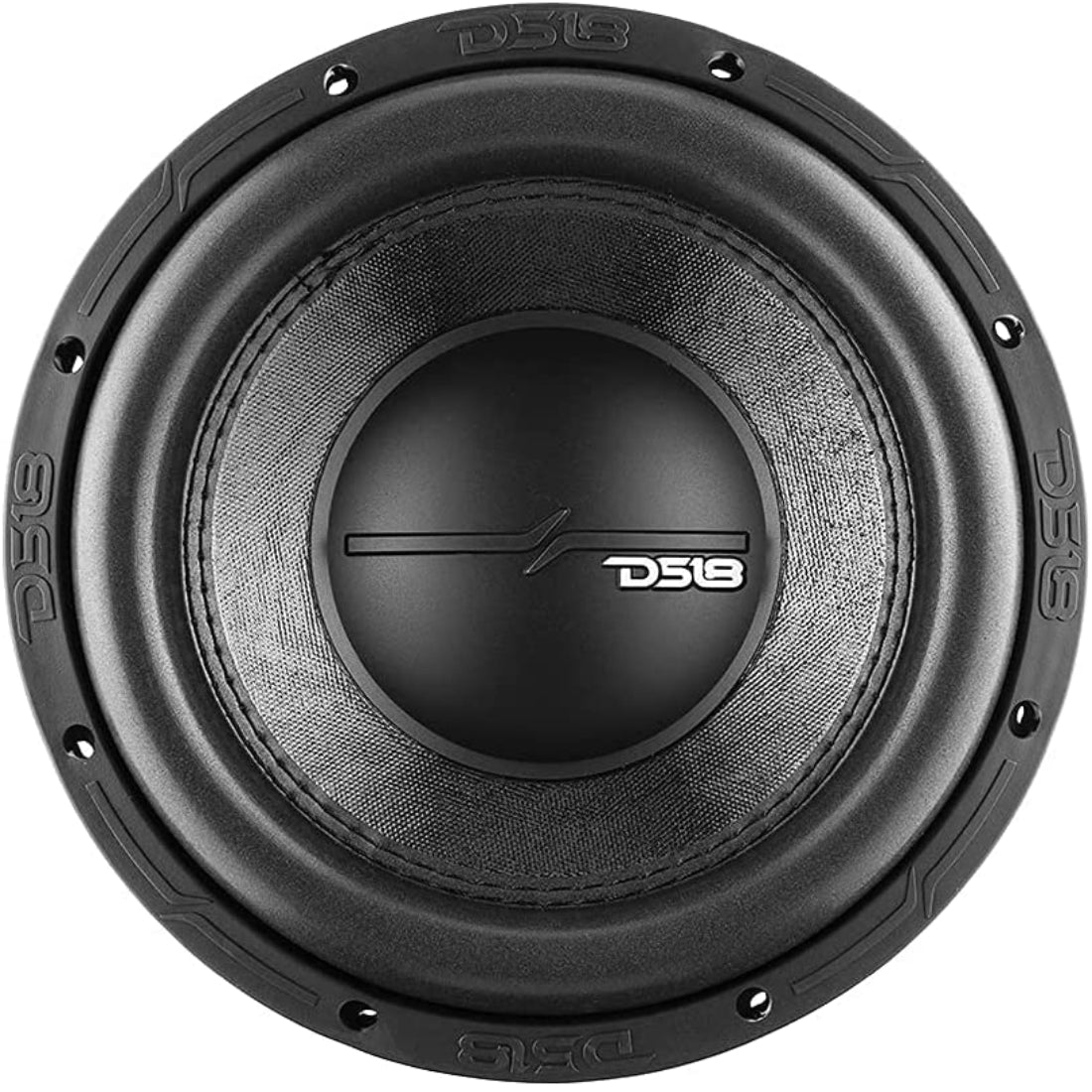

DS18 ZR10.2D 10" 1400 W Max Dual 2 Ohm Voice Coil DVC Stereo Car Audio Subwoofer

DS18 ZR10.2D 10" 1400 W Max Dual 2 Ohm Voice Coil DVC Stereo Car Audio Subwoofer

Regular price $179.95 USD
Regular price Sale price $179.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 ZR10.2D

ELITE-Z 10-Inch 1400 Watts Max Dual Voice Coil DVC 2-Ohm Car Stereo Subwoofer

Key Features:

  • Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
  • Great power handling of 700w RMS and 1400w max through a high strength 2.5-inch aluminum voice coil.
  • Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high-quality push terminal connectors.
  • Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.
General Specifications:

  • Nominal Diameter 10"
  • Nominal Impedance 2+2 OHMS
  • RMS Power Handling 750W
  • MAX Power Handling 1400W
  • Sensitivity (1w/1m) 81 dB
  • Frequency Response 25Hz - 200 Hz
  • Recommended Lo Pass Crossover 100 Hz
Motor Specifications:

  • Voice Coil Diameter 2.5" / 61.6mm
  • VC Former Material Aluminum
  • Winding Material Copper
  • Cone Material Non Pressed Paper
  • Dust Cap Material PPI
  • Surround Material Foam
  • Basket Material Steel
  • Basket Color/Finish Matte Black
  • Magnet Material Ferrite
  • Magnet Weight 100 oz
  • Displacement Volume 0.05 ft3
Thiele & Small Parameters:

  • Equivalent Volume 8.18 L
  • Excursion (one way) 25mm
  • Free Air Resonance 37Hz
  • Mechanical Factor 4.86
  • Electrical Factor 0.93
  • Total Factor 0.78
  • Moving Mass 216.3g
  • Compliance 52.8µ m/N
  • BL Factor 10.7
  • Voice Coil Inductance 823.5m mH
  • Cone Area 333.29 Cm2
  • DC Resistance 3.4 + 3.4 ohm
  • Efficiency Bandwidth Product 39.78
Measurements:

  • Overall Diameter 10.31” / 262mm
  • Overall Depth 6.92" / 176mm
  • Front Mount Baffle Cutout 9" / 229mm
  • Mounting Depth 6" / 152.3mm
  • Motor Diameter 6.1" / 155mm
