BRAND NEW
DS18 ZR1000.1D
1-Channel Monoblock 3000 Watts Peak 1-4 Ohm Stable Class-D Amplifier
Key Features:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1000 Watts @ 1 Ohm
- Clip/Protection Indicator
- Bass Control Knob
Specifications:
- SKU: ZR1000.1D
- Total Watts (Peak): 3000W
- RMS Power @ 4 Ohm: 380W
- RMS Power @ 2 Ohm: 650W
- RMS Power @ 1 Ohm: 1000W
- Amplifier Class: Digital
- Amplifier Type: Monoblock Subwoofer
- Number of Channels: 1
- Minimum Impedance: 1 Ohm
- Led Indicator: Clipping/protect/power
- Power Input Terminal Size: 4 GA
- Fuse Size: 100 A

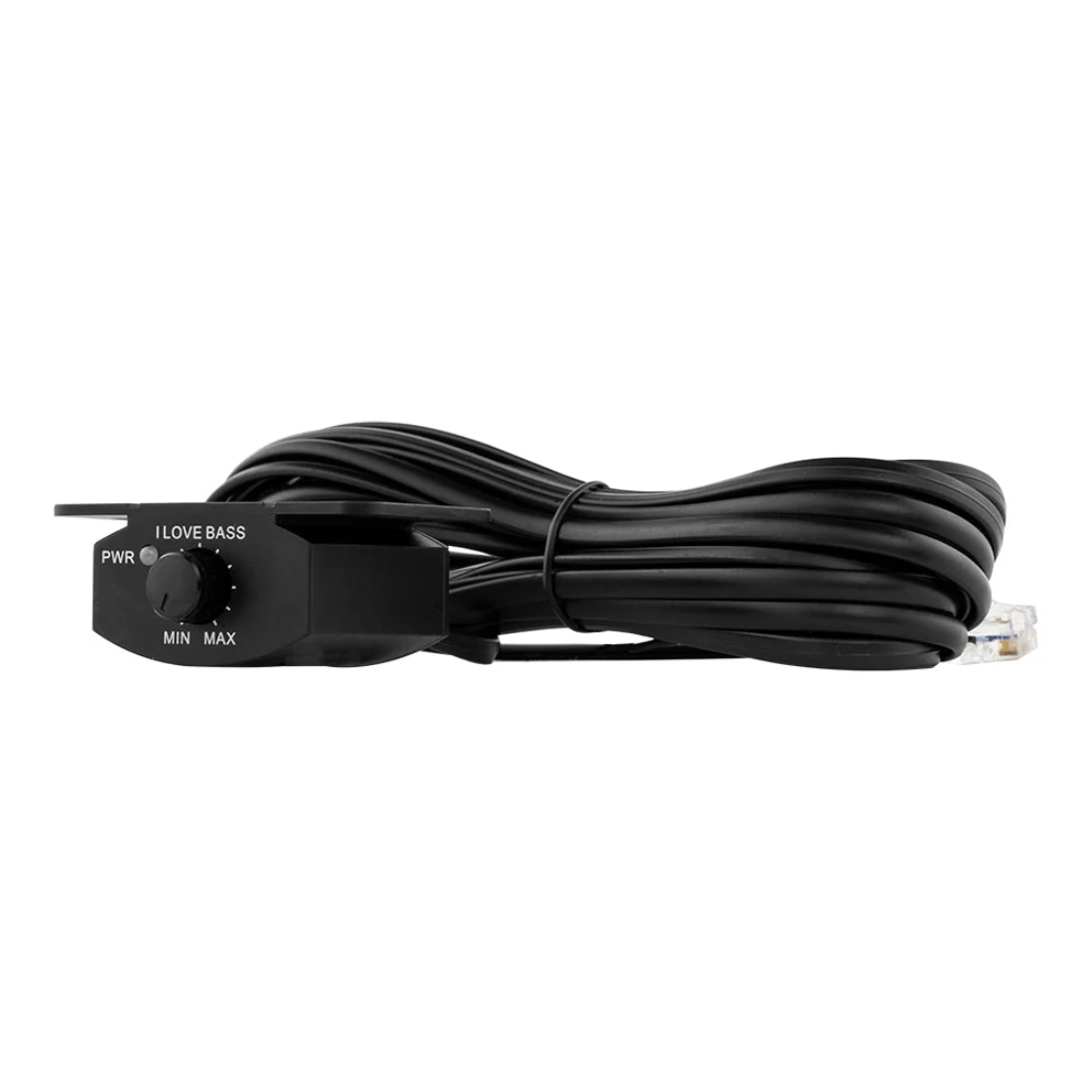

- Remote Level Control: Yes / Dash Mount
- Cooling Fan: No
- Voltmeter: No
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes <9 / >16 Volts
- Clipping Protection: Yes
- Body Color / Finish: Black Aluminum Brush
Audio Specs:
- Frequency Response: 10-220Hz
- Signal to Noise Ratio: >95dB
- Efficiency @ 4 Ohm: 80%
- Damping Factor: 220
- Input Impedance: 20K ohm
- Channel Separation: N/A
- Total Harmonic Distortion (THD): 0.01%
- Low Level Input Range: 0.2-6V
- High Level Input: No
- Selectable X-Over: LPF Fixed
- X-Over Filter Range: 40-180Hz
- Bass Boost Range: 0-12db
- Bass Boost Frequency: 30-80hz
- Infrasonic Filter: 10-50hz
- Phase Selector: No
Measurement:
- Overall Length: 11.8" / 301mm
- Overall Width: 7.24" / 184mm
- Overall Height: 2" / 53mm
- Heatsink Length: 10.47" / 266mm
- Gross Single Unit Weight: 5.8 lbs
