BRAND NEW
DS18 ZR500.1D

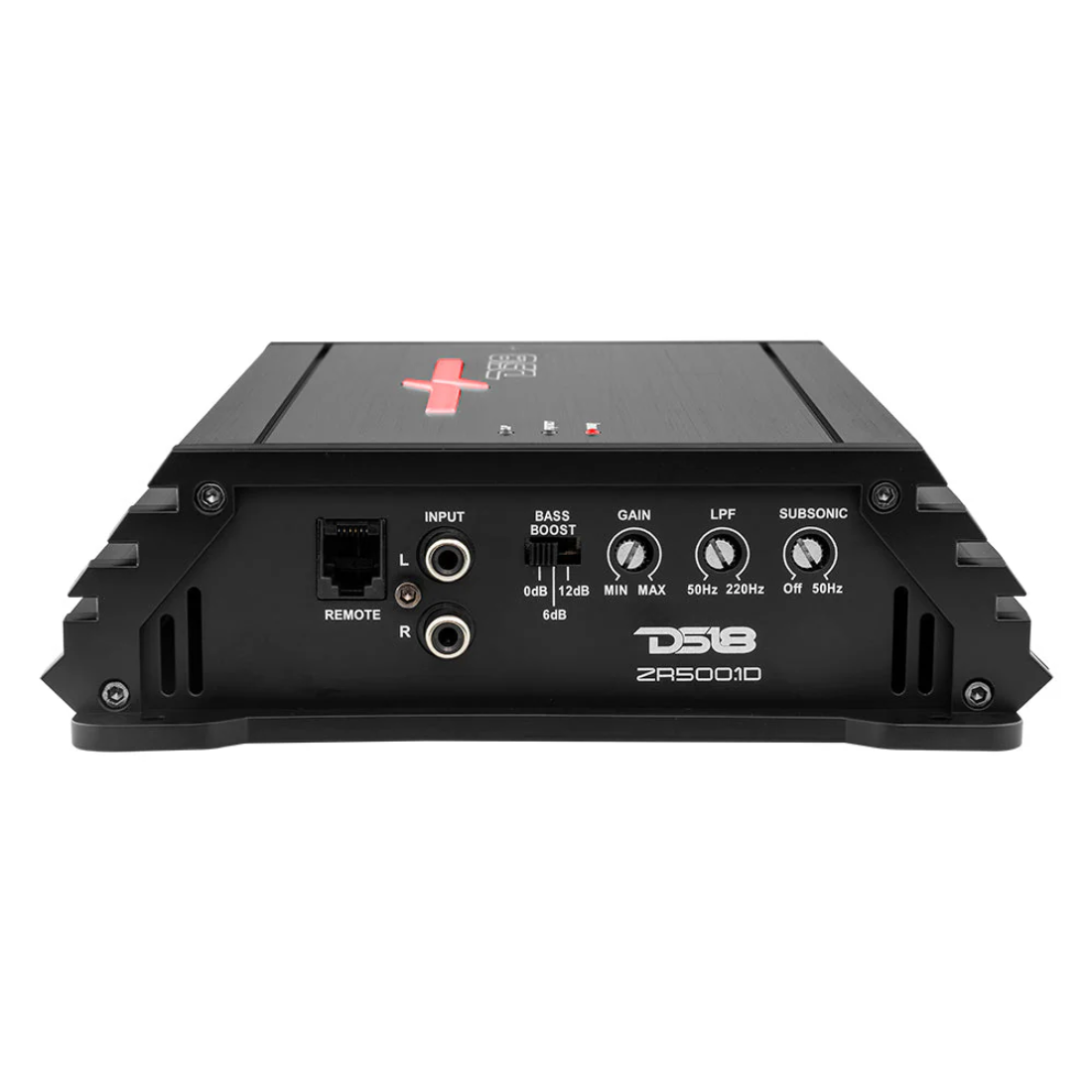

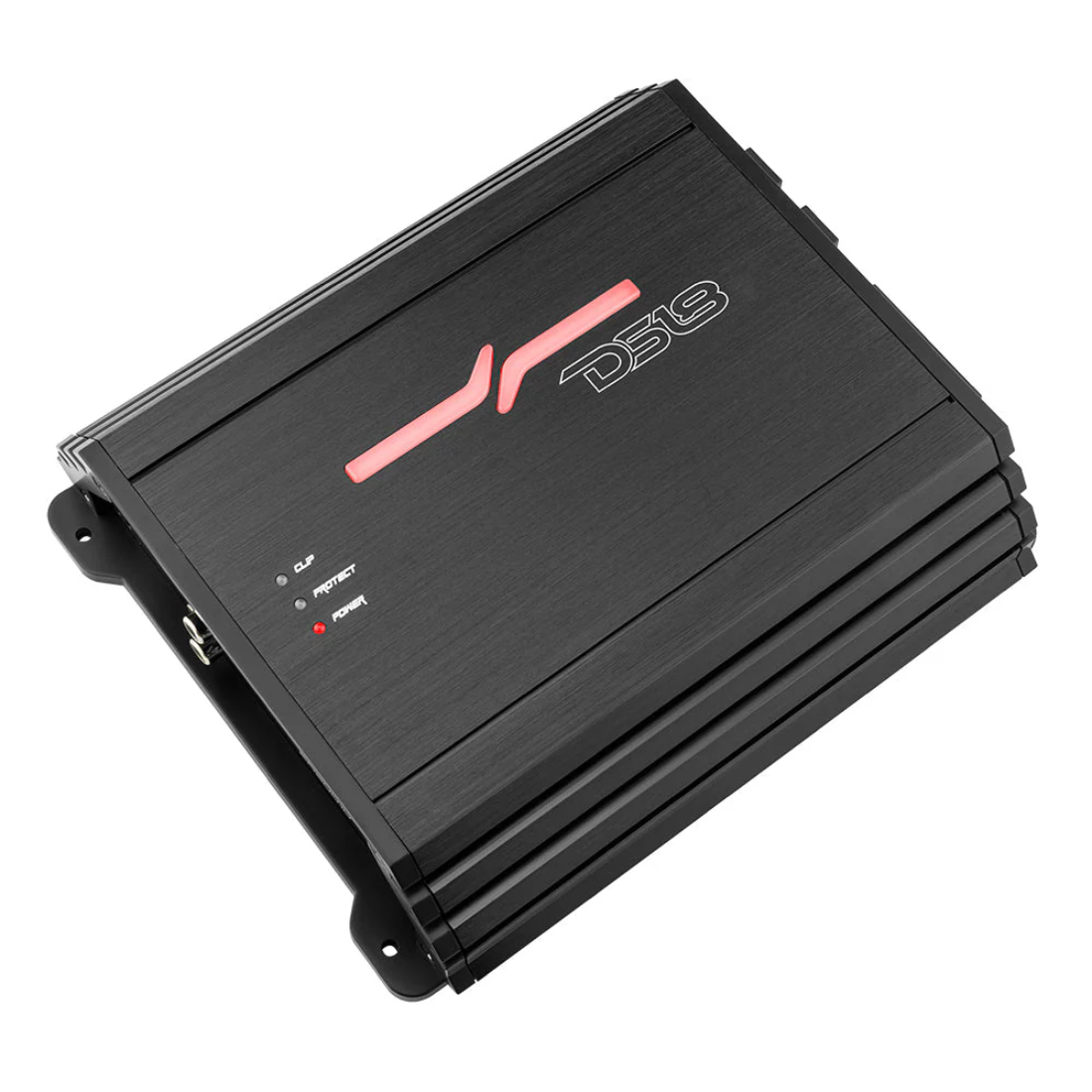

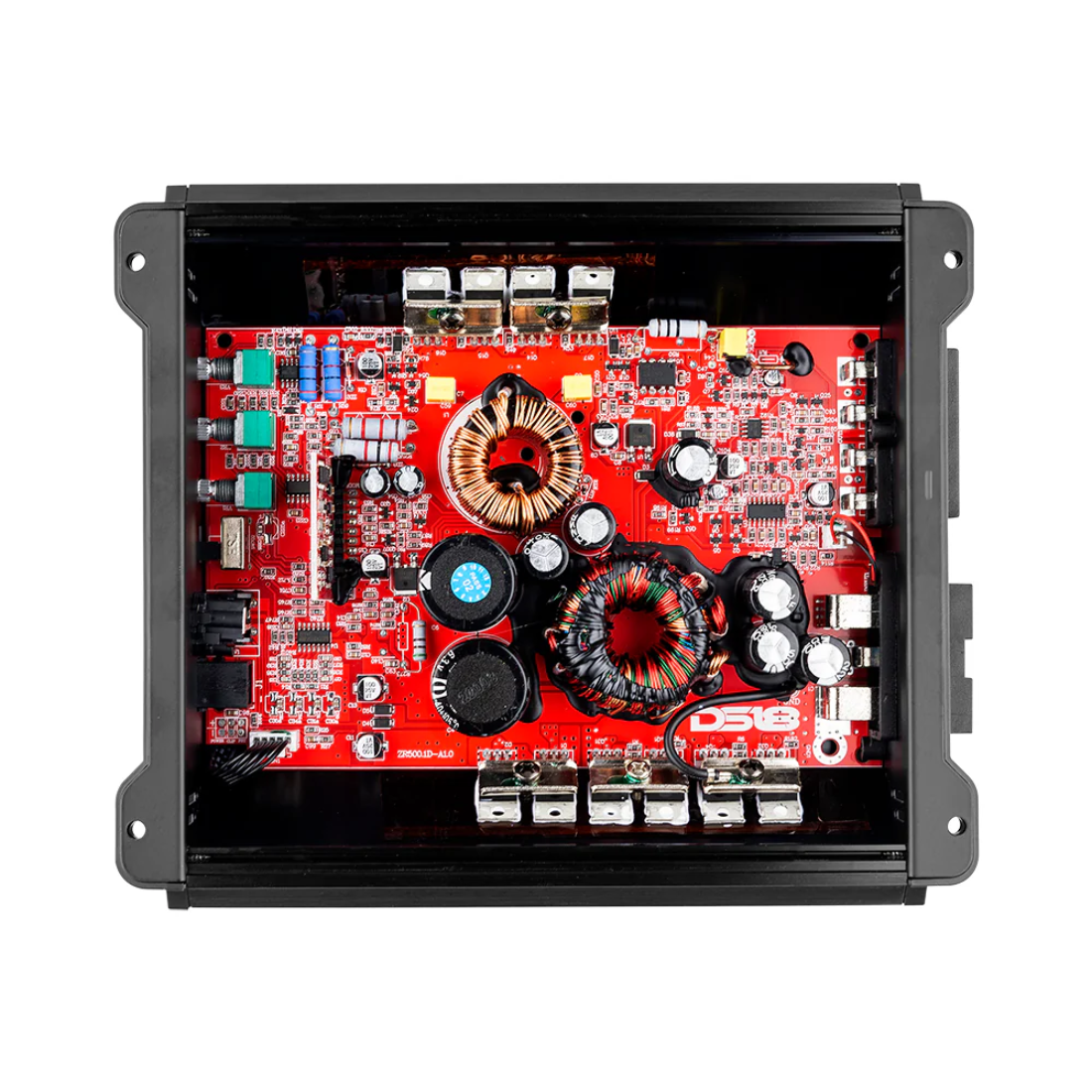

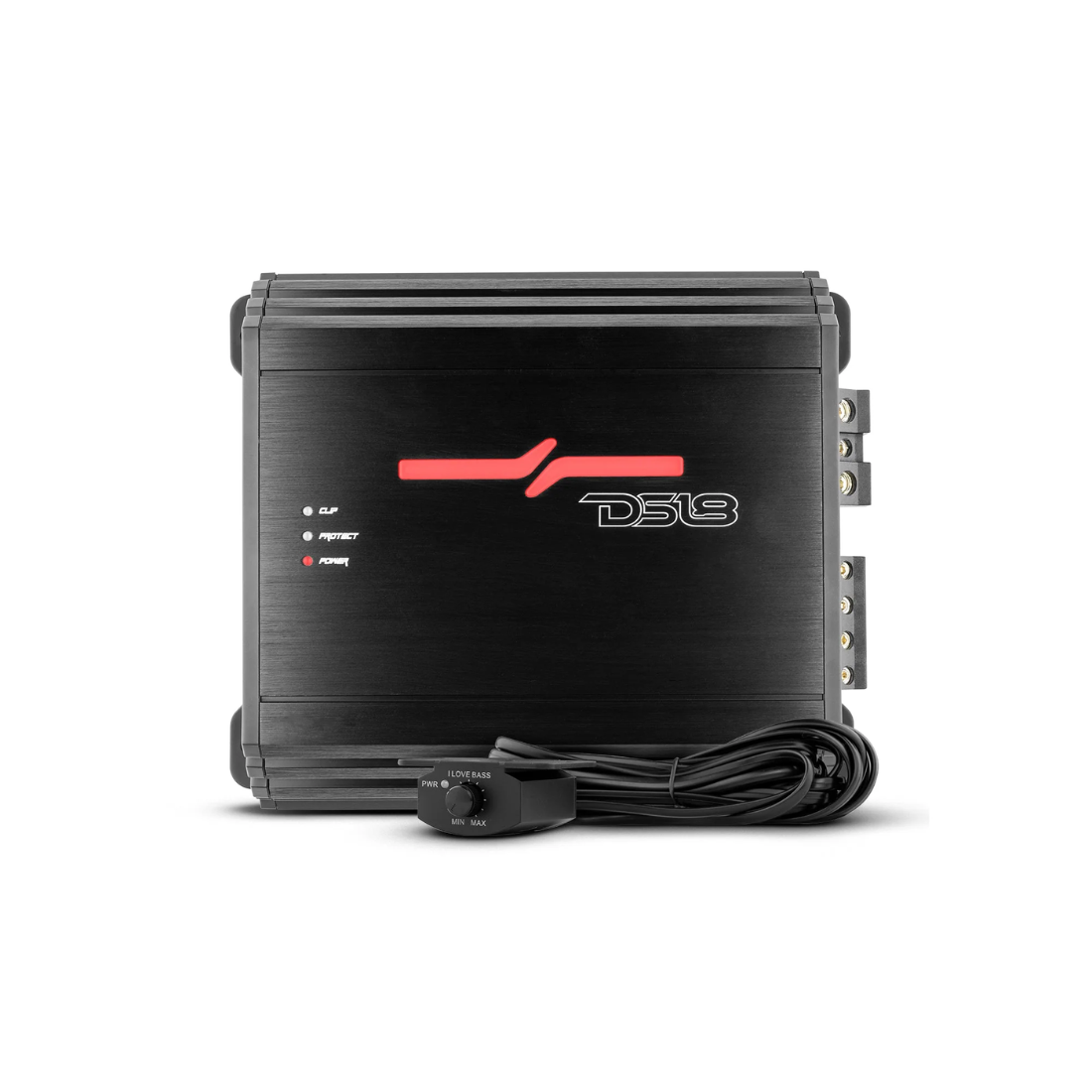

1-CH Monoblock 1500 Watts Peak 1-4 Ohm Stable Class-D Car Amplifier
Key Features:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 500 Watts @ 1 Ohm
- Clip/Protection Indicator
- Bass Control Knob
Specifications:
- SKU: ZR500.1D
- Total Watts (Peak): 1500W
- RMS Power @ 4 Ohm: 200W
- RMS Power @ 2 Ohm: 300W
- RMS Power @ 1 Ohm: 500W
- Amplifier Class: Digital
- Amplifier Type: Monoblock Subwoofer
- Number of Channels1
- Minimum Impedance: 1 Ohm
- Led Indicator: Clipping/protect/power

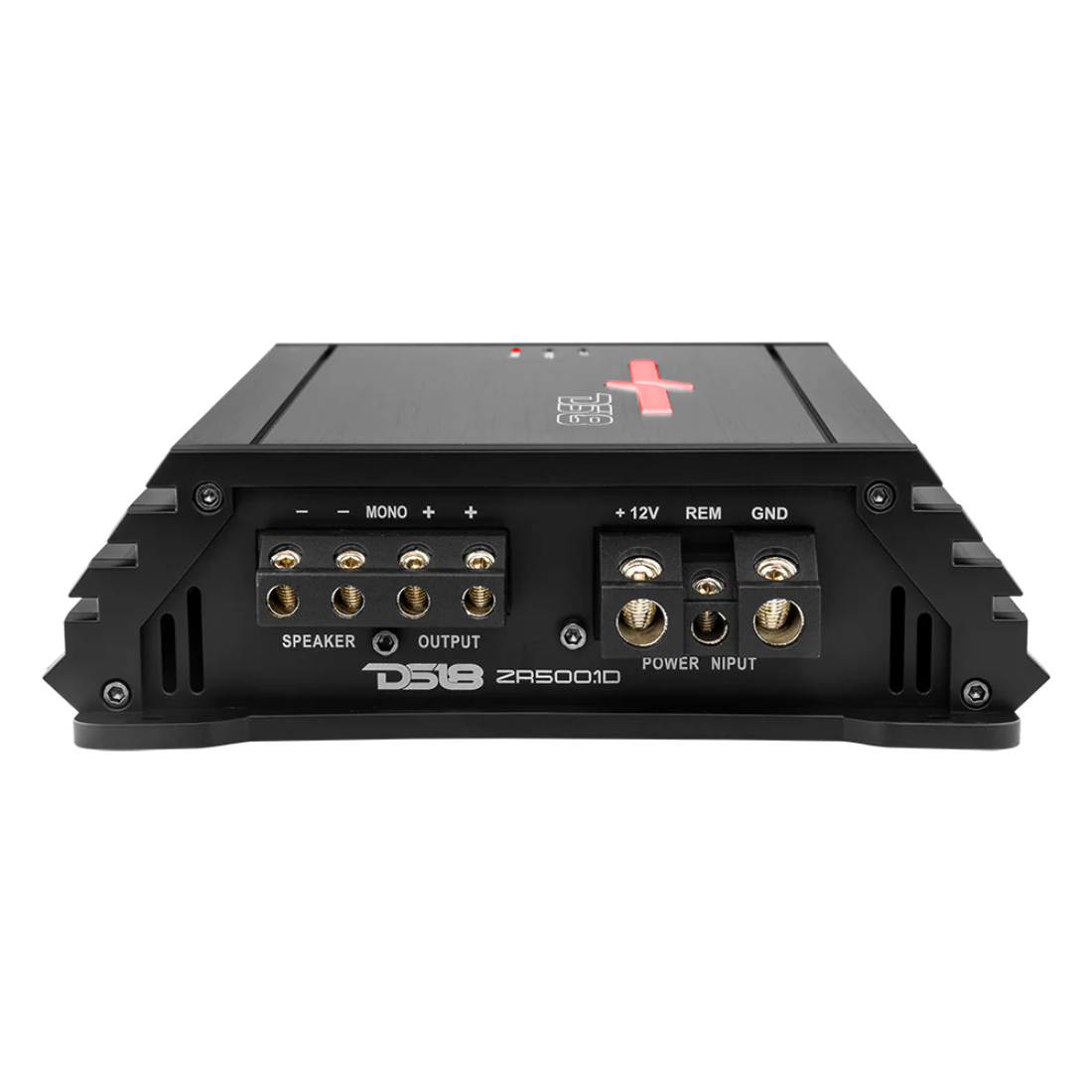

- Power Input Terminal Size: 4 GA
- Fuse Size: 60 A

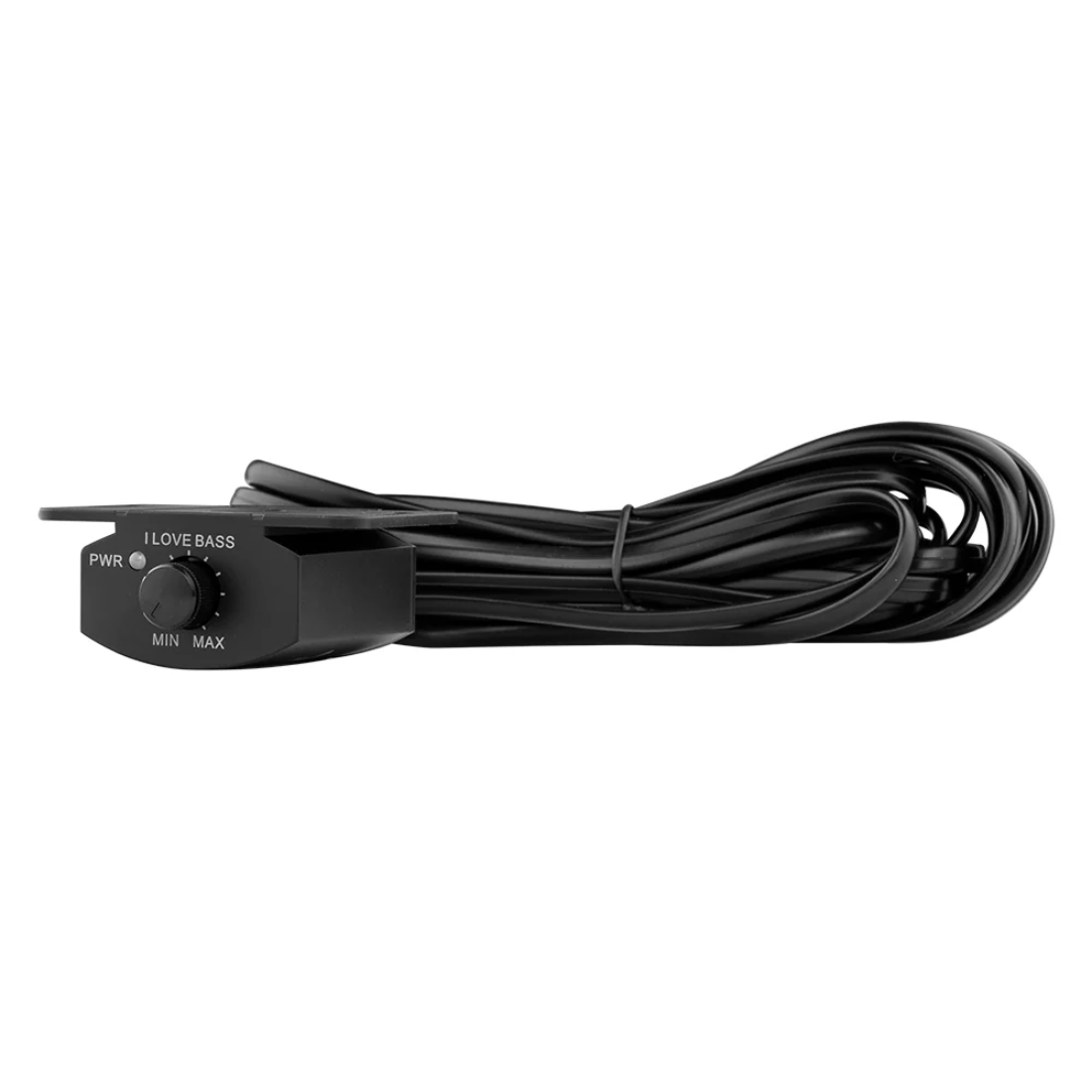

- Remote Level Control: Yes / Dash Mount
- Cooling Fan: No
- Voltmeter: No
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes <9 / >16 Volts
- Clipping Protection: Yes
- Body Color / Finish: Black Aluminum Brush
Audio Features:
- Frequency Response: 10-220Hz
- Signal to Noise Ratio: >95dB
- Efficiency @ 4 Ohm: 85%
- Damping Factor: 160
- Input Impedance: 20K ohm
- Channel Separation: N/A
- Total Harmonic Distortion (THD): 0.01%
- Low-Level Input Range: 0.2-6V
- High-Level Input: No
- Selectable X-Over: LPF Fixed
- X-Over Filter Range: 50-220Hz
- Bass Boost Range: 0/6/12dB
- Bass Boost Frequency: 45Hz
- Infrasonic Filter: 10-50Hz
- Phase Selector: No
Measurement:
- Overall Length: 8.46" / 215mm
- Overall Wide: 7.24" / 184mm
- Overall Height: 2" / 53mm
- Heatsink Length: 7" / 180mm
- Gross Single Unit Weight: 3.15Lb
