BRAND NEW

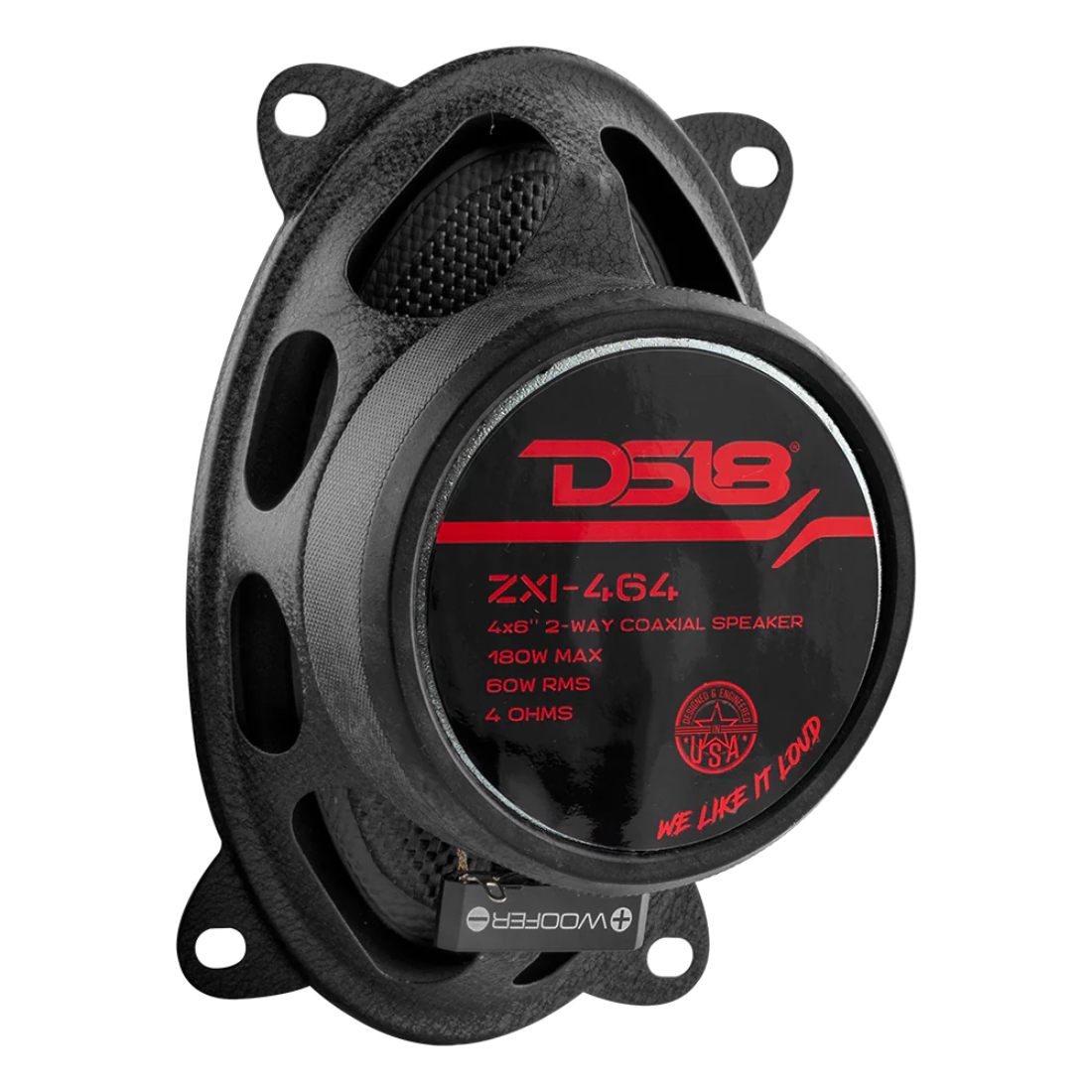

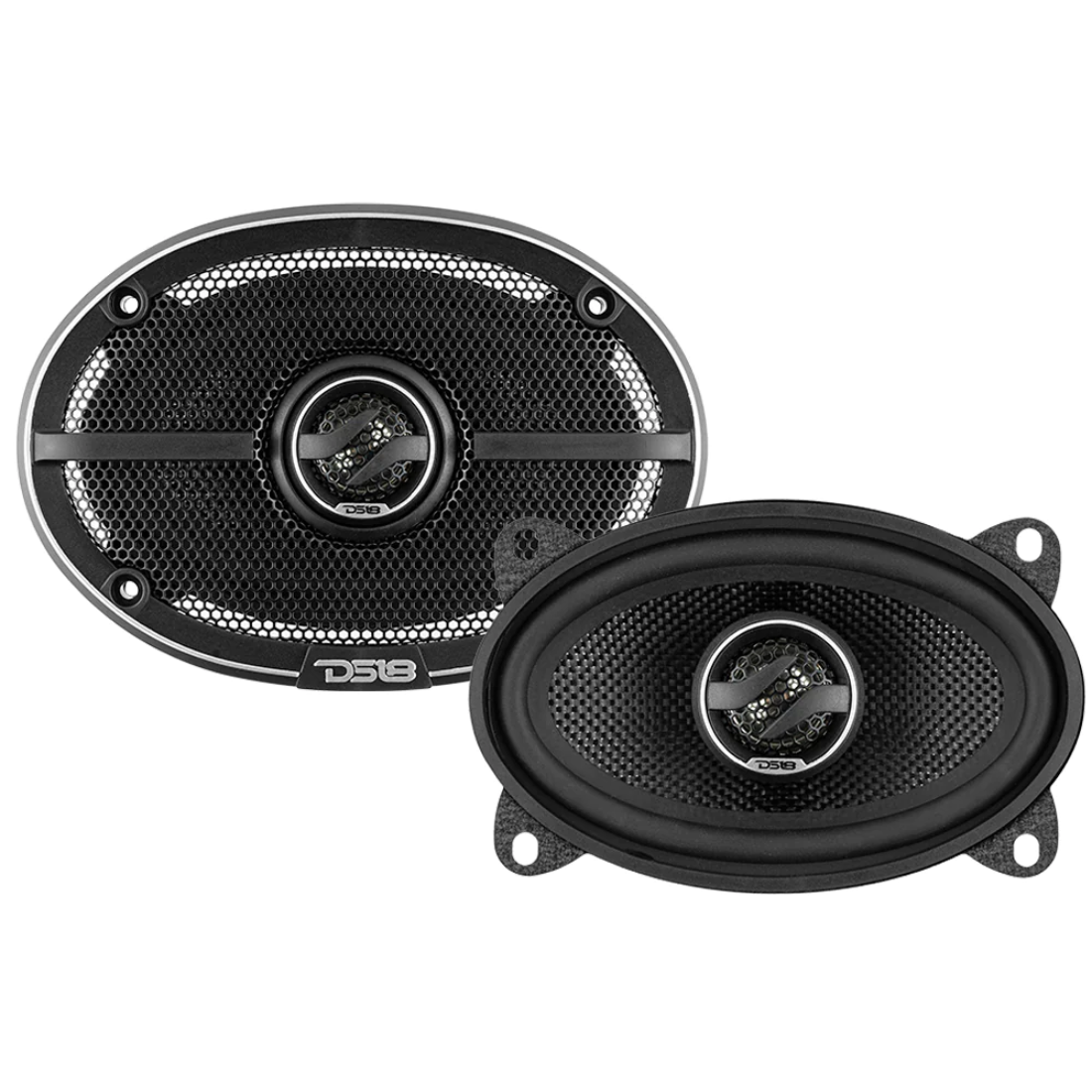

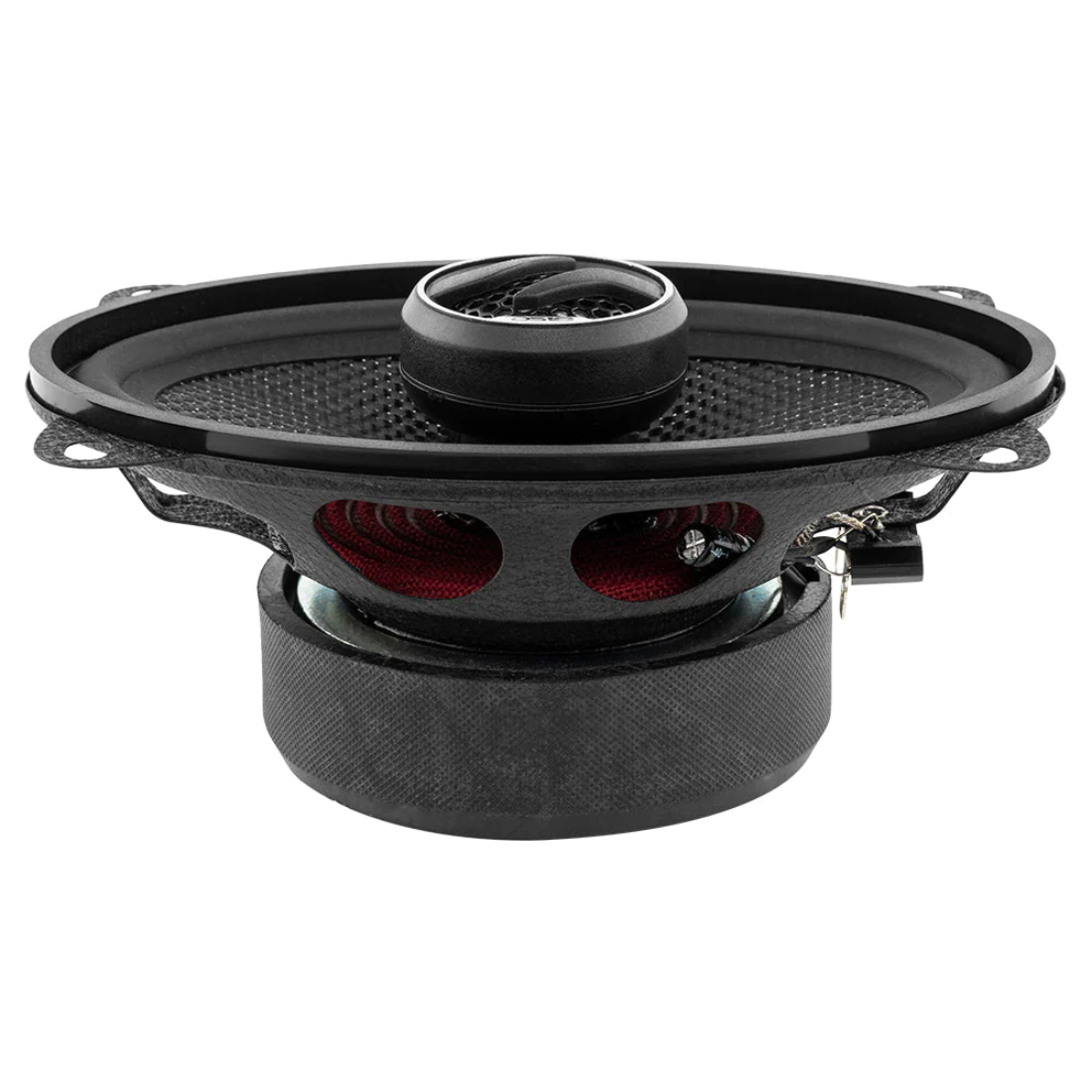

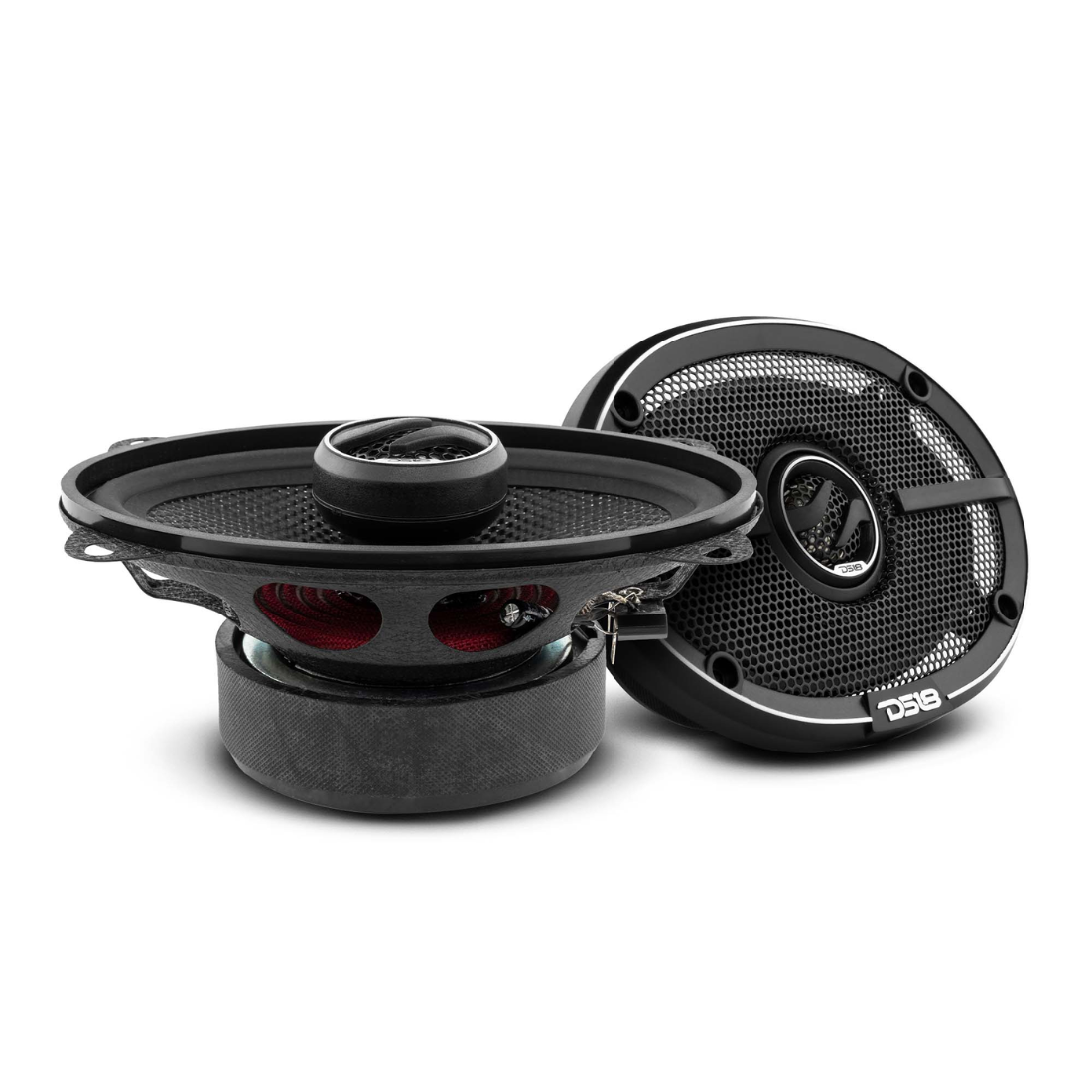

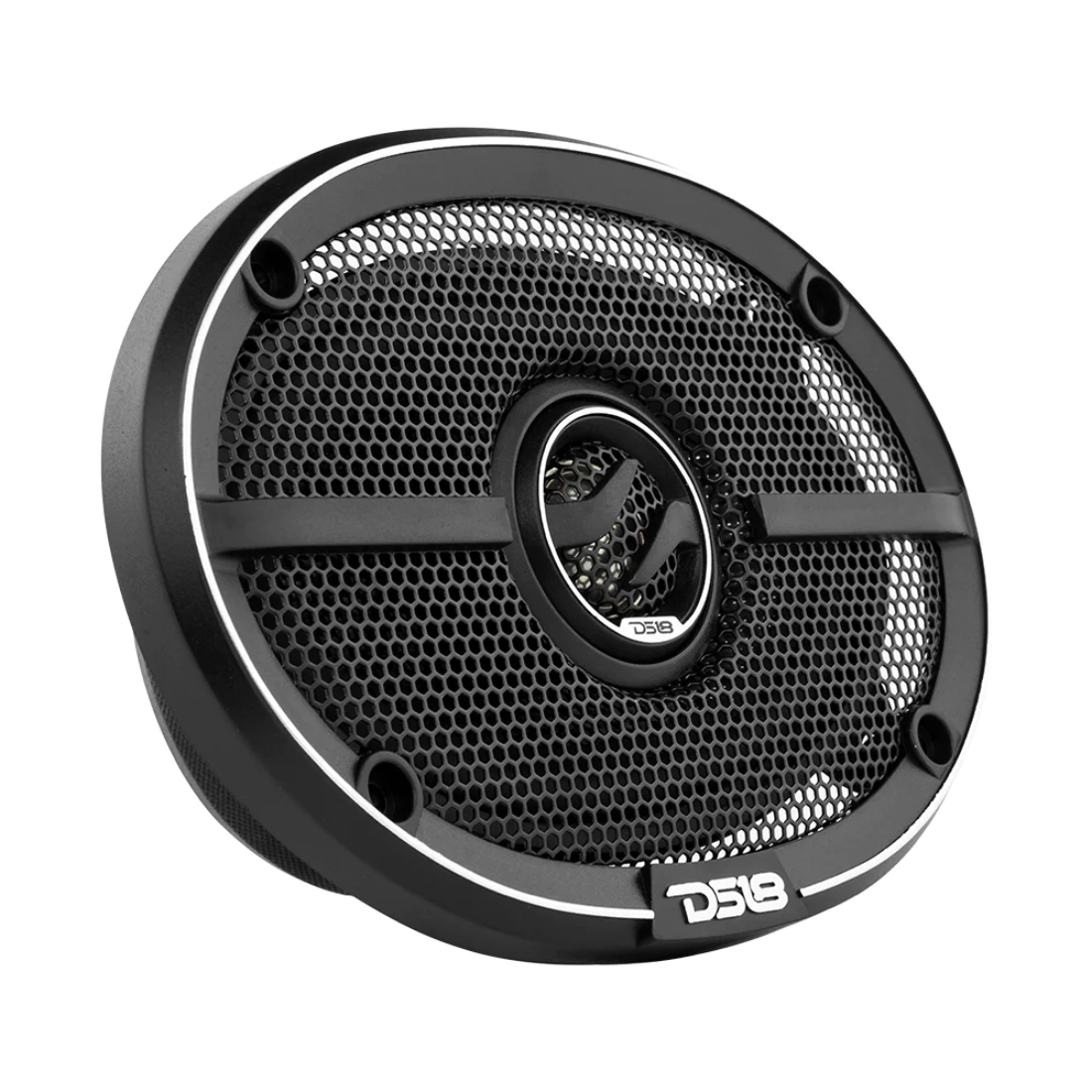

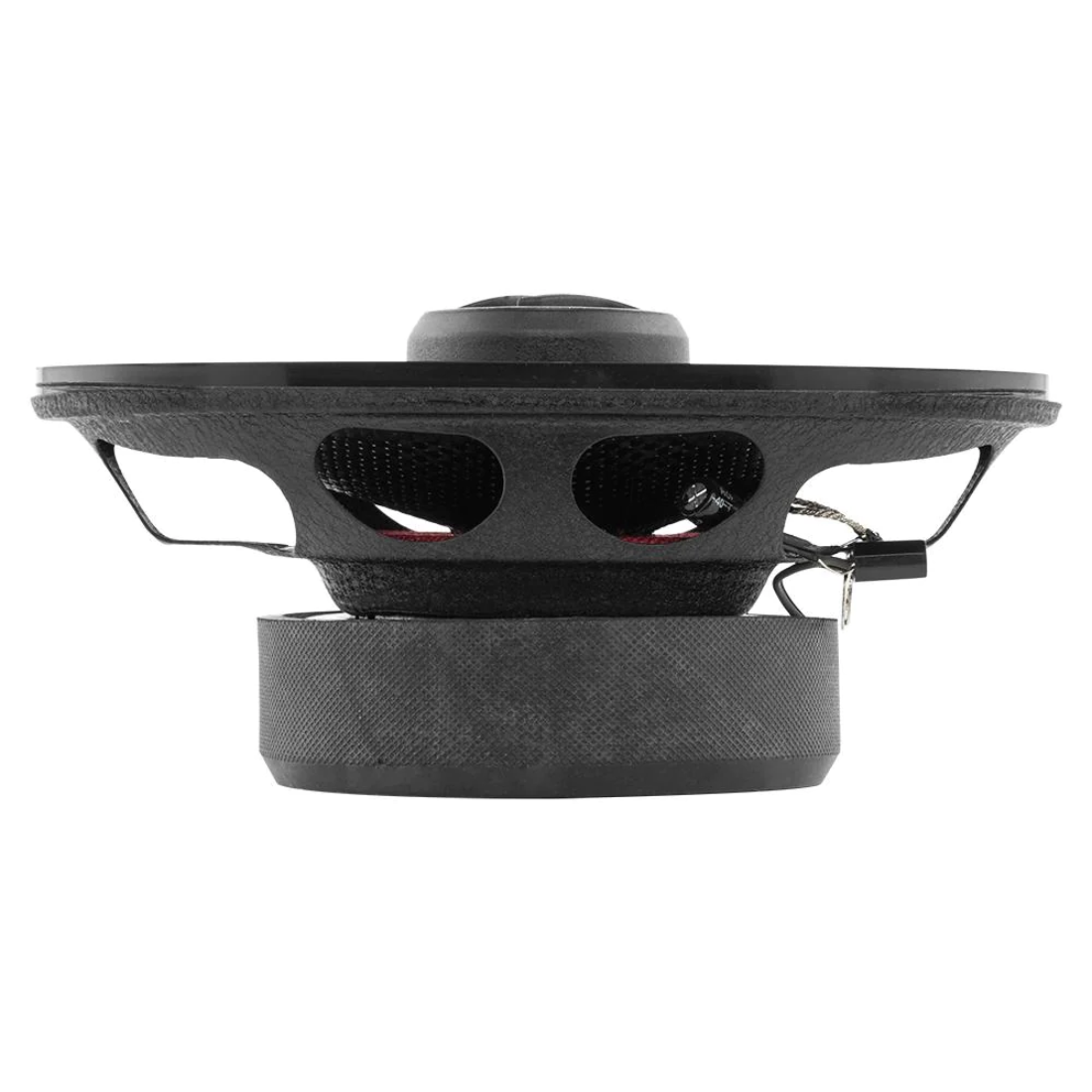

DS18 ZXI-464
4 x 6-Inch 2-Way 180 Watts Max 4-Ohm Coaxial Speakers w/ Kevlar Cone
Specifications:
- SKU: ZXI-464
- Nominal Diameter: 4 X 6 Inches
- Nominal Impedance: 4 ohm
- RMS Power Handing: 60 WATTS
- MAX Power Handing: 180 WATTS
- Sensitivity: 87 dB
- Frequency Response: 80 Hz - 20 KHz
- Recommended HI Pass: 100 Hz
- Speaker Type: 2-Way
Midrange:
- Voice Coil Diameter: 25.5 mm (1 inch)
- Voice Coil Former Material: KSV
- Winding Material: EISV
- Cone Material: Glass fiber
- Surround Material: Rubber
- Basket Material: Steel
- Magnet Material: Barium Ferrite
- Magnet Weight: 10.9 oz / 310 g
Tweeter:
- Nominal Diameter: 25.4 mm (1 inch)
- Voice Coil Diameter: 20.4 mm (0.8 inch)
- Voice Coil Former Material: KSV
- Winding Material: EISVM
- Diaphragm Material: PEI
- Magnet Material: Neodymium
- Magnet Weight: 8.5 g / 0.3 oz
Thiele & Small Parameters:
- Vas: 1.989 LTR
- Xmax: 2.3 mm
- Fs: 77 Hz
- Qms: 5.97
- Qes: 1.15
- Qts: 0.97
- Mms: 9.79 g
- Cms: 232 mm / N
- BL: 4.44
- Le: 216 mH
- Sd: 77.7 cm2
- Re: 3.5 ohm
- Mmd: 9 g
Measurements:
- Overall Diameter: 3.82 x 5.94 inch (97 x 151 mm)
- Overall Depth: 71 mm (2.80 inch)
- Front Mount Baffle Cutout: 87.8 x 140 mm (3.46 x 5.51 inch)
- Mounting Depth: 52 mm (2.05 inch)
- Motor Diameter: 84 mm (3.31 inch)
- Product Weight: 4.5 lbs
- Product Dimensions: 11.5 x 8 x 3.5
