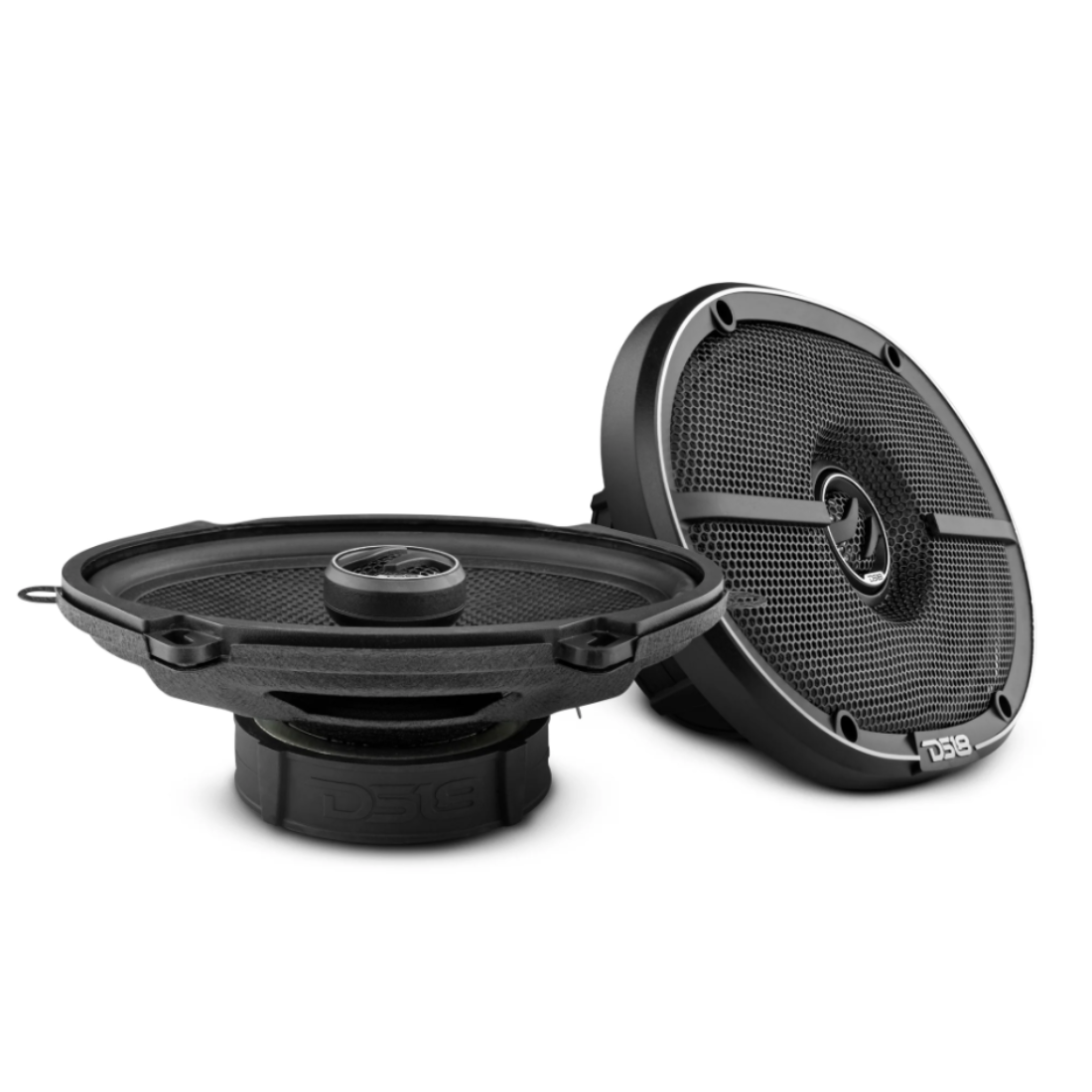

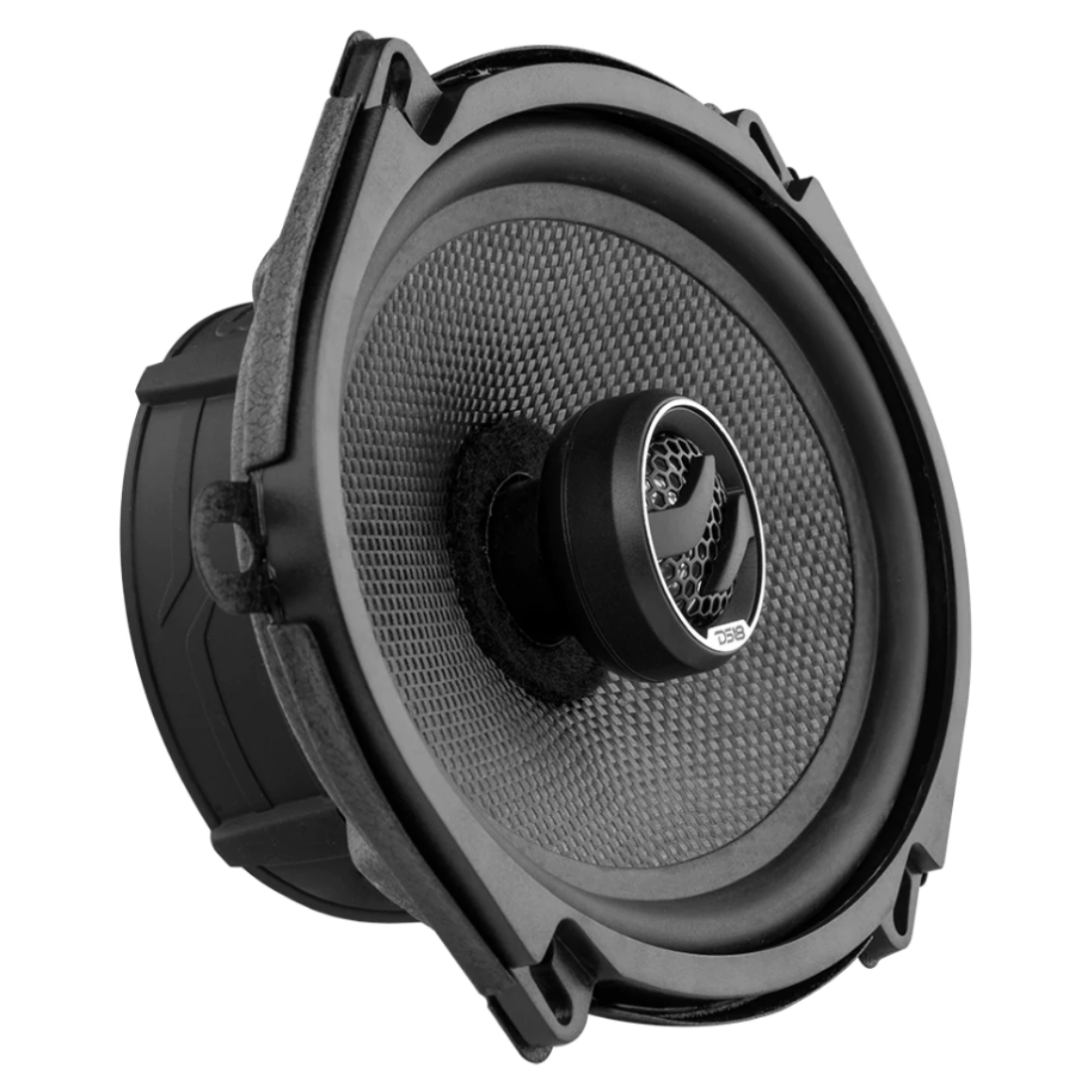

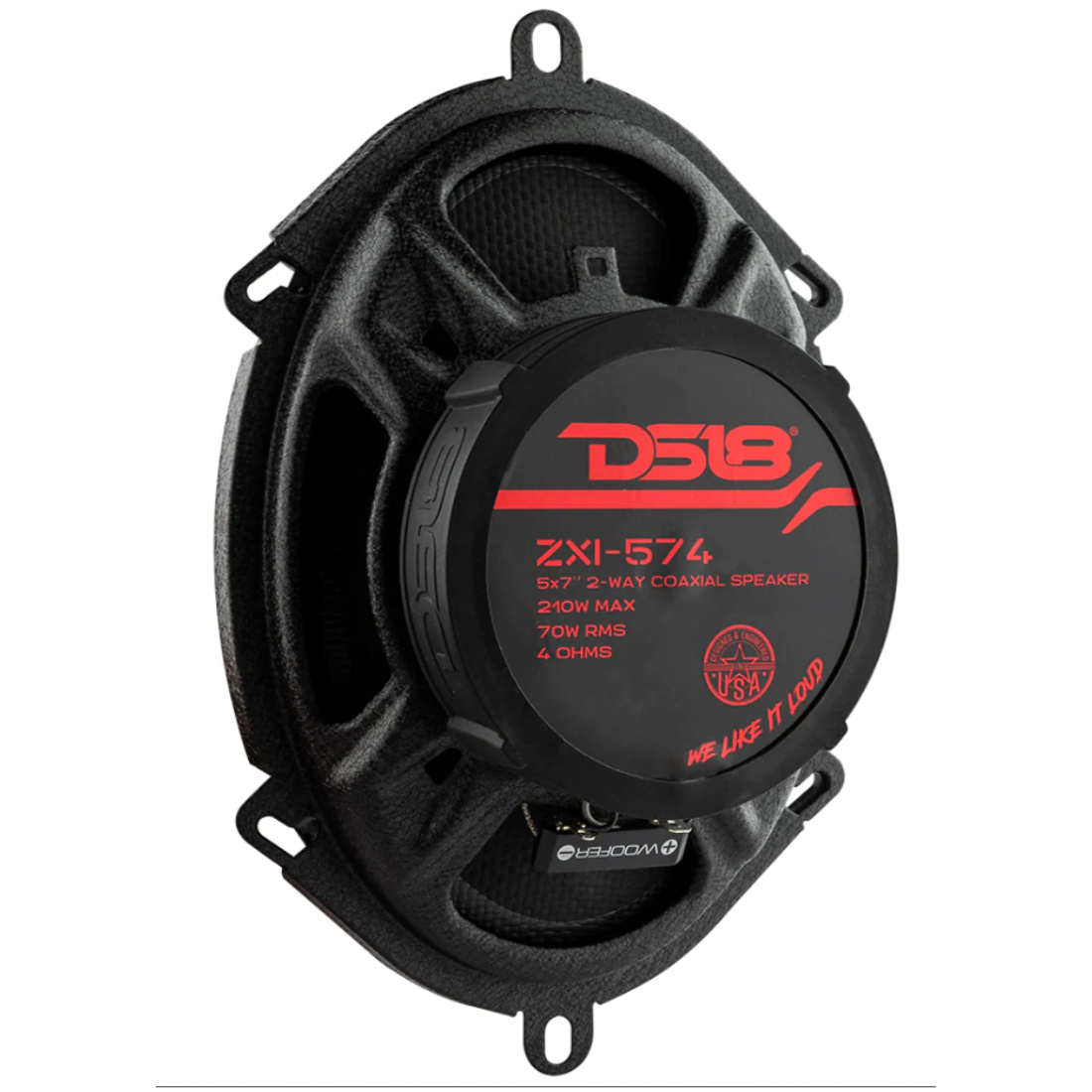

DS18 ZXI-574 5" x 7" 2-Way 240W Max 4-Ohm Coaxial Speakers w/ Kevlar Cone (Pair)
DS18 ZXI-574 5" x 7" 2-Way 240W Max 4-Ohm Coaxial Speakers w/ Kevlar Cone (Pair)
Regular price
$99.95 USD
Regular price
Sale price
$99.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 ZXI-574
ELITE 5 x 7-Inch 2-Way 240 Watts Max 4-Ohm Car Coaxial Speakers (Pair)
Key Features:
- Nominal Diameter: 5 x 7 Inches
- Nominal Impedance: 4 ohm
- RMS Power Handing: 70 WATTS
- MAX Power Handing: 210 WATTS
- Sensitivity: 91 dB
- Frequency Response: 40 Hz - 20 KHz
- Recommended Hi-Pass: 60 Hz
- Speaker Type: 2-Way
Midrange:
- Voice Coil Diameter: 25.5 mm (1 inch)
- Voice Coil Former Material: KSV
- Winding Material: EISV
- Cone Material: Glass fiber
- Surround Material: Rubber
- Basket Material: Steel
- Magnet Material: Barium Ferrite
- Magnet Weight: 14.46 oz / 410 g
Tweeter:
- Nominal Diameter: 25.4 mm (1 inch)
- Voice Coil Diameter: 20.4 mm (0.8 inch)
- Voice Coil Former Material: KSV
- Winding Material: EISVM
- Diaphragm Material: PEI
- Magnet Material: Neodymium
- Magnet Weight: 8.5 g / 0.3 oz
Thiele & Small Parameters:
- Vas: 8.66 LTR
- Xmax: 2.7 mm
- Fs: 68 Hz
- Qms: 7.04
- Qes: 1.28
- Qts: 1.08
- Mms: 16.1 g
- Cms: 258.7 mm / N
- BL: 4.66
- Le: 228 mH
- Sd: 153.5 cm2
- Re: 3.5 ohm
- Mmd: 14 g
Measurements:
- Overall Diameter: 5.55 x 7.60 inch (141 x 193 mm)
- Overall Depth: 72 mm (2.84 inch)
- Front Mount Baffle Cutout: 125 x 179.5 mm (4.92 x 7.07 inch)
- Mounting Depth: 56.5 mm (2.22 inch)
- Motor Diameter: 94 mm (3.70 inch)
- Product Weight: 6 lbs
- Product Dimensions: 14 x 9.5 x 3.75
- M/C Weight: 36 lbs
- M/C Dimensions: 20 x 14.75 x 11.75
- M/C QTY: 6
- Sold In: Pair
