BRAND NEW

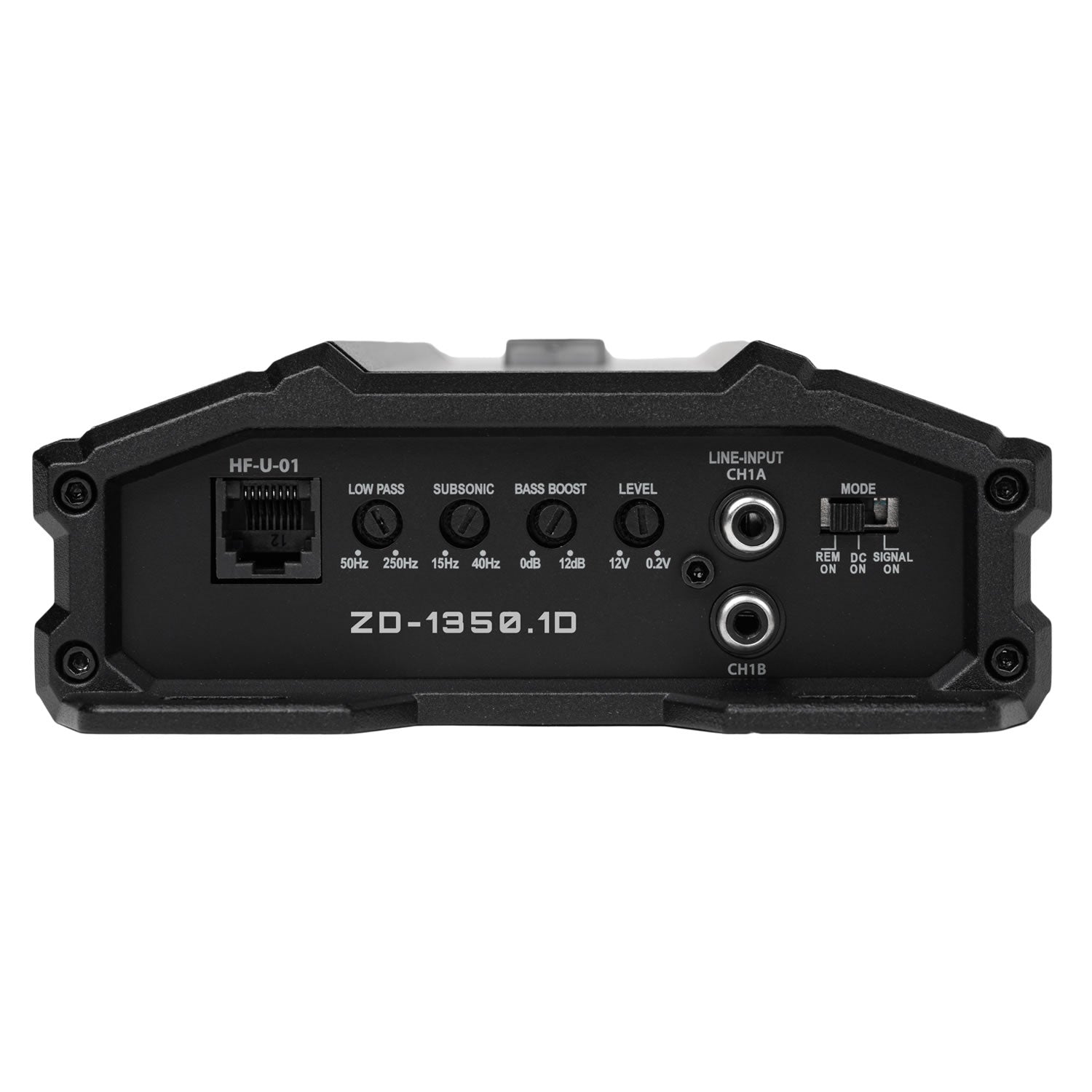

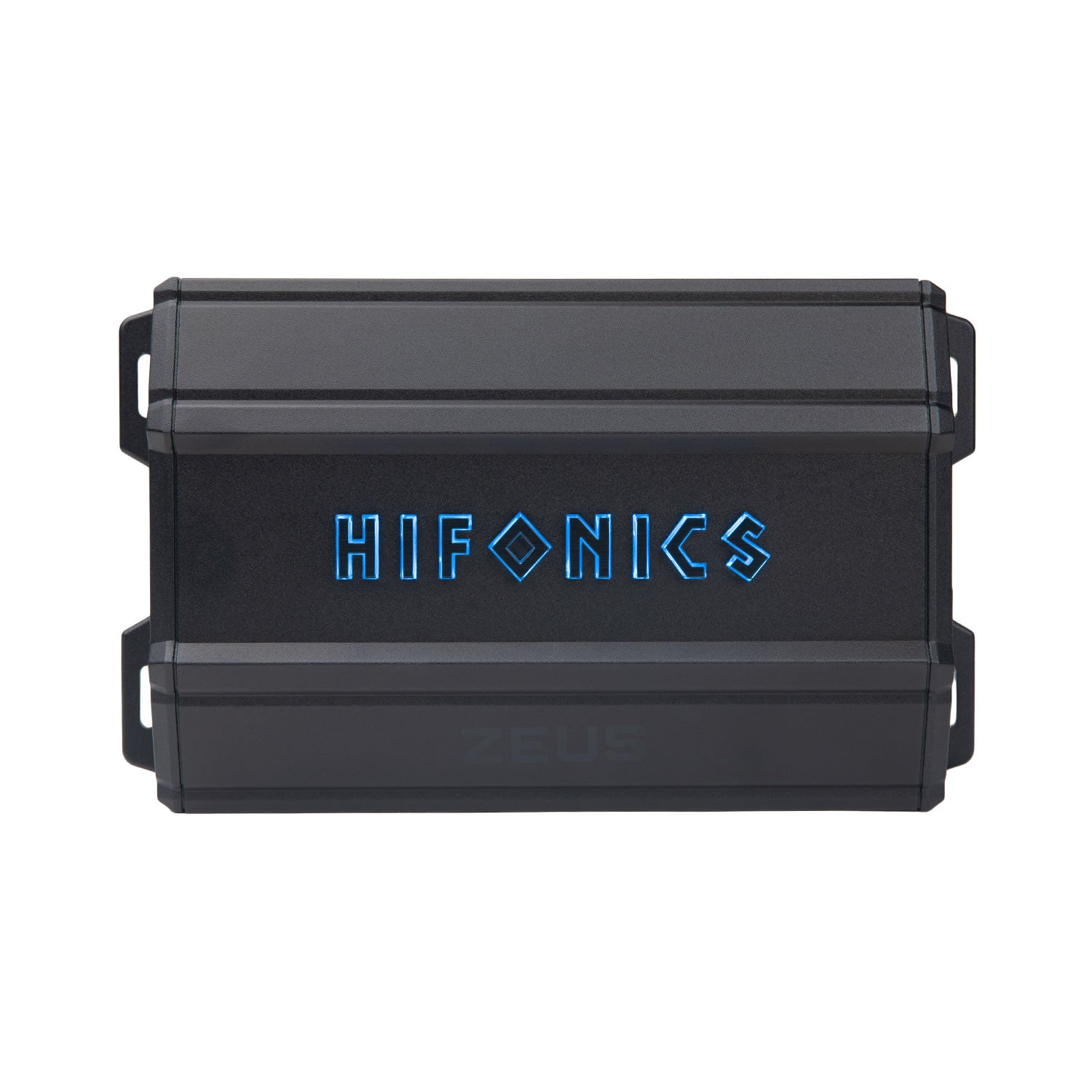

HIFONICS ZD-1350.1D

ZEUS DELTA | 1350 Watts Max Class-D Monoblock Car Amplifier

Key Features:

  • Compatible Vehicle Fitment - Universal
  • Low Noise Preamplifier Circuit - Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
  • RCA Inputs - Nickel-plated high-temperature impact resistant that allow for secure connections and is erosion resistant.
  • Operation Mode - Mono only
  • Crossover Type - Onboard electronic crossover
  • Electronic Equalizer - Control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
  • Class / Topology - Class D: High efficiency with big power in a small footprint.
  • Output Device Technology - PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
  • Heat Sink - Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation.
  • Power Supply - Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
  • Connection Type - Secure molded connection terminal for all Power, Ground, and Speaker connections. Angled for ease of access while creating a clean wire management profile.
  • LED System Protection Circuitry Diagnostics - Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
  • Bass Remote Included - Yes
  • Auto Turn-On - DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn-on wire is not needed to turn on the amplifier. This feature can also be turned off.
Specifications:

  • Type: Amplifier
  • Brand: Hifonics
  • Series: ZEUS DELTA
  • Category: Mobile
  • Color: Black
  • Compatible Vehicles: Universal
  • Amp Class: Class D
  • Amp Total Channels: 1
  • Amp Max Power (watts): 1350
  • Amp Power @ 1 Ohm (ch x watts): 1 x 1350
  • Amp Power @ 2 Ohms (ch x watts): 1 x 675
  • Amp Power @ 4 Ohms (ch x watts): 1 x 350
  • Amp Crossover: Variable Electronic 12dB Per Octave
  • Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz
  • Amp Tone Control / Parametric EQ: Built-in Bass Control
  • Amp Bass Boost: 0-12dB
  • Amp Subsonic Filter: 15Hz-40Hz
  • Amp Variable Voltage: 0.2-6V
  • Amp Frequency Response: 15Hz-250Hz
  • Amp Total Harmonic Distortion (THD): < 0.1%
  • Amp Speaker Level Audio Inputs: Yes
  • Amp Power Terminal 12v/GND: 4 AWG
  • Amp Speaker Terminal Wire Gauge: 12 AWG
  • Amp Fusing: External 80A
  • Item Weight (lbs): 4.32
  • Item Length (in): 9.68
  • Item Width (in): 5.75
  • Item Height (in): 2.16
  • Weight: 5.3 lbs
  • Dimensions: 13.19 × 6.89 × 3.15 in
