Hifonics ZD-1350.4D 4-Channel 1350W Max Class-D Full Range Car Audio Amplifier
Hifonics ZD-1350.4D 4-Channel 1350W Max Class-D Full Range Car Audio Amplifier
Regular price
$199.99 USD
Regular price
Sale price
$199.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
HIFONICS ZD-1350.4D
ZEUS DELTA | 4-Channel 1350 Watts Max Class-D Full Range Amplifier
Key Features:
- Compatible Vehicle Fitment: Universal
- Low Noise Preamplifier Circuit
- RCA Inputs: Nickel-plated high-temperature impact resistance
- Operation Mode: Four Channel, Full Range, Bridgeable
- Crossover Type: Onboard electronic crossover
- Electronic Equalizer: Control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
- Class / Topology: Class D - High efficiency with big power in a small footprint.
- Output Device Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation.
- Heat Sink: Aluminum - Modern Design Hifonics Heat Sink for Superior Heat Dissipation.
- Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

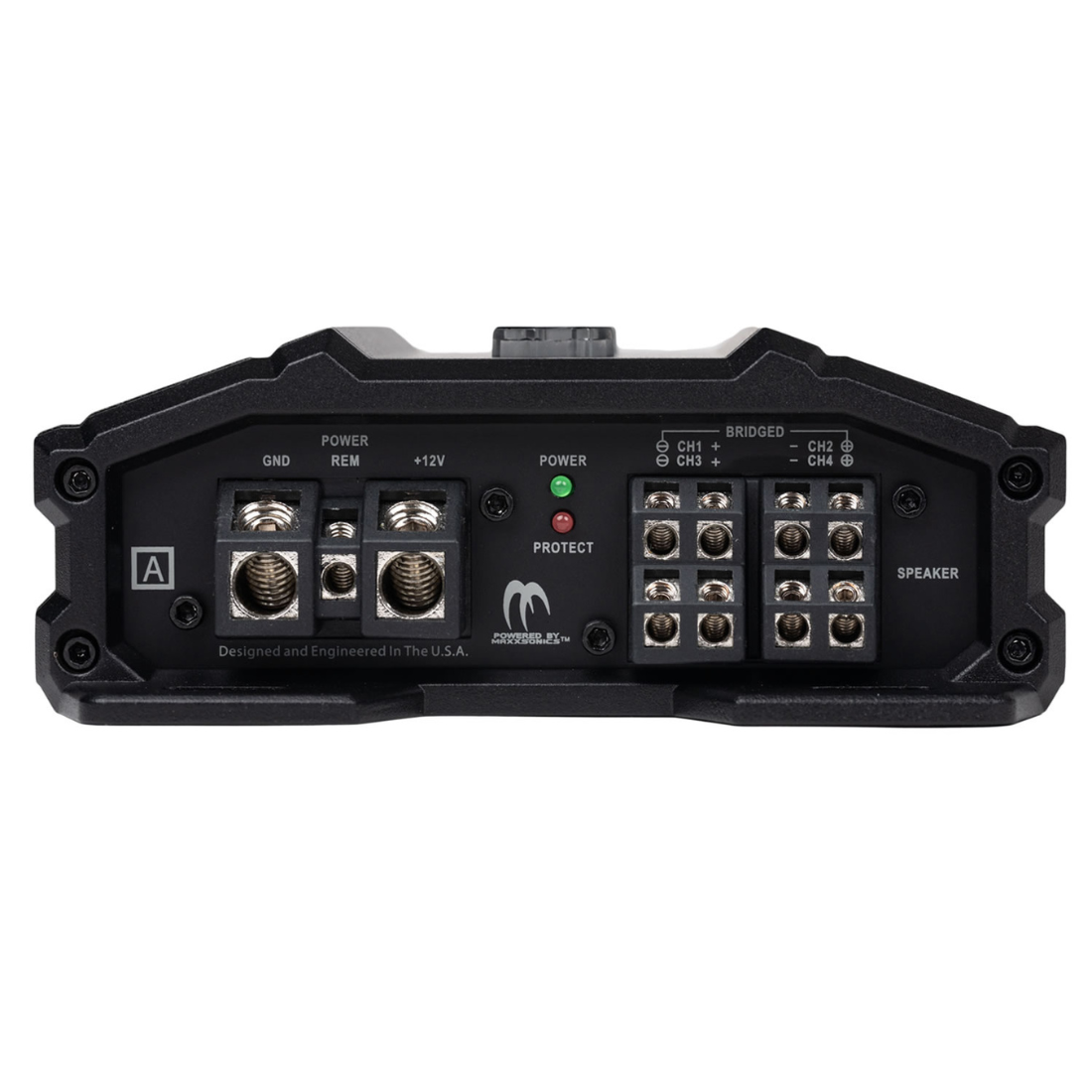

- Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections.
- LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
- Auto Turn-On: DC SIGNAL SENSE - The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn-on wire is not needed to turn on the amplifier.
Specifications:
- Weight: 5.9 lbs
- Dimensions: 15.16 × 6.89 × 3.15 in
- Item Weight (lbs): 5.07
- Item Length (in): 11.65
- Item Width (in): 5.75
- Item Height (in): 2.16
- Type: Amplifier
- Brand: Hifonics
- Series: ZEUS DELTA
- Category: Mobile
- Condition: New
- Color: Black
- Compatible Vehicles: Universal
- Amp Class: Class D
- Amp Total Channels: 4
- Amp Max Power (watts): 1350
- Amp Power @ 2 Ohms (ch x watts): 4 x 335
- Amp Power @ 4 Ohms (ch x watts): 4 x 170
- Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 675

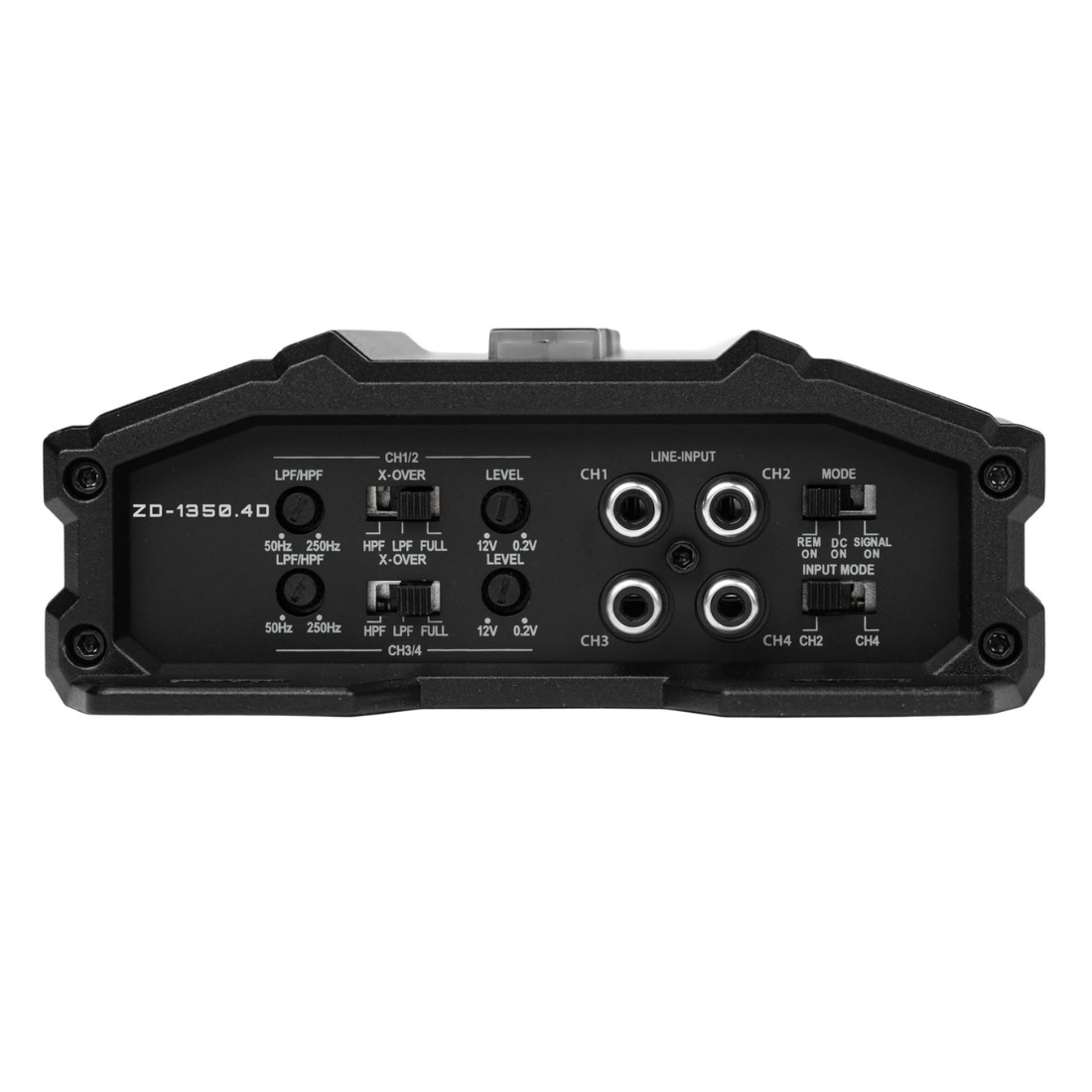

- Amp Crossover: Variable Electronic 12dB Per Octave
- Amp Variable High Pass Crossover 12dB per Octave: 50Hz-250Hz
- Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz
- Amp Tone Control / Parametric EQ: Built-in Bass Control
- Amp Variable Voltage: 0.2-6V
- Amp Frequency Response: 10Hz-22kHz
- Amp Total Harmonic Distortion (THD): < 0.5%
- Amp Speaker Level Audio Inputs: Yes
- Amp Power Terminal 12v/GND: 4 AWG
- Amp Speaker Terminal Wire Gauge: 12 AWG
- Amp Fusing: External 60A
