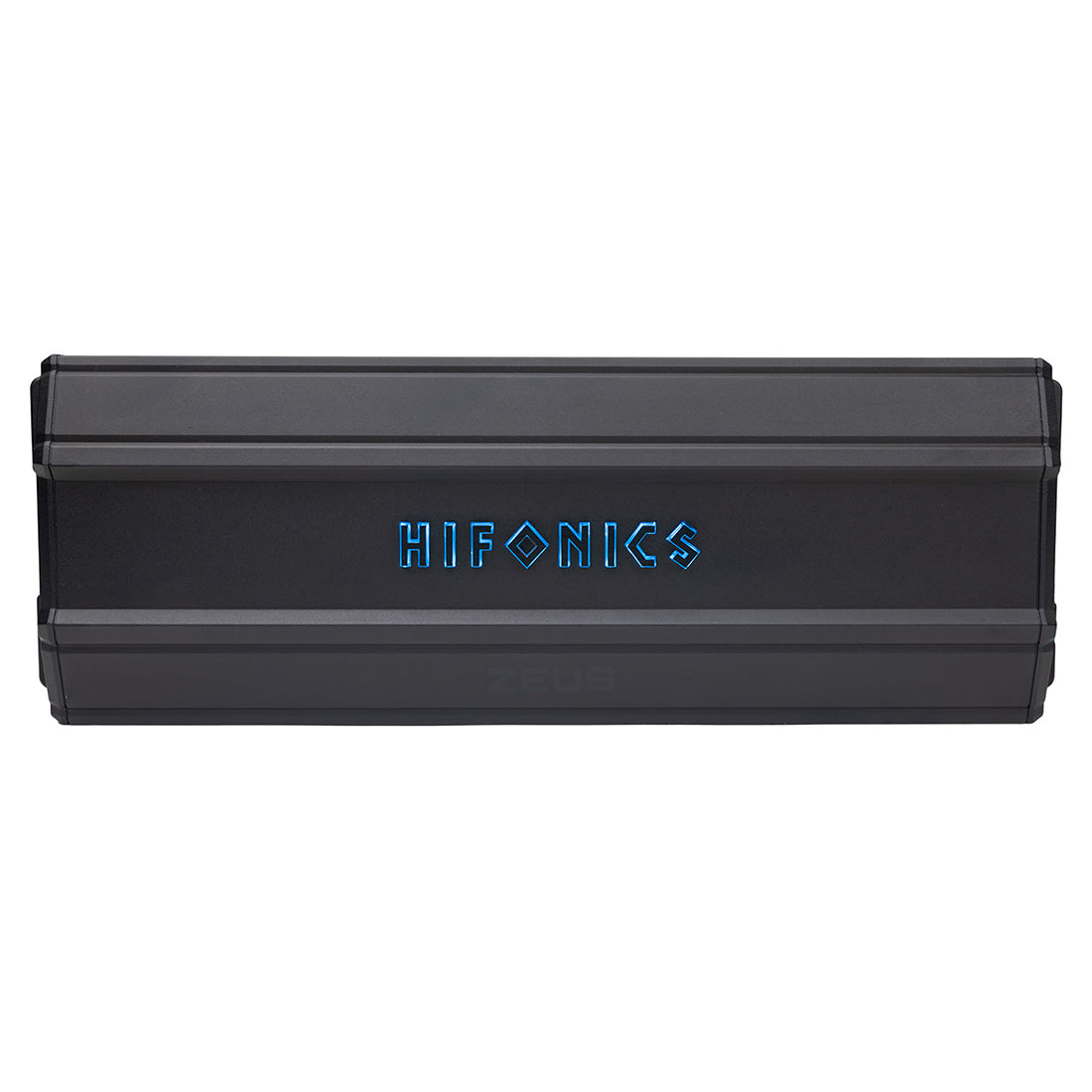

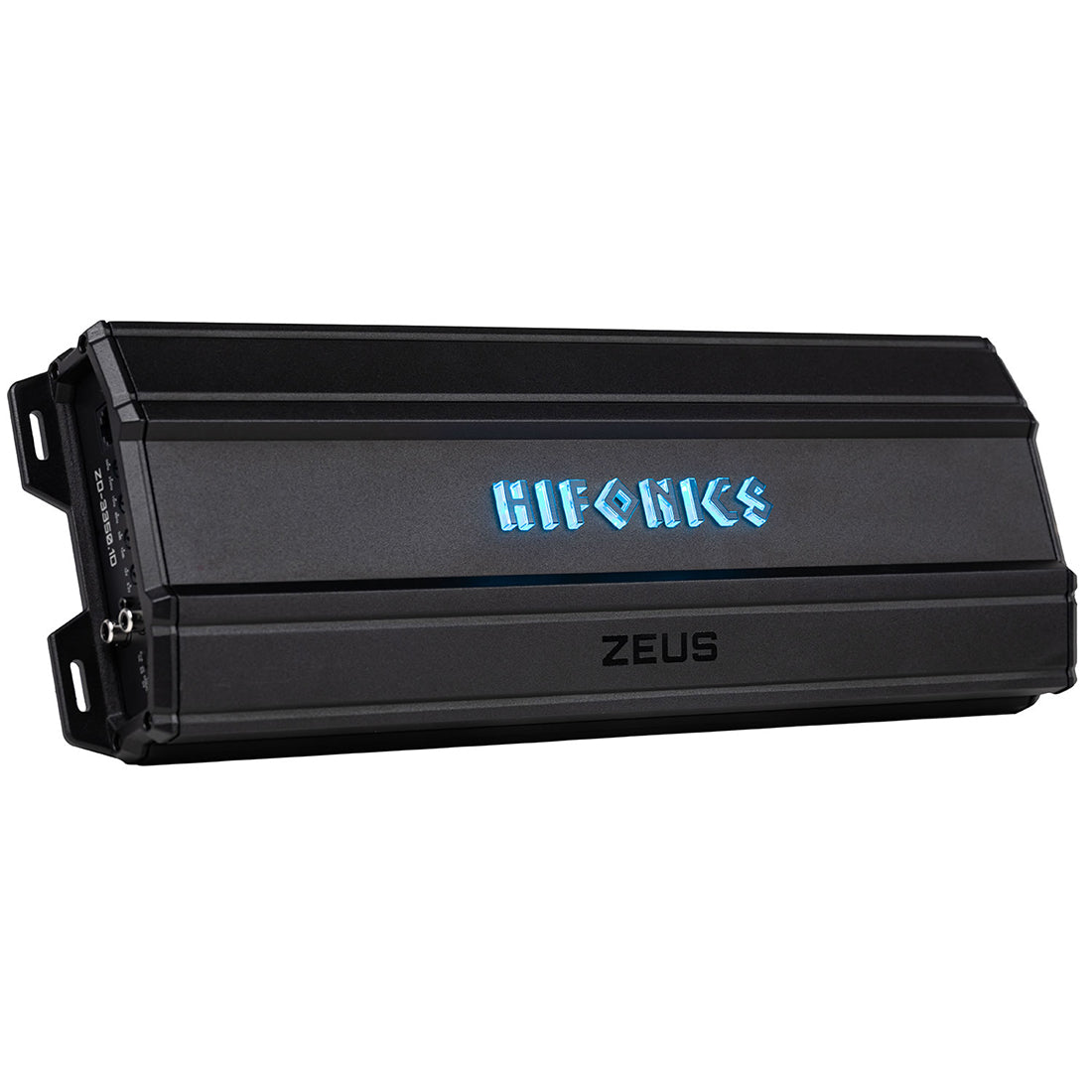

Hifonics ZD-3350.1D 1-Channel / Monoblock 3350W Max Class-D Car Audio Amplifier
ZEUS DELTA | 1-CH / Monoblock 3350 Watts Max Class-D Amplifier
- Compatible Vehicle Fitment: Universal
- Low Noise Preamplifier Circuit
- RCA Inputs: Nickel-plated high-temperature impact resistance
- Operation Mode: Mono only

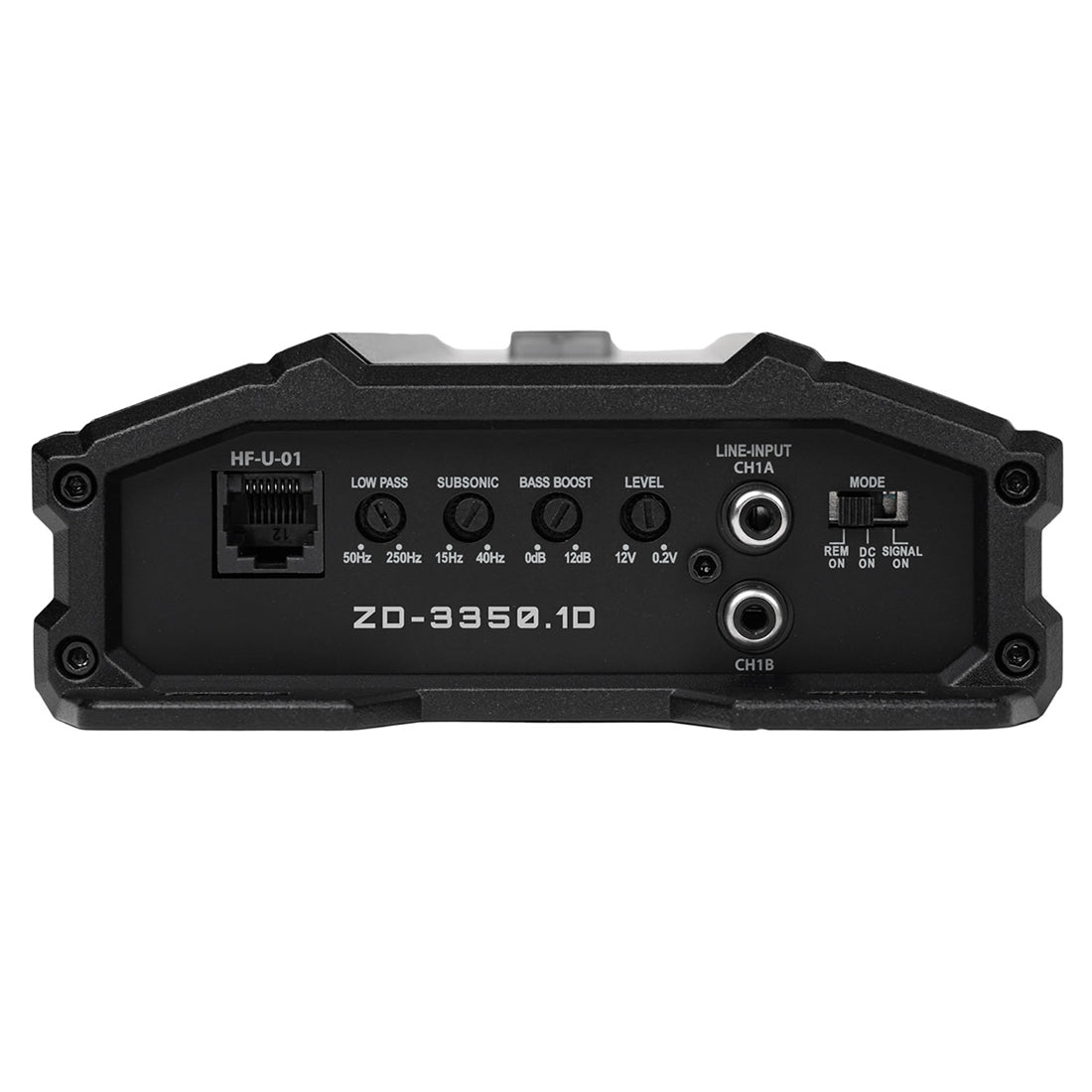

- Crossover Type: Onboard electronic crossover
- Electronic Equalizer: Control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
- Class / Topology: Class D - High efficiency with big power in a small footprint.
- Output Device Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation.
- Heat Sink: Aluminum - Modern Design Hifonics Heat sink for Superior Heat Dissipation.
- Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

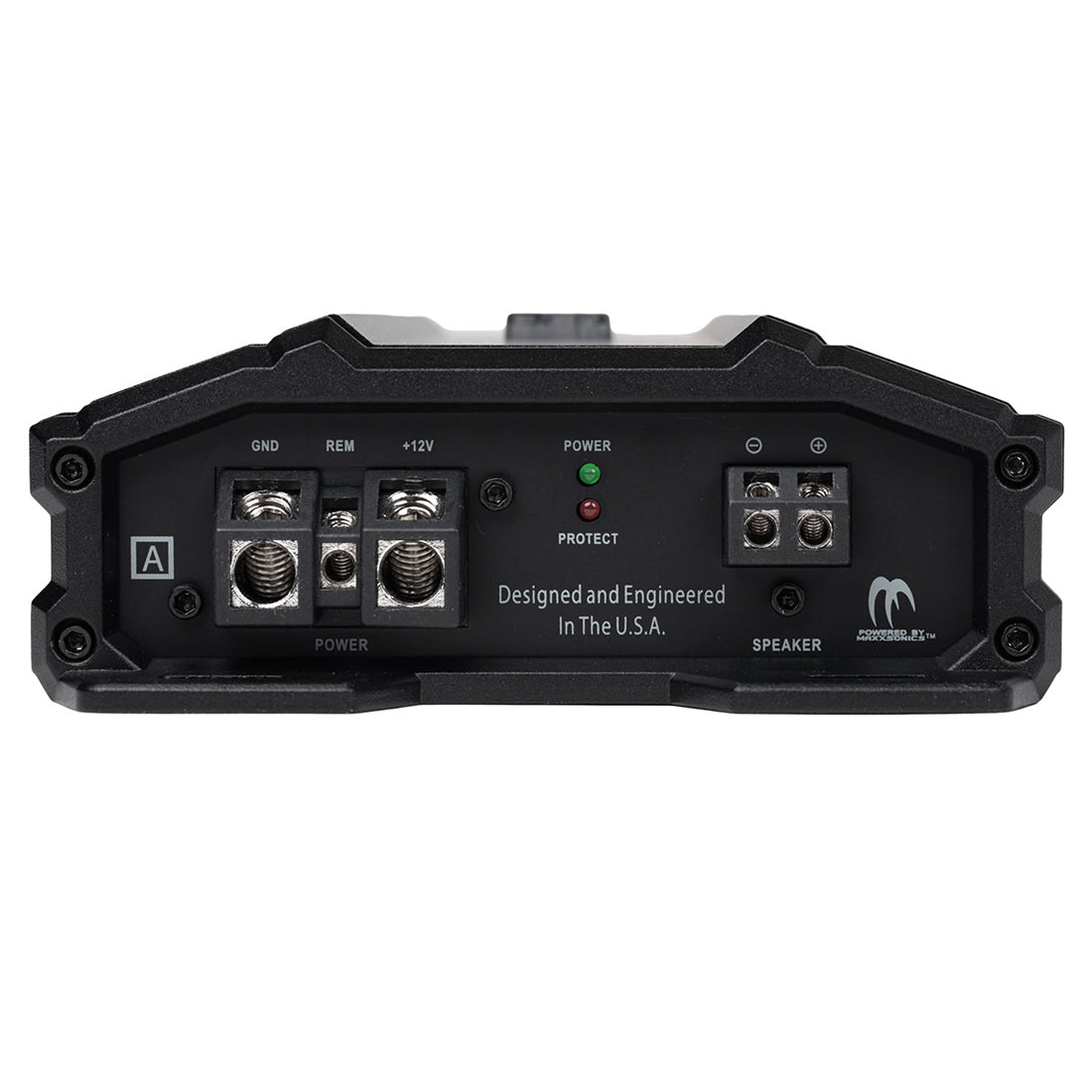

- Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections.
- LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
- Auto Turn-On: DC SIGNAL SENSE - The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier.
- Bass Remote Included: Yes
- Weight: 4.41 lbs
- Dimensions20.27 × 6.89 × 3.15 in
- Item Weight (lbs): 8.38
- Item Length (in): 16.77
- Item Width (in): 5.75
- Item Height (in): 2.16
- Type: Amplifier
- Brand: Hifonics
- Series: ZEUS DELTA
- Category: Mobile
- Condition: New
- Color: Black
- Compatible Vehicles: Universal
- Amp Class: Class D
- Amp Total Channels: 1
- Amp Max Power (watts): 3350
- Amp Power @ 1 Ohm (ch x watts): 1 x 3350
- Amp Power @ 2 Ohms (ch x watts): 1 x 1675
- Amp Power @ 4 Ohms (ch x watts): 1 x 850
- Amp Crossover: Variable Electronic 12dB Per Octave
- Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz
- Amp Tone Control / Parametric EQ: Built-in Bass Control
- Amp Bass Boost: 0-12dB
- Amp Subsonic Filter: 15Hz-40Hz
- Amp Variable Voltage: 0.2-6V
- Amp Frequency Response: 15Hz-250Hz
- Amp Total Harmonic Distortion (THD): < 0.1%
- Amp Speaker Level Audio Inputs: Yes
- Amp Power Terminal 12v/GND: 2 AWG
- Amp Speaker Terminal Wire Gauge: 12 AWG
- Amp Fusing: External 175A
