Infinity REFERENCE 6001A Monoblock 600W RMS at 1 @ 2-Ohms Class-D Car Amplifier

Infinity REFERENCE 6001A Monoblock 600W RMS at 1 @ 2-Ohms Class-D Car Amplifier

Regular price $289.95 USD
Regular price Sale price $289.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

INFINITY REFERENCE 6001A

1-CH / Monoblock 600 Watts RMS at 1 @ 2-Ohms Class-D Car Audio Amplifier

Key Features:

Compact size
The Reference 6001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and Low-level input
Speaker-level and low-level inputs allow the Reference 6001A to integrate with both aftermarket and factory car stereo systems.

Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the Reference 6001A features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion
The Reference 6001A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line-induced radiated engine noise.

Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection
On-board circuitry protects the Reference 6001A from shorts, high-temperature, overvoltage, and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch
This switch changes the input phase to inverted or non-inverted.

RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Specifications:

  • 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
  • Class D amp technology
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • Variable bass boost (0-12 dB at 45Hz)
  • Phase switch (0, 180 degrees)
  • Preamp and speaker-level inputs
  • Fuse rating30A x 2
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • WxHxD=220mm x 55.5mm x 180mm
  • WxHxD=8-11/16” x 2-3/16" x7-1/8”
  • 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • WxHxD=360mm x 55.5mm x 180mm
  • WxHxD=14-3/16” x 2-3/16" x7-1/8”
  • 600W RMS / 1200W MAX
In The Box:

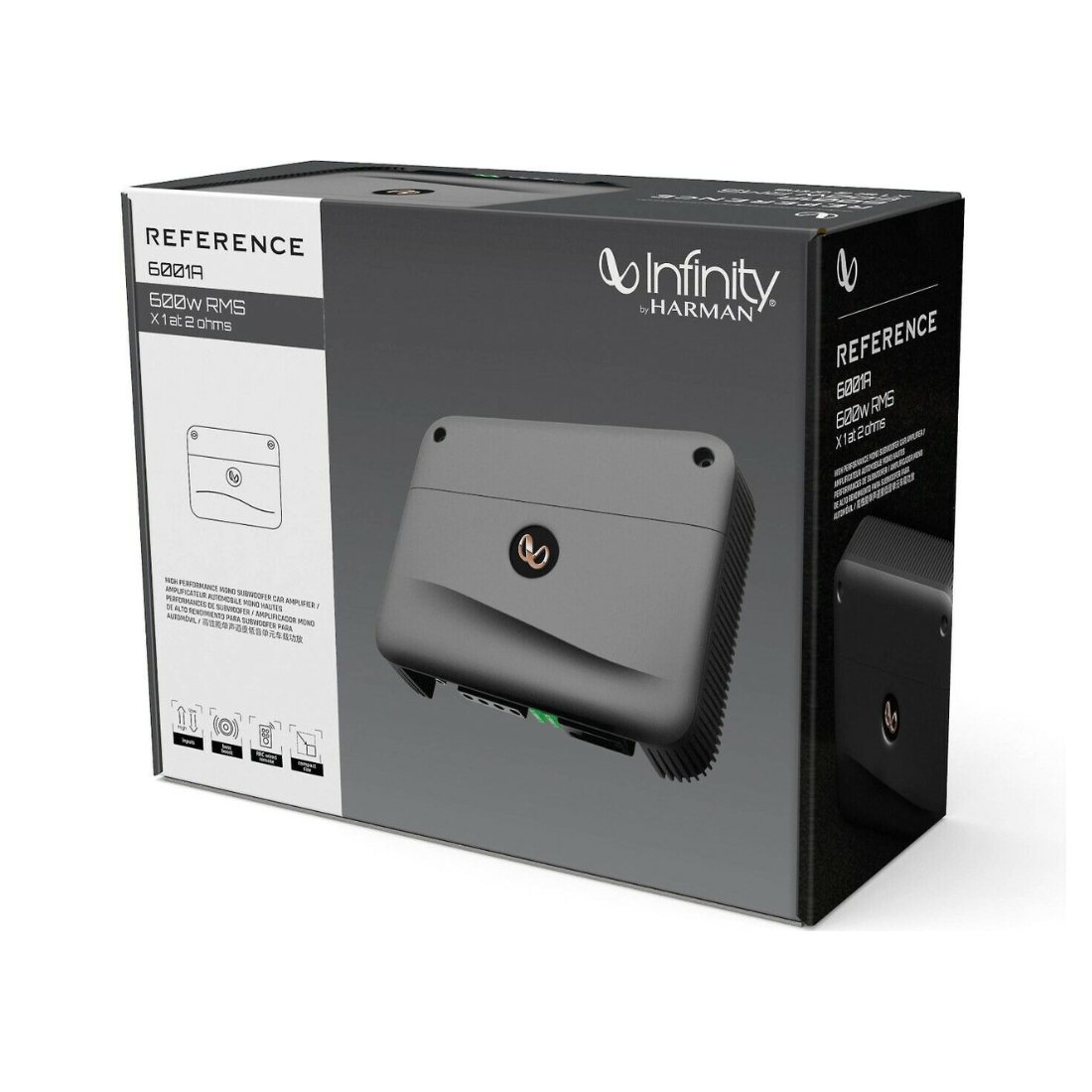

  • 1 x Reference 6001A mono subwoofer car amplifier
  • 4 x 30A ATO fuses (2 installed, 2 spare)
  • 2 x Bare wire-to-RCA adapters
  • 1 x Remote bass control module
  • 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
  • 2 x Self-tapping screws for remote (M3 x
