JBL
JBL STAGE GT 60041 4-Channel 65W RMS x 4 @ 4-Ohm Class-D Car Audio Amplifier
JBL STAGE GT 60041 4-Channel 65W RMS x 4 @ 4-Ohm Class-D Car Audio Amplifier
Regular price
$229.95 USD
Regular price
Sale price
$229.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
JBL STAGE GT 60041
4-Channel 65W RMS x 4 Class-D Car Amplifier
Key Features:
- COMPACT INSTALLATION - Space-saving design allows easy mounting in tight or unconventional locations without sacrificing performance
- COMPREHENSIVE PROTECTION - Built-in safeguards protect against shorts, overheating, and voltage irregularities, ensuring long-term reliability
- VERSATILE INPUT COMPATIBILITY - Wide sensitivity range supports speaker-level inputs from 1Vrms to 25Vrms and low-level inputs from 200mVrms to 5Vrms for integration with nearly any head unit
- CUSTOMIZABLE BASS RESPONSE - Adjustable bass EQ boosts frequencies at 45Hz from 0dB to 12dB, optimizing low-end output for different setups and enclosures
- OEM INTEGRATION FRIENDLY - Load detection system ensures compatibility with factory stereos requiring specific resistance, simplifying installation without extra adapters
Specifications:
- Stage GT Series Class D 2 ohm Stable 4-Channel Amplifier
- RMS Power Rating:
- - 4 ohm: 65 watts x 4 channel
- - 2 ohm: 90 watts x 4 channel
- - Bridged: 180 watts x 2 channel @ 4 ohm
- Total RMS power output: 360 watts
- LED power and protection light
- Wired bass level remote control included
- New OEM load detect system compatible
- New adjustable bass and equalization tools
- Compatible with start-stop vehicles
- Compact size
- Full on-board circuitry protection

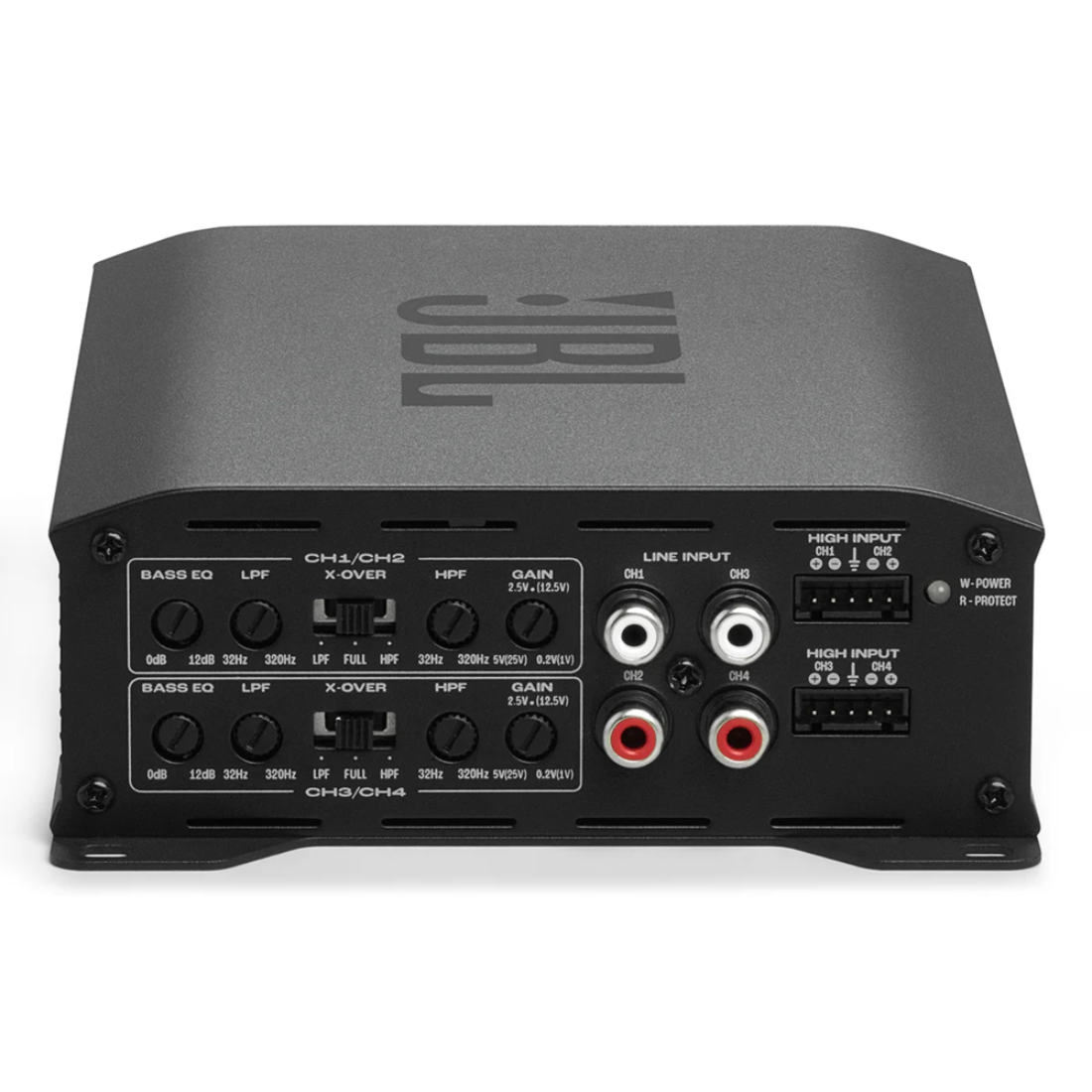

- Input level control integrates into most audio inputs
- Crossover controls for sound adjustments and fine-tuning
- Speaker-level (high-level) inputs
- 4-way protection circuitry (thermal, overload, undervoltage and speaker short protection)
- Input sensitivity:
- Low level: 0.2 - 5 volts
- High level: 1 - 25 volts
- Frequency Response: 20 - 20000 Hz
- Total Harmonic Distortion (THD): 1%
- Variable high-pass filter: 32 - 320 Hz
- Variable low-pass filter: 32 - 320 Hz
- Variable Bass Boost: 0 - 12 dB
- Variable phase adjustment: 0 - 180 degrees
- Fuse Rating: 40A
- 4 AWG gauge amplifier wiring kit is recommended for installation
