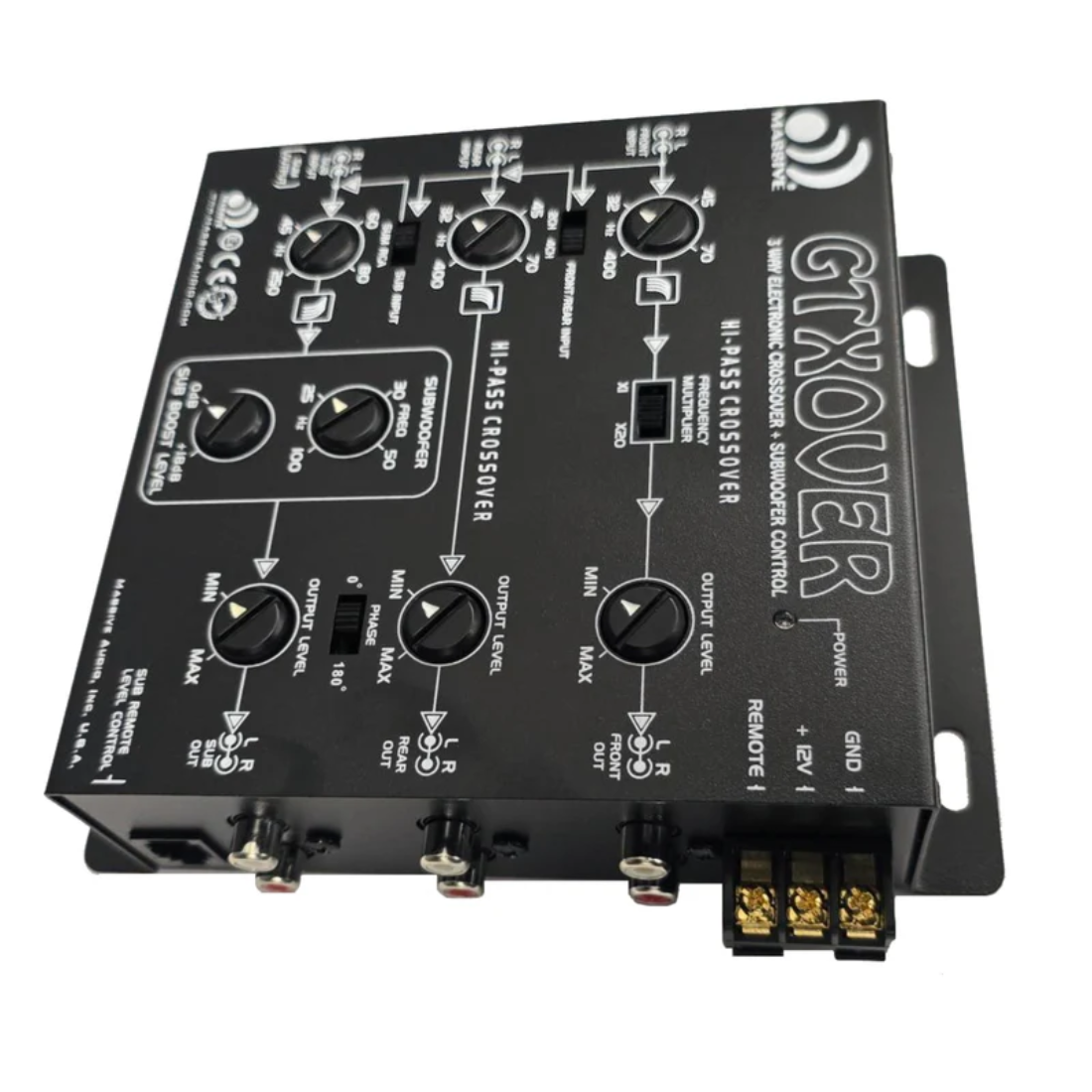

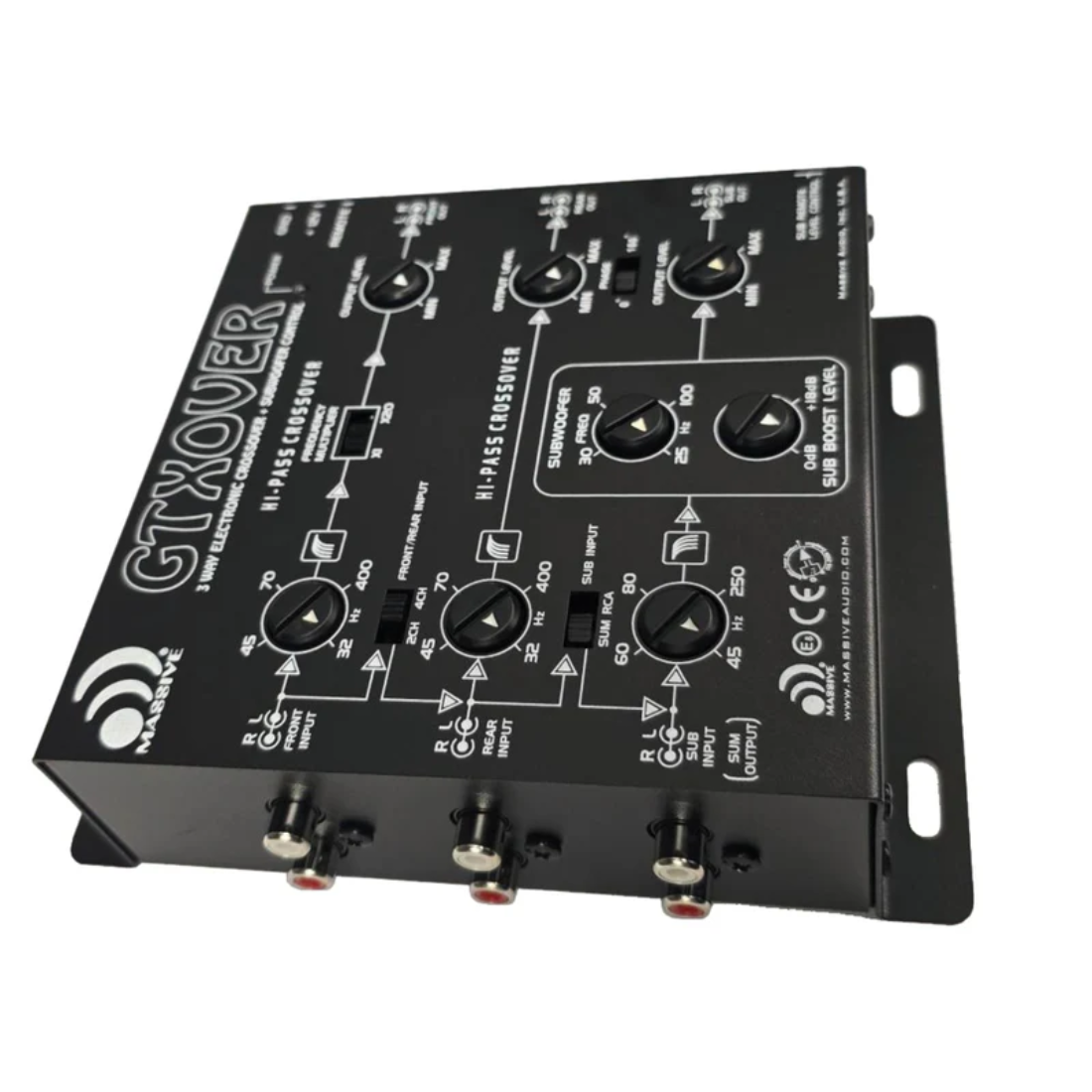

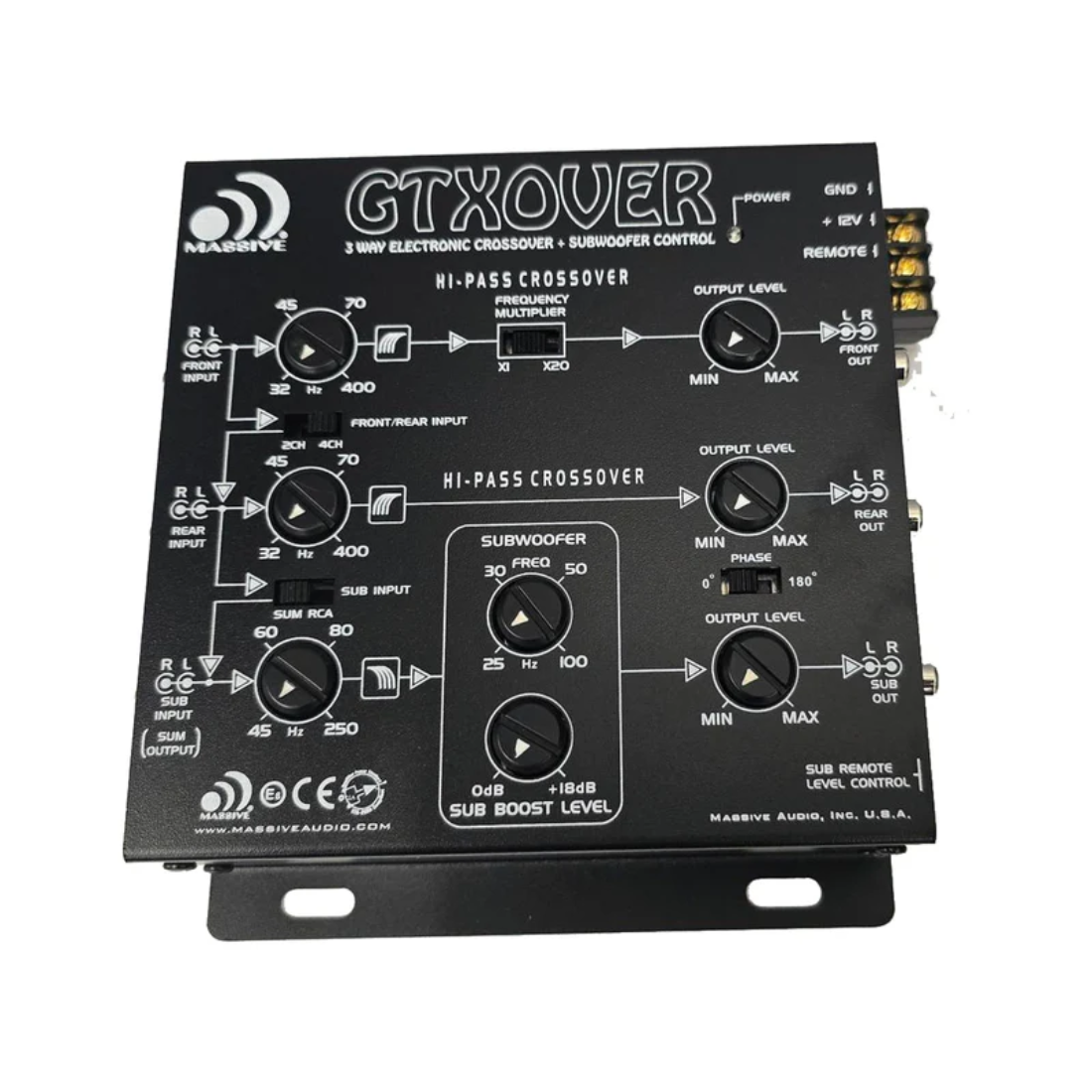

Massive Audio GTXOVER 3-Way 18dB Electronic Crossover with Subwoofer Control
Massive Audio GTXOVER 3-Way 18dB Electronic Crossover with Subwoofer Control
Regular price
$129.99 USD
Regular price
Sale price
$129.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
MASSIVE AUDIO GTXOVER
3-Way Car Audio Electronic Crossover 18dB 3rd Order Butterworth
Key Features:
- 3-Way Electronic Crossover with Sub Control
- Infinitely Adjustable Asymmetrical Crossovers
- 14.4 Volts DC negative ground power source
- 0.5 Amp Max Input Current
- 0.01% THD @ 1V Output Level
- 10Hz - 30KHz - 3dB
- 60dB Separation
- 10dB Per Octave 3rd Order Butterworth X-Over
- 20K Ohm Input Impedance
- 100 Ohm Output Impedance
- 1:2 (+6dB) Output Gain
- Dims ~5.98” x 7.08” x 1.69”
- 5V Max Output Voltage Level 180◦ Phase Switch
- Under Dash Remote Included 50Hz up to 12dB
Specifications:
- Power Source: 14.4V DC Negative Ground
- Input Current: 0.5 Amp Max
- Distortion: 0.01% THD at 1V Output Level
- Frequency Response: 10Hz–30kHz ±3dB
- Signal-to-Noise Ratio (S/N): >100dB
- Channel Separation: 60dB
- Crossover Slope Rate: 18dB per Octave, 3rd Order Butterworth
- Input Impedance: 20K Ohms
- Output Impedance: 100 Ohms
- Output Gain: 1:2 (+6dB)
- Output Voltage Level: 5V Max
- Dimensions (L × W × H): 5.98" × 7.08" × 1.69"
