MB Quart RS1-269 6" x 9" 2-Way 240W Peak 4-Ohm Car Component Speaker System

MB Quart RS1-269 6" x 9" 2-Way 240W Peak 4-Ohm Car Component Speaker System

$191.99 USD
$191.99 USD
Sale Sold out
Shipping calculated at checkout.
PayPal payment Venmo payment Affirm payment
BRAND NEW

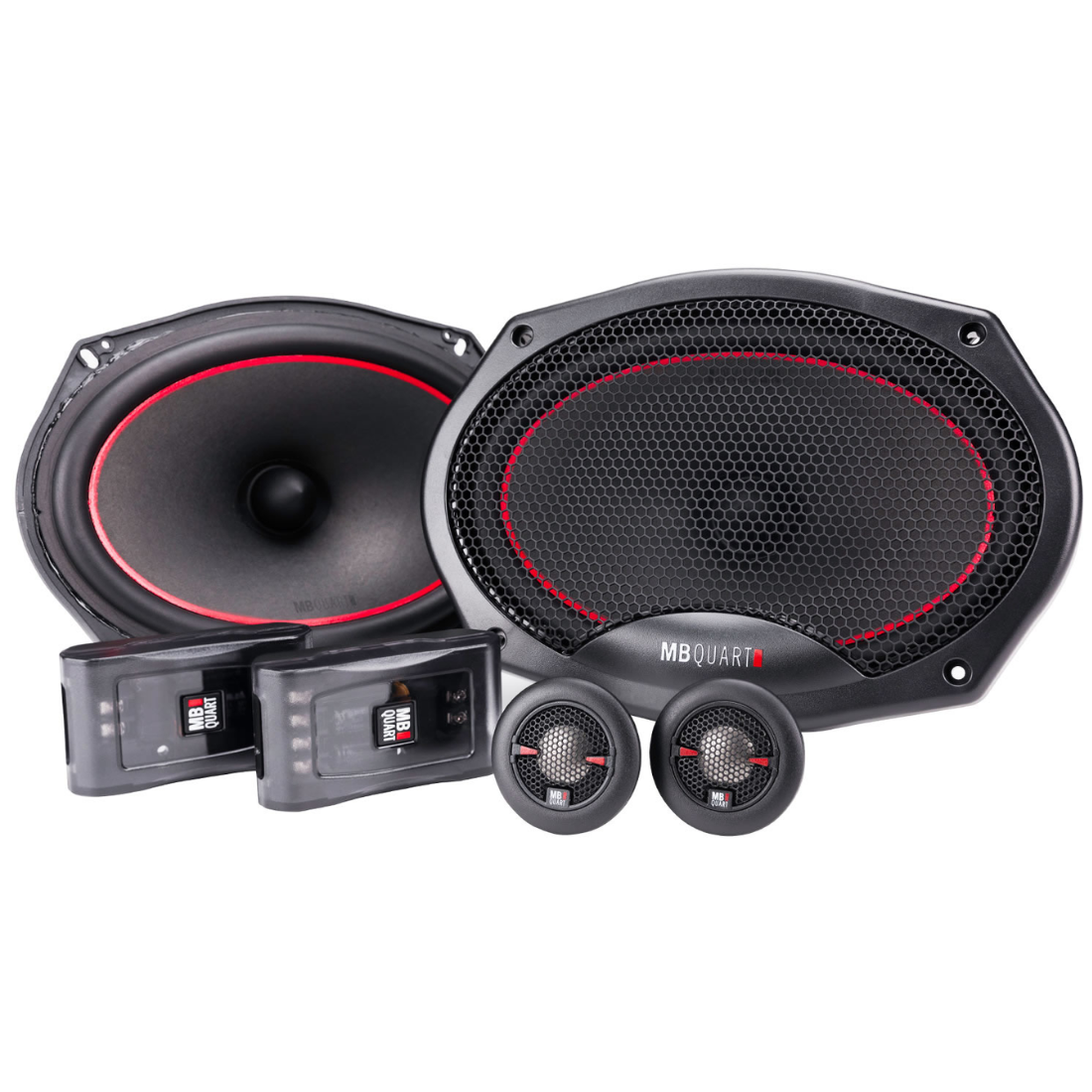

MB QUART RS1-269

6 x 9-inch 2-Way 240W Peak 4-Ohm Car Component Speaker System

Key Features:

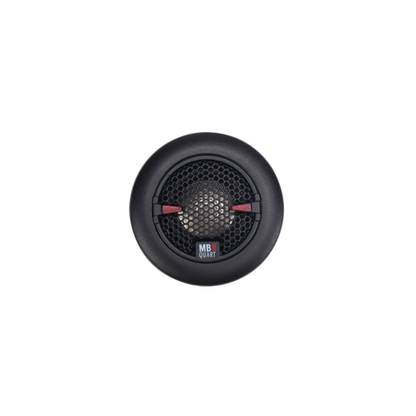

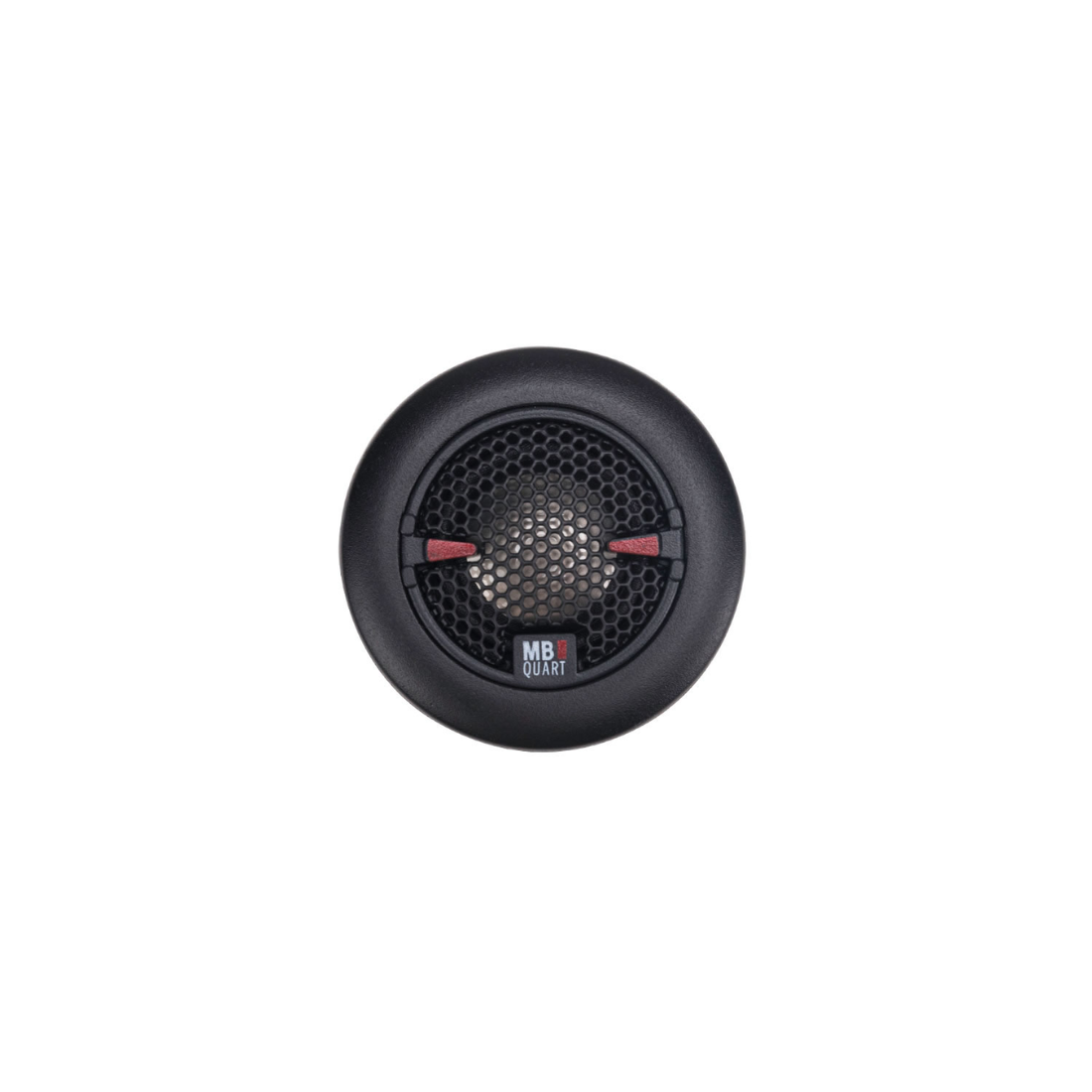

  • Tweeters: 0.75" titanium dome tweeters with WideSphere™ Technology for wide off-axis dispersion and larger soundstage

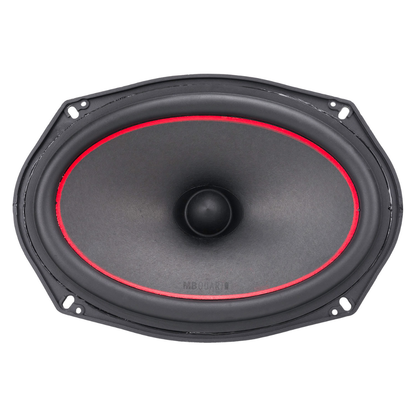

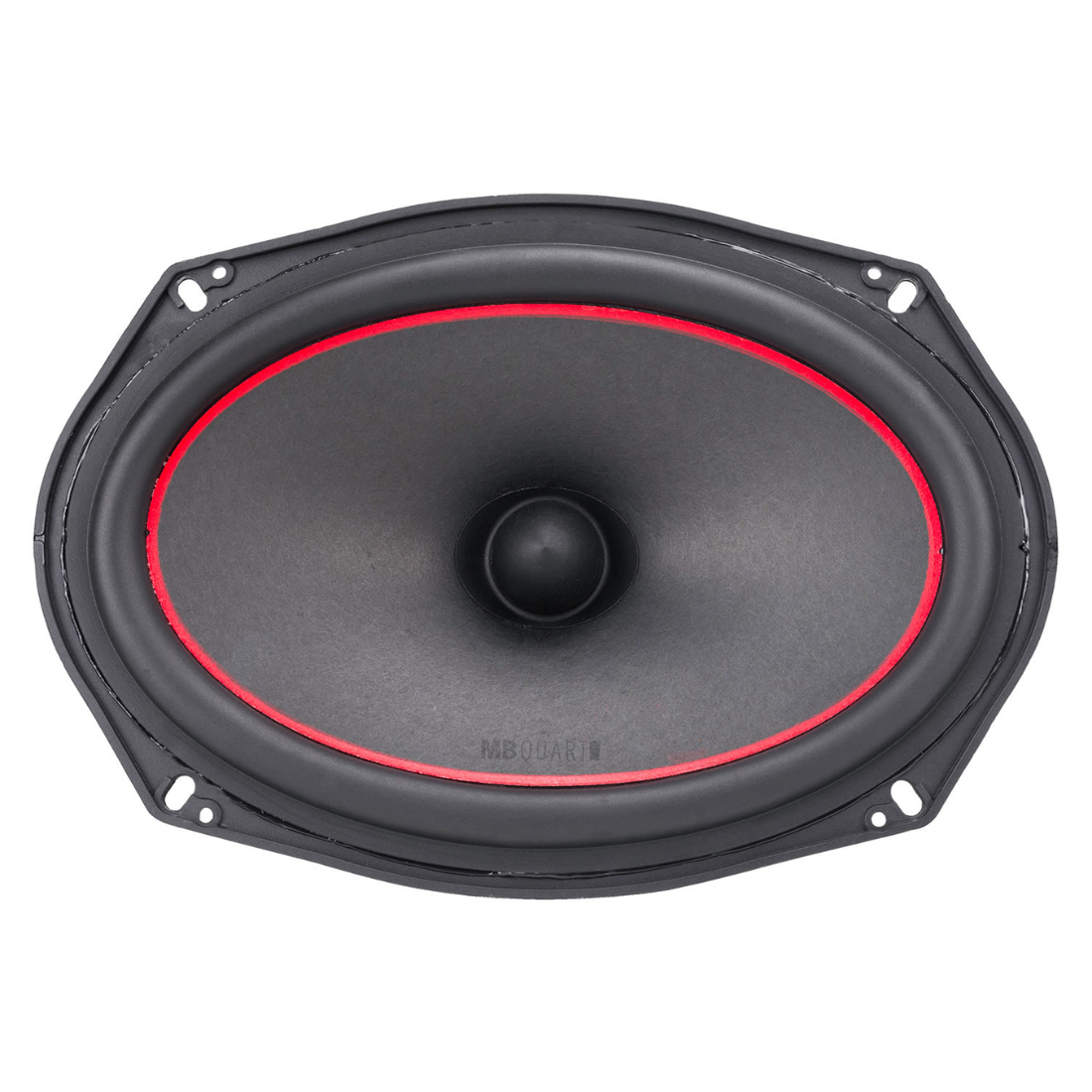

  • Cone Material: Lightweight curvilinear pulp cone with bamboo fiber for strength, accuracy, and reduced distortion
  • Surround/Cone Bonding: High-temperature adhesive, resistant to heat and cold for secure long-term durability
  • Gasket: Molded polymer sealing gasket for isolation and protection against dust and moisture
  • Voice Coil/Former: High-temp imported wire on Kapton former for improved efficiency and frequency extension
  • Spider: Red woven fiber cotton/poly blend spider for cone and voice coil stability
  • Cooling System: Frame and spider ventilation for airflow and voice coil cooling; tweeters use PTC protection

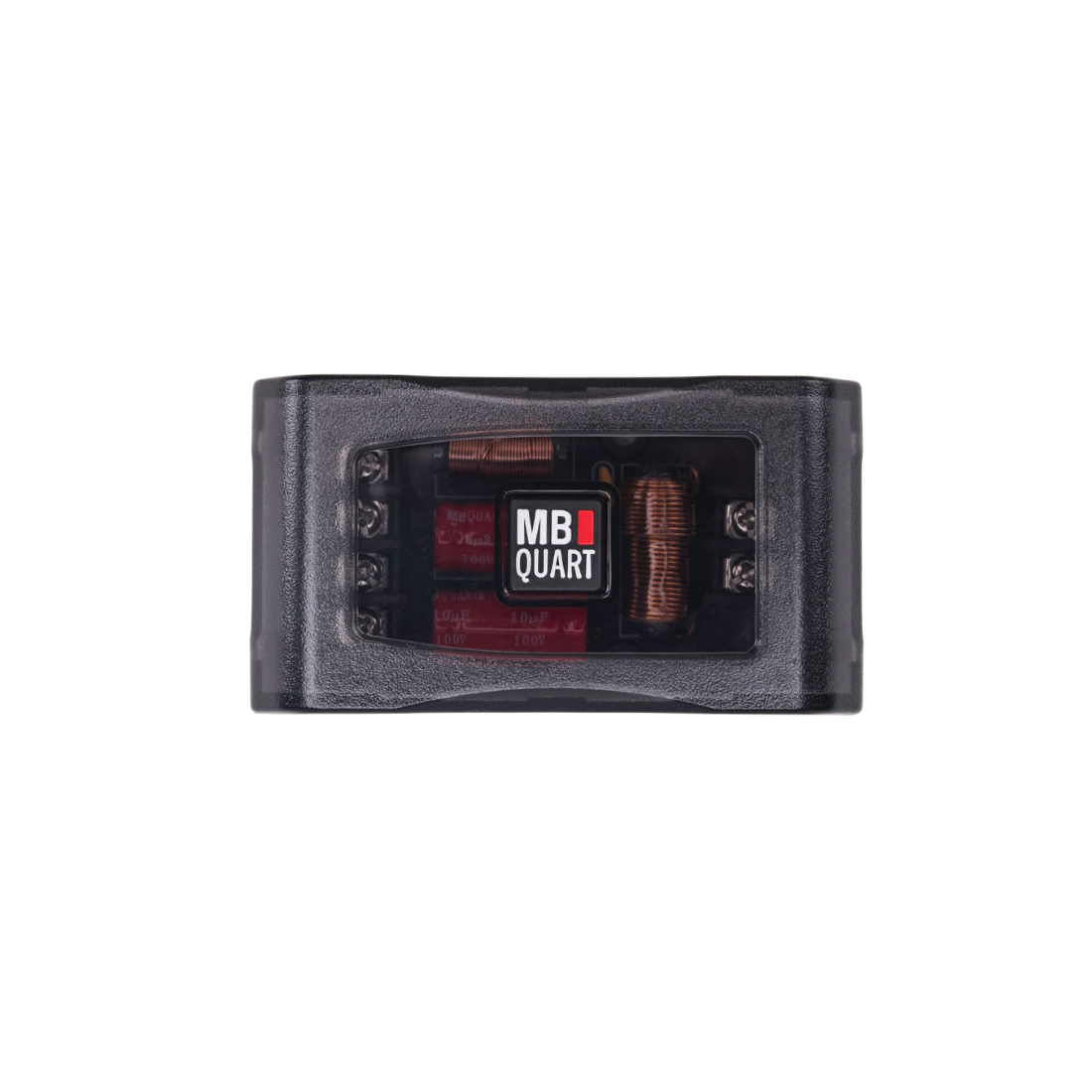

  • Crossover: External 2-way passive audiophile crossover with Butterworth/Cauer topology for smooth frequency transition
  • Tweeter Hardware: Includes surface-mount and flush-mount installation options
  • Frame: Aerospace-grade PA66 composite with 30% glass fiber to reduce resonance and distortion

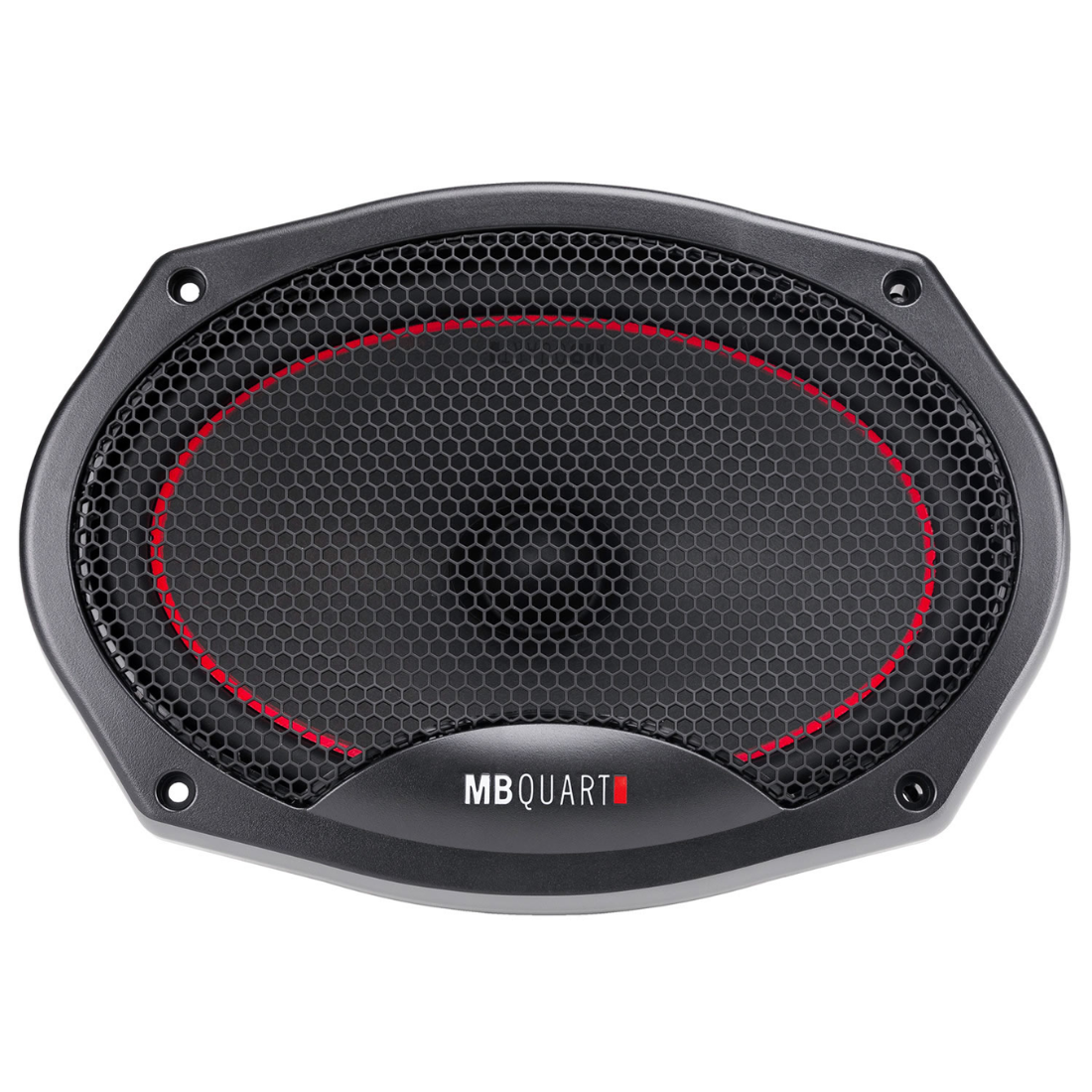

  • Grills: Included for protection and a finished installation look. Dual 2 or 4 ohm voice coils
  • Optimized for small ported enclosures
  • Aluminum 2.25” voice coil former for superior heat dissipation
  • High-temperature copper voice coil wire
  • Double-stitched surround
  • Carbon Fiber Cone & Dust Cap

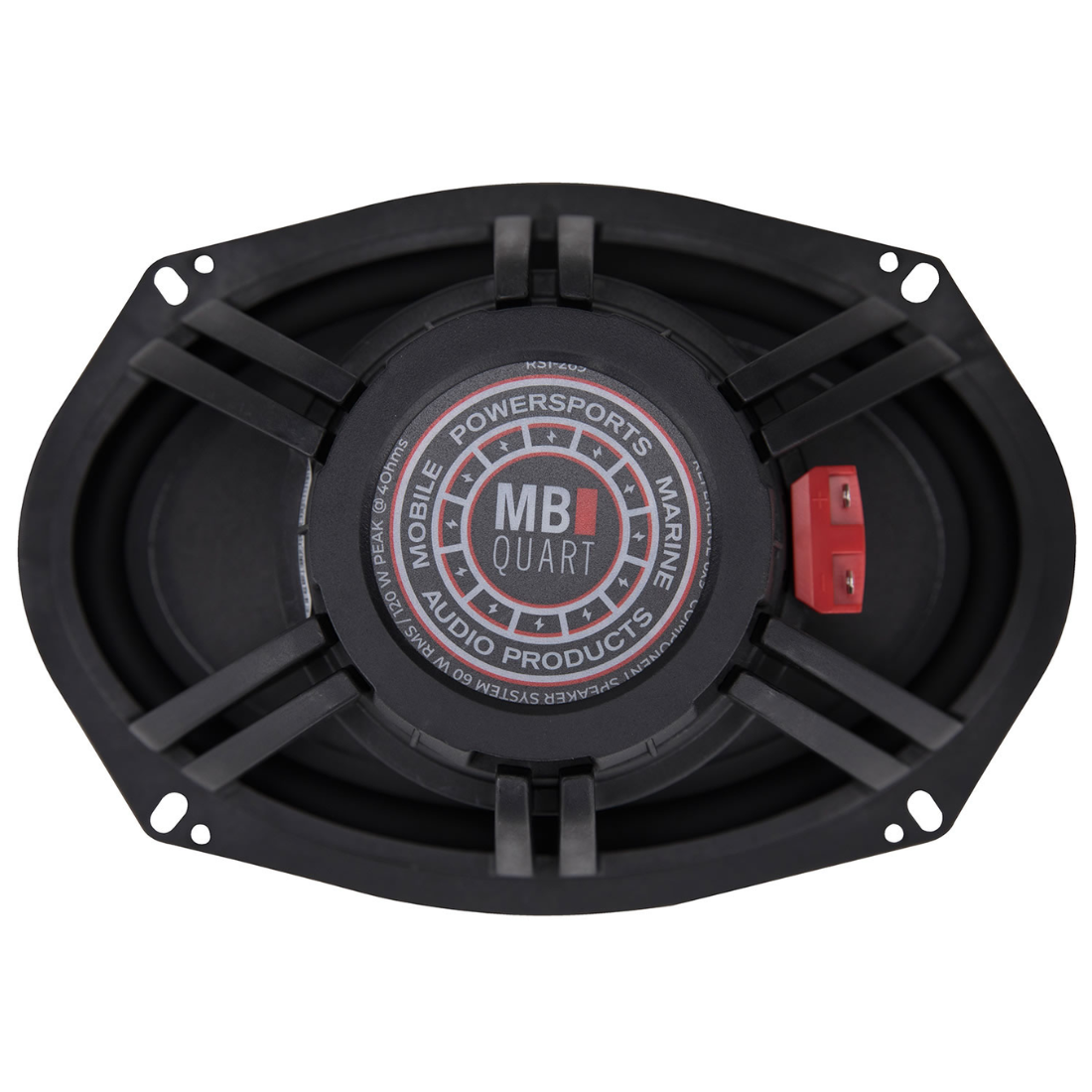

  • Heavy-duty cast basket
  • Spring-loaded terminals accept up to 8-gauge wire
  • Stitched-on heavy-duty tinsel leads
  • High-Velocity Vented Pole
  • Rear gap-venting
  • 18mm one-way linear x-max by 70% BL
Specifications:

  • Type: Speaker
  • Brand: MB Quart
  • Series: Reference
  • Category: Mobile
  • Condition: New
  • Color: Black
  • Best Buy Available: Yes
  • Best Buy Link: https://tinyurl.com/wogxw2c
  • Warranty: 1 Year
  • RMS Power Handling: 60W / 120W each & system
  • Peak Power Handling: 120W / 240W each & system
  • Impedance: 4 ohms
  • Frequency Response: 20Hz – 22kHz
  • Sensitivity: 88dB
  • Crossover Slope: 12dB/octave
  • Speaker Size: 6 x 9 in
  • Height: 3.34 in
  • Mounting Depth (Chassis Depth): 2.95 in
  • Mounting Cutout: 8.77 x 6.06 in
  • Outside Diameter: 9.44 x 6.61 in
