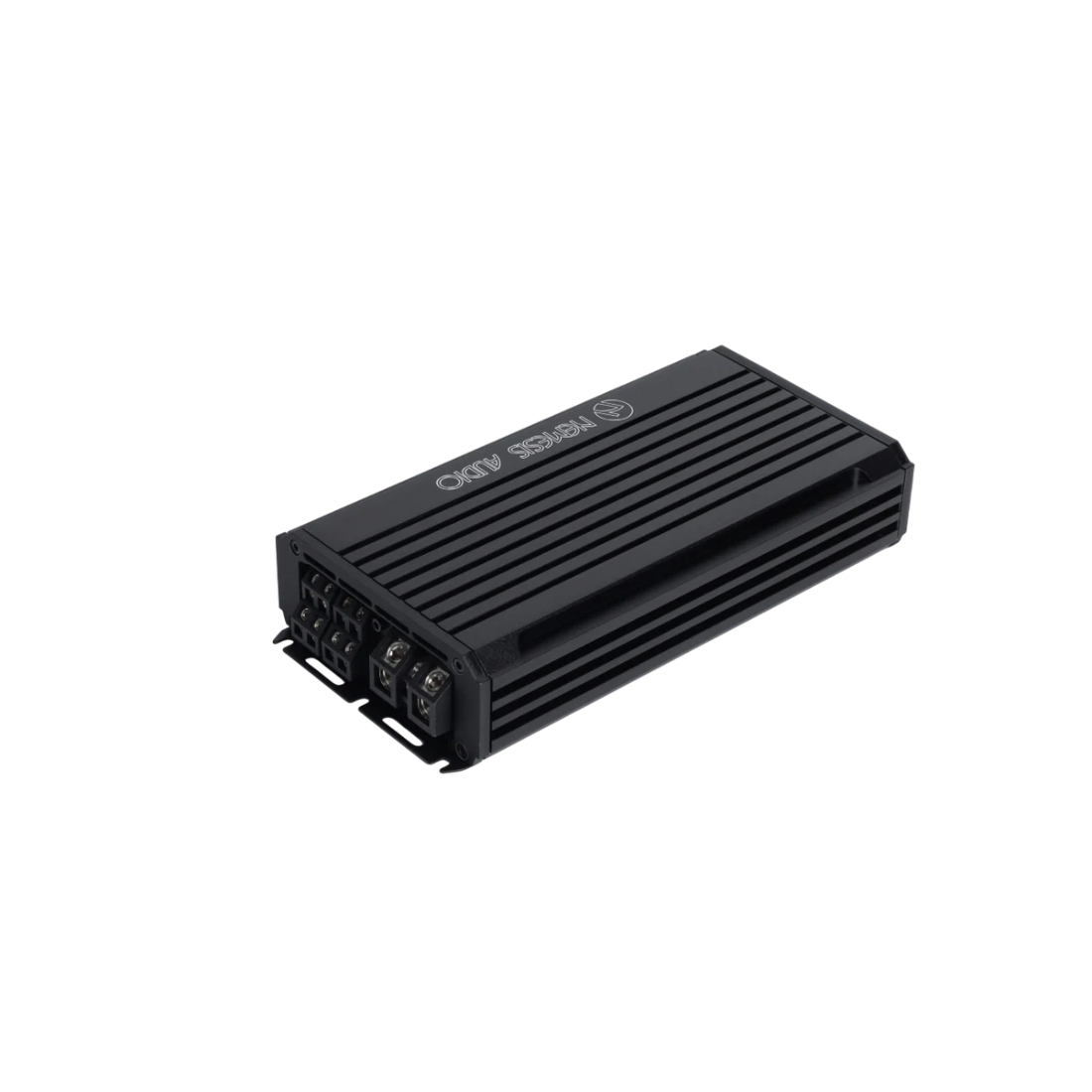

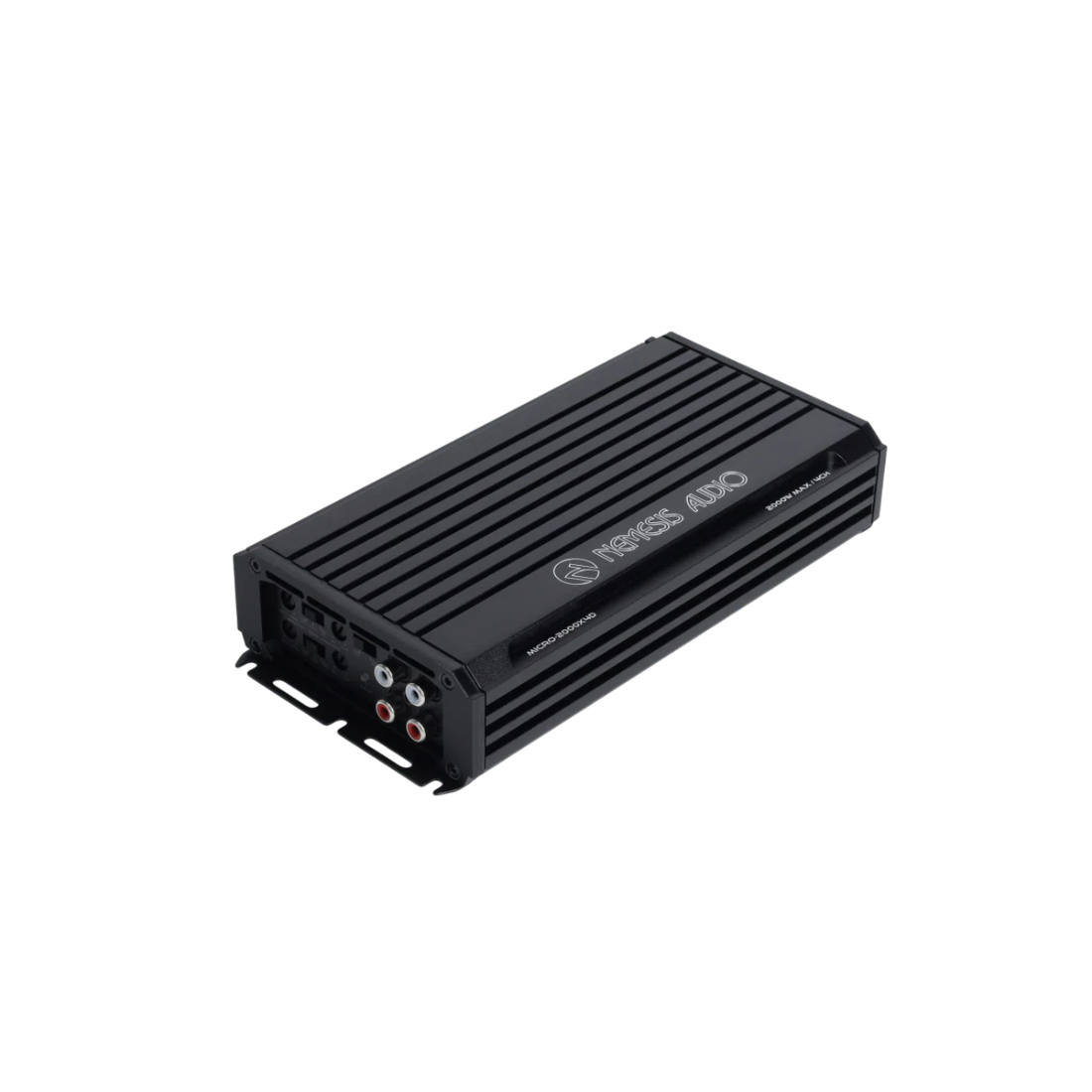

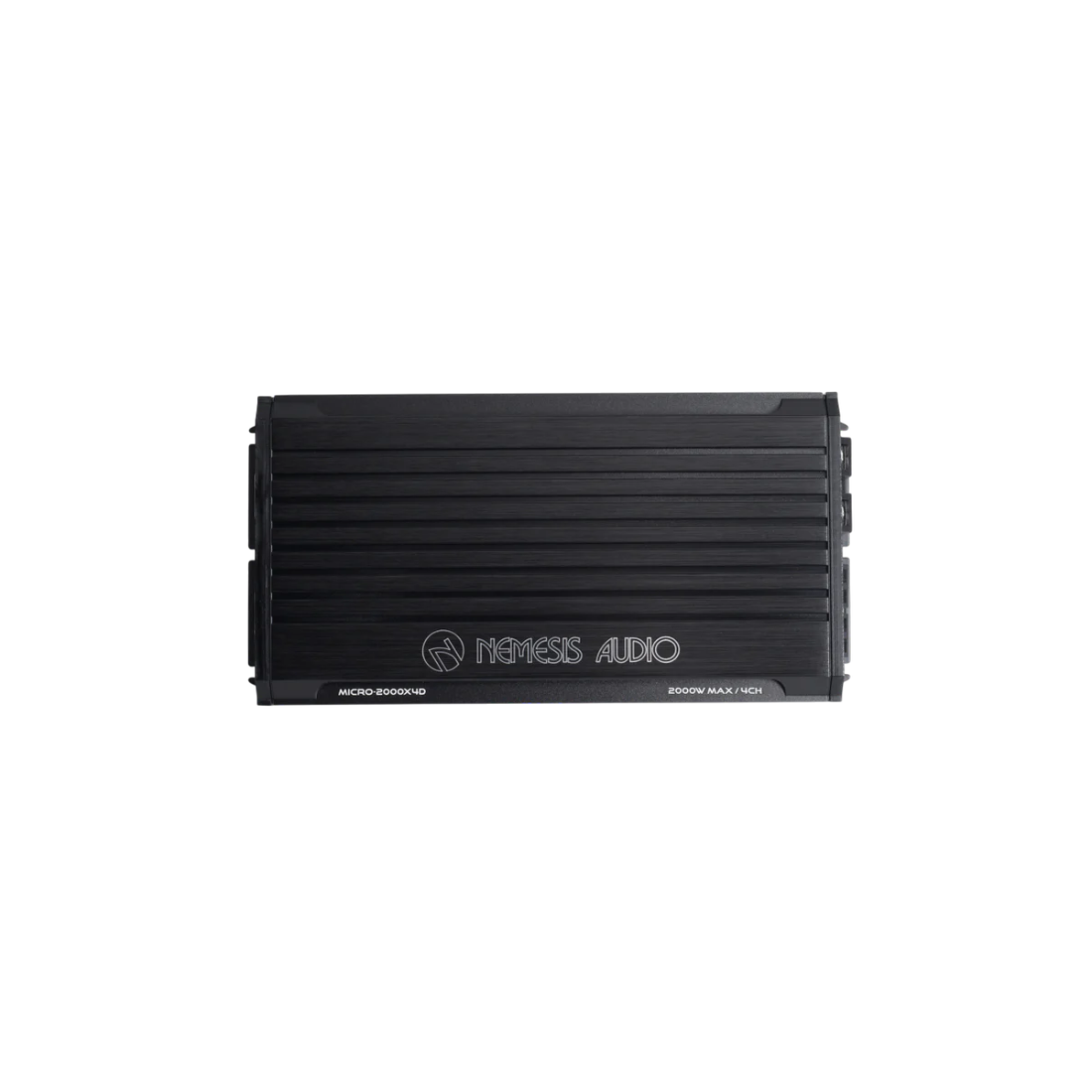

4-Channel 2000 Watts Max Full-Range Class-D Car Audio Amplifier
Key Features:
Versatile Power Output: Delivers up to 320W x 4 channels max power at 4Ω, 500W x 4 at 2Ω, and 1000W x 2 bridged at 4Ω, providing flexibility for various speaker configurations.
Full-Range Frequency Response: Covers 20Hz to 20KHz, ensuring clear and detailed audio reproduction across the entire audible spectrum.
Compact and Efficient Design: Measuring just 8.94″ x 5.4″ x 1.72″, its micro-sized chassis allows for easy installation in tight spaces without compromising performance.
High-Quality Audio Performance: Features a signal-to-noise ratio greater than 90 dB and total harmonic distortion under 0.3%, delivering clean and accurate sound output.
Specifications:
MAX/RMS Power (@ 14.4V, < 1% T.H.D.):
320W x 4CH / 160W X 4CH RMS @ 4Ω
500W x 4CH / 250W X 4CH RMS @ 2Ω
1000W x 2CH / 500W X2CH RMS @ 4Ω (Bridged)
Frequency Response: 20Hz – 20KHz

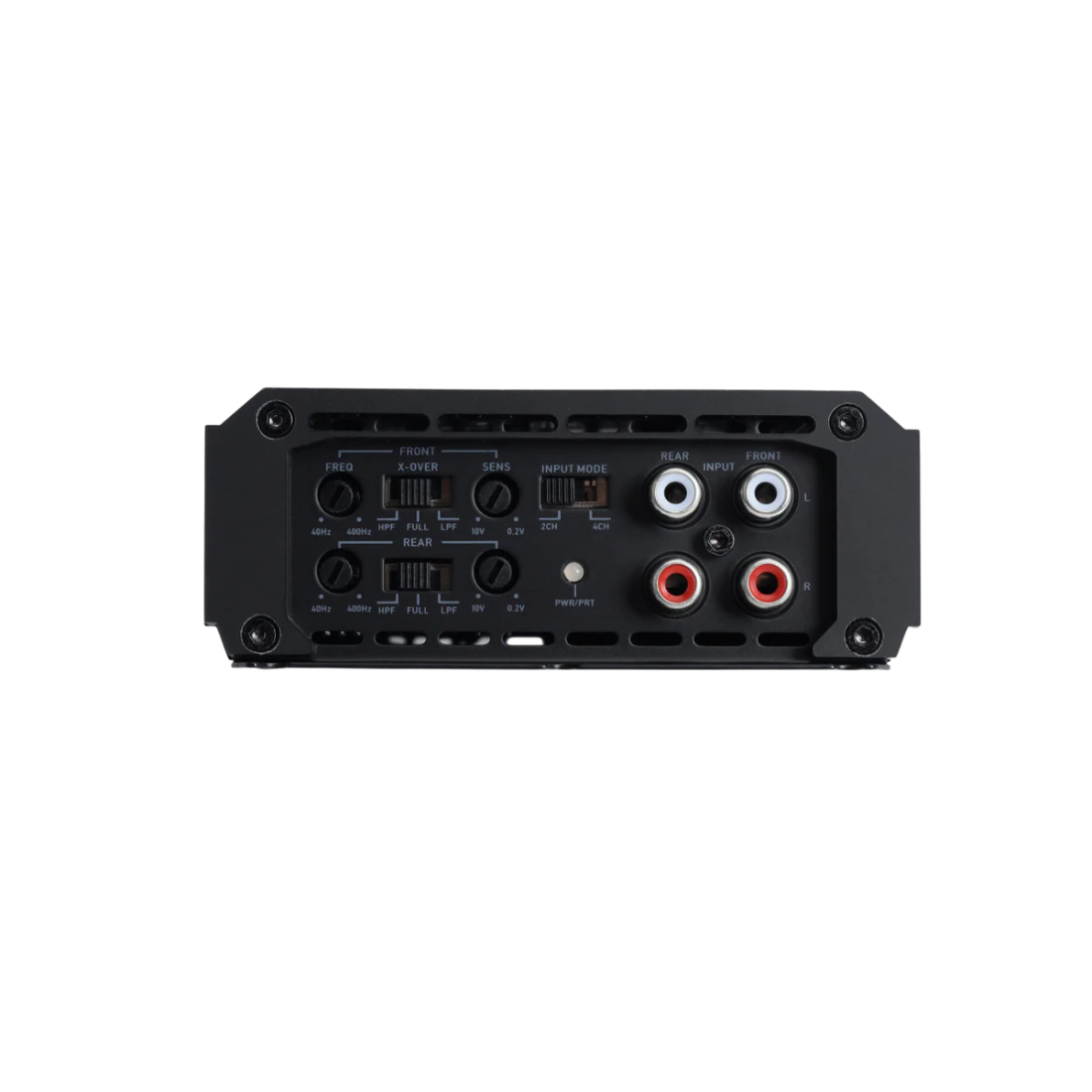

Crossover Range: 40Hz – 400Hz
Input Sensitivity: 0.2V – 10V
Signal-to-Noise Ratio: > 90 dB
Total Harmonic Distortion (T.H.D.): < 0.3%
Dimensions: 222mm x 143.6mm x 44.5mm (or 8.94″ x 5.4″ x 1.72″)
