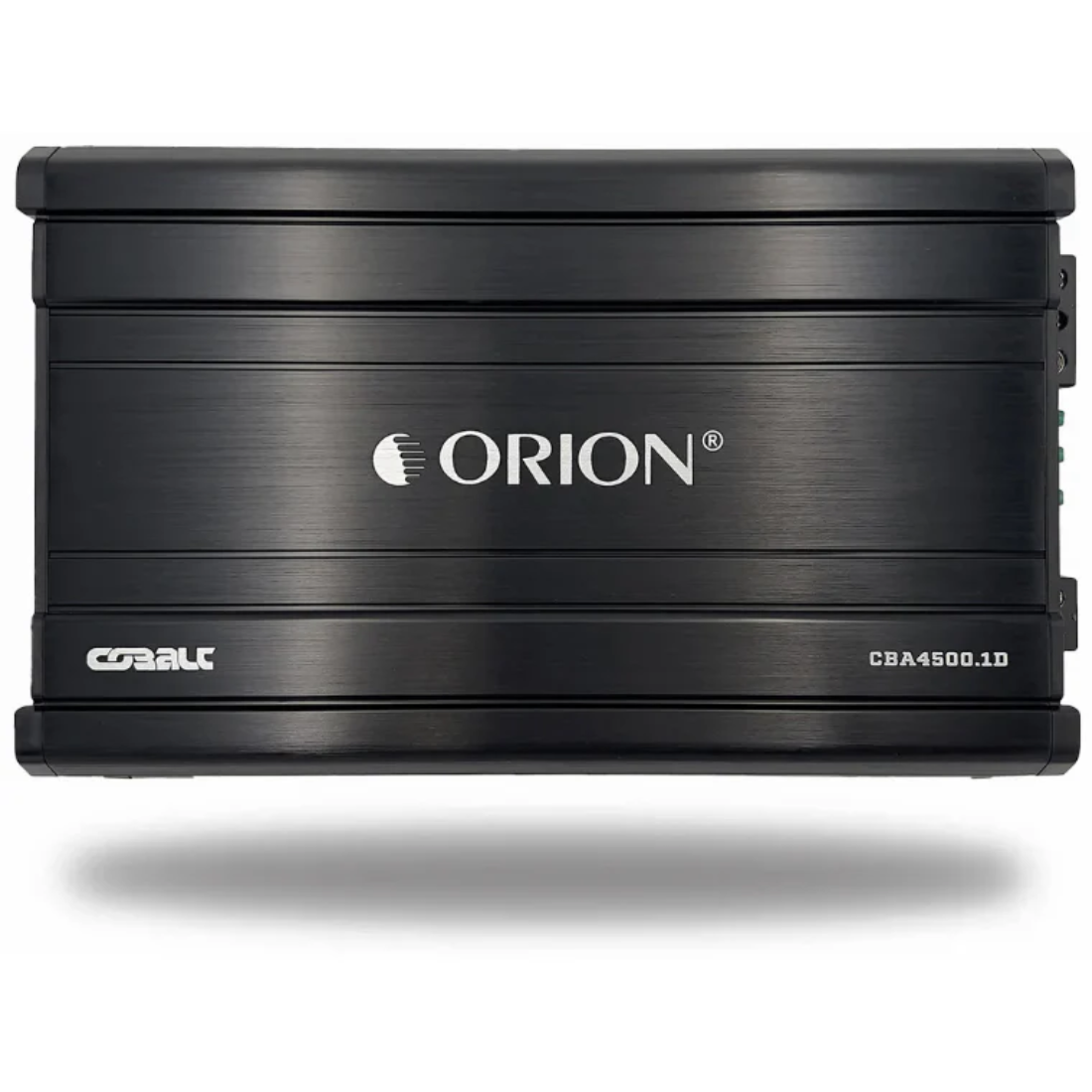

Orion CBA4500.1D COBALT 1-CH Monoblock 4500W Max Class-D Car Audio Amplifier

Orion CBA4500.1D COBALT 1-CH Monoblock 4500W Max Class-D Car Audio Amplifier

$169.95 USD
$169.95 USD
Sale Sold out
Shipping calculated at checkout.
PayPal payment Venmo payment Affirm payment
BRAND NEW

ORION CBA4500.1D

COBALT Series | Monoblock 4500W Max Class-D Car Audio Amplifier

Highlights:

  • Efficient Class D Power: Unlock high-efficiency, precision bass with advanced Class D amplification, delivering crisp and powerful audio output that enhances every detail of your music.
  • Massive 4500-Watt Output: Immerse yourself in an intense bass experience with a peak power of 4500 watts, delivering deep bass and dynamic soundscapes designed to elevate your audio system.
  • Precision Tuning: The adjustable crossover enables seamless frequency control, allowing you to fine-tune audio output and optimize speaker performance for an enhanced listening experience.
  • Enhanced Bass Control: Customize your sound with adjustable bass boost, allowing you to amplify low-end frequencies for rich, resonant bass that makes every beat stand out.
  • Robust Protection: Advanced circuitry defends against overheating and short circuits, enhancing durability for reliable, long-term performance and providing peace of mind during high-power use.
  • Compact Build: Its space-saving design offers flexible installation without sacrificing performance.
  • Engineered for Reliability: Thoughtfully designed for lasting performance and power efficiency in any audio setup.
Key Features:

  • All MOSFET Power Supply & Output Stage
  • Heavy Gauge / High Current Custom Power and Speaker Terminals
  • 1-Ohm Stable

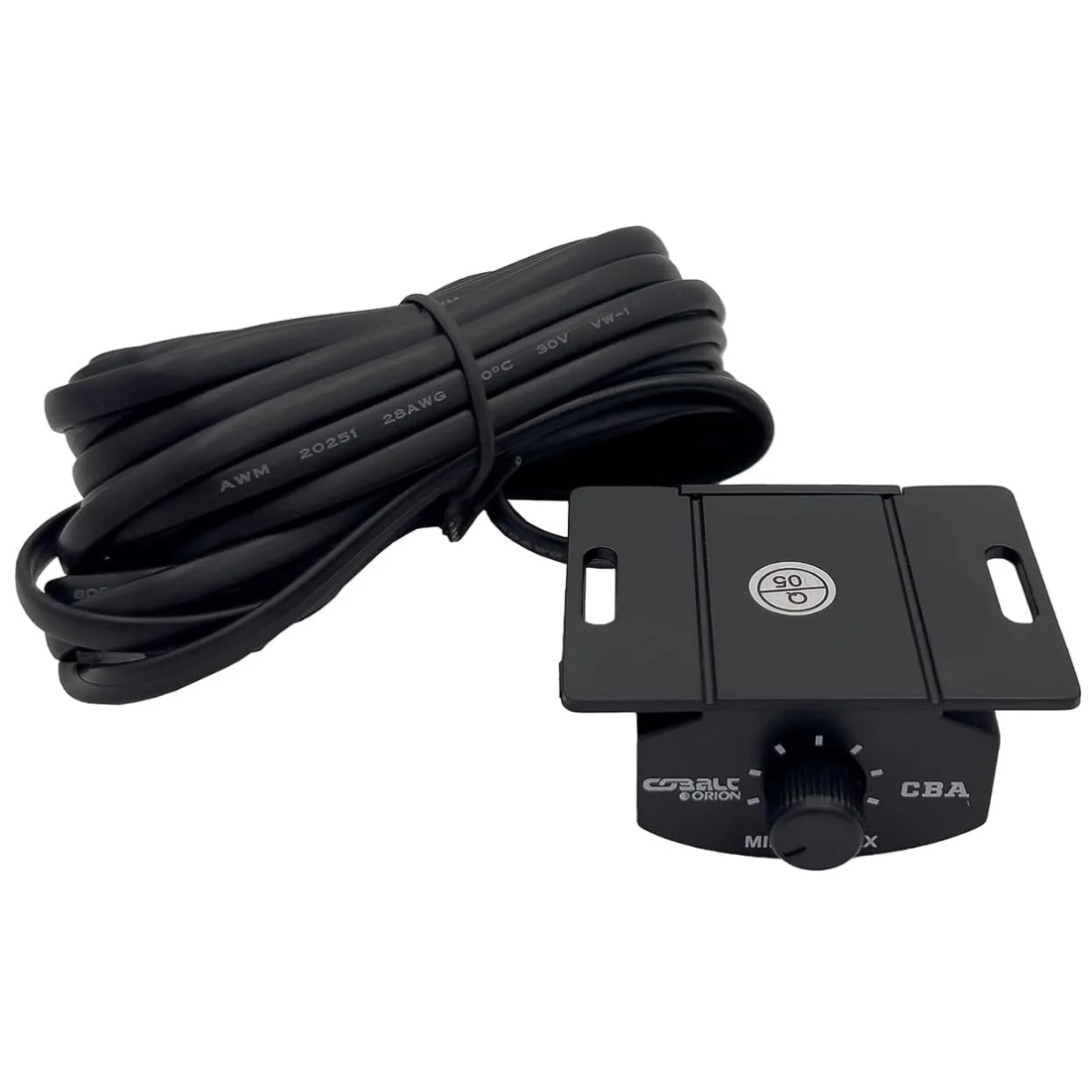

  • Remote Gain Controller Included
  • RCA Out Throughput
  • 12dB Octave Low-Pass Filter
  • Electronic Crossover Network
  • Bass Boost Circuit
  • Intelligent Power and Protection LED Indicator
  • Soft Turn-on/Turn-off
  • Turn-On Delay
  • Fault and Protection Monitoring
  • 4-Way Protection: Thermal, DC offset, Short Protection, under- and over-voltage
Specifications:

  • RMS WATTS @ 1 Ohms: 1125W
  • RMS WATTS @ 2 Ohms: 650W
  • RMS WATTS @ 4 Ohms: 350W

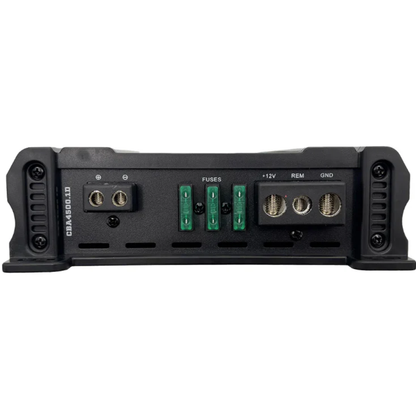

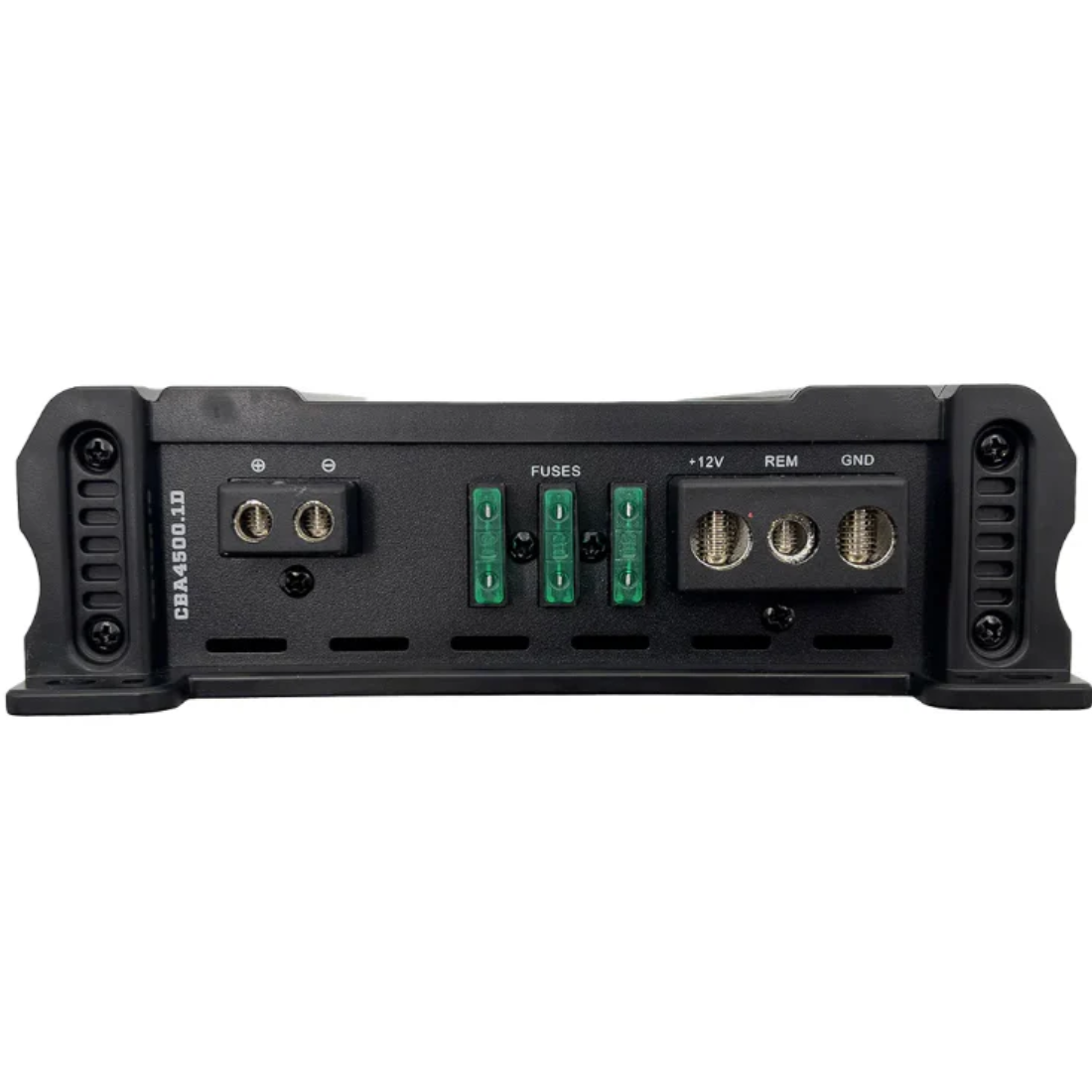

  •  POWER TERMINAL MANAGEMENT
  •   -Positive Terminals: 1 x 4 AWG.
  •   -Negative Terminals: 1 x 4 AWG.
  •   -Remote Turn-ON Signal: 10 AWG.
  •   -Speaker Output Terminals: 10 AWG.
  • Frequency Response: 10Hz - 250Hz
  • Subsonic (15 - 50Hz)
  • Low Pass Crossover Continuously variable (40-250Hz)
  • Supply Voltage: 10 - 16V
  • Input Impedance: 22kOhm
  • Signal to Noise Ratio: >90dB
  • Phase Shift: 0/180 Degrees
  • Bass Boost: 0 - 12dB Variable
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: 105A recommended (3 x 35A ATC)
  • Dimensions (L x W x H): 12.56" x 7.09" x 2.13" (319x180x54mm)
