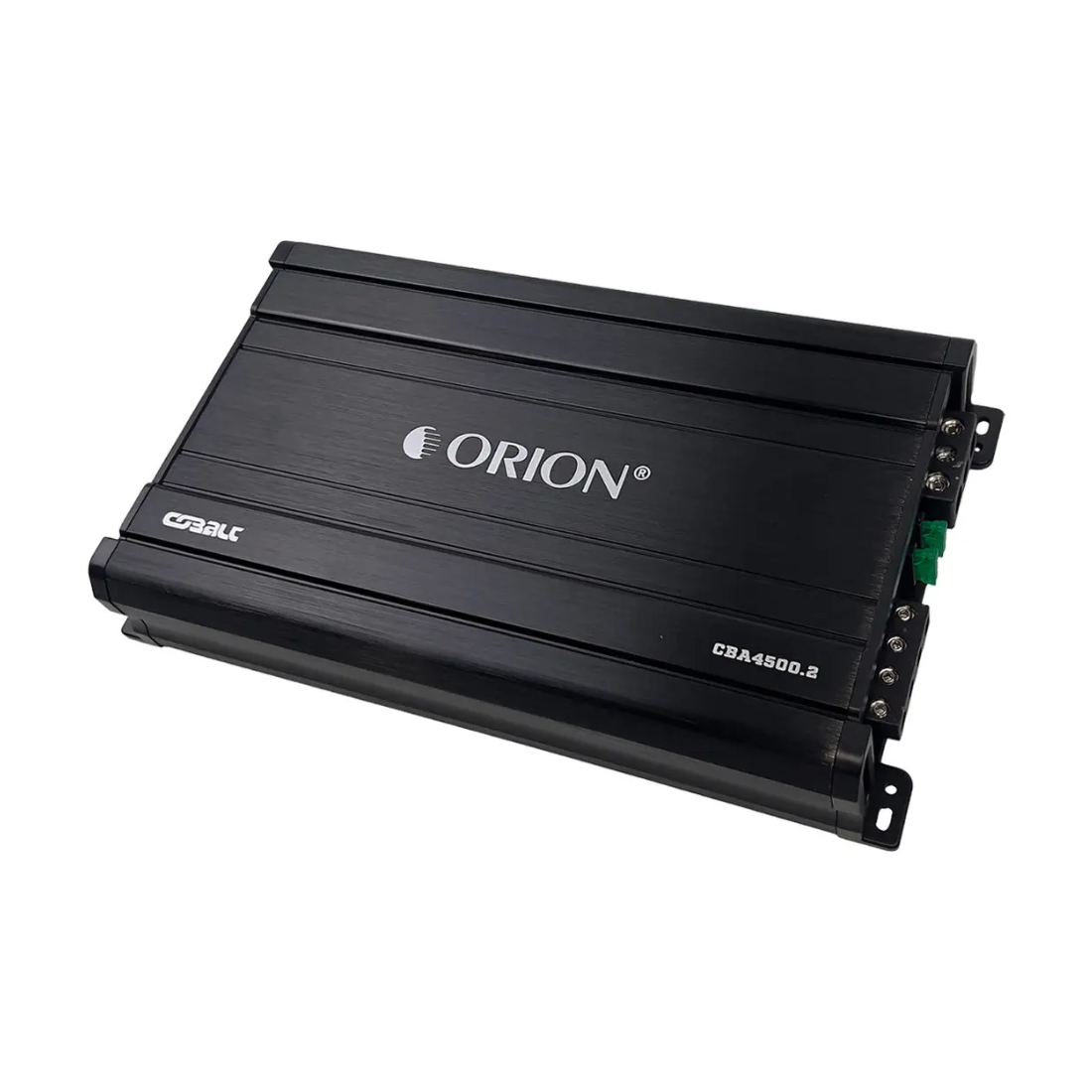

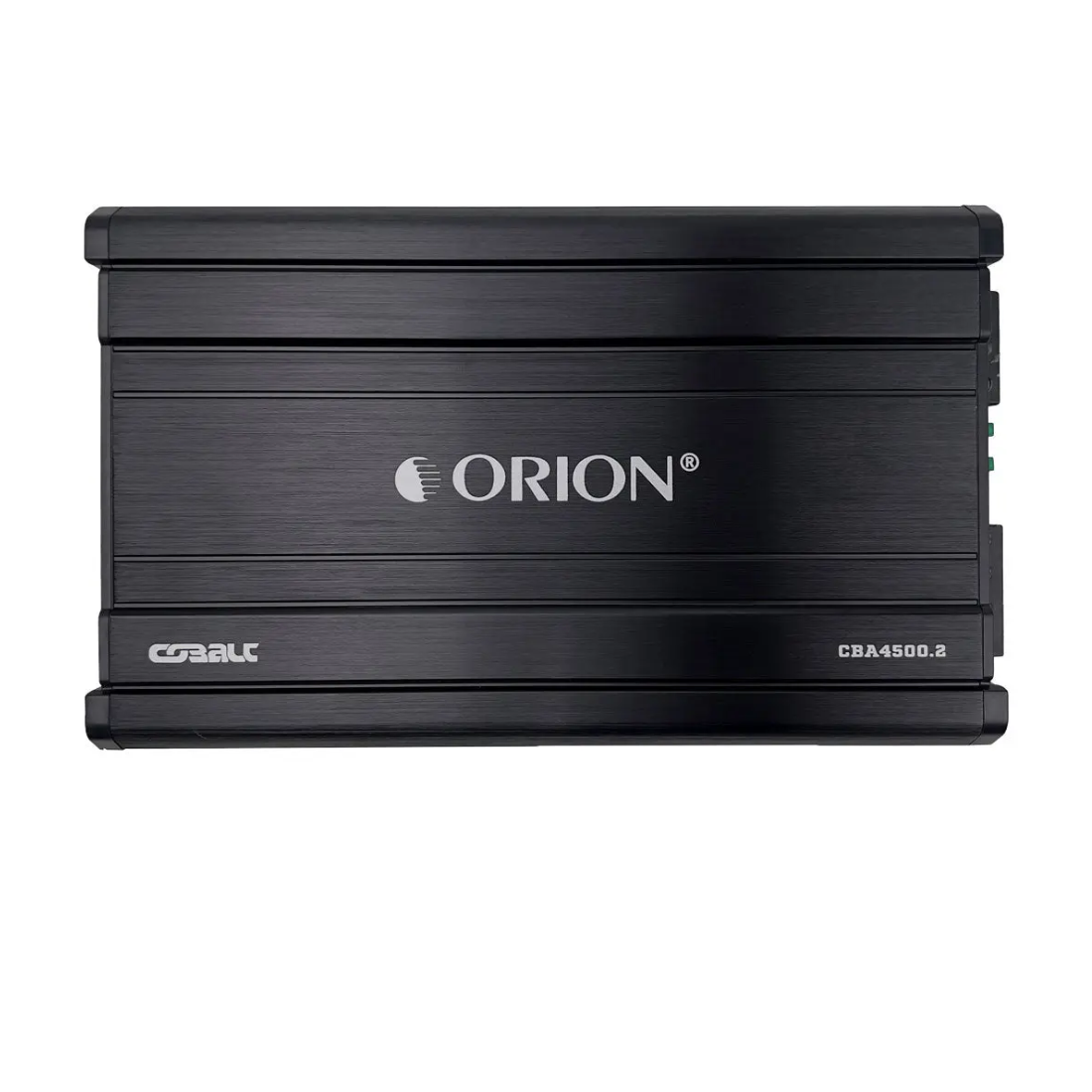

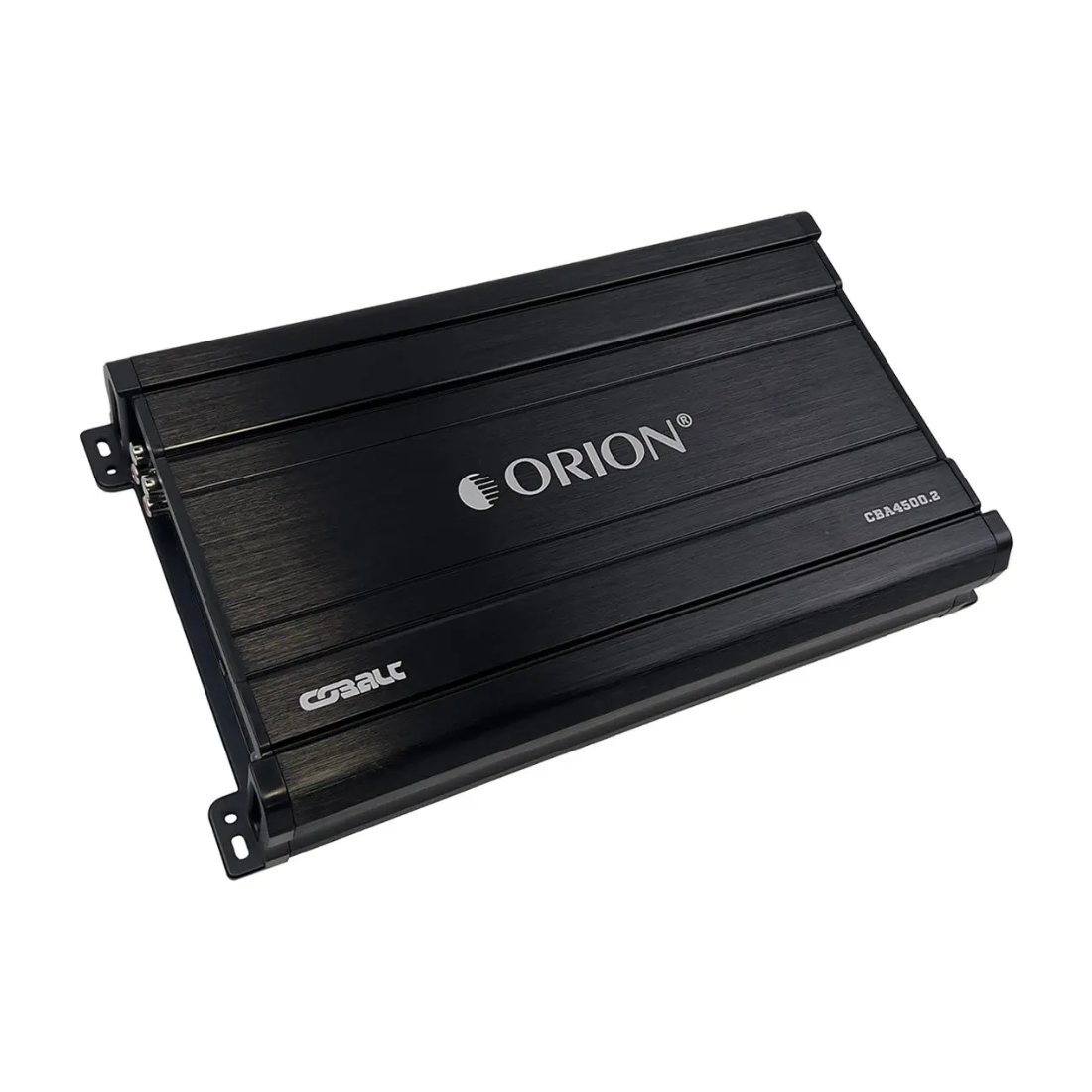

Orion CBA4500.2 2-Channel 4500W Max 2-Ohm Stable Class-A/B Car Audio Amplifier

Orion CBA4500.2 2-Channel 4500W Max 2-Ohm Stable Class-A/B Car Audio Amplifier

$139.95 USD
$139.95 USD
Sale Sold out
Shipping calculated at checkout.
PayPal payment Venmo payment Affirm payment
BRAND NEW

ORION CBA4500.2

2-Channel 4500W Max 2-Ohm Stable Class-A/B Car Audio Amplifier

Key Features:

  • Class A/B Amplification for high-quality sound with efficient performance
  • Massive 4500-Watt Peak Power for powerful, dynamic, and immersive audio
  • Adjustable Crossover for precise audio frequency control and optimal speaker performance
  • Customizable Bass Boost to fine-tune and enhance low-end response
  • Advanced Protection Features including overheating, short-circuit, and general system protection
  • Durable Construction with premium components for long-lasting performance
  • Engineered for Exceptional Sound with optimized audio quality, efficiency, and reliability
  • All MOSFET Power Supply & Output Stage for stable and efficient power delivery

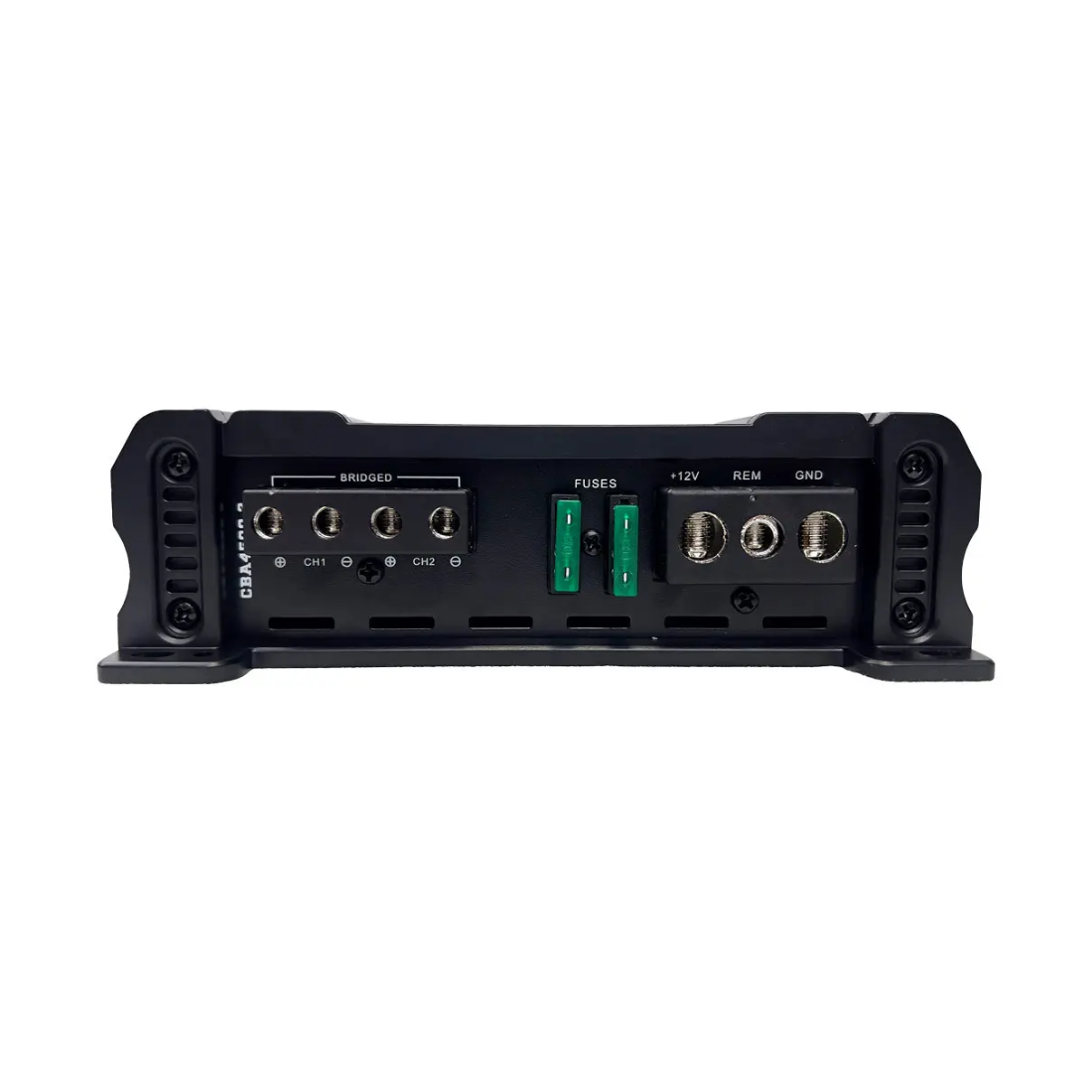

  • Heavy Gauge / High-Current Custom Power & Speaker Terminals
  • 2-Ohm Stable for flexible system compatibility
  • RCA Output Throughput for easy system expansion
  • 12 dB/Octave Low-Pass Filter for clean, controlled bass
  • Electronic Crossover Network for accurate sound tuning
  • Bass Boost Circuit for enhanced low-frequency impact
  • Intelligent Power & Protection LED Indicator
  • Soft Turn-On/Turn-Off to prevent system shock
  • Turn-On Delay for safe startup
  • Fault & Protection Monitoring for system reliability
  • 4-Way Protection: Thermal, DC offset, short protection, under & over voltage
  • Max Music Power: 4500W
Specifications:

  • Frequency Response: 10Hz – 30kHz

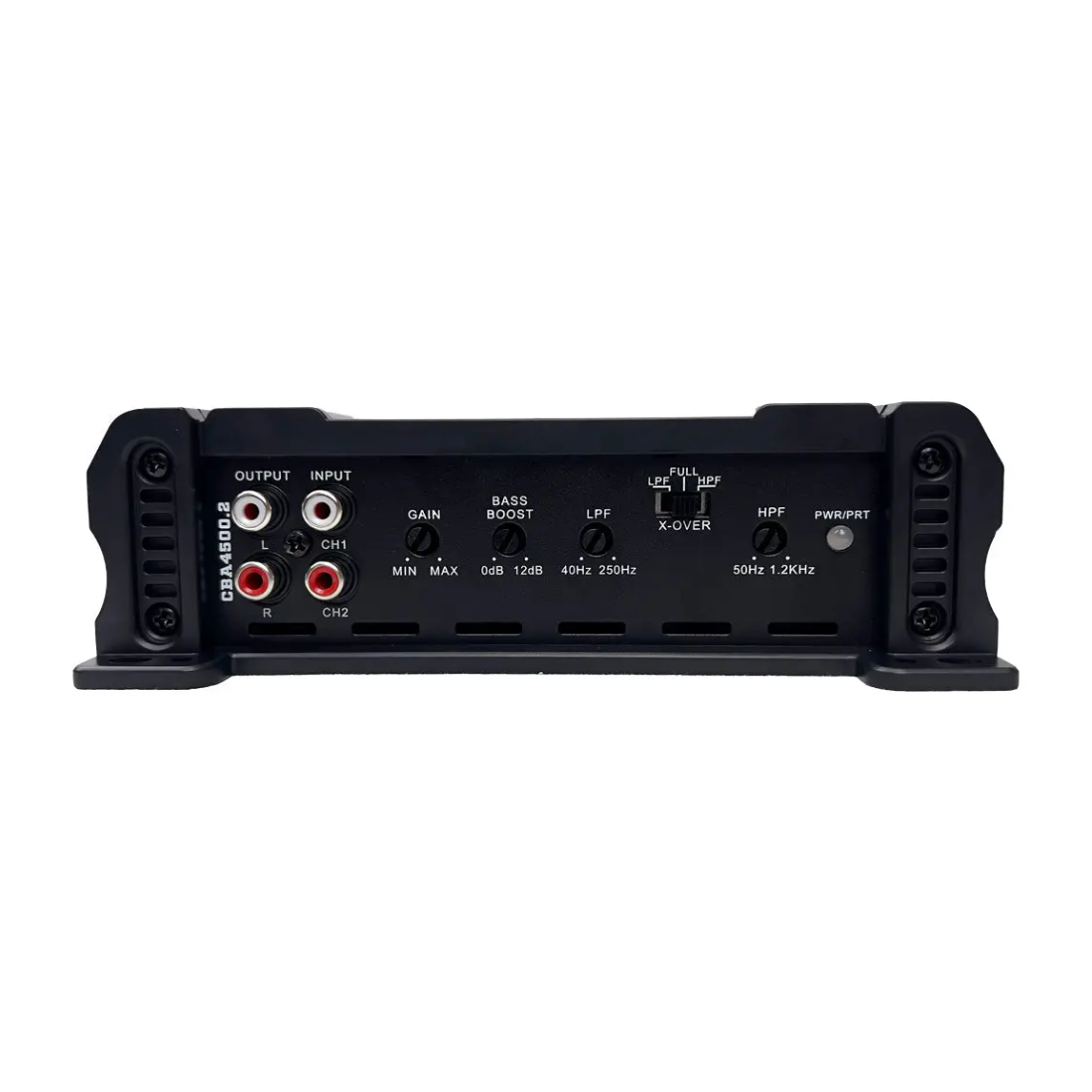

  • High-Pass Crossover (Continuously Variable): 50 – 1.2kHz
  • Low-Pass Crossover (Continuously Variable): 40 – 250Hz
  • Supply Voltage: 10 – 16V
  • Input Impedance: 22kΩ
  • Signal-to-Noise Ratio: >90dB
  • Bass Boost: 0 – 12dB (Variable)
  • Variable Input Level Control: 0.2V – 6.0V
  • Fuses: 60A recommended (2 × 30A ATC)
  • Dimensions (L × W × H): 12.28" × 7.09" × 2.13" (312 × 180 × 54mm)
