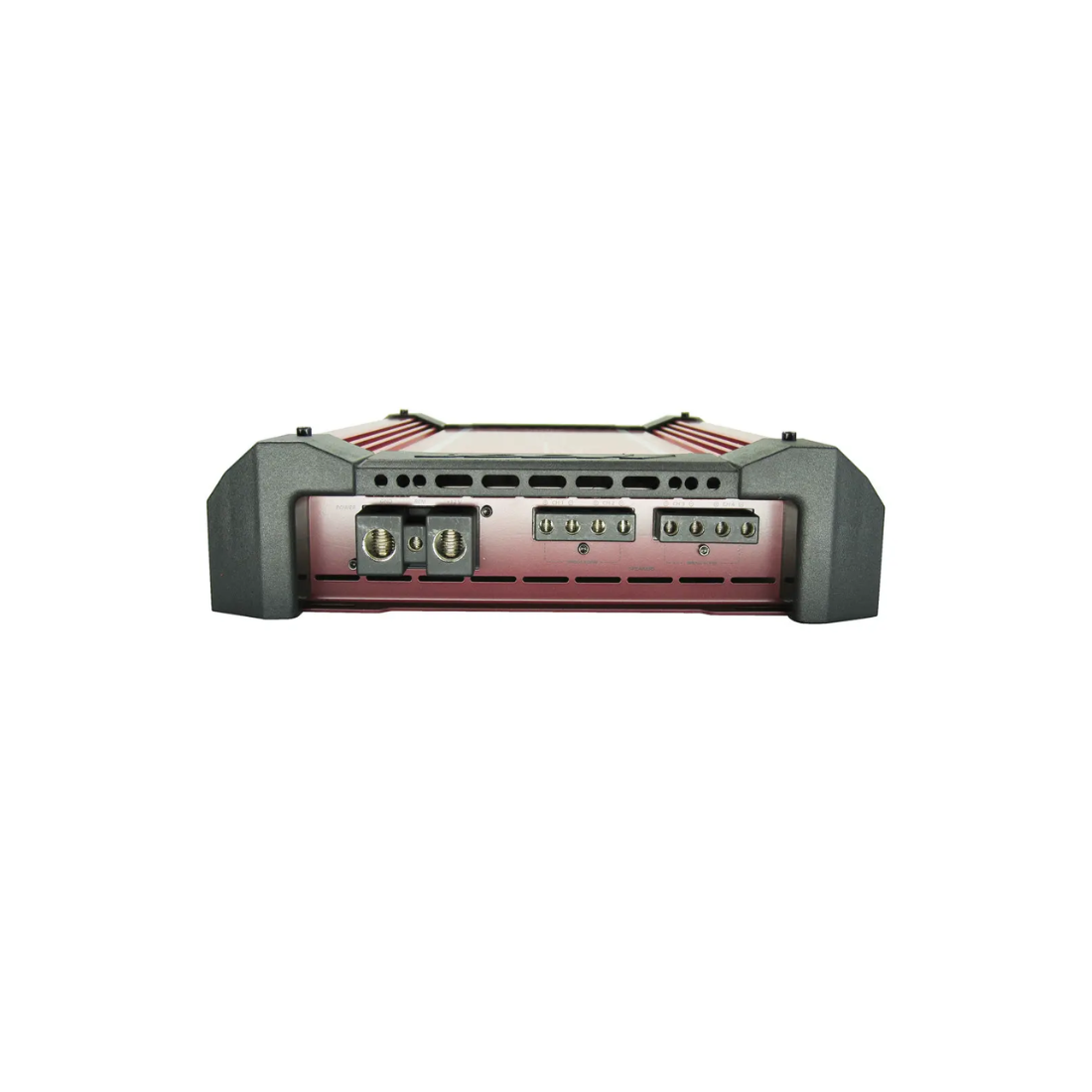

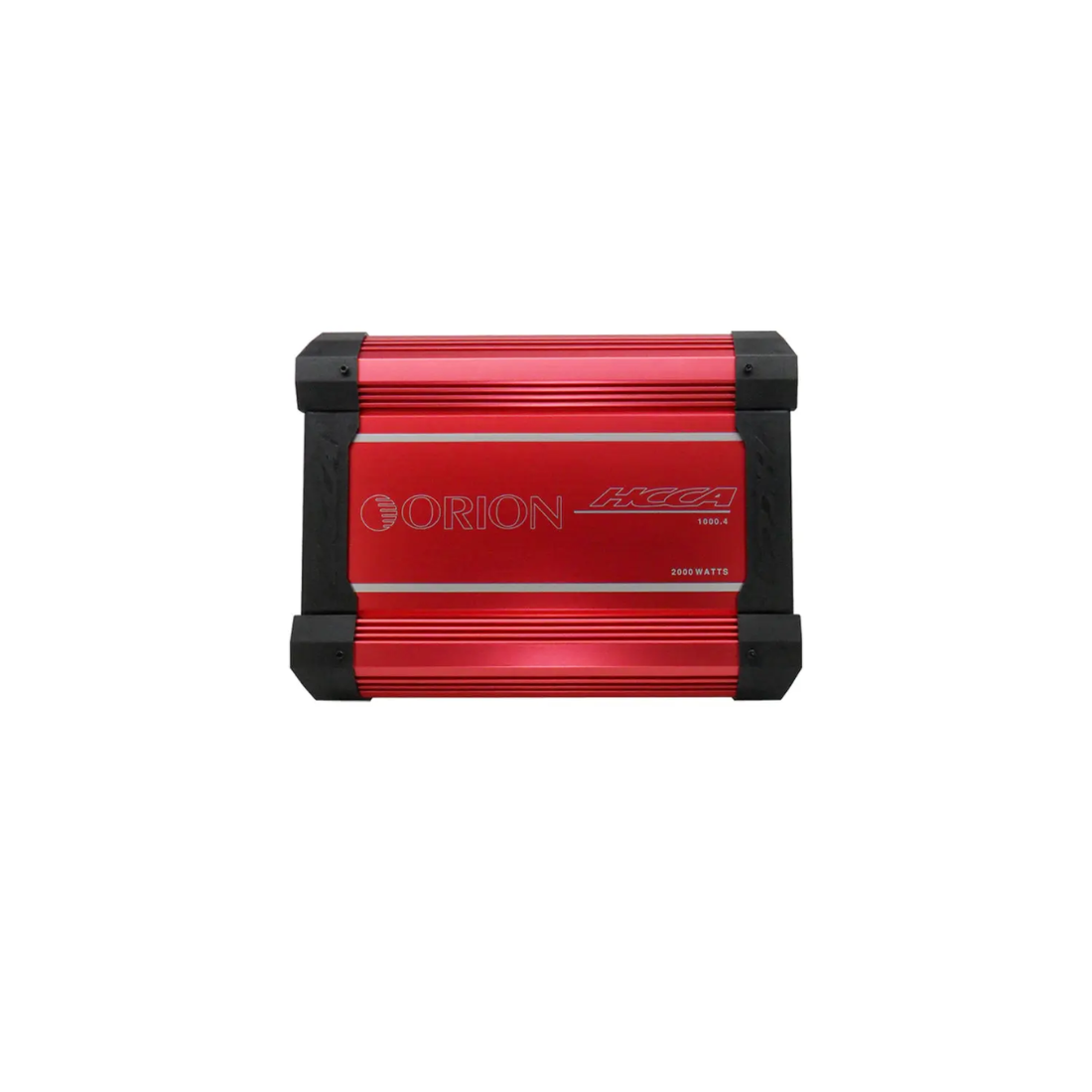

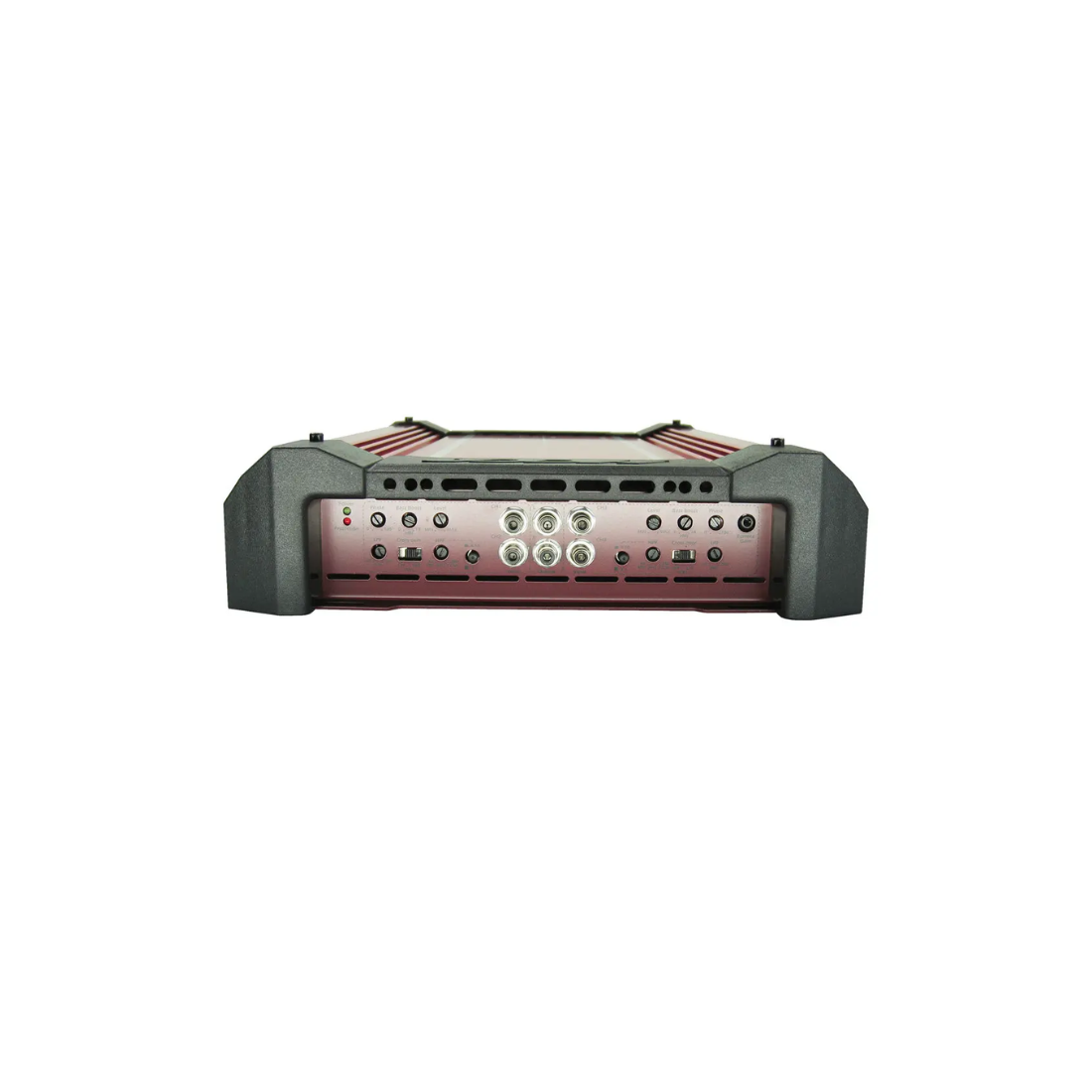

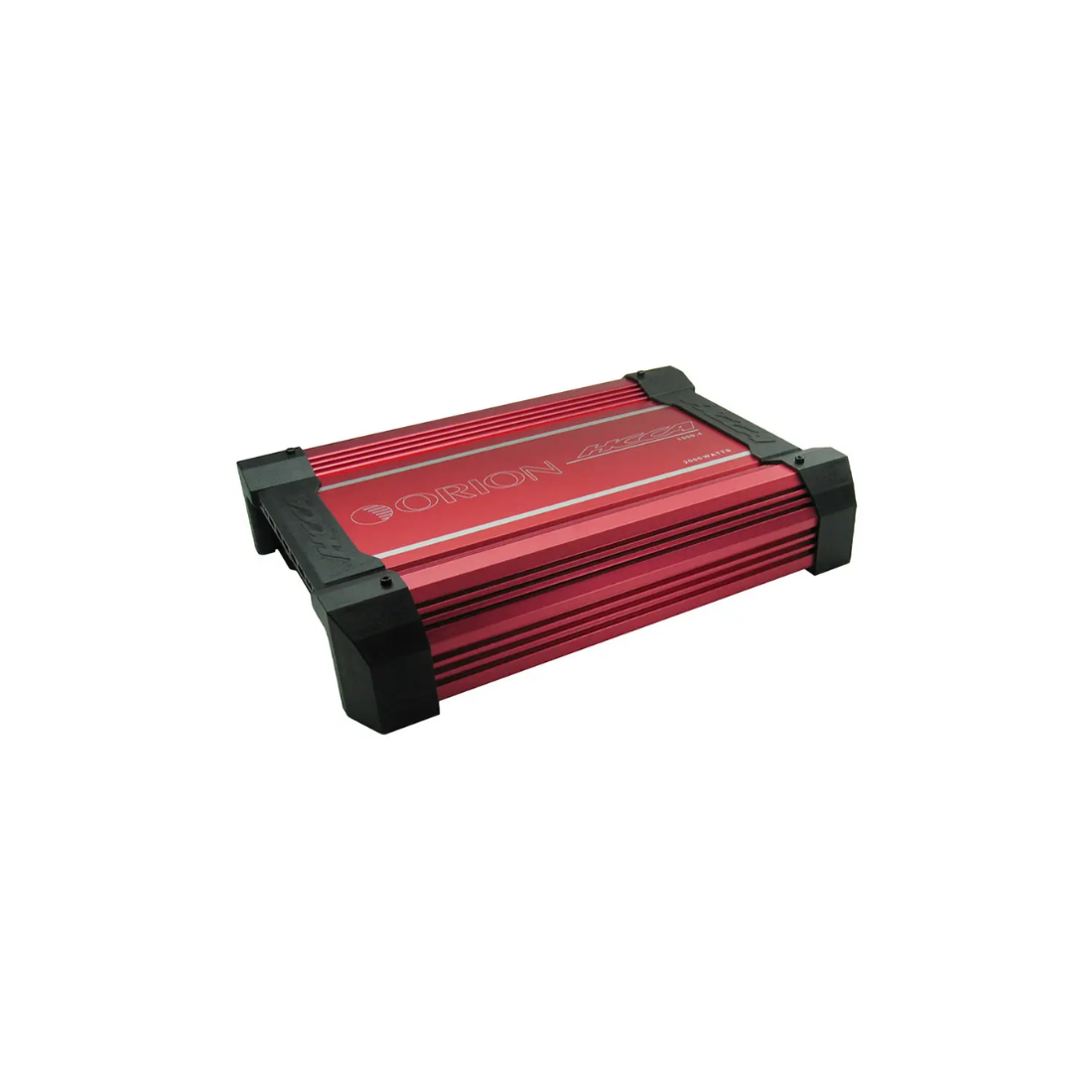

Orion HCCA1000.4 4-Channel 1000W RMS MOSFET Class-A/B Car Audio Amplifier

Orion HCCA1000.4 4-Channel 1000W RMS MOSFET Class-A/B Car Audio Amplifier

$499.95 USD
$499.95 USD
Sale Sold out
Shipping calculated at checkout.
PayPal payment Venmo payment Affirm payment
BRAND NEW

ORION HCCA1000.4

4-Channel 1000W RMS MOSFET Class-A/B Car Audio Amplifier

Key Features:

  • Class-AB Amplification: Experience the harmonic blend of Class-AB amplification, combining the efficiency of Class B and the sound quality of Class A for a remarkable audio journey.
  • 1000 Watts RMS: Immerse yourself in an auditory landscape with 1000 Watts RMS, delivering impactful and detailed sound performance.
  • Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
  • Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
  • Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting durability.
  • Compact and Stylish Design: The amplifier's sleek design adds sophistication to your audio setup without compromising performance or aesthetics.
  • Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.
  • All MOSFET Power Supply
  • Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
  • Electronic Crossover Network
  • Bass Boost Circuitry
  • Tri-Mode Capable
  • High-Pass/Low-Pass Filter Control
  • Power and Protection LED Indicators
  • Soft Turn-on/Turn-off
  • Balanced Input (CMRR)
  • Fault and Protection Monitoring
  • 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Rating:

  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 150W
  • RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W
  • POWER TERMINAL MANAGEMENT
  • - Positive Terminals: 1 x 0 AWG.
  • - Negative Terminals: 1 x 4 AWG.
  • - Remote Turn-ON Signal: 10 AWG.
  • - Speaker Output Terminals: 10 AWG.
Specifications:

  • Frequency Response: 10Hz to 35kHz +/- 1 dB
  • Linear Bandwidth: 20Hz to 65kHz +/- 3 dB
  • High Pass Crossover Continuously variable: (40-1.25kHz/400-12.5kHz)
  • Low Pass Crossover Continuously variable: (40-300Hz)
  • Phase shift control: 0 to 180
  • Bass Boost: 0-18dB variable
  • Distortion at Rated Power: 0.005% THD+N
  • Damping Factor: > 100
  • Input Sensitivity(RMS): 200mV to 6V
  • Supply Voltage Range: 9 to 16V
  • Input Impedance: 20K Ohms
  • Amplifier Efficiency: > 67% into 2 Ohms load at max. power
  • SNR at rated output power and lowest impedance: > 95dB
  • Fuses: 80A recommended (not included)
  • Dimensions (L x W x H): 15.75" x 11.89" x 3.15" (400x302x80mm)
