Orion

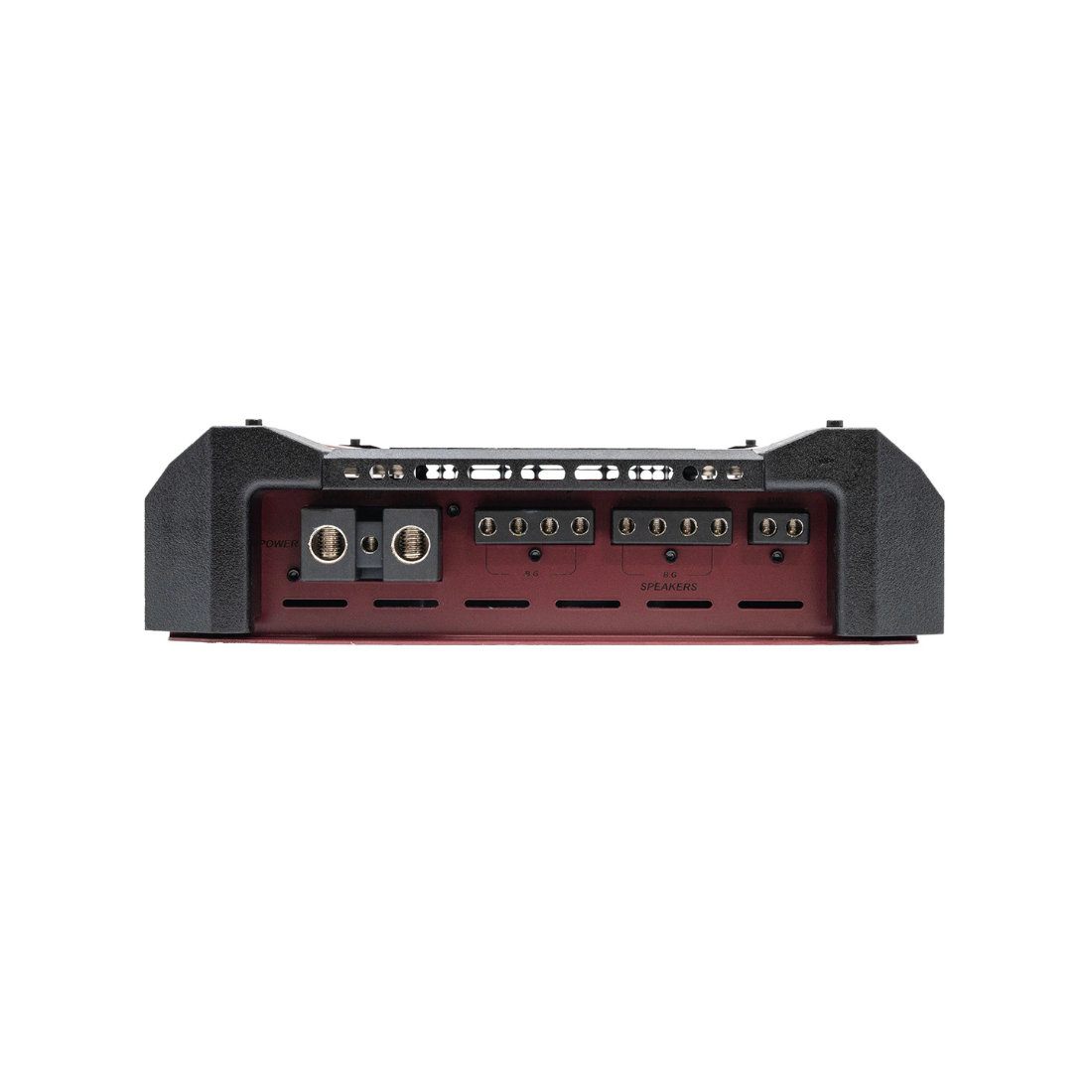

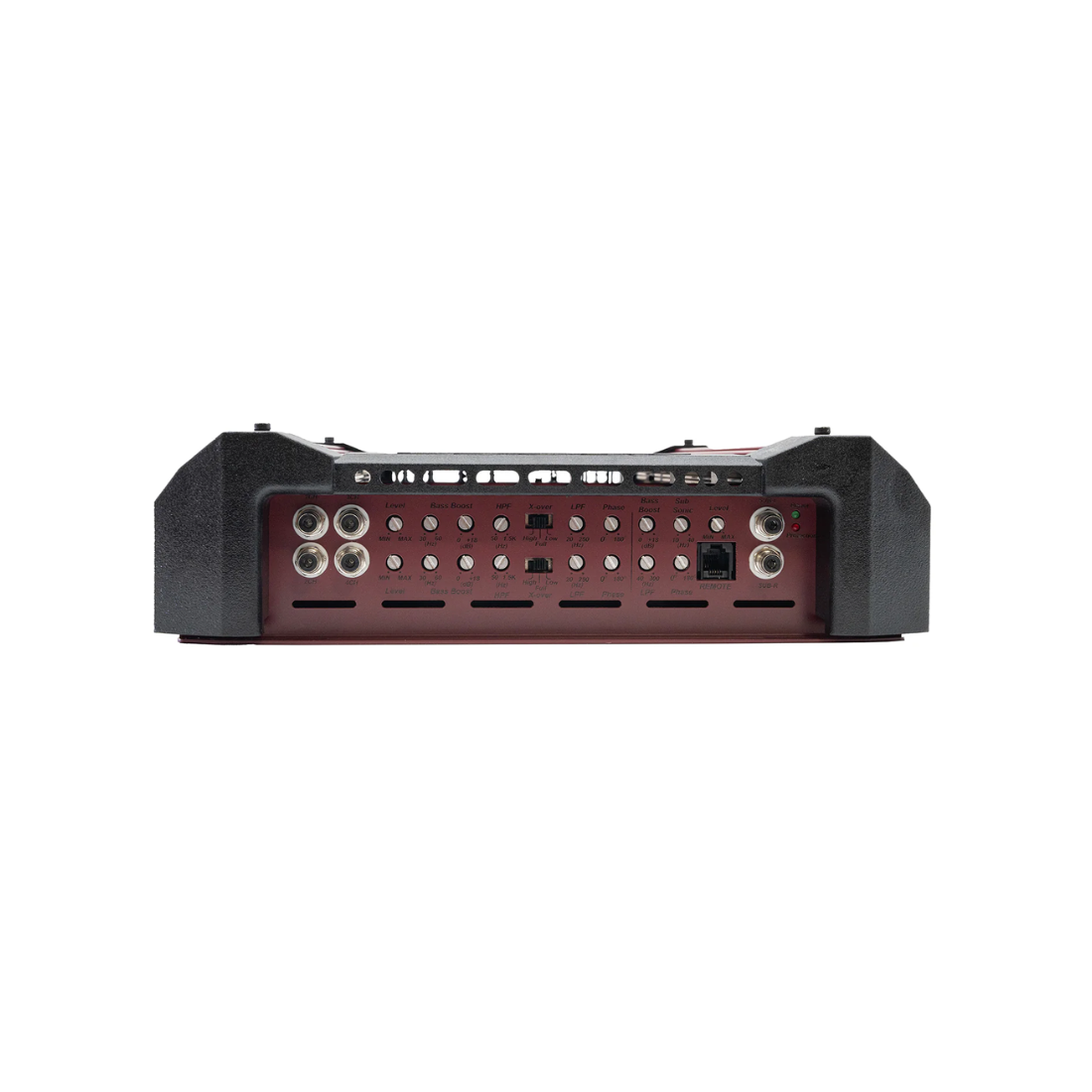

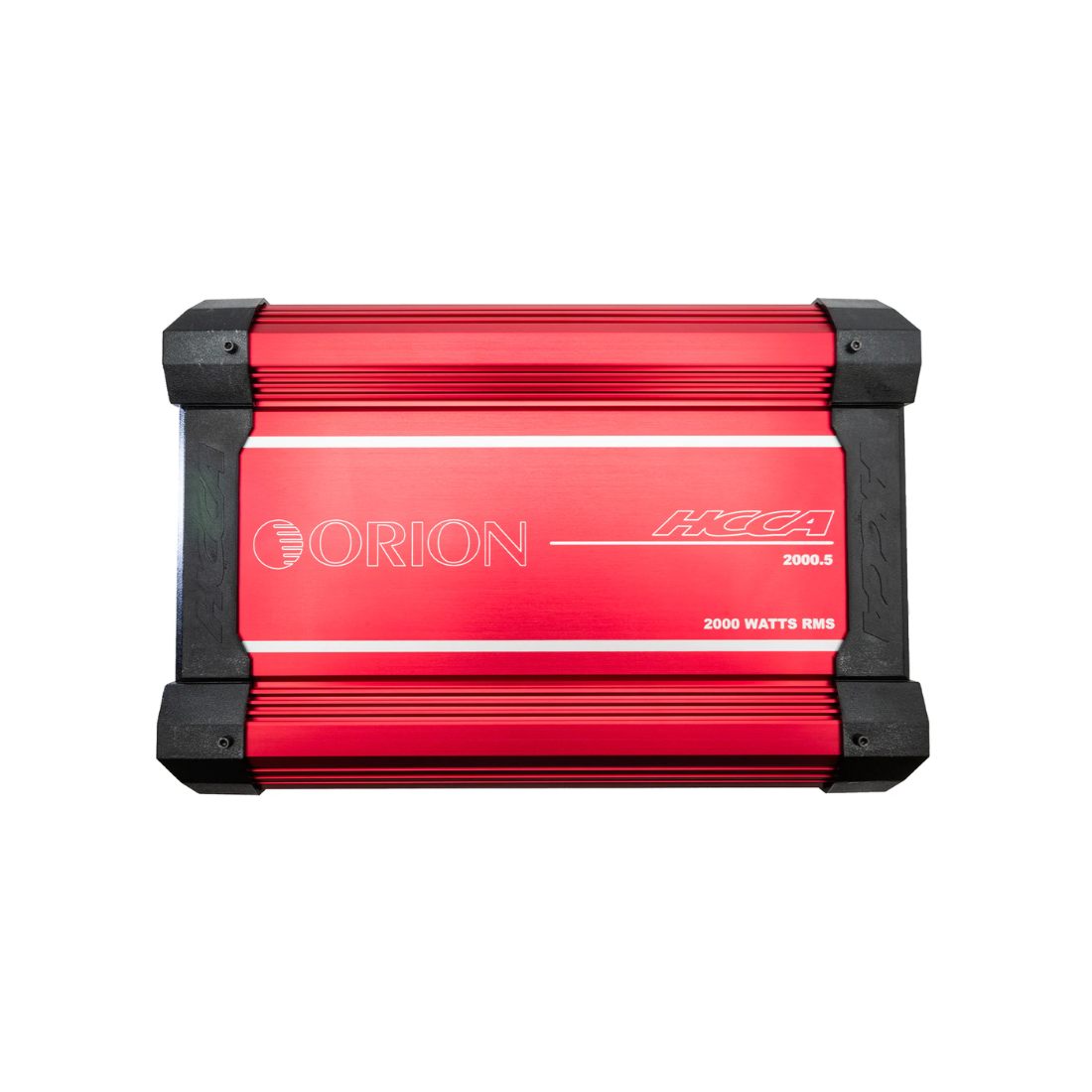

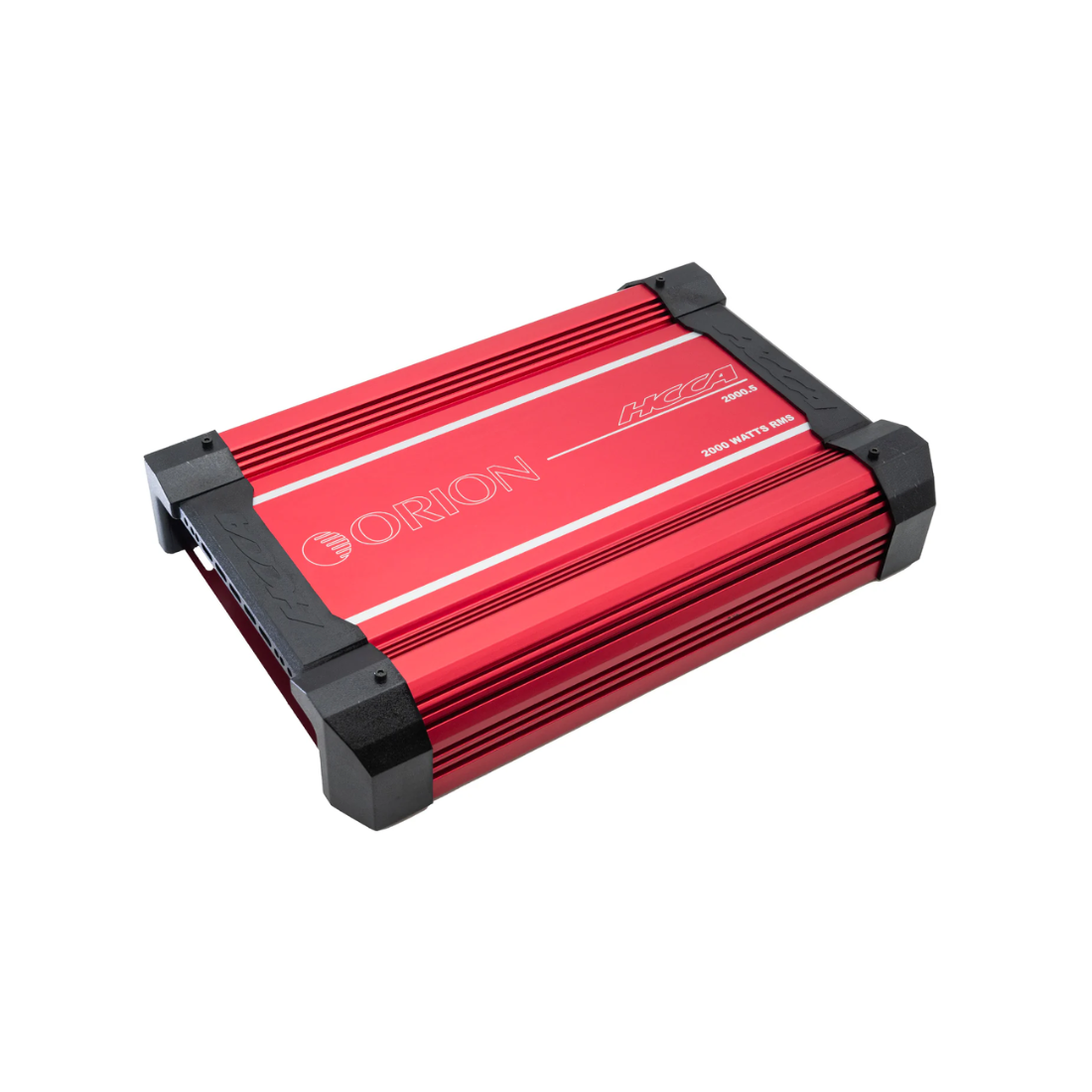

Orion HCCA2000.5 5-Channel 2000 Watts RMS Class-AB/D Car Audio Amplifier
Orion HCCA2000.5 5-Channel 2000 Watts RMS Class-AB/D Car Audio Amplifier
Regular price
$719.95 USD
Regular price
Sale price
$719.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION HCCA2000.5
HCCA Series | 5-Channel 2000 Watts RMS Class-AB/D Car Audio Amplifier
Key Features:
- Class-AB/D Amplification: Experience the synergistic power of Class-AB/D amplification, combining the efficiency of Class B with the sound quality of Class A and D.
- 2000 Watts RMS: Immerse yourself in a world of commanding audio power with 2000 Watts RMS, delivering impactful and detailed sound performance.
- Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
- Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting reliability.
- Sleek and Stylish Design: The amplifier's sleek design seamlessly integrates into your audio setup, adding sophistication to your system.
- Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and consistent performance.
- All MOSFET Power Supply

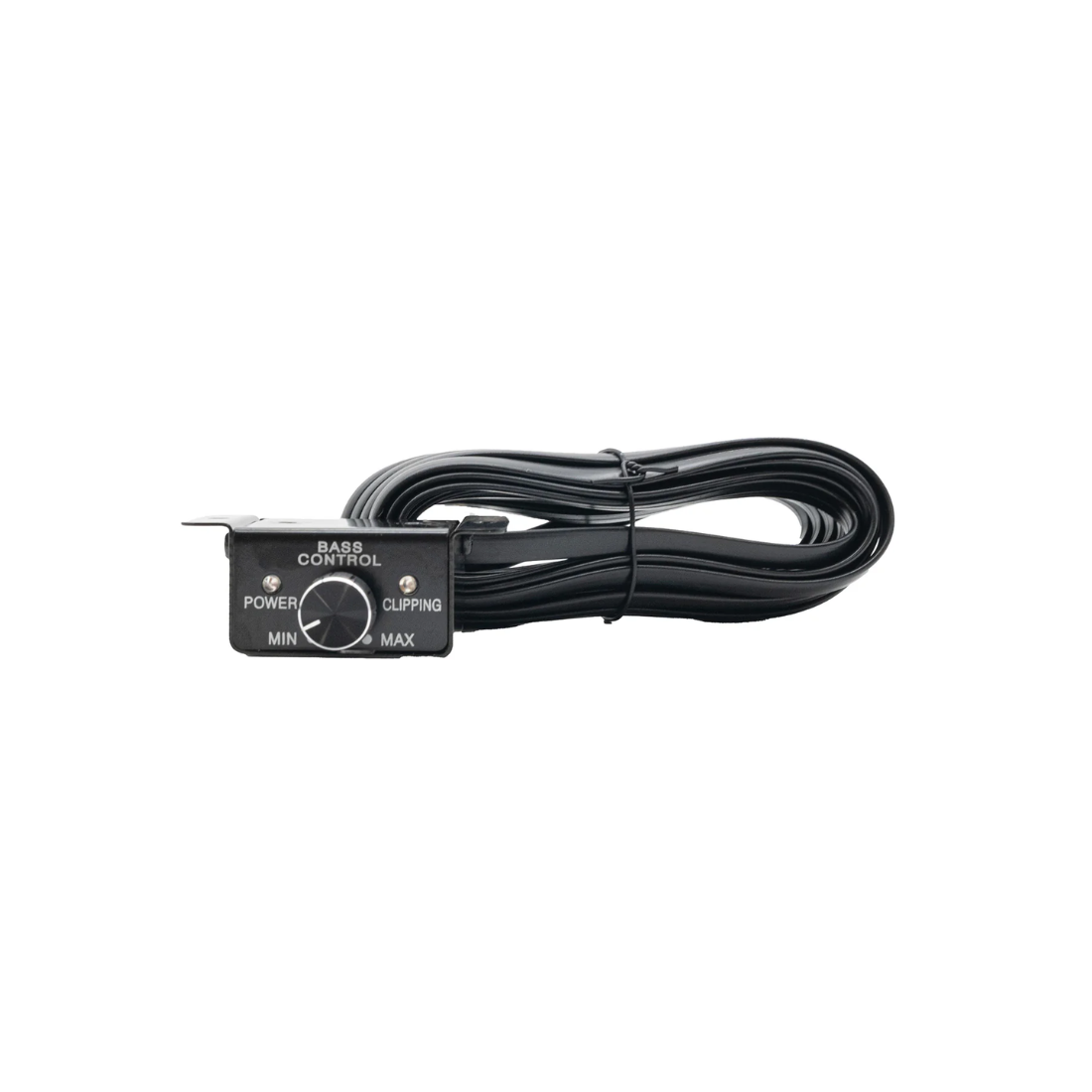

- Remote Gain Control
- Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
- Electronic Crossover Network
- Bass Boost Circuitry
- Tri-Mode Capable
- High-Pass/Low-Pass Filter Control
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off
- Balanced Input (CMRR)
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Rating:
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 220W + 1 x 650W
- - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 330W + 1 x 1000W
- - RMS WATTS @ 1 Ohms @ 0.5% THD+N: 4 x Not Supported + 1 x 1360W
- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
Specifications:
- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 200A recommended (not included)
- Dimensions (L x W x H): 17.5" x 12" x 3.5" (444.5x304.8x88.9mm)
