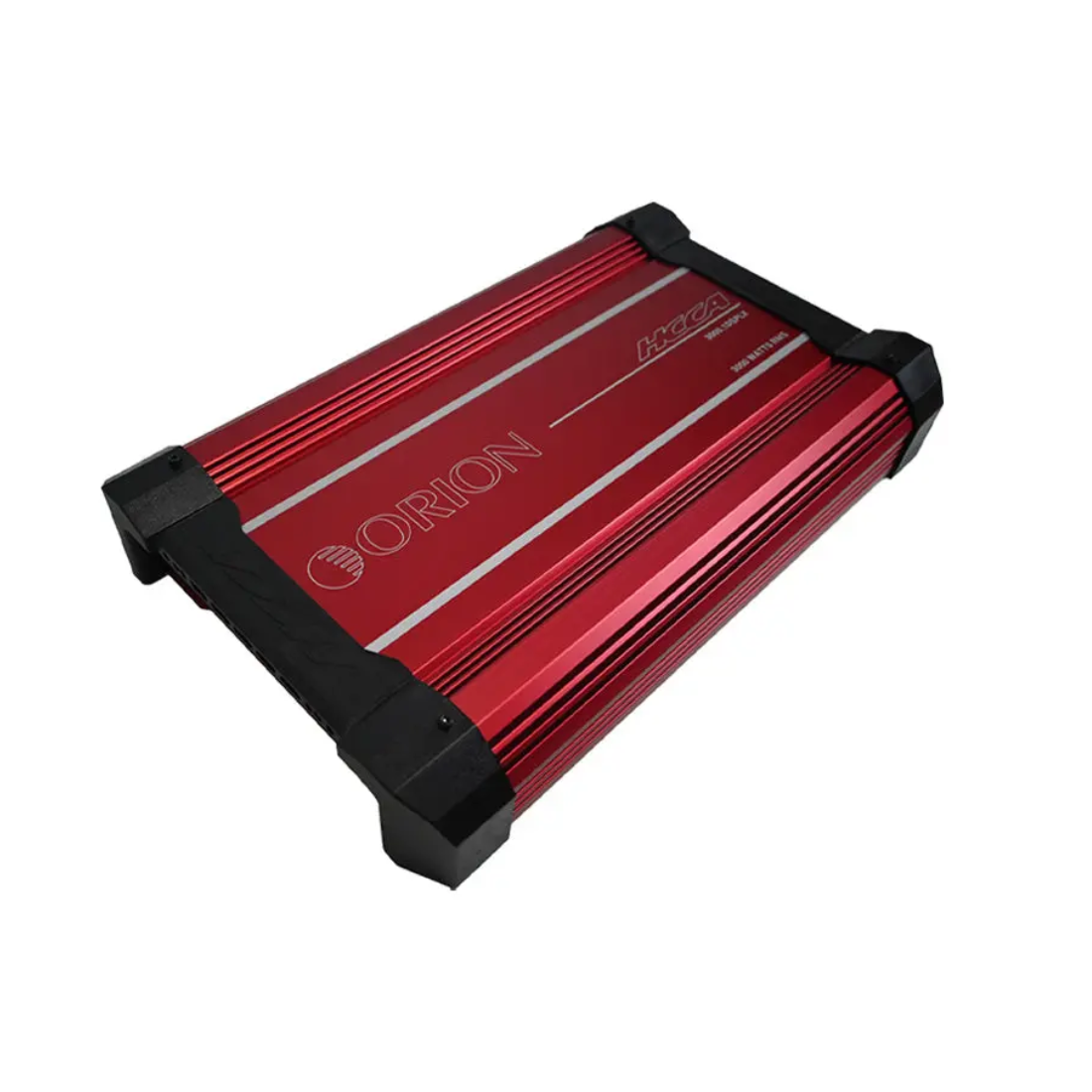

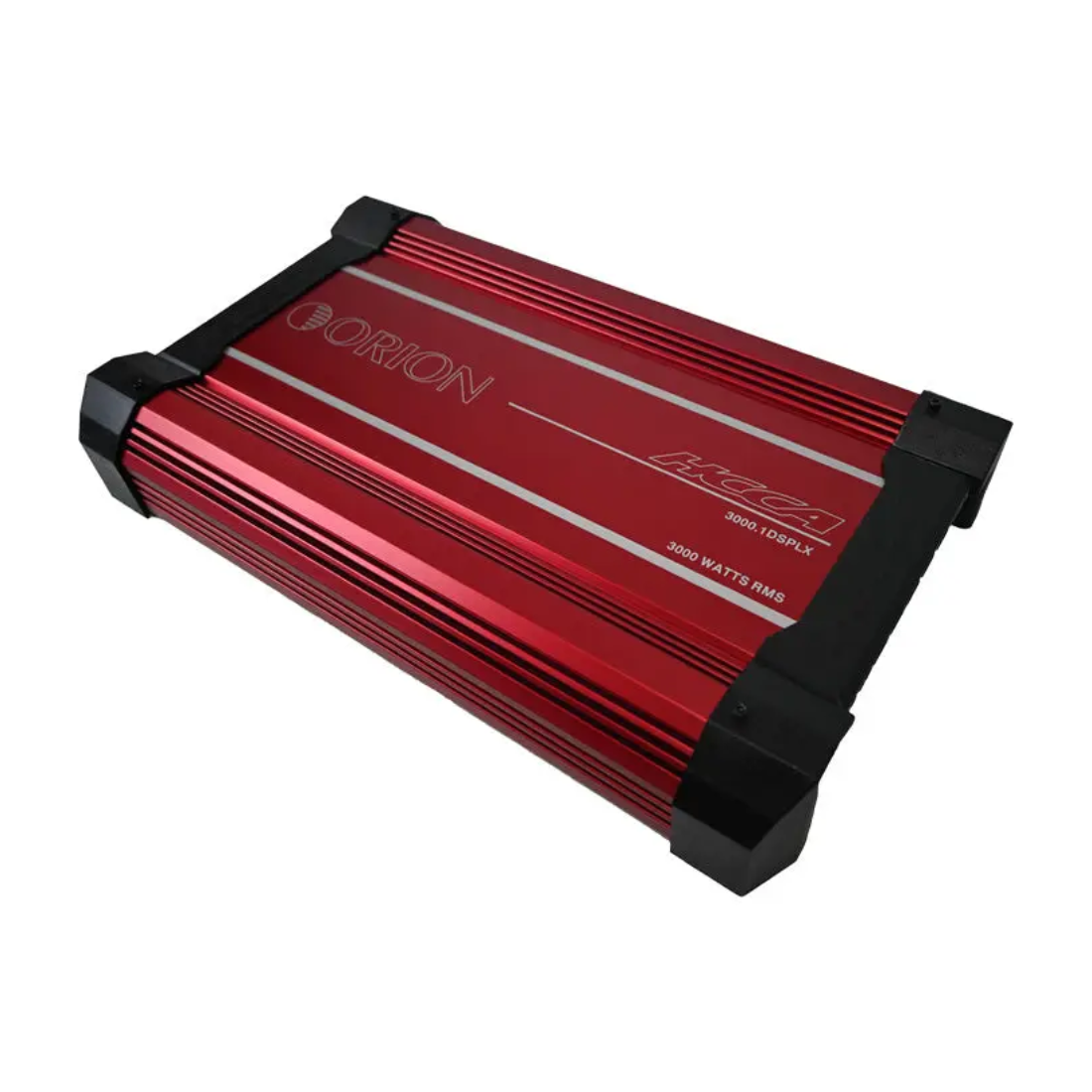

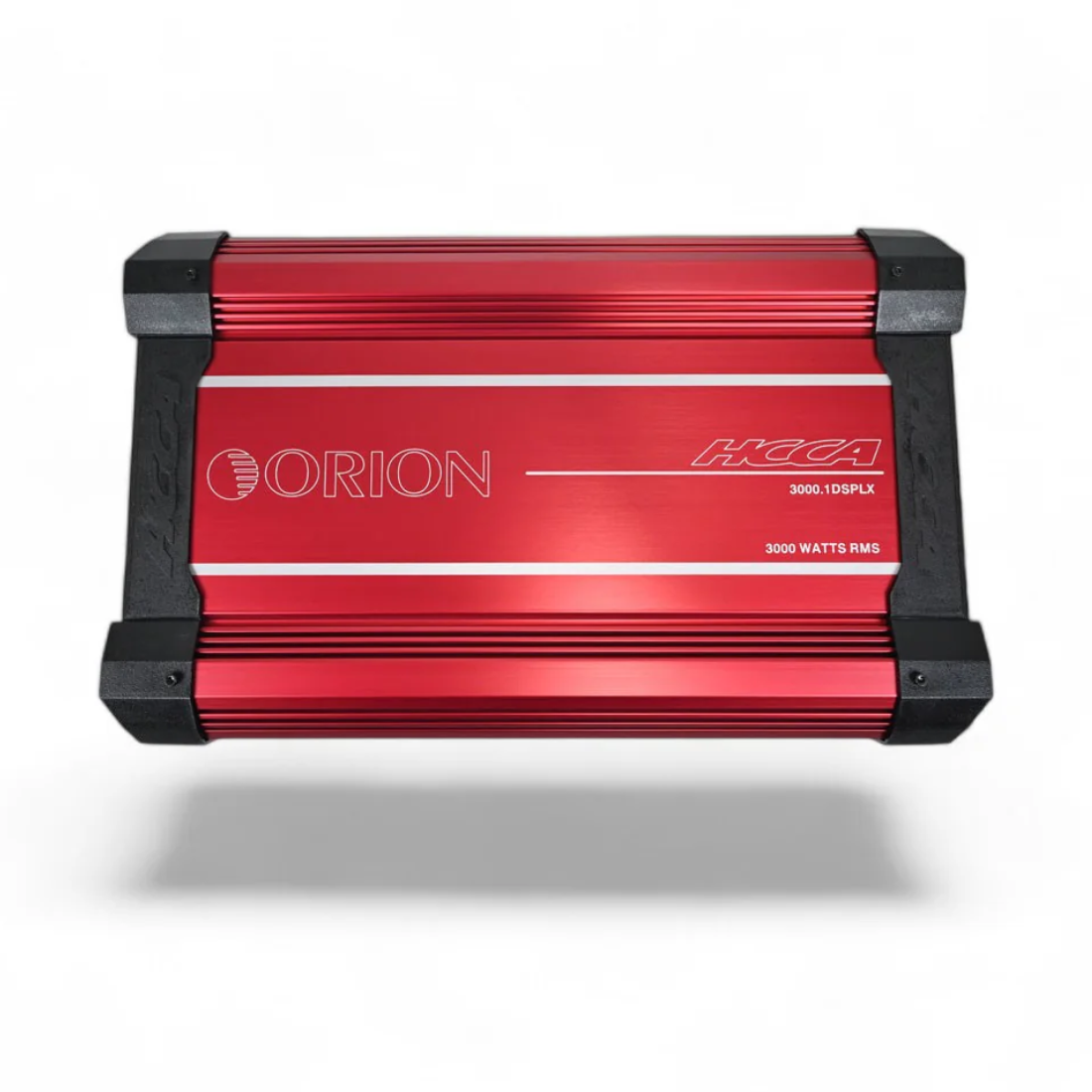

Orion HCCA3000.1DSPLX 1-CH Monoblock 3000W RMS Class-D Car Audio Amplifier
Orion HCCA3000.1DSPLX 1-CH Monoblock 3000W RMS Class-D Car Audio Amplifier
Regular price
$799.95 USD
Regular price
Sale price
$799.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION HCCA3000.1DSPLX
Monoblock 3000 Watts RMS Class-D Car Audio Amplifier
Key Features:
- Class D Amplification: Delivers highly efficient and precise sound reproduction with minimal distortion.
- 3000 Watts RMS: Provides commanding and precise audio performance with massive power output.
- Precision Audio Control: Adjustable built-in crossover for meticulous calibration of audio frequencies.
- Customized Bass Enhancement: Adjustable bass boost feature for impactful and resonant low frequencies.
- Advanced Protection Measures: Protection circuitry guards against overheating and short circuits for durability.
- Compact and Stylish Design: Sleek design allows versatile installation without compromising performance or aesthetics.
- Engineered Excellence: Optimized for audio precision, power efficiency, and reliable operation.
- All MOSFET Power Supply & Output Stage

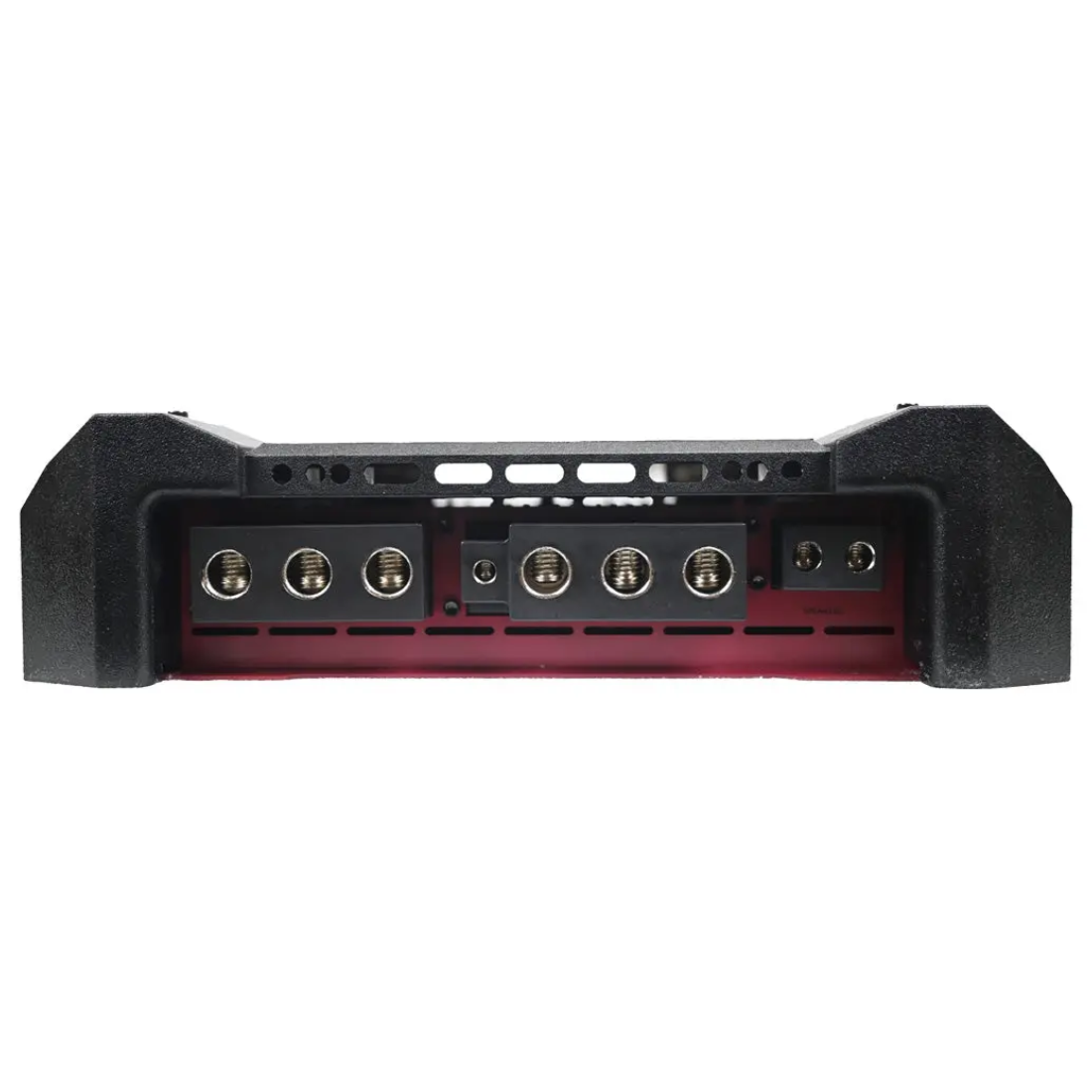

- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12/24dB / Octave Low-Pass Filter

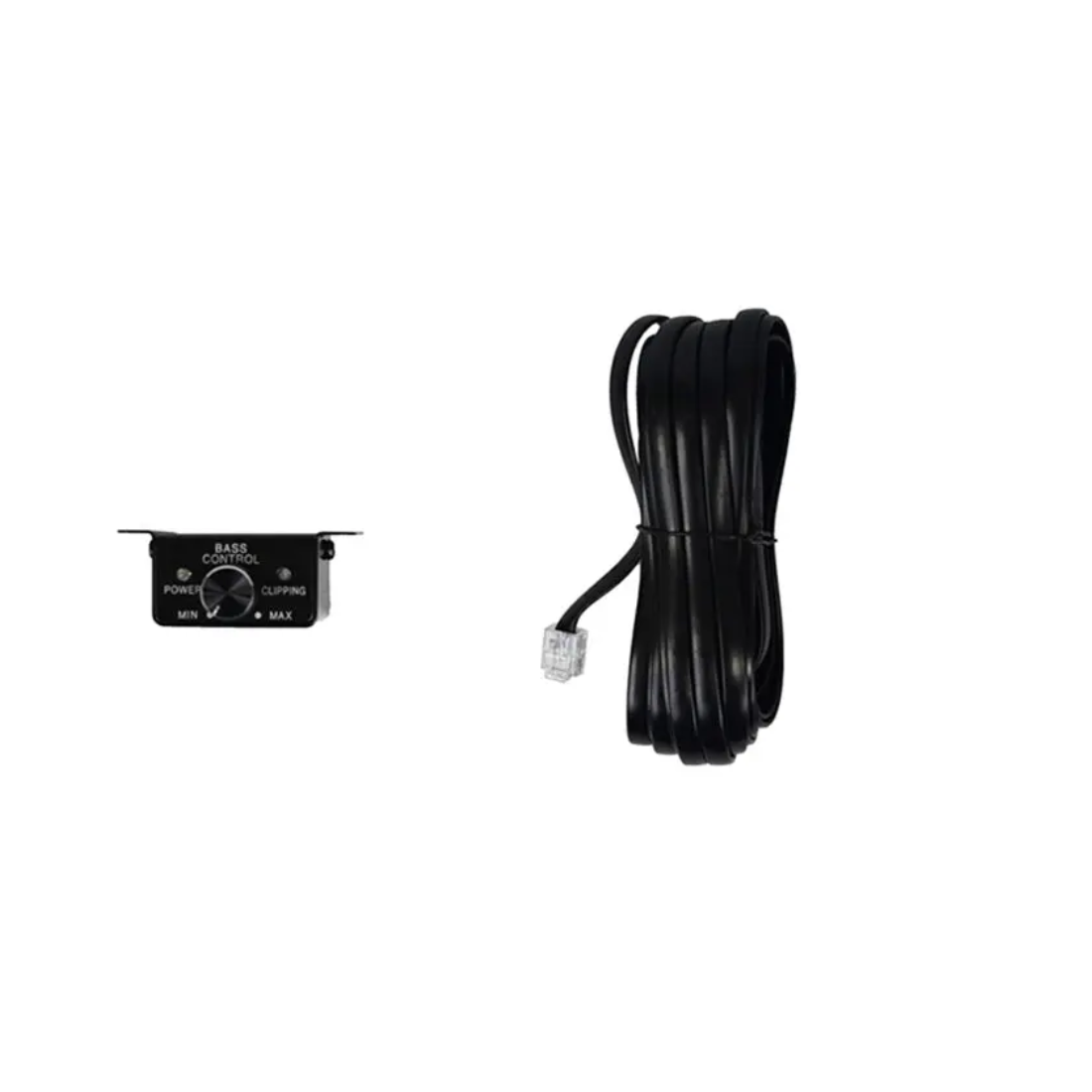

- Remote Gain Controller Included

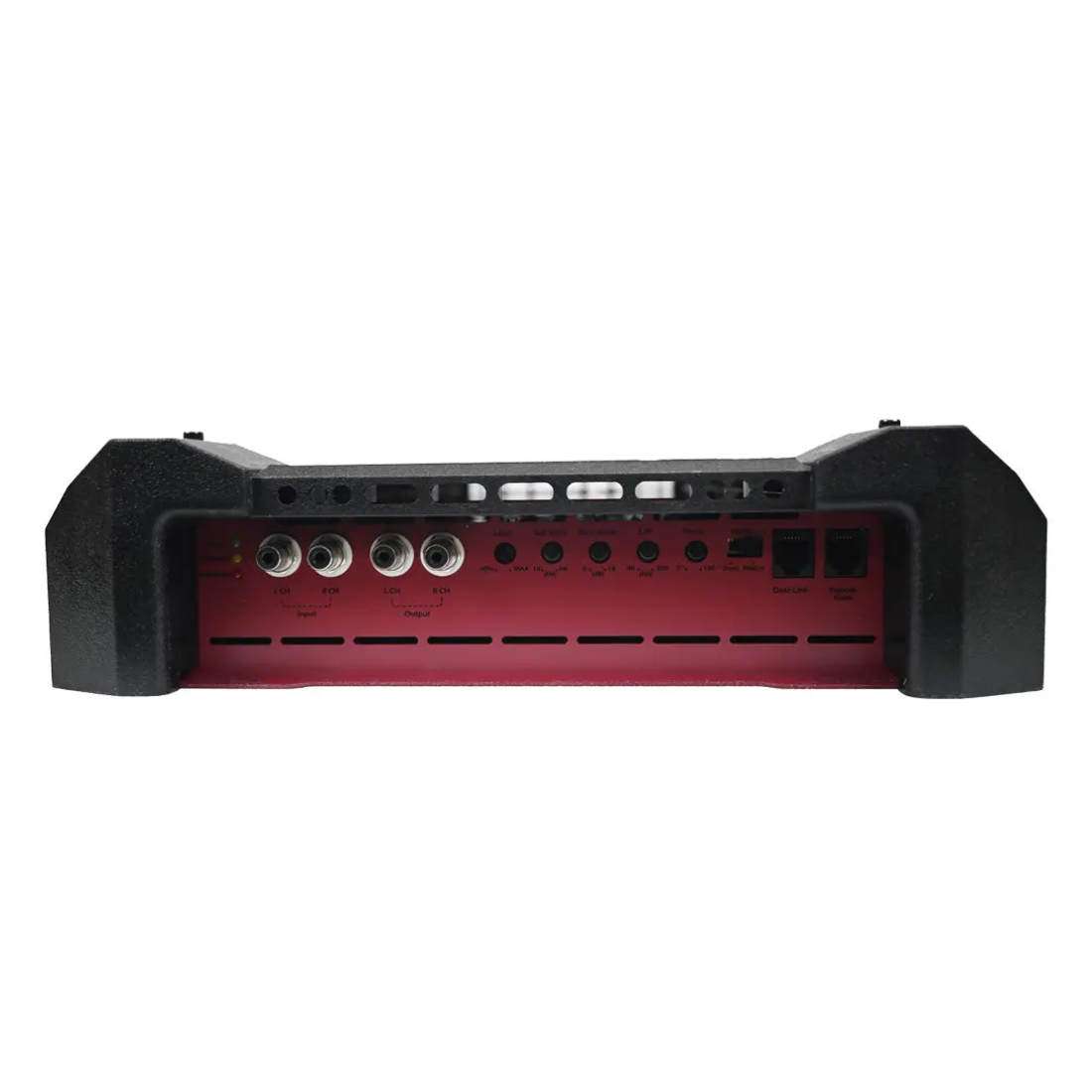

- Low-Level and High-Level Balanced Input
- Infrasonic Filter
- Concealed Controls Under Locking Top Panel (Orion Patented ESP®)
- Digitally Programmed Input Voltage for Fast, Accurate System Setup
- Input Sensitivity Lock-Out Mode: Lock the tweakers out!
- Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, short protection, under & over voltage
Specifications:
- Frequency Response: 10 Hz – 300 Hz
- Low Pass Crossover: 40 Hz – 300 Hz
- Supply Voltage: 9 – 16 V
- Amplifier Efficiency: >88%
- Damping Factor: >200 dB
- Signal to Noise Ratio: >90 dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 – 180°
- Bass Boost: 0 – 18 dB Variable
- Subsonic Filter: 10 – 40 Hz
- Variable Input Level Control: 0.2 V – 6.0 V
- Fuses: 350 A recommended (not included)
- Dimensions (L × W × H): 18.89" × 11.89" × 3.15" (480 × 302 × 80 mm)
