Orion

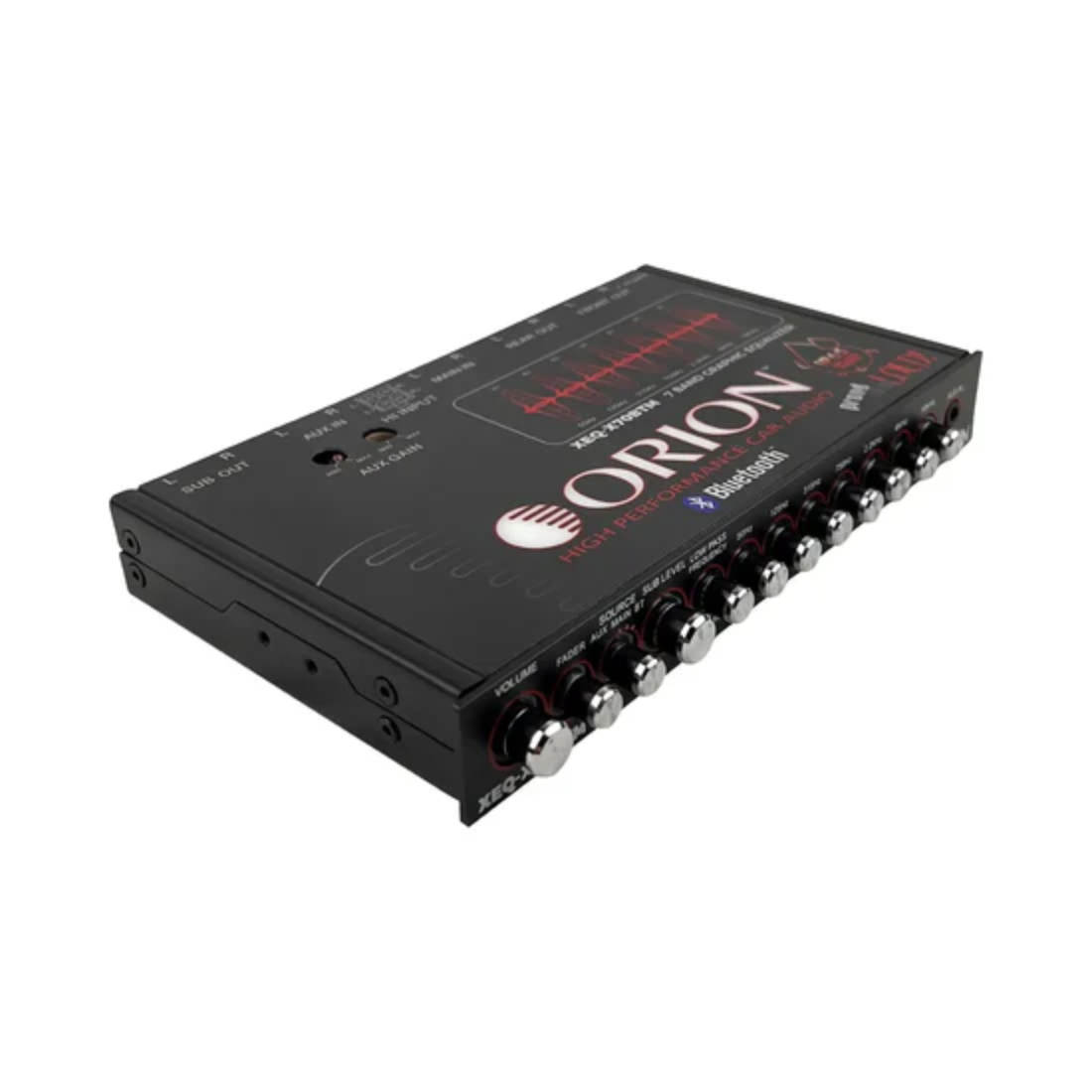

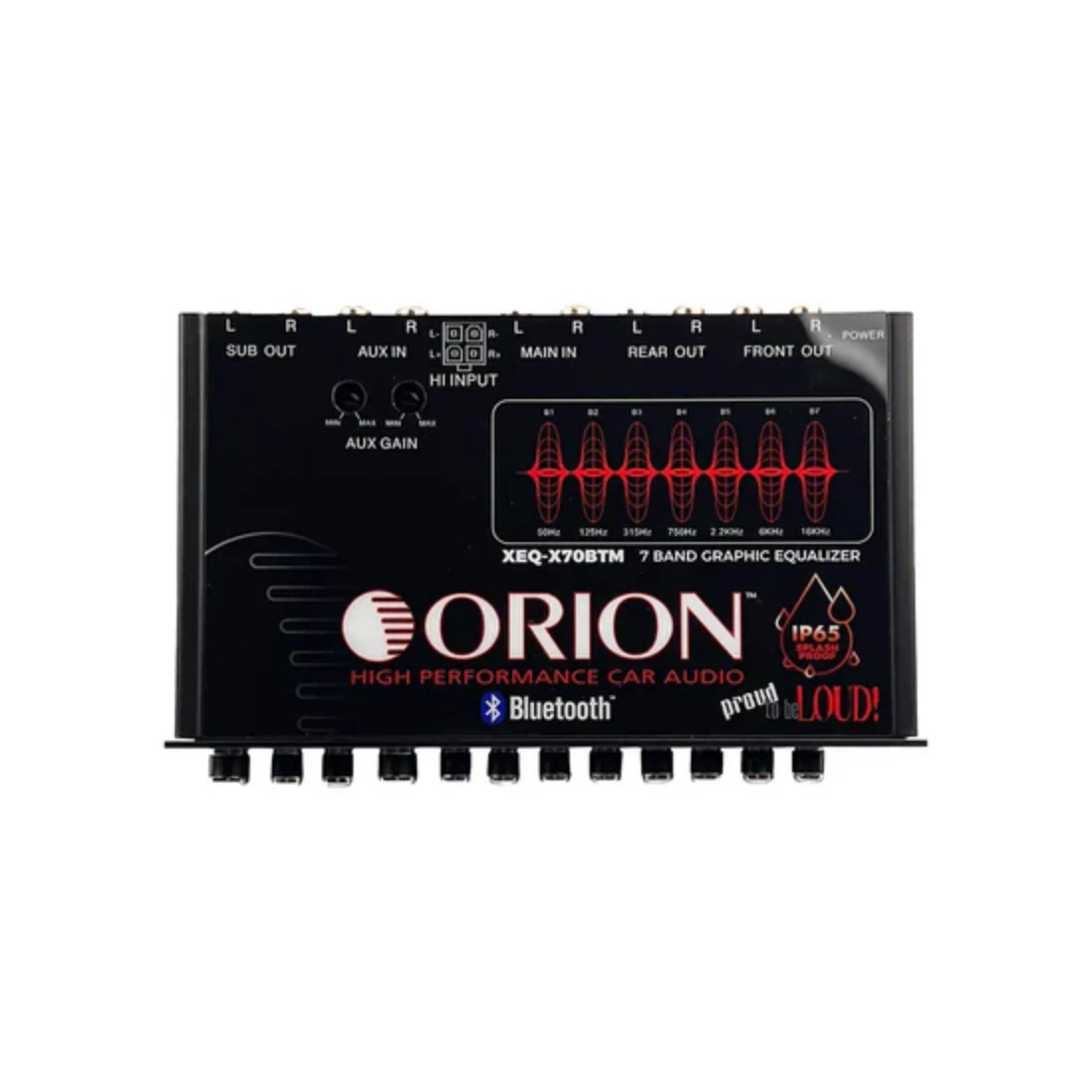

Orion XEQ-X70BTM 1/2-DIN IPX5 Marine Ready 7-Band Graphic Equalizer w/ Bluetooth

Orion XEQ-X70BTM 1/2-DIN IPX5 Marine Ready 7-Band Graphic Equalizer w/ Bluetooth

Regular price $119.95 USD
Regular price Sale price $119.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

ORION XEQ-X70BTM

Half-DIN IPX5 Marine Ready 7-Band Graphic Equalizer w/ Bluetooth

Key Features:

  • Flexible Equalization: Features seven adjustable bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz) with each capable of a -12 to +12dB adjustment, allowing for precise audio tuning.

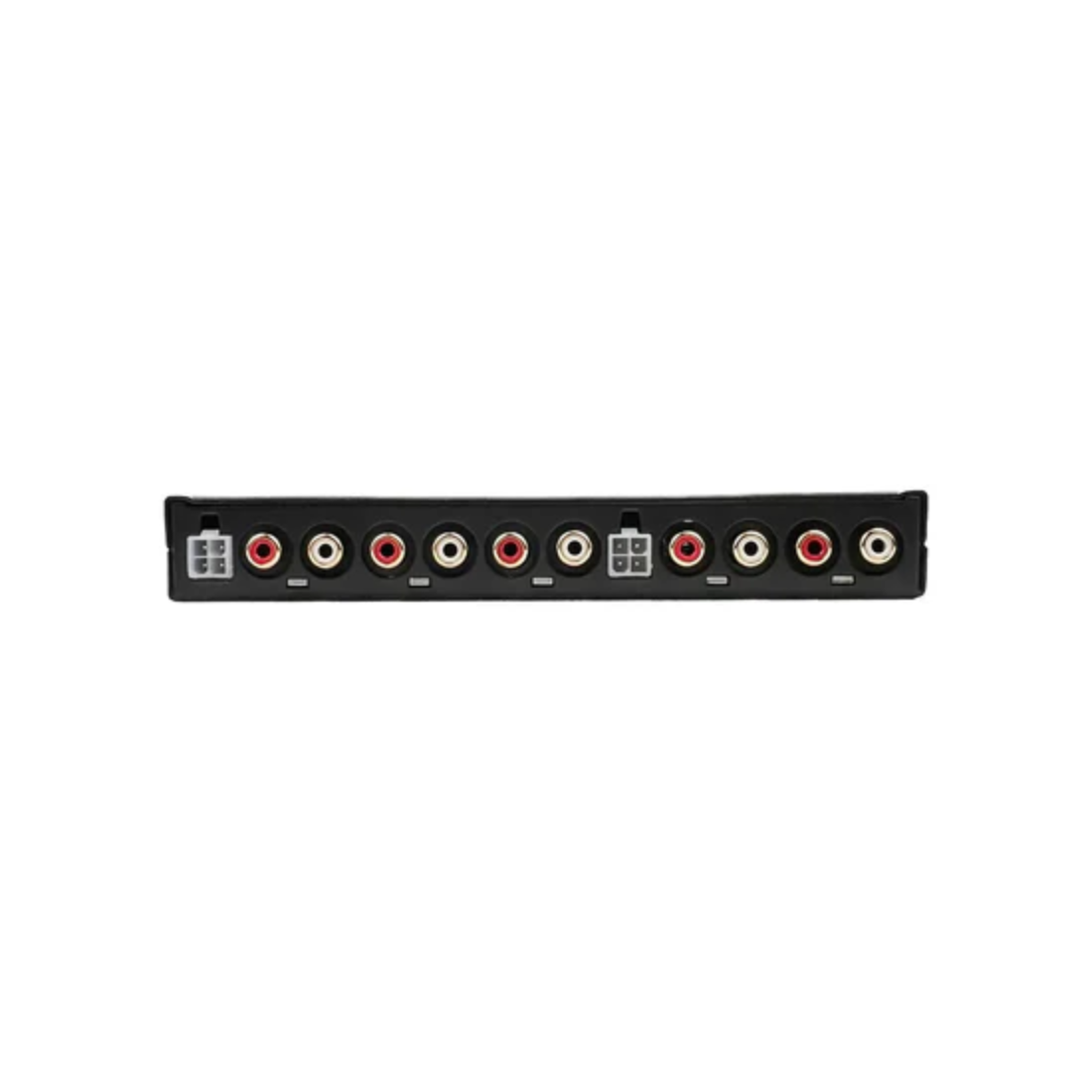

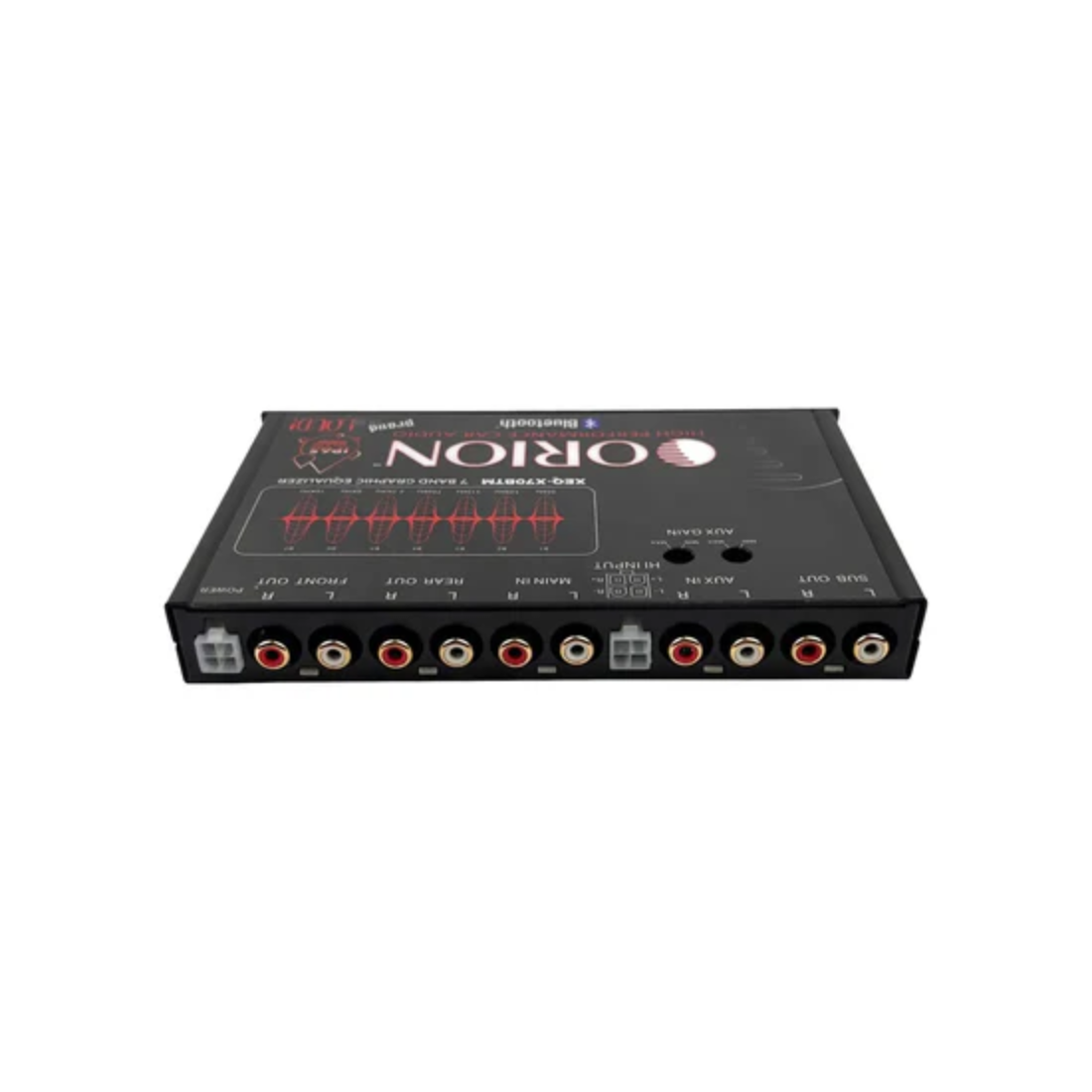

  • Multiple Connectivity Options: Includes three stereo RCA outputs for front, rear, and subwoofer amplifiers, plus an RCA input and a front panel 3.5mm input for easy connection to portable devices.
  • Wireless Connectivity: Offers Bluetooth for seamless streaming from mobile devices, reducing reliance on physical connections.

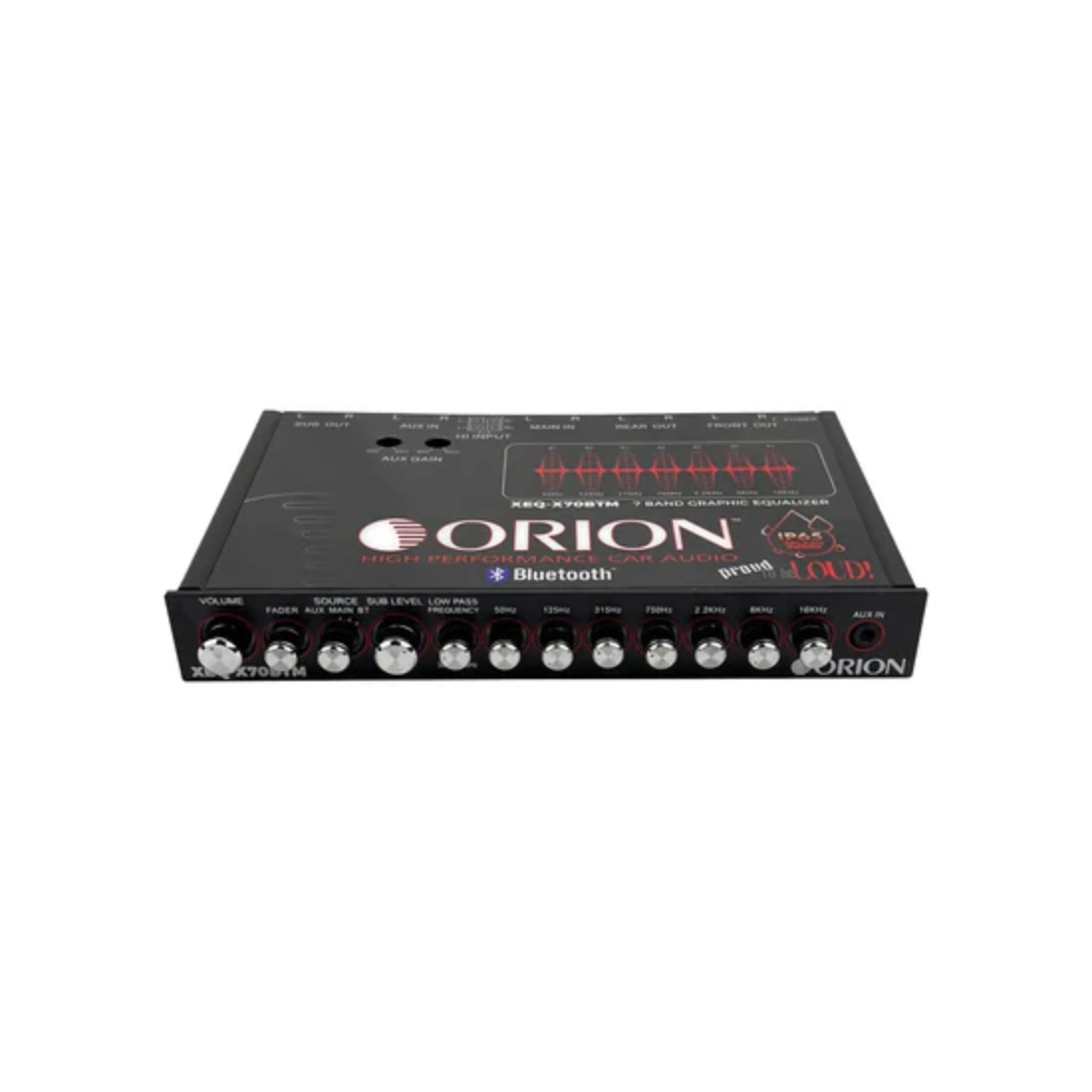

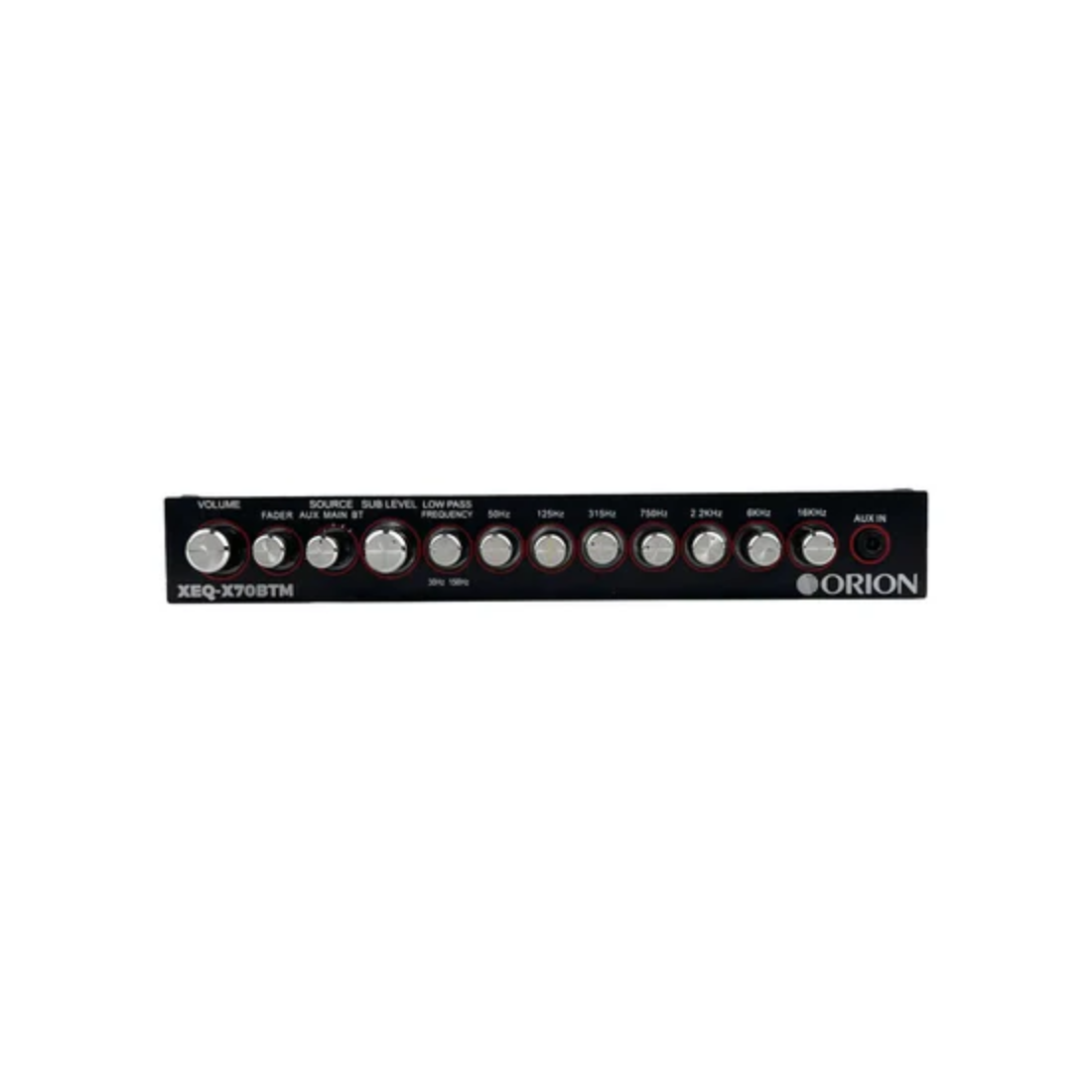

  • Versatile Controls: Separate controls for master volume, subwoofer volume, and front/rear fader, along with switches for selecting main or auxiliary inputs.
  • Superior Sound Quality: Extended frequency response from 20Hz to 30kHz and a 100dB signal-to-noise ratio ensure crystal-clear audio.
  • High-Quality Connections: Features gold-plated RCA connectors and high-level speaker inputs for optimal audio signal output and integration with factory radios.
  • IPX5 Rating: Engineered to withstand low-pressure water jets from any direction, making it suitable for marine environments.
  • Marine Ready: Designed for use on boats, docks, or near pools, providing reliable performance even in wet and harsh conditions.
Specifications:

  • Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
  • Boost/Cut Range: ±12dB
  • Signal-to-Noise Ratio (S/N): 83dB
  • Frequency Response: 8Hz - 140kHz +/-1dB
  • Maximum Output Voltage: 8V
  • Total Harmonic Distortion (THD): 0.01%
  • Input Sensitivity (RCA): <3.6V
  • Input Sensitivity (High): <10.8V
  • Input Impedance: 20K Ohms
  • Output Impedance: 1K Ohms
  • Stereo Separation: 73dB at 1kHz
  • Operating Voltage: 11V - 15V (negative ground)
  • Dimensions (Width x Depth x Height): 7” x 4.25” x 1”
