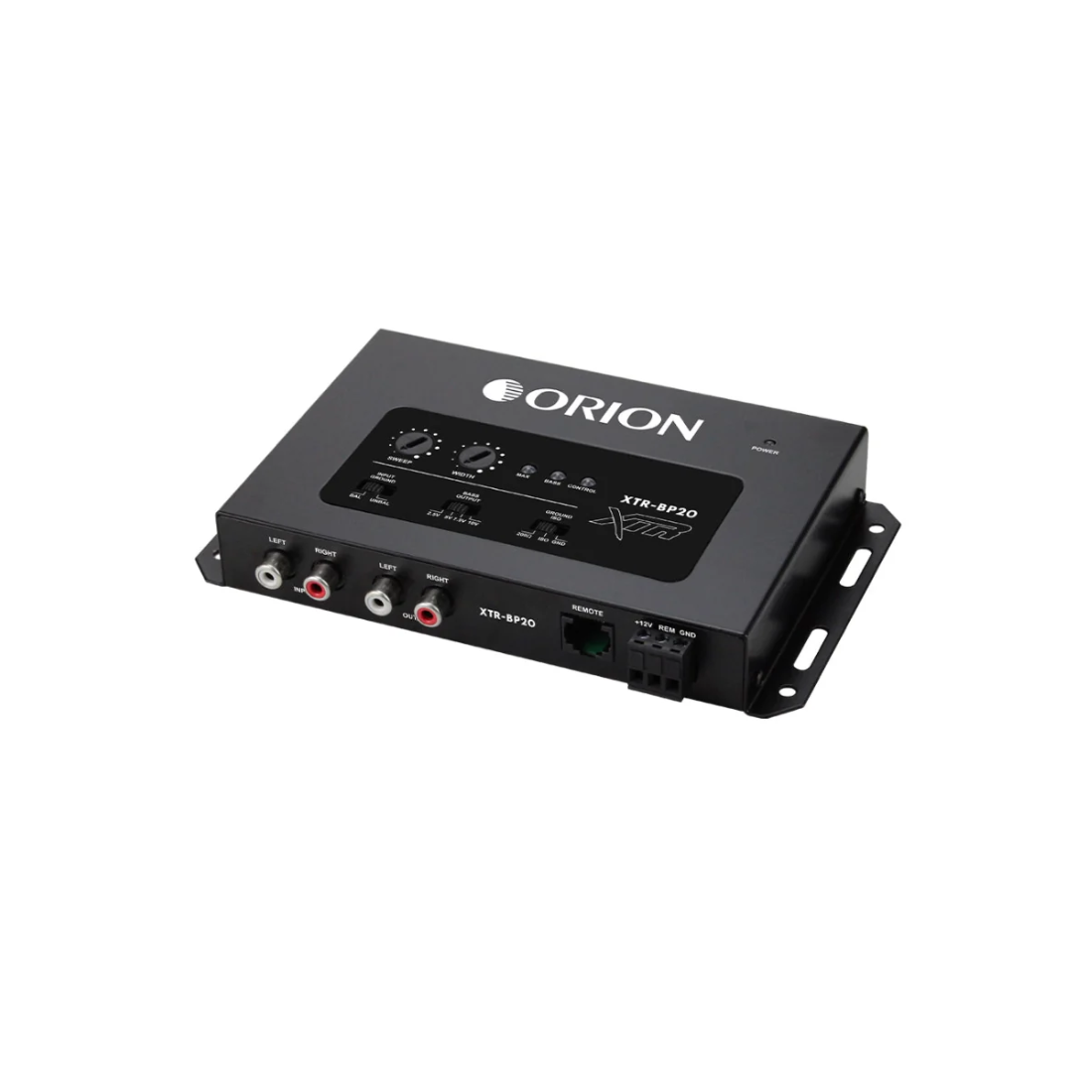

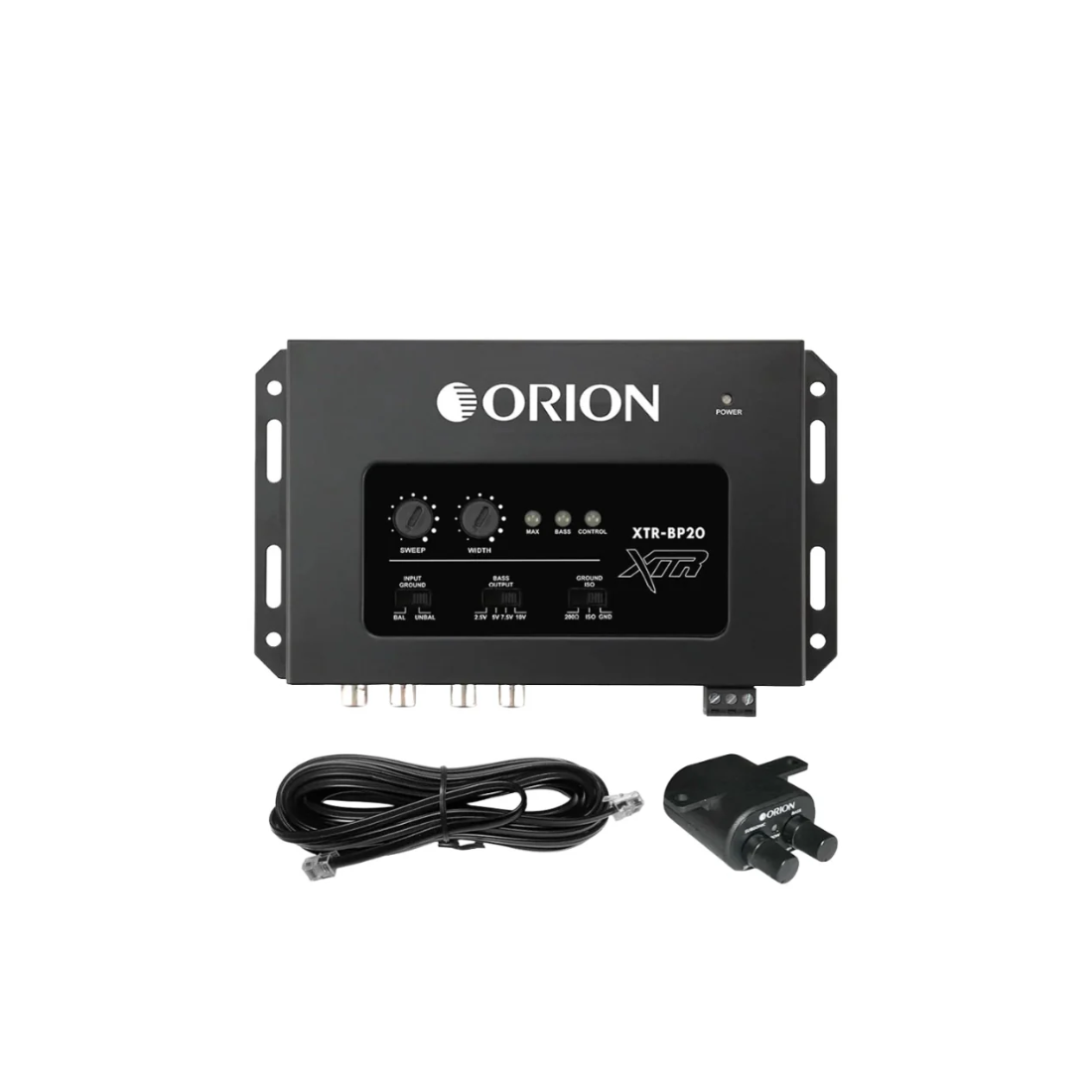

Orion XTR-BP20 Bass Restoration Processor w/ 10V Output & Precision Bass Control
Orion XTR-BP20 Bass Restoration Processor w/ 10V Output & Precision Bass Control
Regular price
$99.95 USD
Regular price
Sale price
$99.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION XTR-BP20
Bass Restoration Processor w/ 10V Output & Precision Bass Control
Key Features:
- XTR Performance Bass Processor: Designed to enhance low-frequency performance and deliver deeper, tighter bass for subwoofer systems.
- Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.
- Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
- Width Bandwidth Control: Allows tuning of the bass restoration range for wider deep bass or tighter, punchy bass response.
- Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity and maximize signal strength.
- High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
- Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion.
- Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
- Ground Isolation Control: Helps eliminate alternator noise and electrical interference.
- Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat using the remote bass knob.
Specifications:
- Power Supply: 6.5V – 18V
- Maximum Input Level: 10V
- Maximum Output Level: 10.5V
- Input Sensitivity: 10.5V
- Input Impedance: >50K Ohms
- Output Impedance: 100 Ohms
- EQ Boost / Cut: 15 dB
- Signal-to-Noise Ratio: >110 dB
- THD @ 2V Output: <0.02%
- Channel Separation: >80 dB
- CMRR: -70 dB Balanced / -29 dB Unbalanced
- Frequency Response: 10 Hz – 30 kHz
- Subsonic Filter: 31 Hz – 71 Hz
- Current Draw: 180 mA
- Interchannel Gain Tracking: 0.1 dB
- Fuse Rating: 1A
- Dimensions: 7.28” x 4.13” x 1.02”
