Orion XTR1000.4 XTR Series 4-Channel 1000W RMS Class-A/B Car Audio Amplifier

Orion XTR1000.4 XTR Series 4-Channel 1000W RMS Class-A/B Car Audio Amplifier

$349.95 USD
$349.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

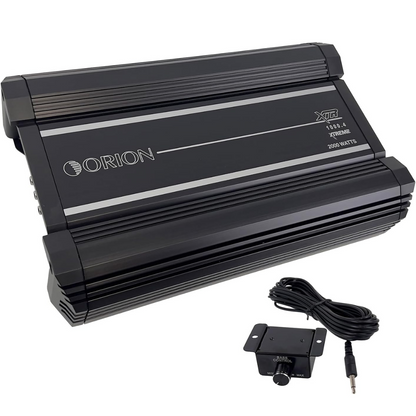

ORION XTR1000.4

XTR Series 4-Channel 1000 Watts RMS Class-A/B Amplifier

Highlights:

  • Class AB Amplification - Experience the robust fusion of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
  • 1000 Watts RMS - Immerse yourself in a world of robust audio excellence with 1000 Watts RMS, delivering commanding and clear sound performance.
  • Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
  • Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
  • Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
  • Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
  • Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
Key Features:

  • All MOSFET Power Supply & Output Stage
  • Heavy Gauge / High Current Custom Power and Speaker Terminals
  • 12dB Octave Low-Pass Filter

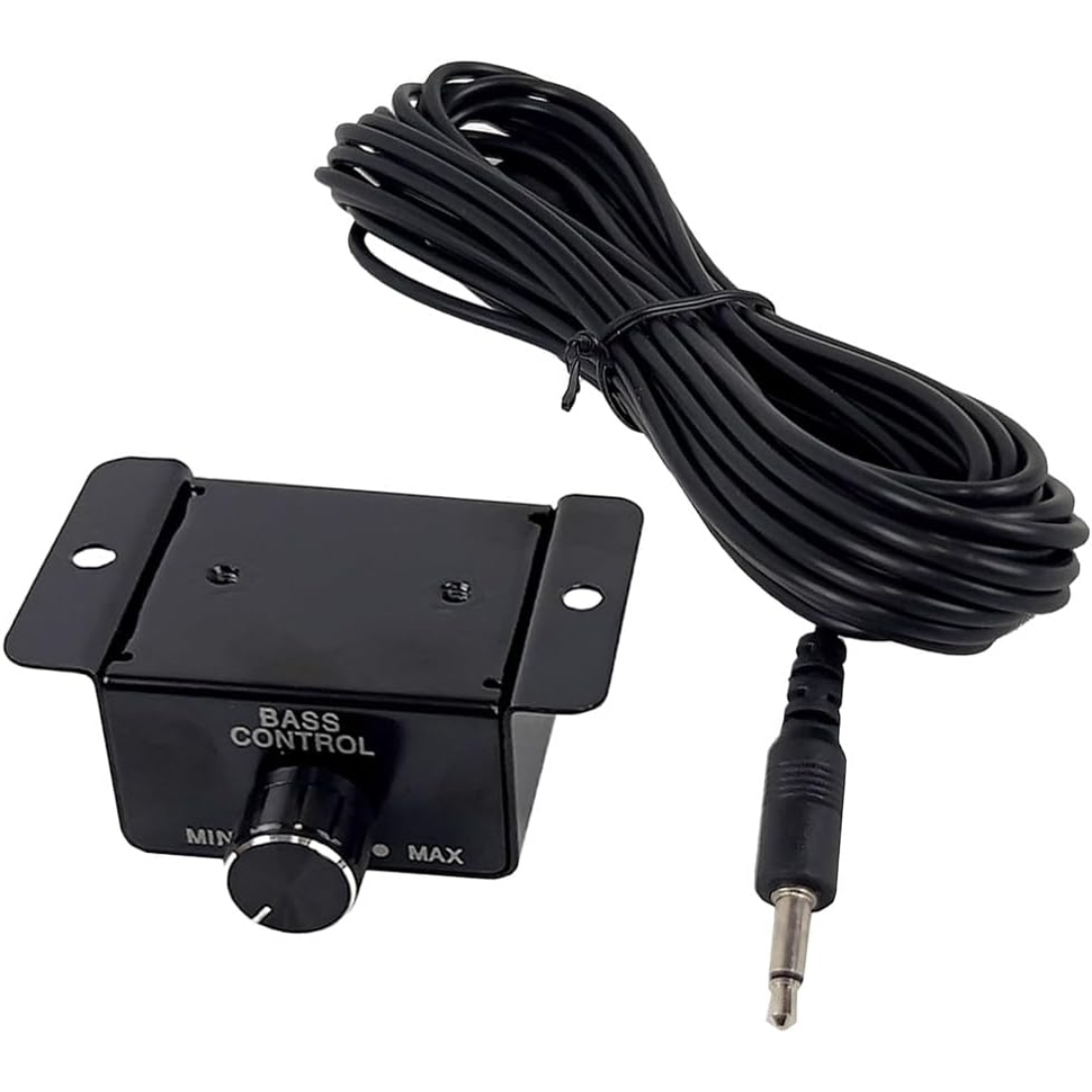

  • Remote Gain Controller Included
  • Electronic Crossover Network
  • Bass Boost Circuit
  • Power and Protection LED Indicators
  • Soft Turn-on/Turn-off Turn-On Delay
  • Fault and Protection Monitoring
  • 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:

  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 165W
  • RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W
Specifications:

  • Frequency Response: 20Hz - 350kHz
  • Linear Bandwidth 20Hz to 65kHz +/- 3 dB
  • High Pass Crossover Continuously variable (50-5kHz)
  • Low Pass Crossover Continuously variable (50-400Hz)
  • Supply Voltage: 9 - 16V
  • Amplifier Efficiency: >60%
  • Damping Factor: 100dB
  • Signal to Noise Ratio: >90dB
  • T.H.D. & Noise: 0.5%
  • Phase Shift: 0 - 180
  • Bass Boost: 0-18dB Variable
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: 120A recommended (3 x 40A ATC Fuses)
  • Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)
Power Terminal Management:

  • Positive Terminals: 1 x 4 AWG.
  • Negative Terminals: 1 x 4 AWG.
  • Remote Turn-ON Signal: 10 AWG.
  • Speaker Output Terminals: 10 AWG.
