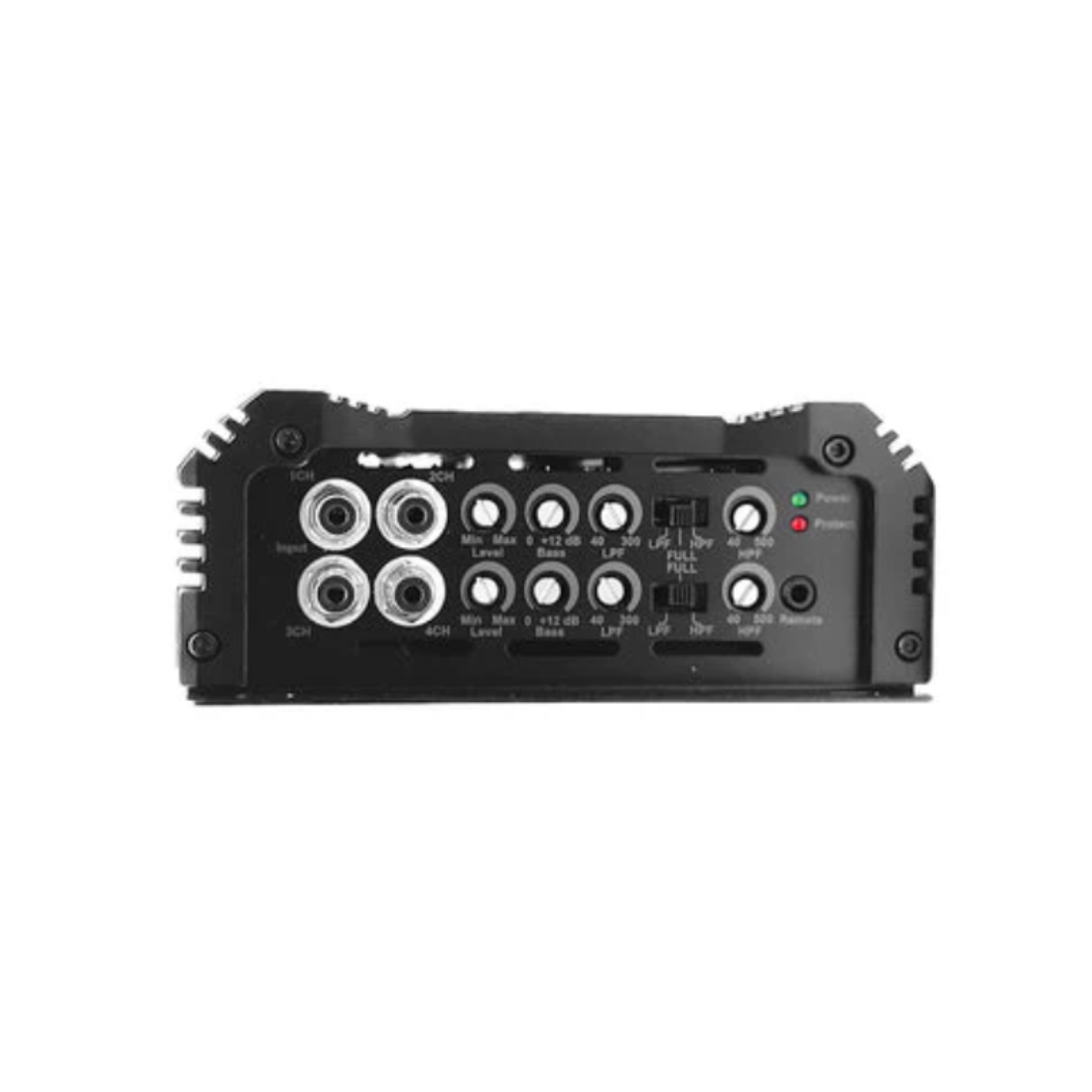

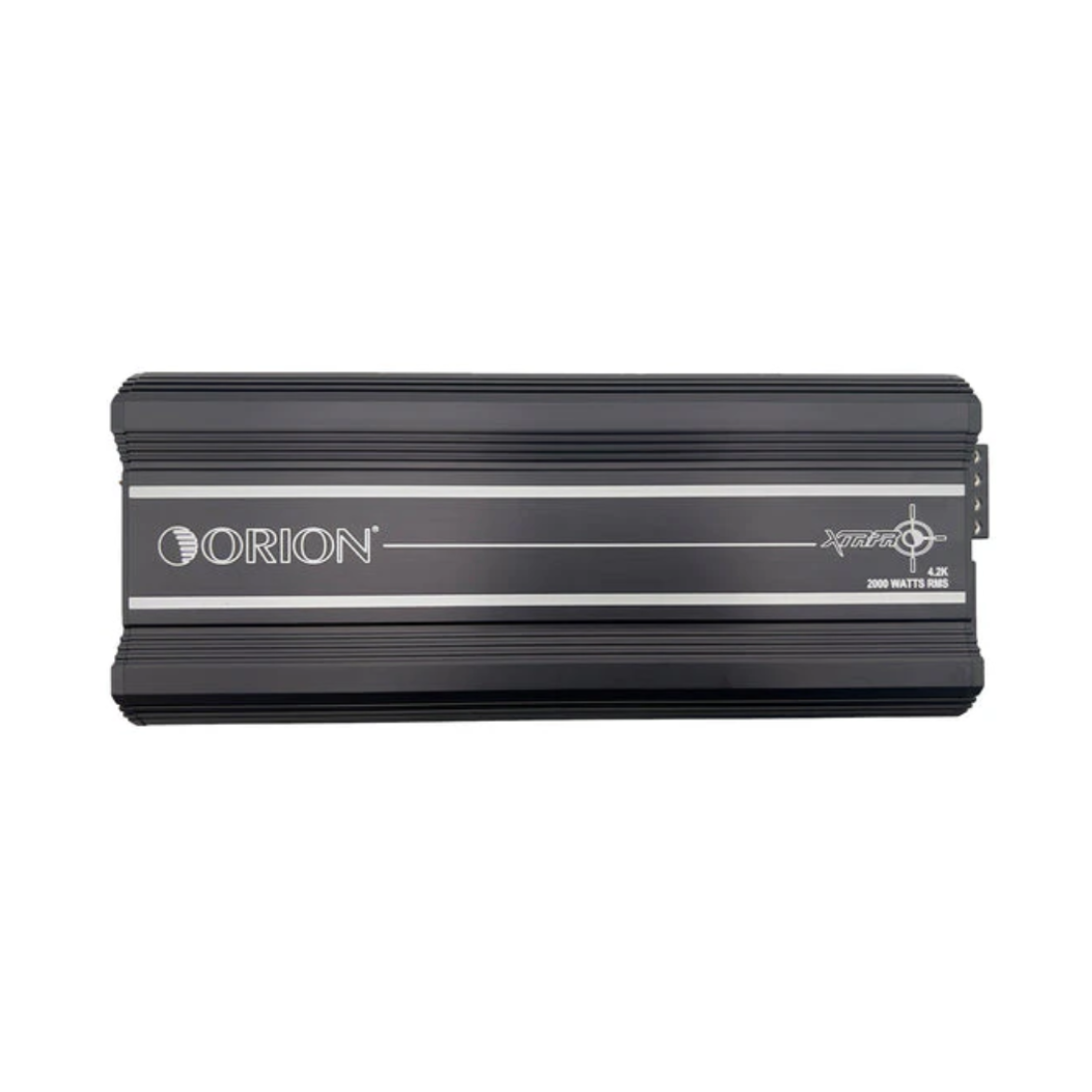

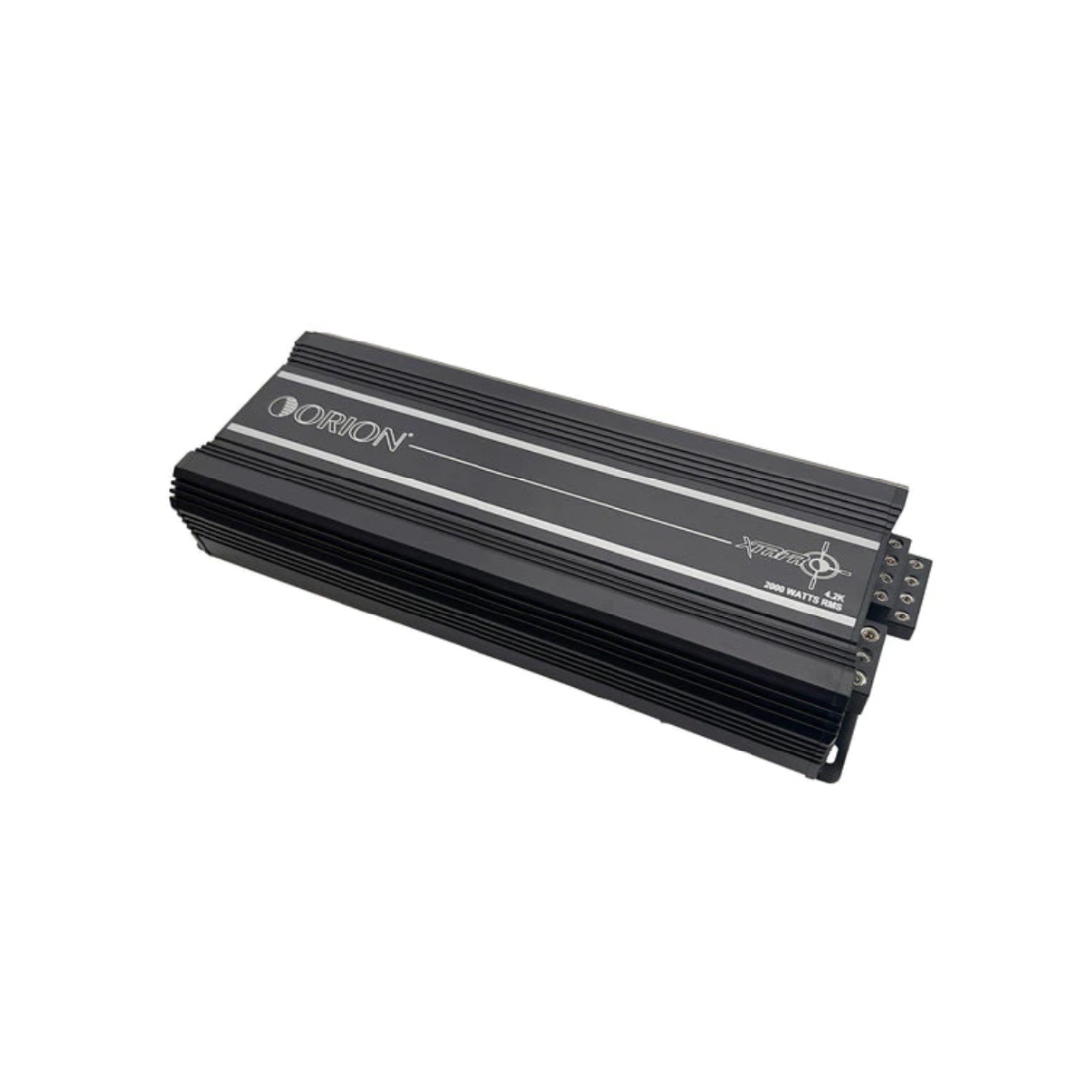

Orion XTRPRO4.2K 4-Channel 520W RMS x 4 @ 1-Ohm Class-D Full-Range Car Amplifier
Orion XTRPRO4.2K 4-Channel 520W RMS x 4 @ 1-Ohm Class-D Full-Range Car Amplifier
Regular price
$449.95 USD
Regular price
Sale price
$449.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION XTRPRO4.2K
4-Channel 520W RMS x 4 @ 1-Ohm Class-D Full-Range Car Amplifier
Key Features:
- Massive Multi-Channel Output: Delivering an impressive 520 watts per channel at 1 ohm, the XTRPRO4.2K has the power to drive complex speaker arrays, aggressive multi-speaker doors, or full 3-way active setups with headroom to spare. It’s built for serious systems that need dynamic output without compromise.
- IntelliTech Full-Range Precision: Engineered with Orion’s proprietary IntelliTech architecture, this amplifier offers full-range flexibility with consistent tonal clarity—from crystal-clear highs to solid midbass and even subwoofer control. It’s one amp that can confidently run an entire front stage or multi-zone setup with surgical accuracy.
- Complete Signal Tuning Control: The built-in high-pass and low-pass crossovers, along with a variable 12dB bass boost, allow you to sculpt your audio output to match your system goals. Whether you’re optimizing a vocal stage or adding warmth to your low end, the XTRPRO4.2K puts detailed tuning at your fingertips.
- Smart Thermal & Load Protection: Designed to thrive under pressure, this amp is equipped with advanced protection circuits that monitor temperature, voltage, and load resistance. Even during demanding sessions or competition play, it stays cool, stable, and ready to perform—protecting both your gear and your investment.
- Installer-Friendly, Built to Fit Anywhere: With its slim profile and extended chassis length, the XTRPRO4.2K fits neatly along trunk side panels, behind seats, or under false floors. Despite its impressive output, the amp remains compact enough for clean installs without compromising airflow or aesthetic layout.
Specifications:
- Power Rating
- - RMS Power @ 4 Ohms: 240W x 4CH
- - RMS Power @ 2 Ohms: 380W x 4CH
- - RMS Power @ 1 Ohm: 520W x 4CH
- IntelliTech Full-Range Class D Design
- 1-Ohm Stable on All Channels
- High-Pass Filter: 40Hz – 500Hz
- Low-Pass Filter: 40Hz – 300Hz
- Bass Boost: 0 – 12dB
- Gain Control: 200mV – 6V
- Signal-to-Noise Ratio: >94dB
- Damping Factor: >100
- Remote Gain Controller Included
- Thermal and Short Circuit Protection
- Heavy-Duty Power & Speaker Terminals
- 14.96” x 5.90” x 2.16” (380mm x 150mm x 55mm)

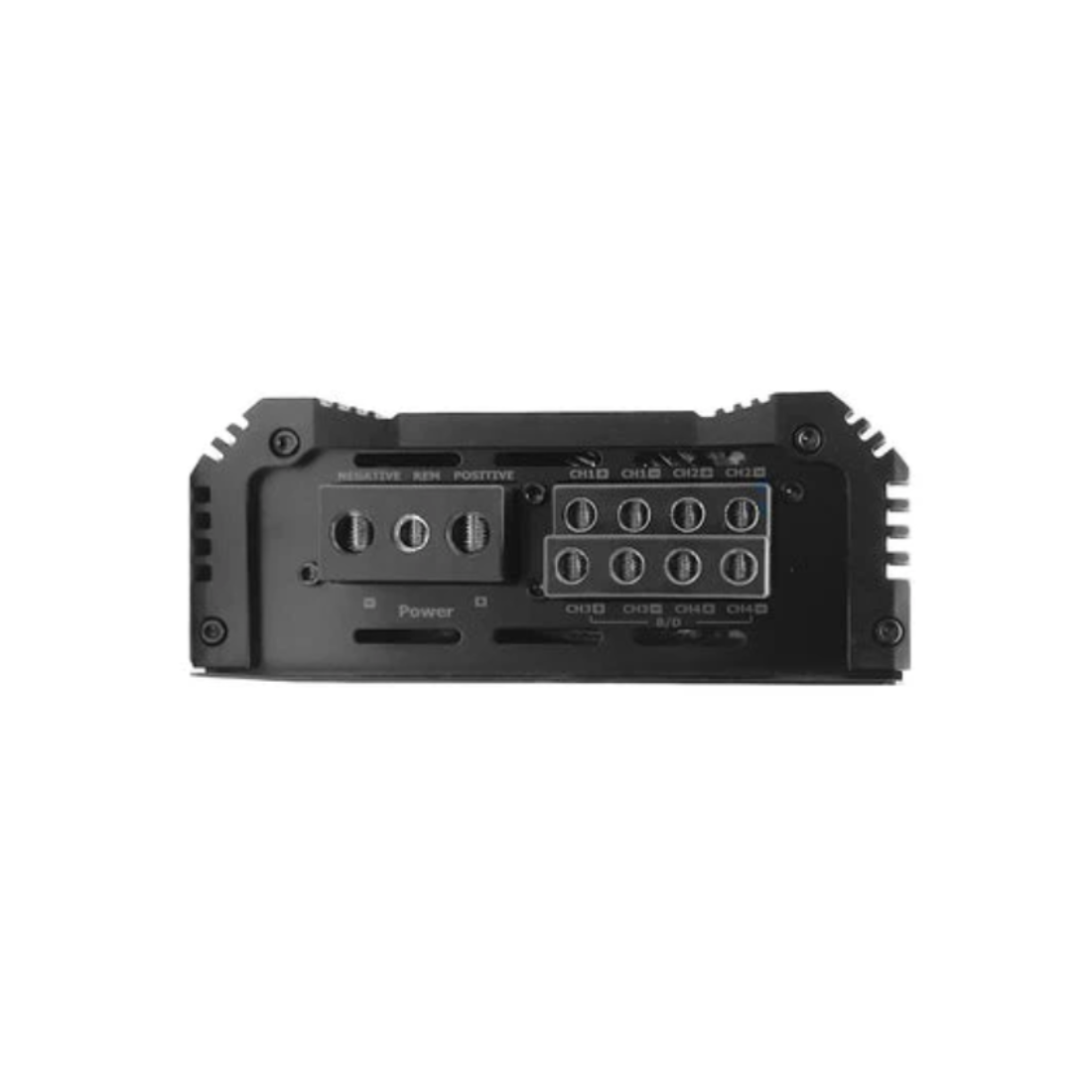

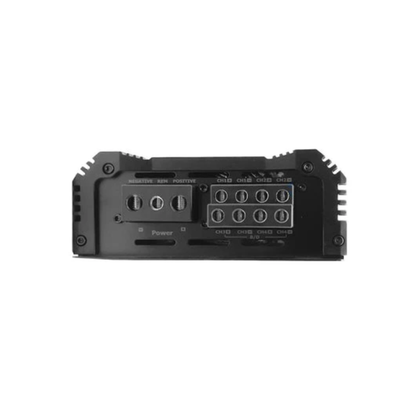

Power Terminal Management:
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 4 AWG.
