Powerbass

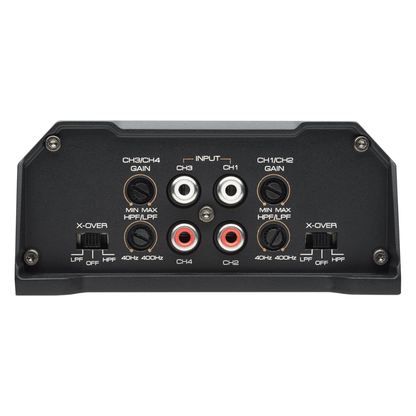

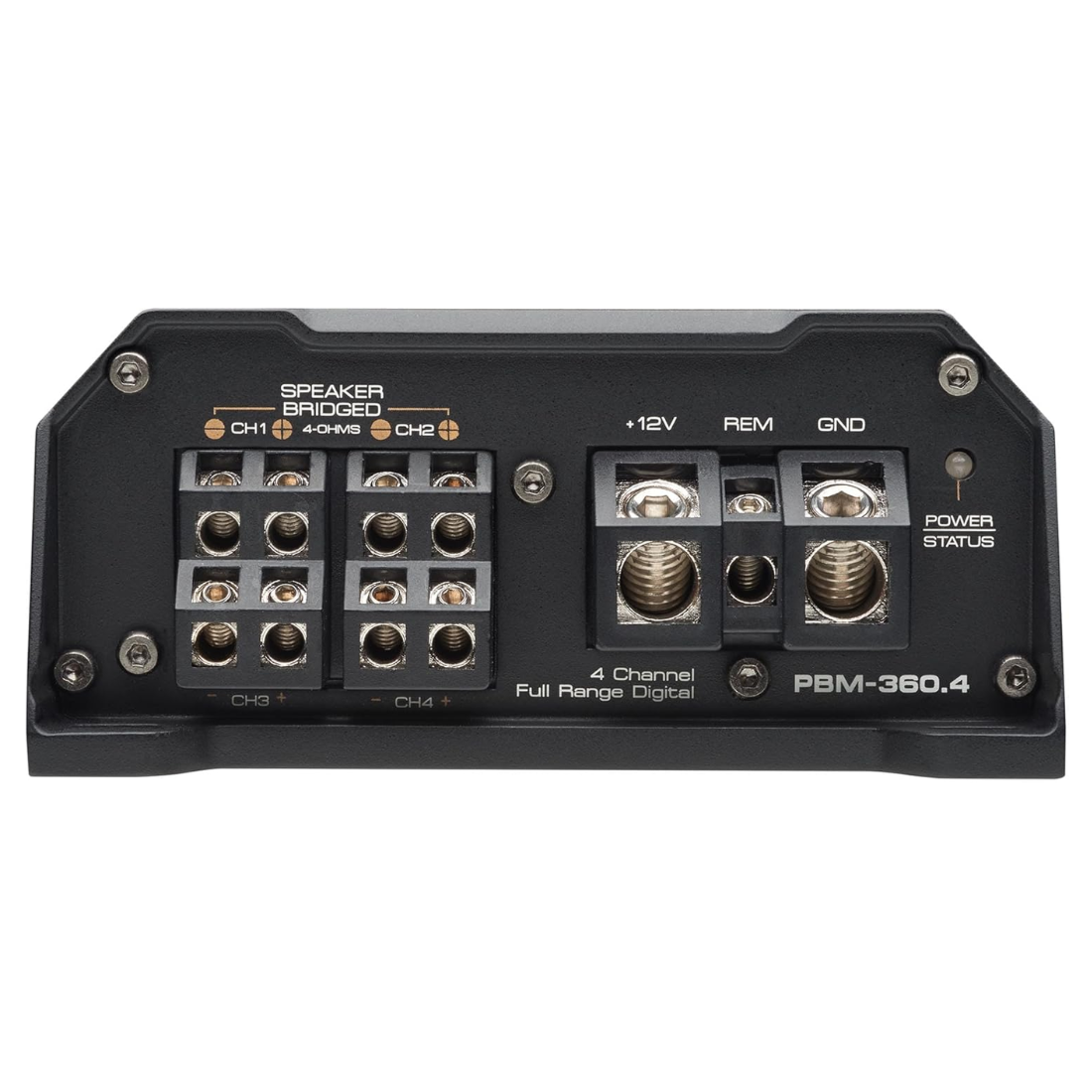

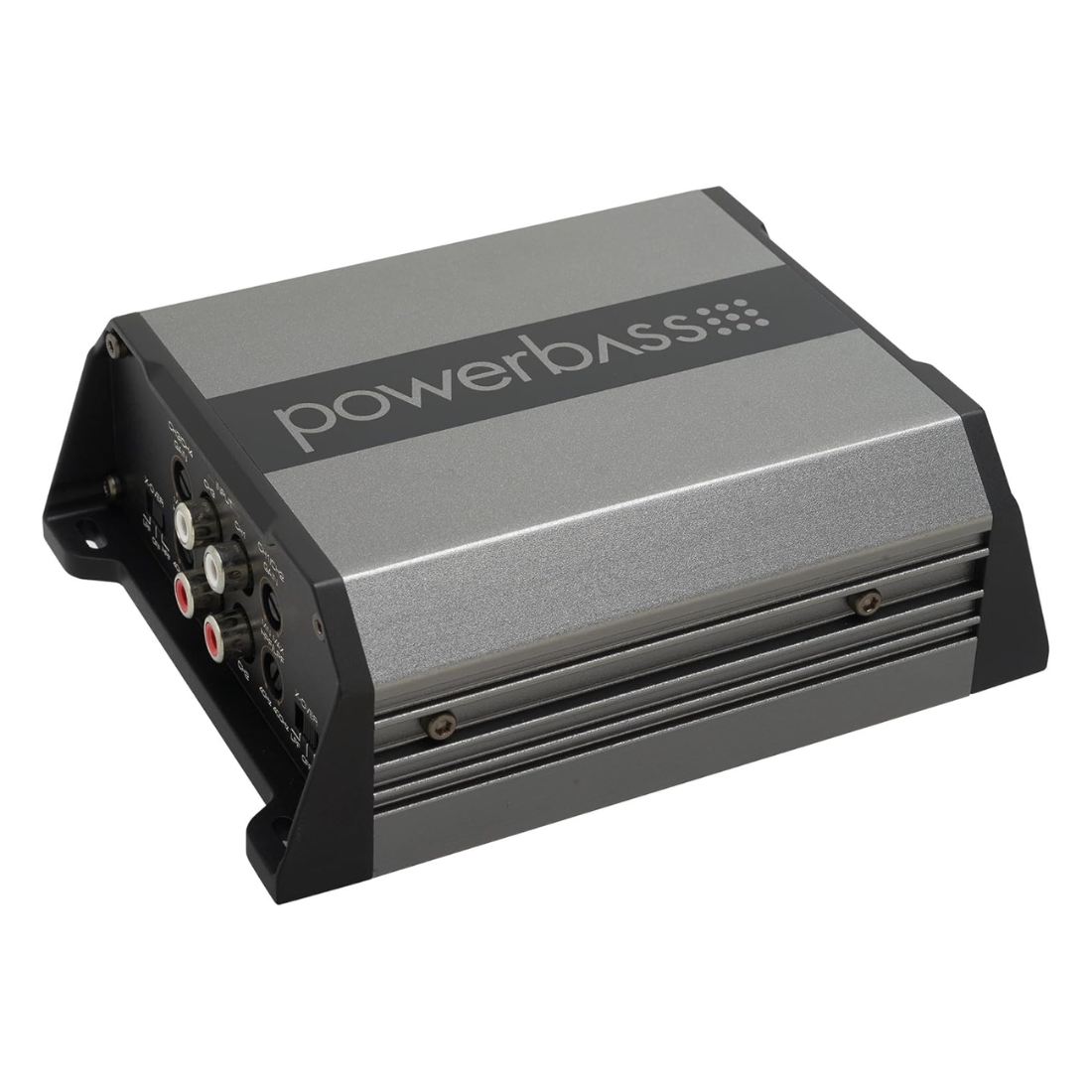

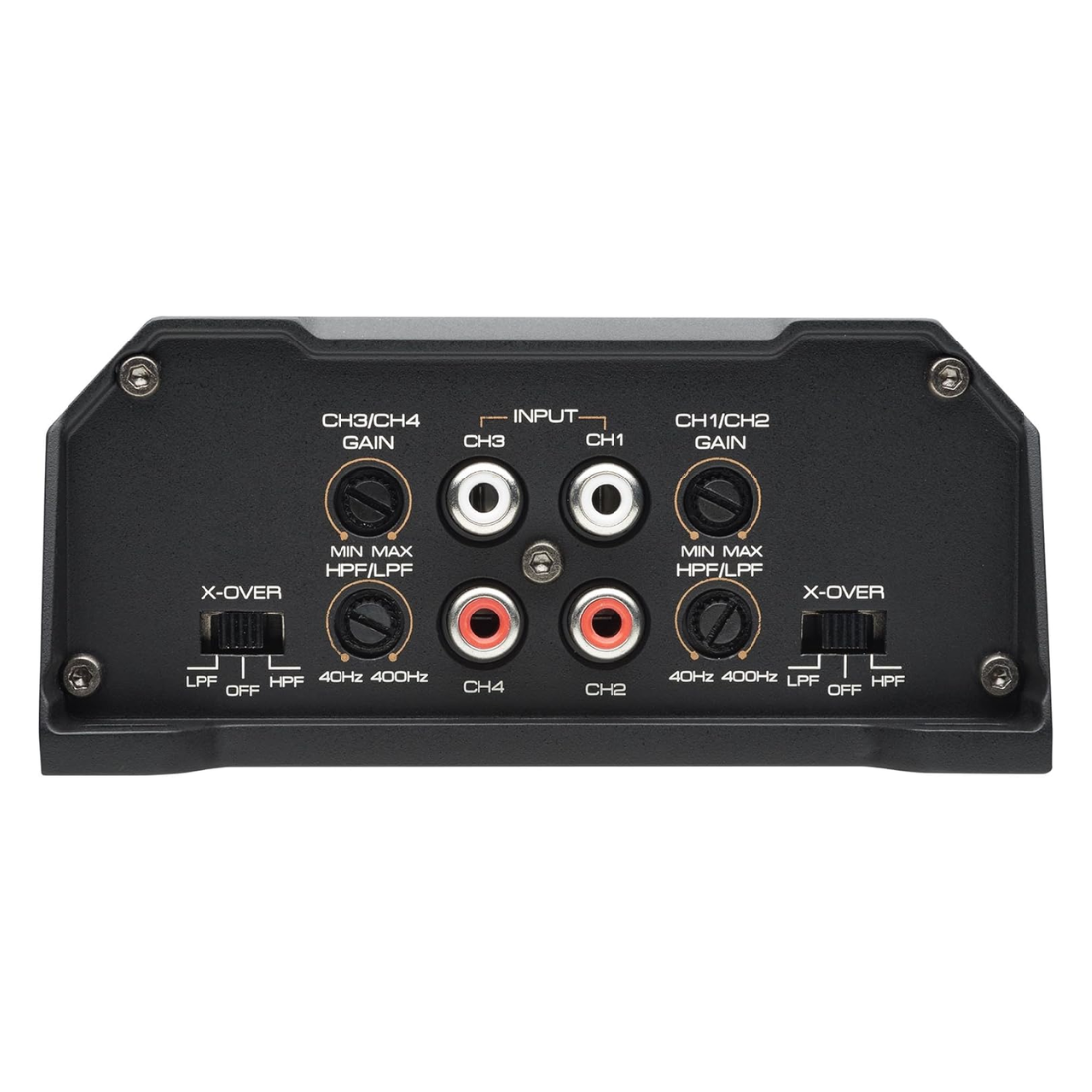

PowerBass PBM-360.4 4-Channel 360 Watts Class-D Full-Range Car Mini Amplifier
PowerBass PBM-360.4 4-Channel 360 Watts Class-D Full-Range Car Mini Amplifier
Regular price
$145.99 USD
Regular price
Sale price
$145.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
POWERBASS PBM-360.4
PBM Series | 4-Channel 360 Watts Class-D Full-Range Car Mini Amplifier
Key Features:
- 360W High Efficiency Full Range Class D Design
- 2-OHM Stereo Stable Amplifier
- Ultra Low Current Draw
- Conformal Coated PC Board
- Digital Sound Optimization Circuitry
- High Damping Control Circuit
- High Current Voltage Ripple Rejection Circuitry
- Selectable Crossover Network HPF, LPF, OFF
- Variable Low Pass Electronic Crossover
- Variable High Pass Electronic Crossover
- Variable Gain Control
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications:
- Peak Power: 225 watts x 2
- Power Supply: Unregulated PWM
- Inputs: RCA
- Dimensions (in Inches): 6"x4.43"x2"
- Channels (mono): 4
- 4-ohm Power: 45 watts x 4
- 4-ohm Mono Power: 180 watts x 2
- 2-ohm Power: 90 watts x 4
- Low-Pass Crossover Freq: 40 Hz - 250 Hz
- High-Pass Crossover Freq: 40 Hz - 250 Hz
- Crossover Slope: 12 dB
- Input Sensitivity: 0.25 V - 10.0 V
- S/N Ratio: >94 dB
- Total Harmonic Distortion: 0.5% at Rated Power
- Output Power (14.4 V) @ 4 ohm: 45 watts x 4
- Output Power (14.4 V) @ 2 ohm: 90 watts x 4
- Frequency Response: 20 Hz -20 KHz
