Stinger

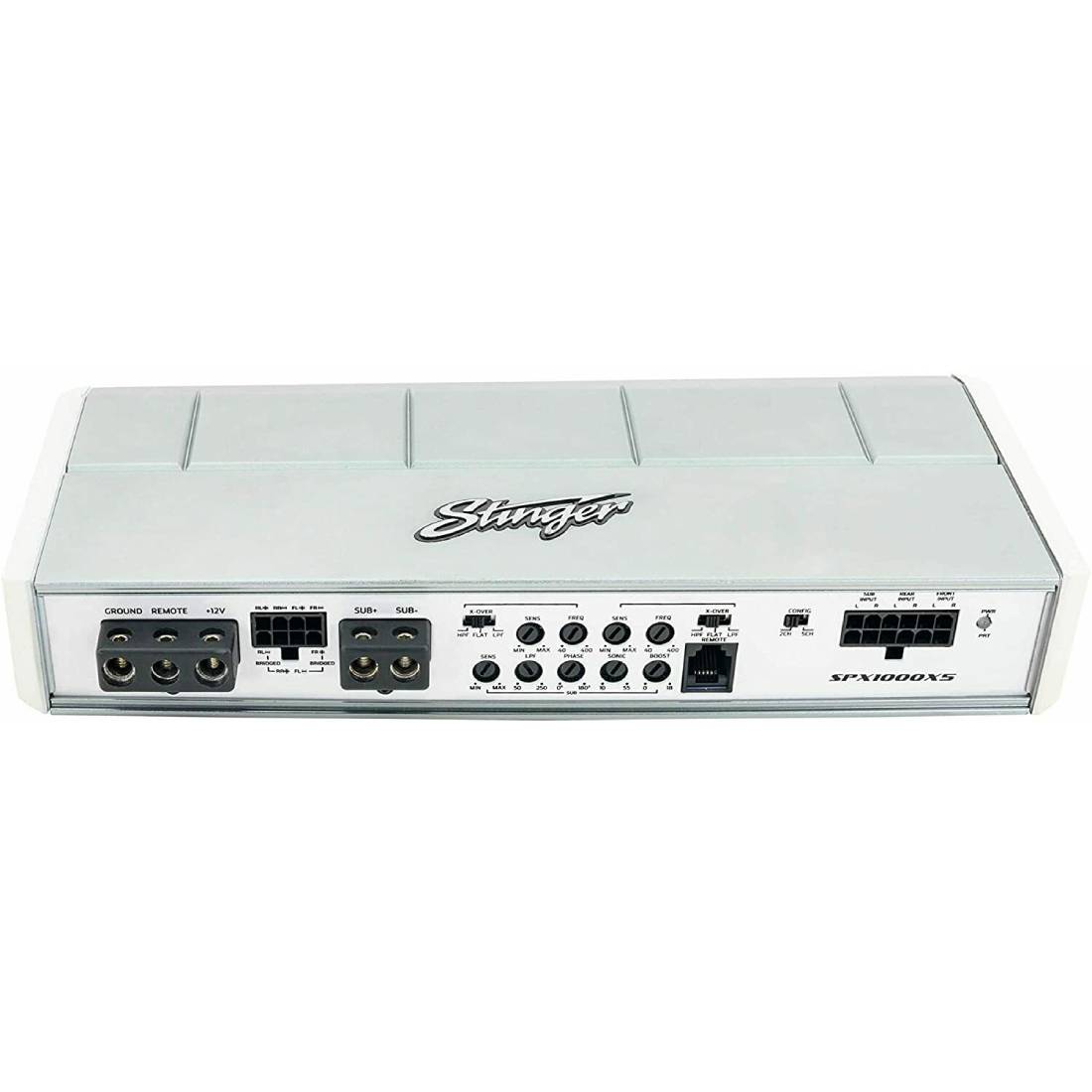

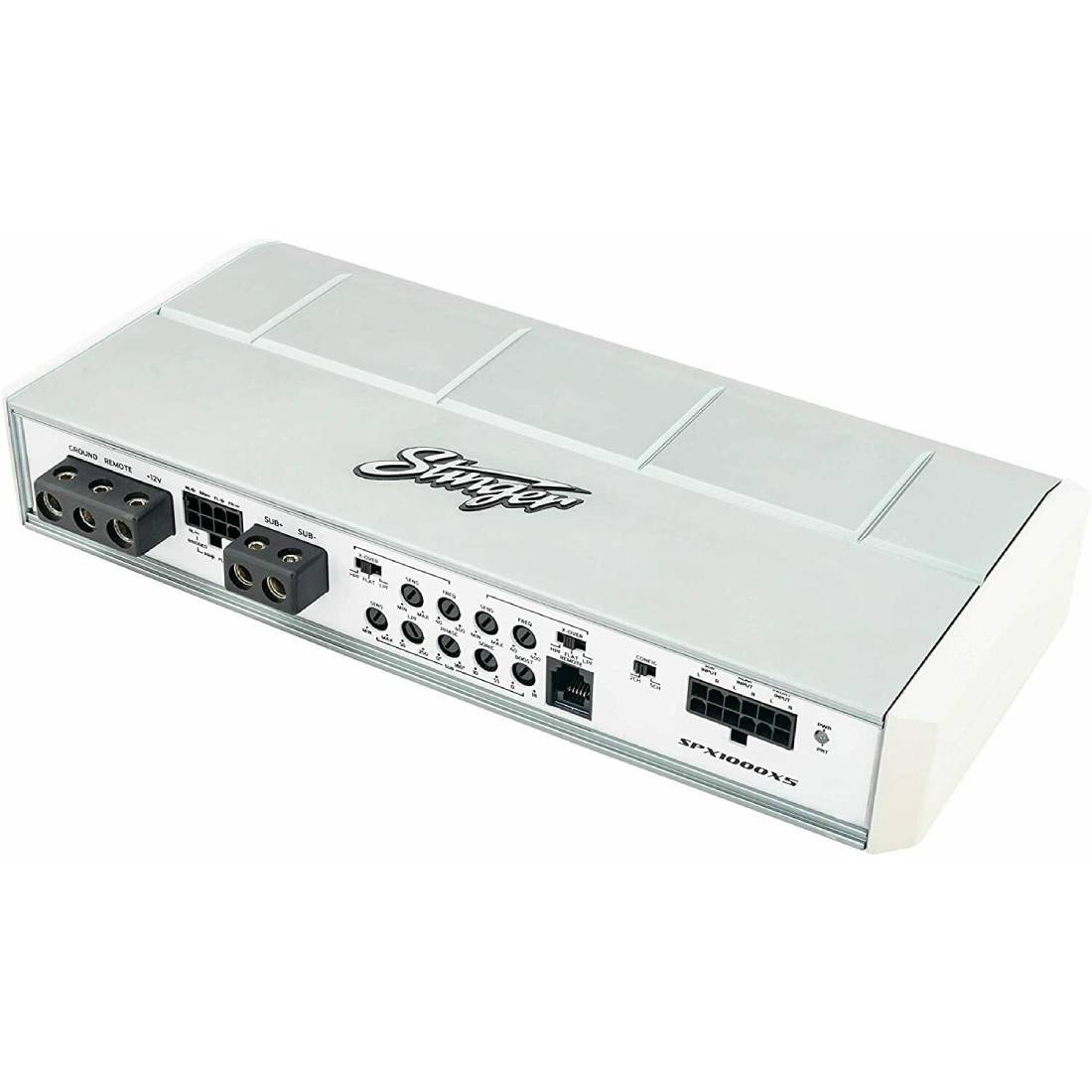

Stinger SPX1000X5 1000 Watts Max Power 5 Channel Power Sports Marine Audio Amplifier

Stinger SPX1000X5 1000 Watts Max Power 5 Channel Power Sports Marine Audio Amplifier

Regular price $479.00 USD
Regular price Sale price $479.00 USD
Sale Sold out
Shipping calculated at checkout.

BRAND NEW

STINGER SPX1000X5

1000 Watts Max Power 5 Channel Power Sports Marine Audio Amplifier

Key Features:



  • Perfect for motorcycles, ATV, marine and mobile applications
  • Small footprint low profile design
  • IPX-4/5 weather resistant design with conformal coated PCB
  • Full range Class D
  • Unregulated power supply
  • High Level or Low Level inputs
  • Diecast endcaps with removable mounting feet
  • Sub level control included
  • Aluminum Chassis
  • Corrosion resistant Nickel-plated connections and stainless hardware
  • Switchable 2 or 5ch inputs with no jumpers needed
  • Onboard HP/LP/Bypass Crossovers Channels 1-4
  • Onboard 50-250Hz LP Crossover with 0-1800 Phase adjustment and up to 18dB of Bass Boost (Channel 5)


RMS Power (14.4Vdc ≤1% THD):


  • 95 x 4 @ 4 ohm Stereo - CH 1-4
  • 275 x 1 @ 4 ohm - CH 5
  • 150 x 4 @ 2 ohm Stereo - CH 1-4
  • 500 x 1 @ 2 ohm - CH 5


Specifications:


  • Frequency Response: ± 1dB from 20Hz to 20kHz
  • Signal to Noise Ratio: >110dB
  • High and Low Pass Crossovers: 12dB per Octave
  • Low Pass Crossover Range: 40Hz to 400Hz
  • High Pass Crossover Range: 40Hz to 400Hz
  • Sub Crossover Range: 50Hz to 250Hz
  • Input Range: 200 millivolts to 12 volts
  • Typical Efficiency: 80%
  • Damping Factor: Greater than 200
  • Recommended Fuse Size: 80 amp
  • Power/Ground Wire Size: 8 Gauge
  • Package Dimensions: Approx. 11.85"L x 5.11"W x 1.6"H
  • Weight: Approx. 4.86 Lbs / 77.76 oz
