Sundown Audio

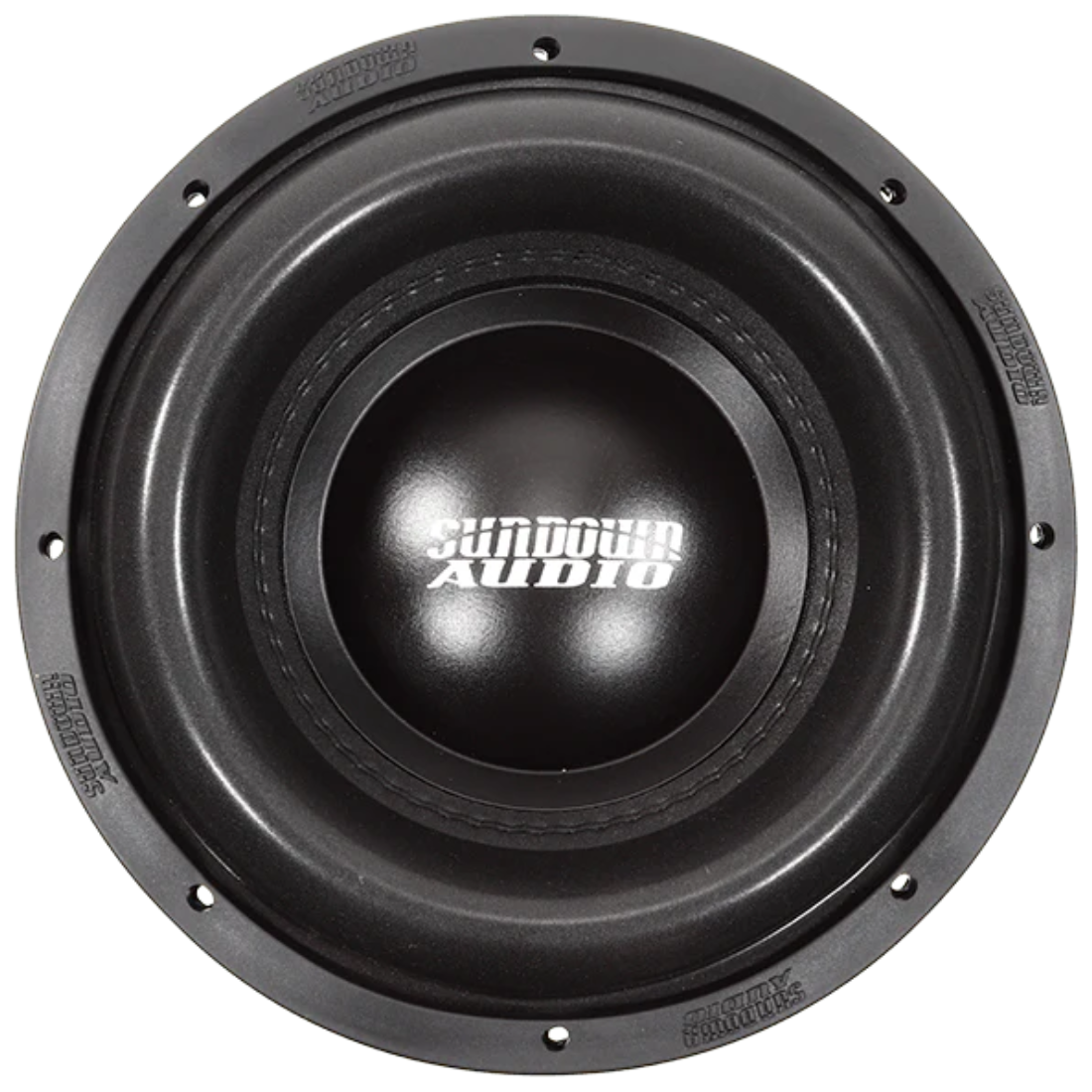

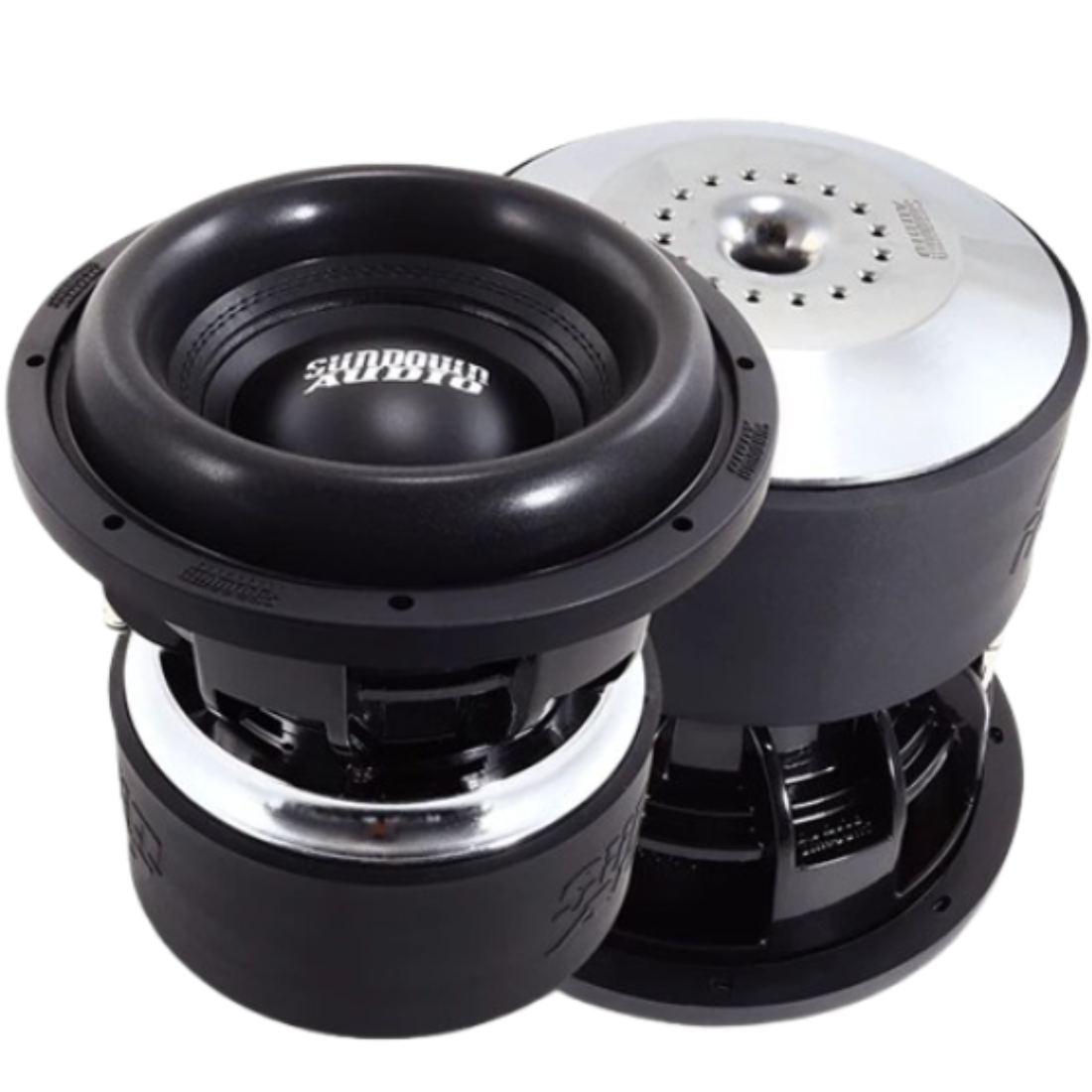

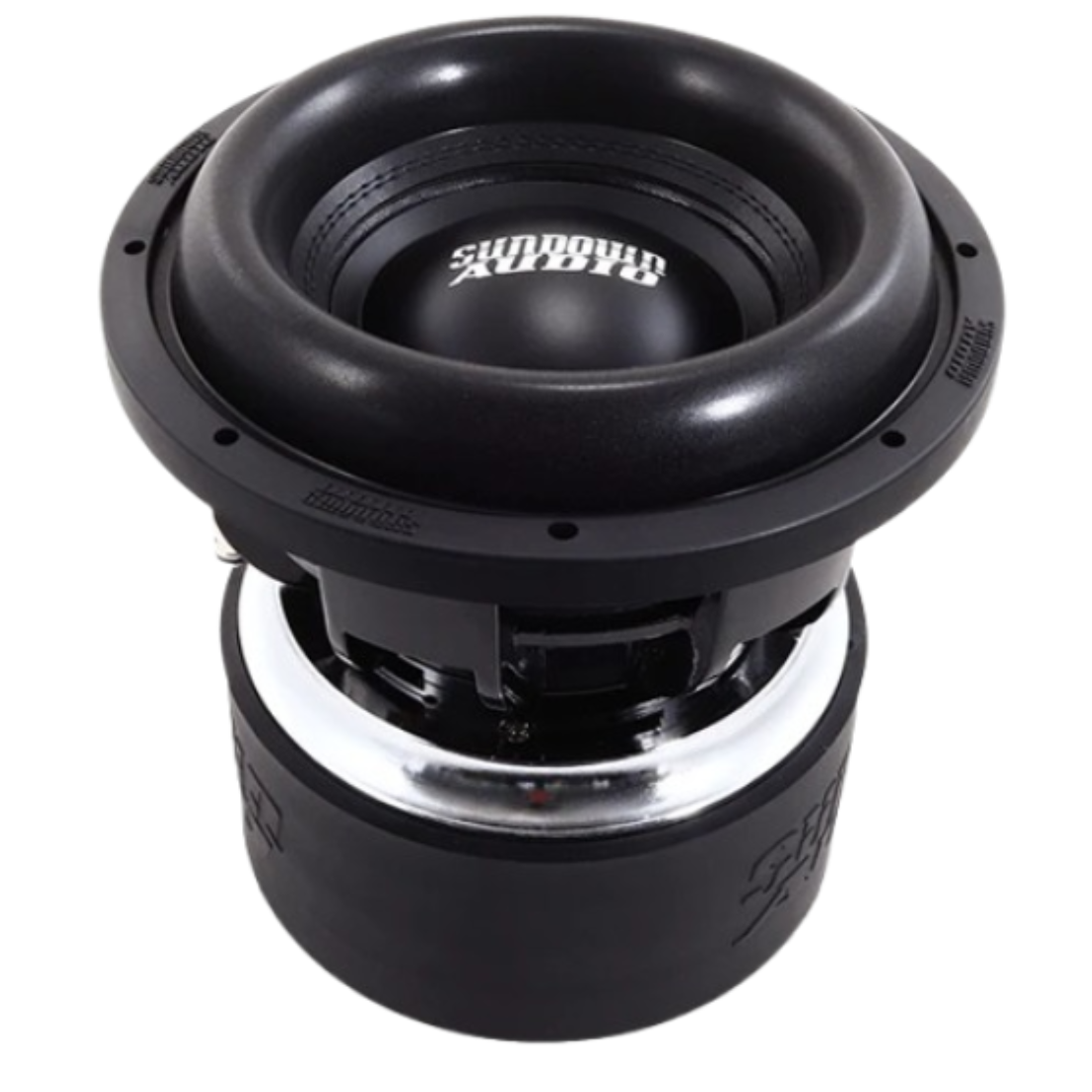

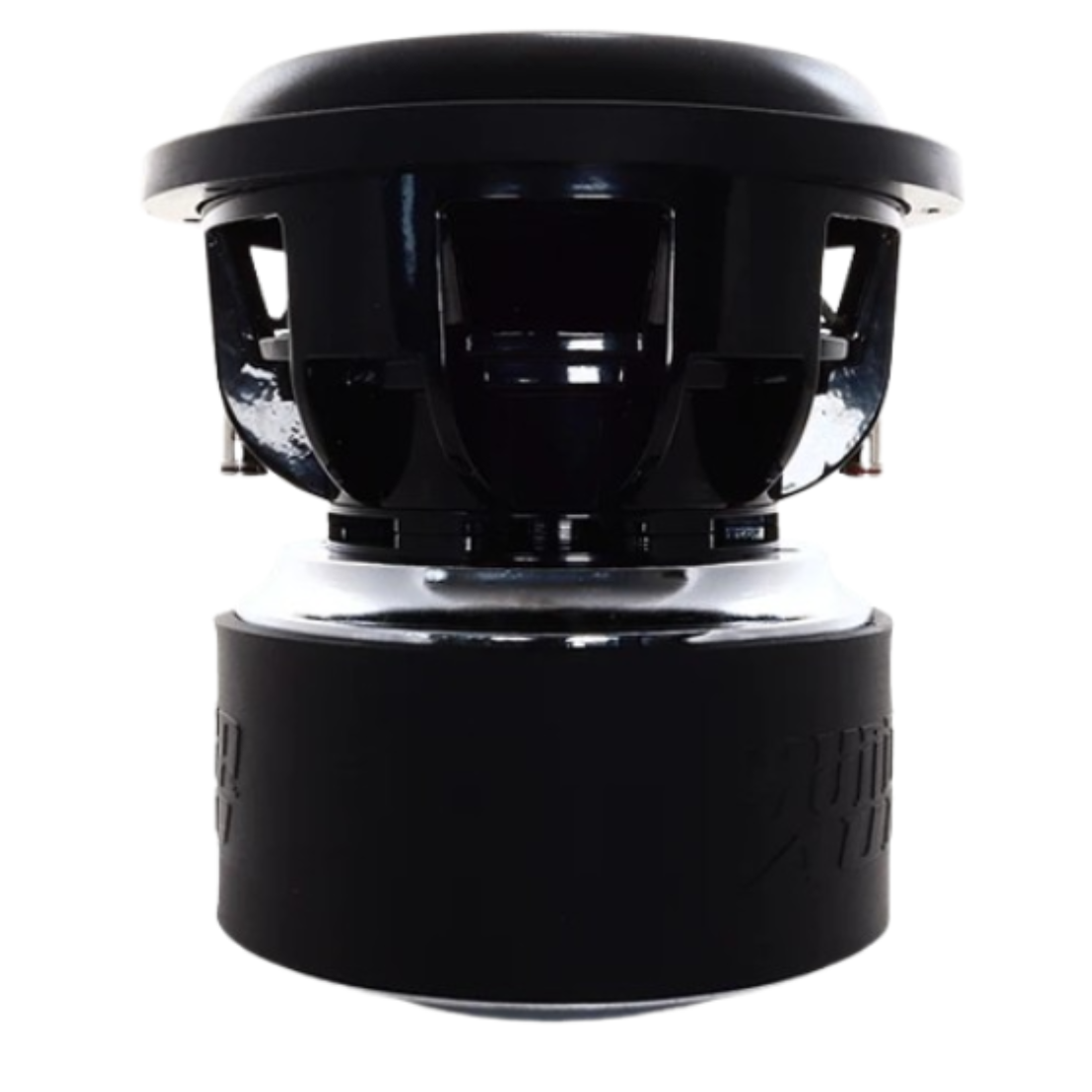

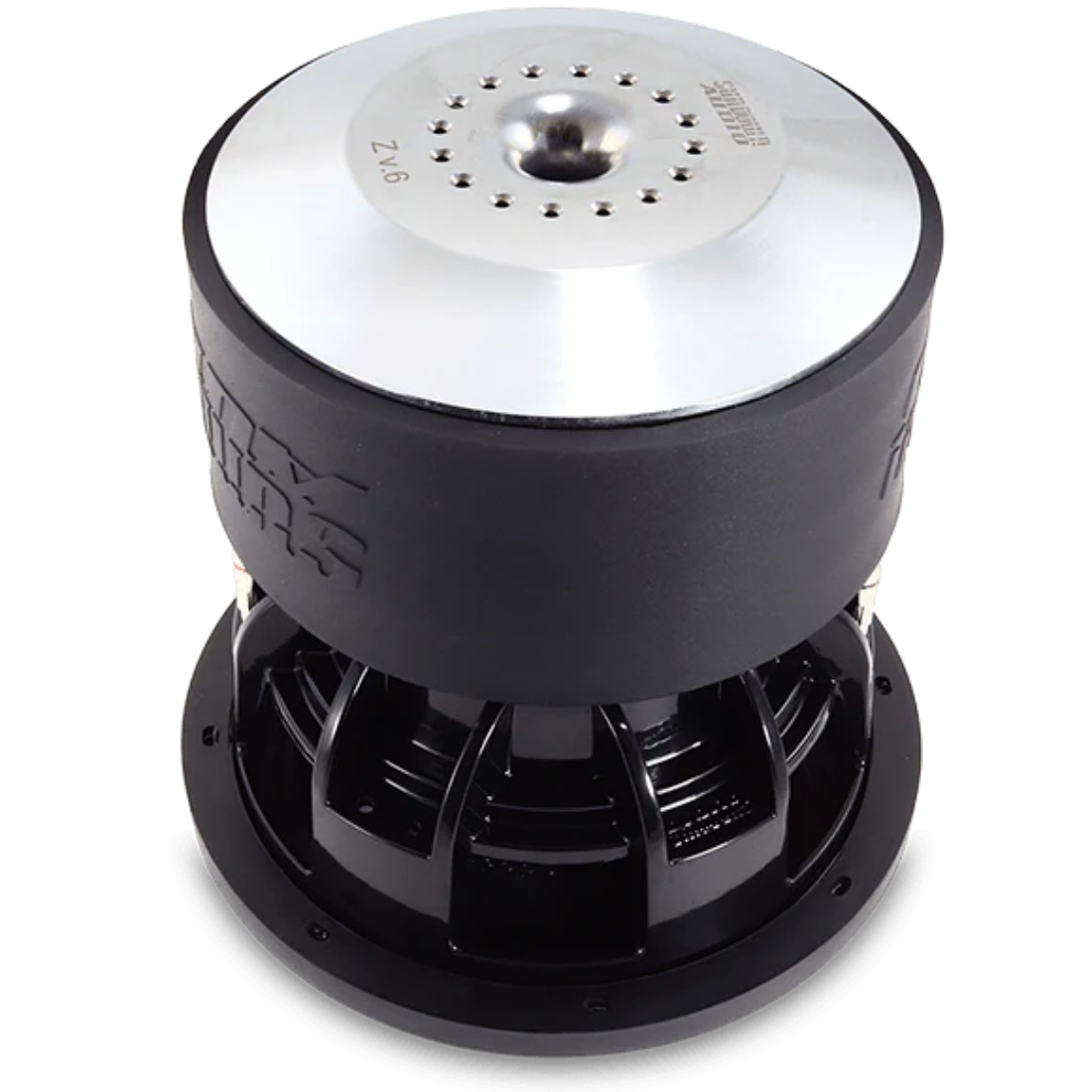

Sundown Audio ZV6 10 D2 10" 2500W RMS Power Dual 2-Ohm Voice Coil Car Subwoofer
Sundown Audio ZV6 10 D2 10" 2500W RMS Power Dual 2-Ohm Voice Coil Car Subwoofer
Regular price
$899.99 USD
Regular price
Sale price
$899.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
SUNDOWN AUDIO ZV6 10 D2
Z-Series 10-inch 2500W RMS Dual 2-Ohm DVC Car Audio Subwoofer
The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.
Key Features:
- Power Handling: 2500 Watts RMS
- Xmax = 35mm one-way by 70% BL
- Heavily vented magnetic gap
- Spring Loaded Terminals
- Optimized high-velocity pole vent
- Innovative high-velocity cast-aluminum vented frame spacer ring
- Black aluminum 3-inch 8-layer voice coil
- Mega-Roll v.2 surround
- Custom tooled basket
- Large aluminum Faraday (shorting) Ring
- Stitched-On XL Tinsel Leads to prevent fatigue and failure
- Custom-tooled ultra-linear spider packs
Specifications:
- T/S SPECS: Z V.6 10″D2
- RE (Ohms): 3.7
- FS (Hz): 40.46
- VAS (L): 7.3693
- Qes: 0.4523
- Qms: 5.6379
- Qts: 0.4187
- Le (mH): 4.3059mH
- BL (NA): 29.2091
- Mms (Grams): 399.6832g
- Cms (uM/N): 38.7056 uM/N
- Sens (dB @ 1w/1m): 82.0801dB
- Xmax: 35mm
Enclosure Specifications:
- Sealed Enclosure: Not Recommended
- Ported Enclosure: 1.5 cu.ft. net
- Recommended Tuning: 32Hz
- Recommended Port Area: 22 sq.in.
- Displacement: .23 cu. ft.
- Depth: 10.96"
- Outside Diameter: 11.65"
- Cut-Out: 10.01"
