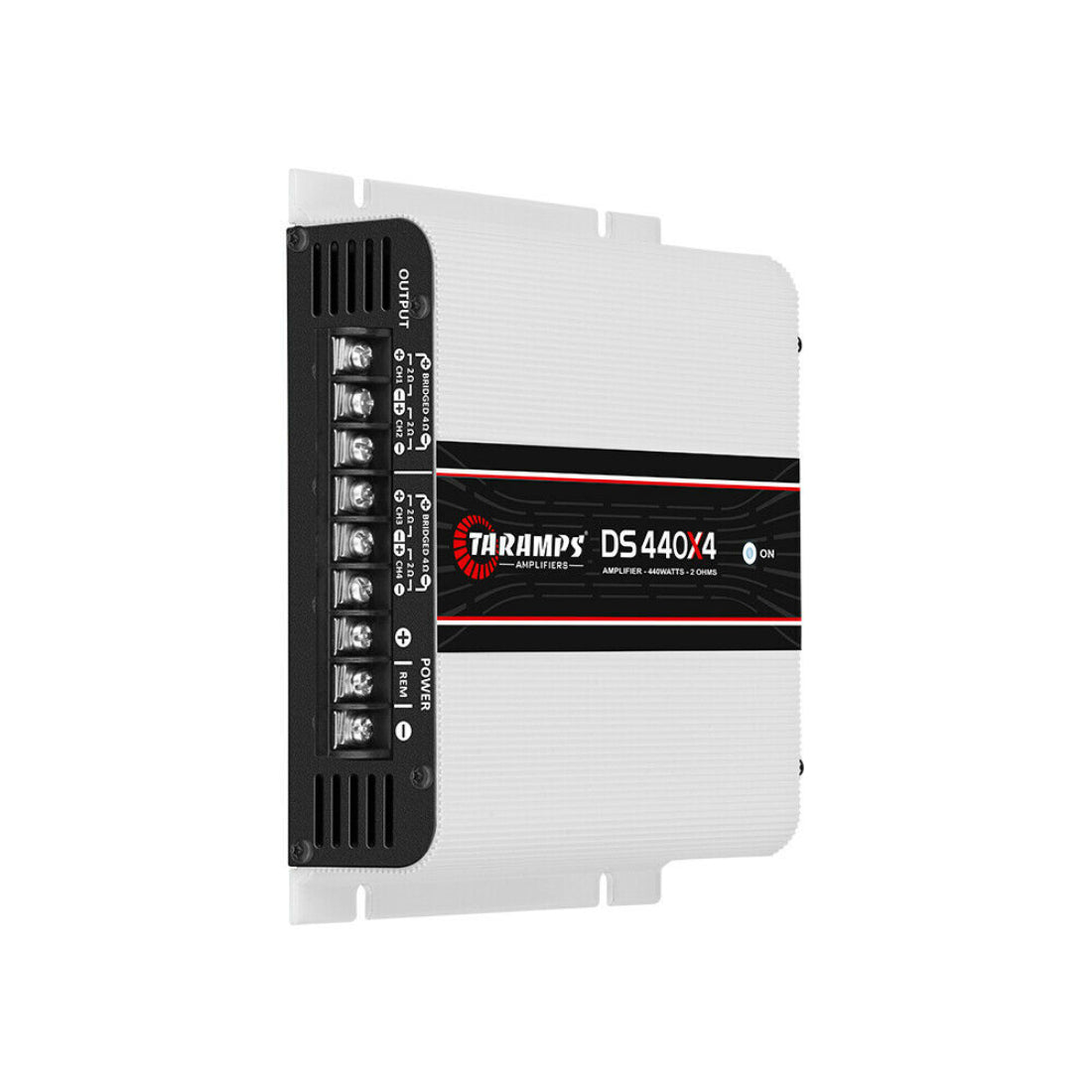

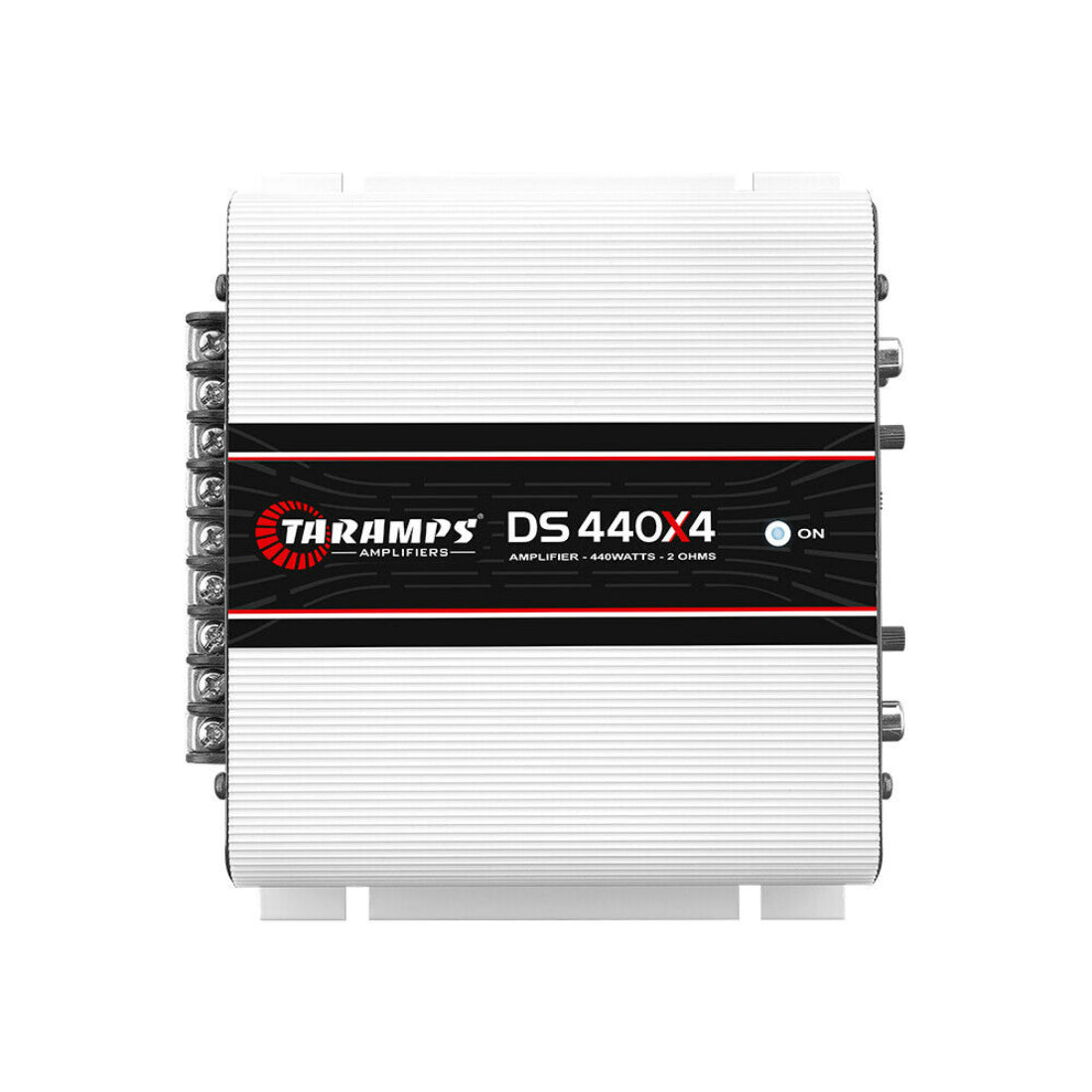

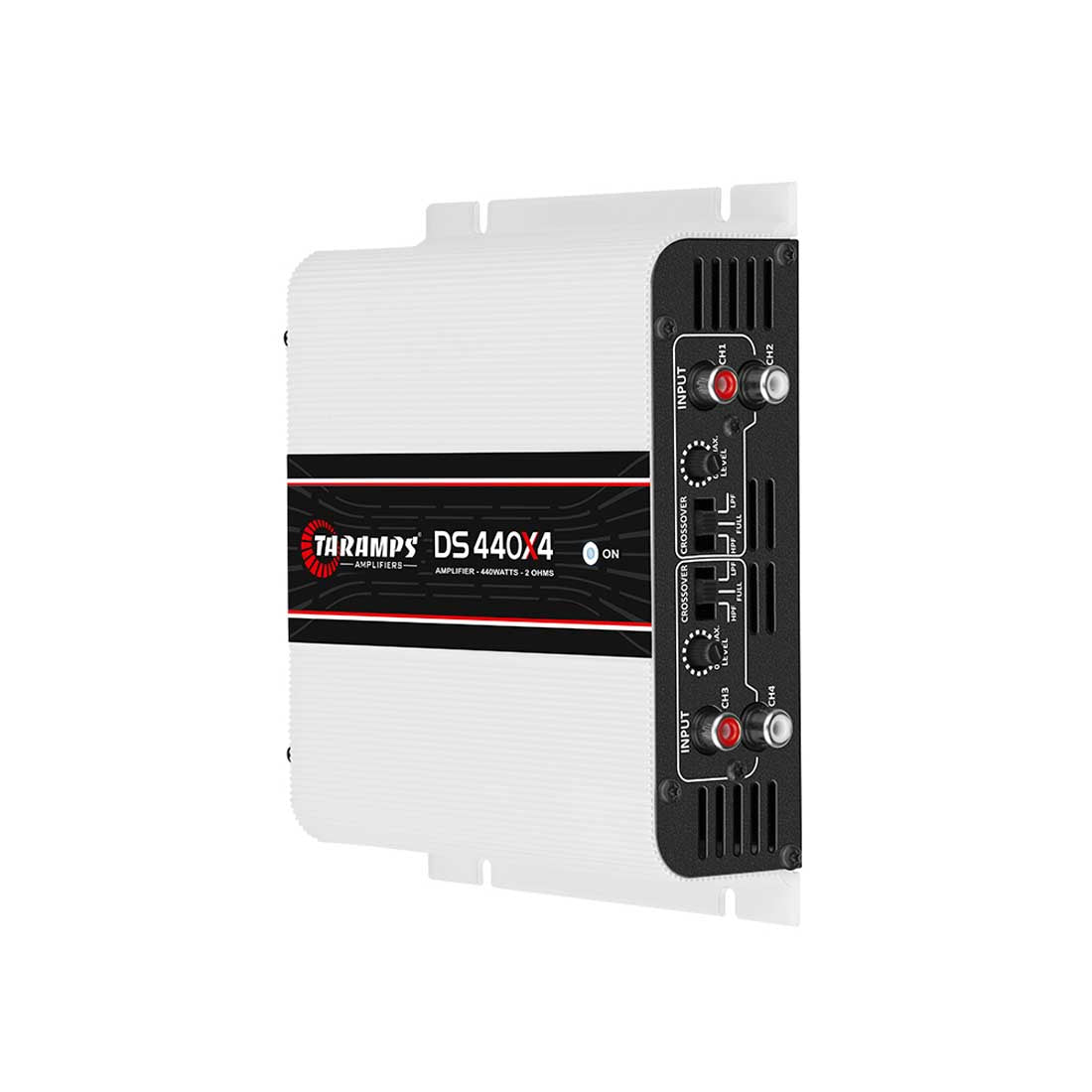

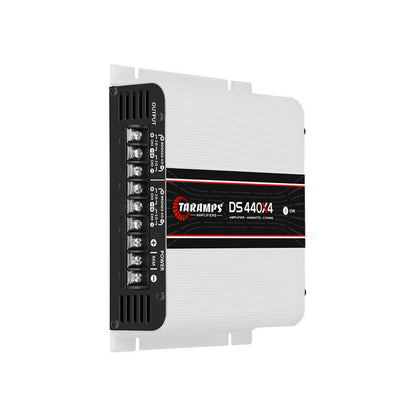

Taramps DS 440X4 440W RMS 4-Channel Class-D 2-Ohms Stereo Car Audio Amplifier
Taramps DS 440X4 440W RMS 4-Channel Class-D 2-Ohms Stereo Car Audio Amplifier

Taramps DS 440X4 440W RMS 4-Channel Class-D 2-Ohms Stereo Car Audio Amplifier

Regular price $128.00
/
Shipping calculated at checkout.

BRAND NEW

TARAMPS DS 440X4

440 Watts 4 Channel 2 Ohm Class D Car Stereo Amplifier

Key Features:

  • OPERATION CLASS: Class D
  • NUMBER OF CHANNELS: 04
  • MAXIMUM POWER:
  •  - @ 12.6 VDC - 2 OHMS: 440W RMS (4 x 110W RMS)
  •  - @ 12.6 VDC - 4 OHMS: 276W RMS (4 x 69W RMS)
  •  - 2 Bridgeable Channels: @12.6 VDC - 4 OHMS: 440W RMS (2 x 220W RMS)
  • INPUT SENSITIVITY: 250mV
  • SIGNAL TO NOISE RATIO: >89dB
  • FREQUENCY RESPONSE: 8Hz to 26KHz(-3dB)
  • CROSSOVER HIGH PASS (HPF): 90Hz (-12dB/8th) Fixed
  • CROSSOVER LOW PASS (LPF): 90Hz (-12dB/8th) Fixed
  • INPUT IMPEDANCE: 18K ohms
  • OUTPUT IMPEDANCE: 2 ohms
  • PROTECTION SYSTEM: Output Short Circuit
  • MIN. SUPPLY VOLTAGE: 8VDC
  • MAXIMUM POWER SUPPLY VOLTAGE: 16VDC
  • CONSUMPTION AT REST: 0.8A
  • MAXIMUM MUSIC CONSUMPTION: @12.6 VDC: 23.5A
  • MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL: 47A
  • DIMENSIONS (WXHXD): 6.30" x 1.73" x 5.71" (160 x 44 x 145mm)
  • WEIGHT: 1.32lb (0,60kg)
