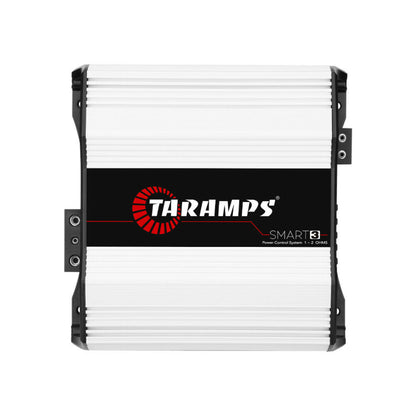

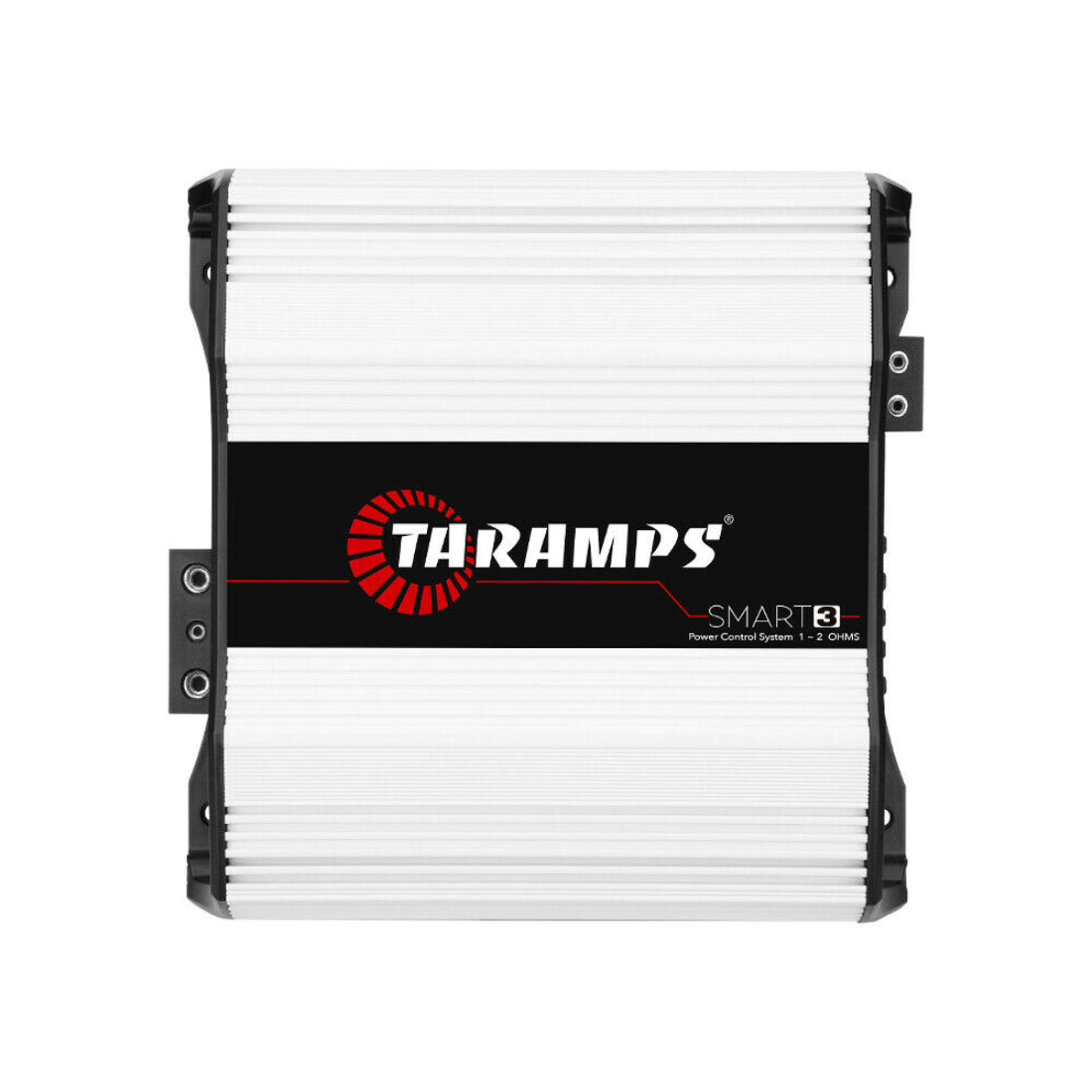

Taramps Smart 3 1~2 Ohms 3000 Watts RMS 1~2 Ohms Amplifier

Brand New

Taramps Smart 3

1~2 Ohms 3000 Watts RMS 1~2 Ohms Amplifier

Key Features

Operation Class: D

- Number of Channels: 01

- Maximum Power:

@ 12.6 VDC - 1 OHM: 3000W RMS

@ 12.6 VDC - 2 OHMS: 3000W RMS

@ 12.6 VDC - 4 OHMS: 2000W RMS

- Input Sensitivity: 0.22V ~ 4V

- Signal to Noise Ratio: >90dB

- Frequency Response: (Full Range): 10Hz to 10KHz(-3dB)

- Crossover High Pass (HPF): Variable 10Hz to 90Hz (-12dB / 8th)

- Crossover Low Pass (LPF): Variable 90Hz to 10KHz (-12dB / 8th)

- Bass Boost:35Hz ~ 55Hz, 0 to 10dB (50Hz)

- Input Impedance: 10K OHMS

- Protection System:Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection

- Maximum Supply Voltage: 16VDC

- Consumption at rest: 2.4A

- Maximum Musical Power: @ 12.6 VDC: 150A

- Rated Power Consumption: 300A

- Dimensions(W x H x D): 228 x 70 x 419mm or 8.9 x 2.8 x 16.5 Inches

- Weight: 5.72 lb/91.52 Oz
