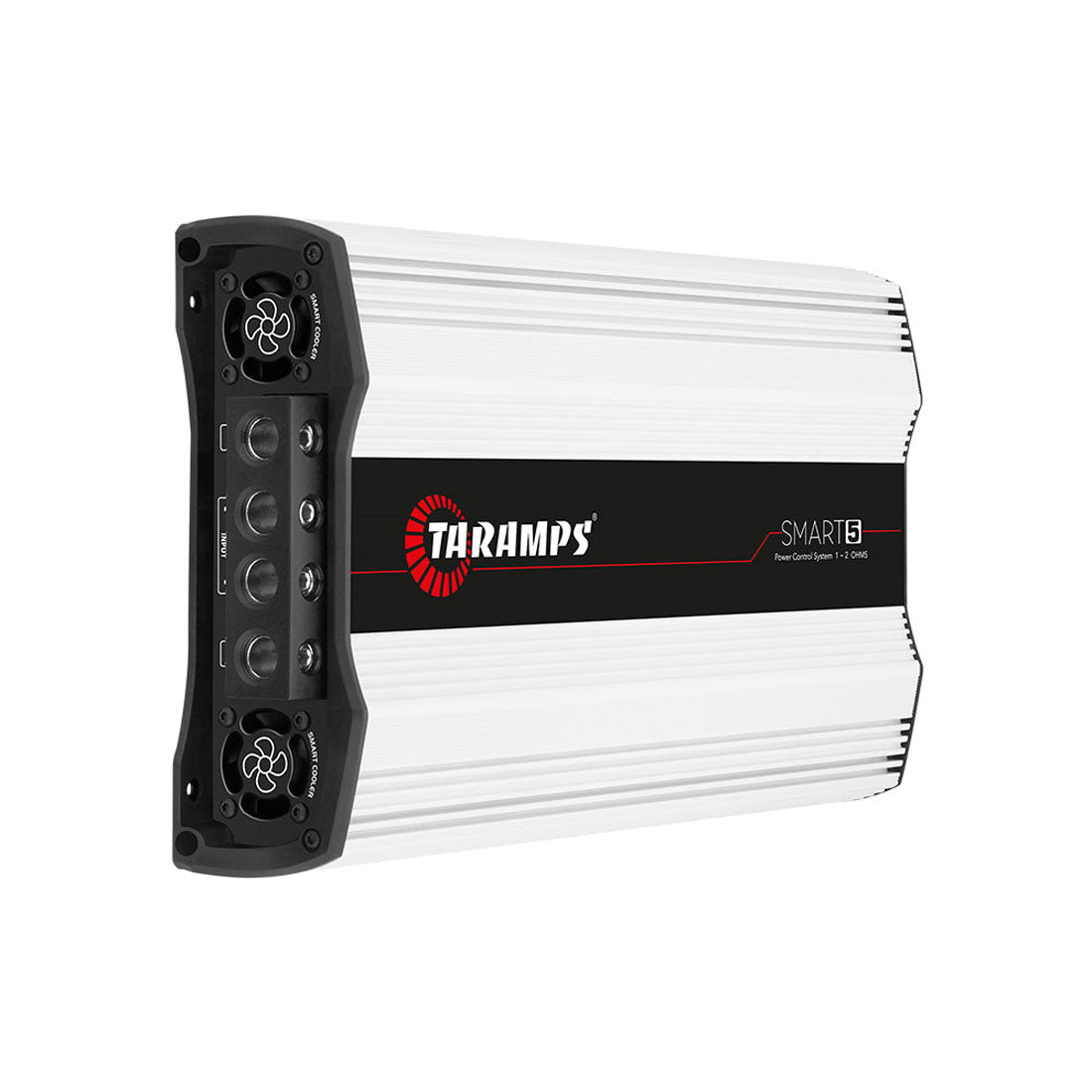

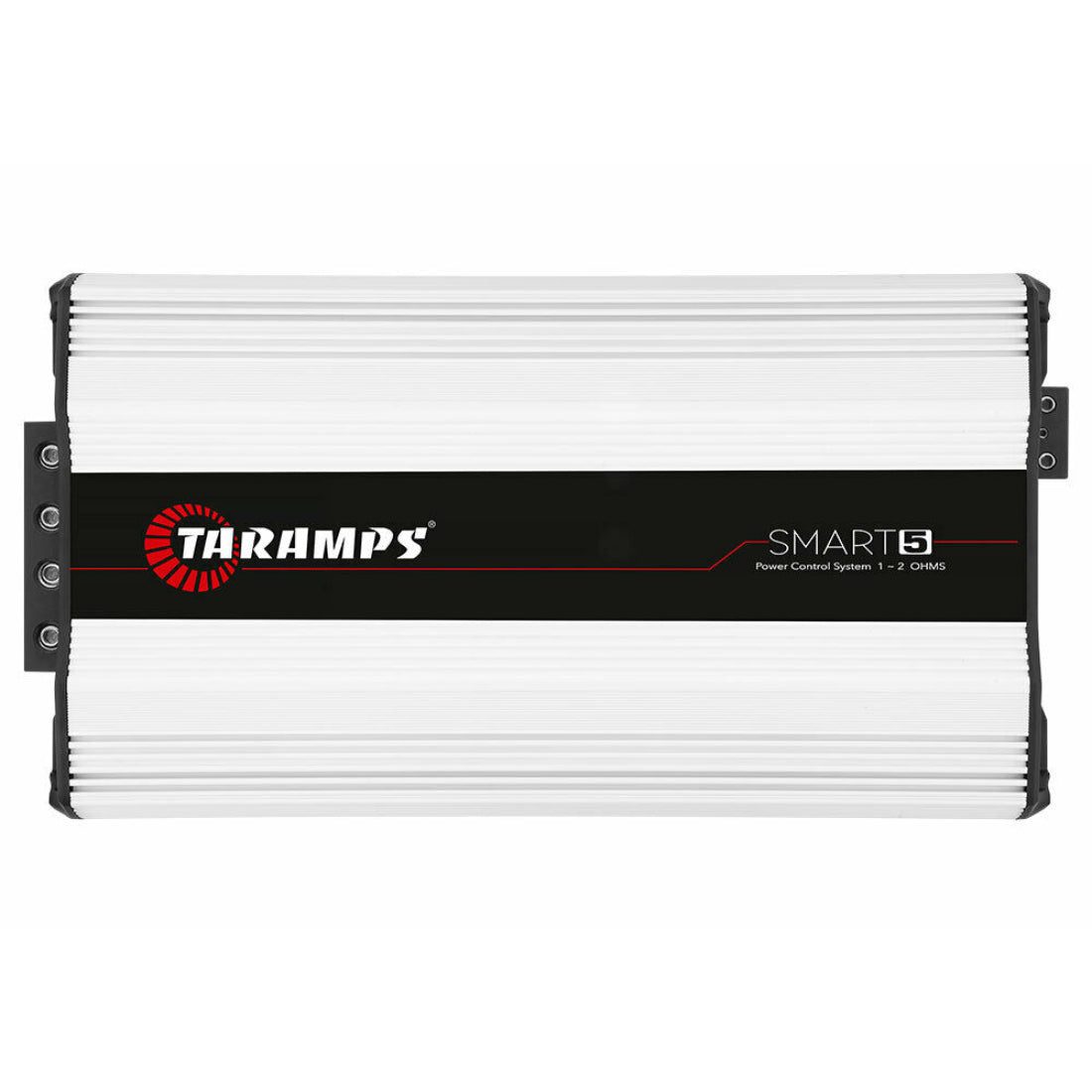

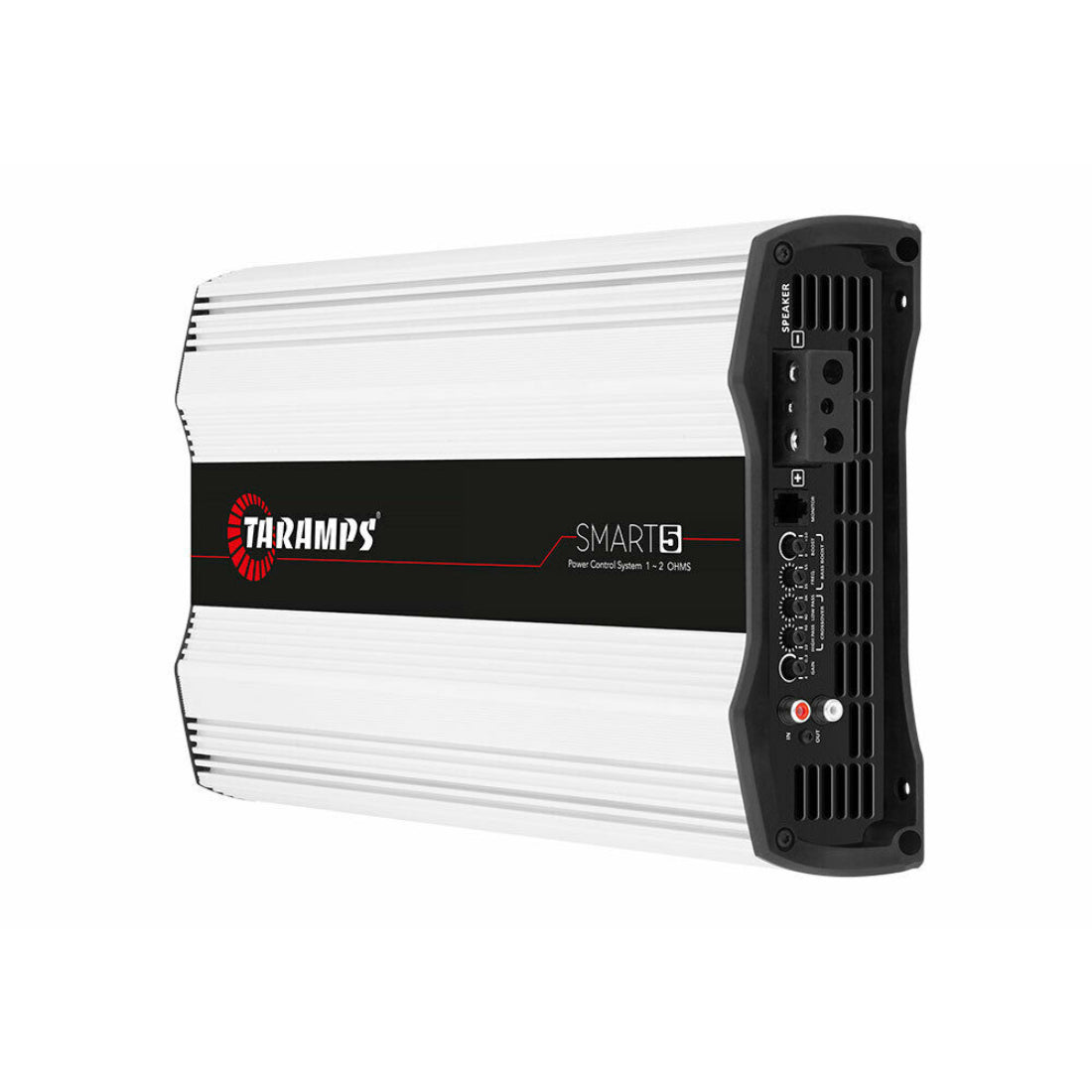

Taramps SMART 5 1-CH Monoblock 5000W RMS 1~2 Ohms Class-D Car Audio Amplifier
Taramps SMART 5 1-CH Monoblock 5000W RMS 1~2 Ohms Class-D Car Audio Amplifier
Taramps SMART 5 1-CH Monoblock 5000W RMS 1~2 Ohms Class-D Car Audio Amplifier

Taramps SMART 5 1-CH Monoblock 5000W RMS 1~2 Ohms Class-D Car Audio Amplifier

Regular price $559.00
/
Shipping calculated at checkout.

BRAND NEW

TARAMPS SMART 5

1-Channel Monoblock 5000 Watts RMS 1~2 Ohms Class-D Car Audio Amplifier

Key Features:

  • OPERATION CLASS: Class D
  • NUMBER OF CHANNELS: 01
  • MAXIMUM POWER:
  •  - @ 12.6 VDC - 1 ohm: 5000 Watts RMS
  •  - @ 12.6 VDC - 2 ohms: 5000 Watts RMS
  •  - @ 12.6 VDC - 4 ohms: 2900 Watts RMS
  • INPUT SENSITIVITY: 0.22V ~ 4V
  • SIGNAL TO NOISE RATIO: >90dB
  • FREQUENCY RESPONSE: 10Hz ~ 8KHz (-3dB)
  • CROSSOVER HIGH PASS (HPF): 10Hz ~ 90Hz (-12dB/8ª) Variable
  • CROSSOVER LOW PASS (LPF): 90Hz ~ 8KHz (-12dB/8ª) Variable
  • BASS BOOST: Freq.: 35Hz ~ 55Hz
  • Boost: 0 ~ +10dB
  • EFFICIENCY:
  •  - 84% @ 1 ohm
  •  - 86% @ 2 ohms
  • INPUT IMPEDANCE: 10K ohms
  • OUTPUT IMPEDANCE: 1 ~ 2 ohms
  • PROTECTION SYSTEM:
  •  - Output short circuit
  •  - Low/high voltage protection
  •  - Thermal protection.
  • MIN. SUPPLY VOLTAGE: 9.5VDC
  • MAXIMUM POWER SUPPLY VOLTAGE: 16VDC
  • CONSUMPTION AT REST: 3.60A
  • MAXIMUM MUSIC CONSUMPTION:
  •  - 236A @ 1 ohm
  •  - 230A @ 2 ohms
  • MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL:
  •  - 472A @ 1 ohm
  •  - 460A @ 2 ohms
  • DIMENSIONS (WXHXD): 8.97" x 2.75" x 16.85" (228 x 70 x 428mm)
  • WEIGHT: 11.24 lbs (5,10Kg)
  • EAN: 7898556847391
