Axxess AXDIS-LR82 Land Rover Range Rover Vogue w/MOST25 Amp 2006-2012

BRAND NEW

Axxess AXDIS-LR82

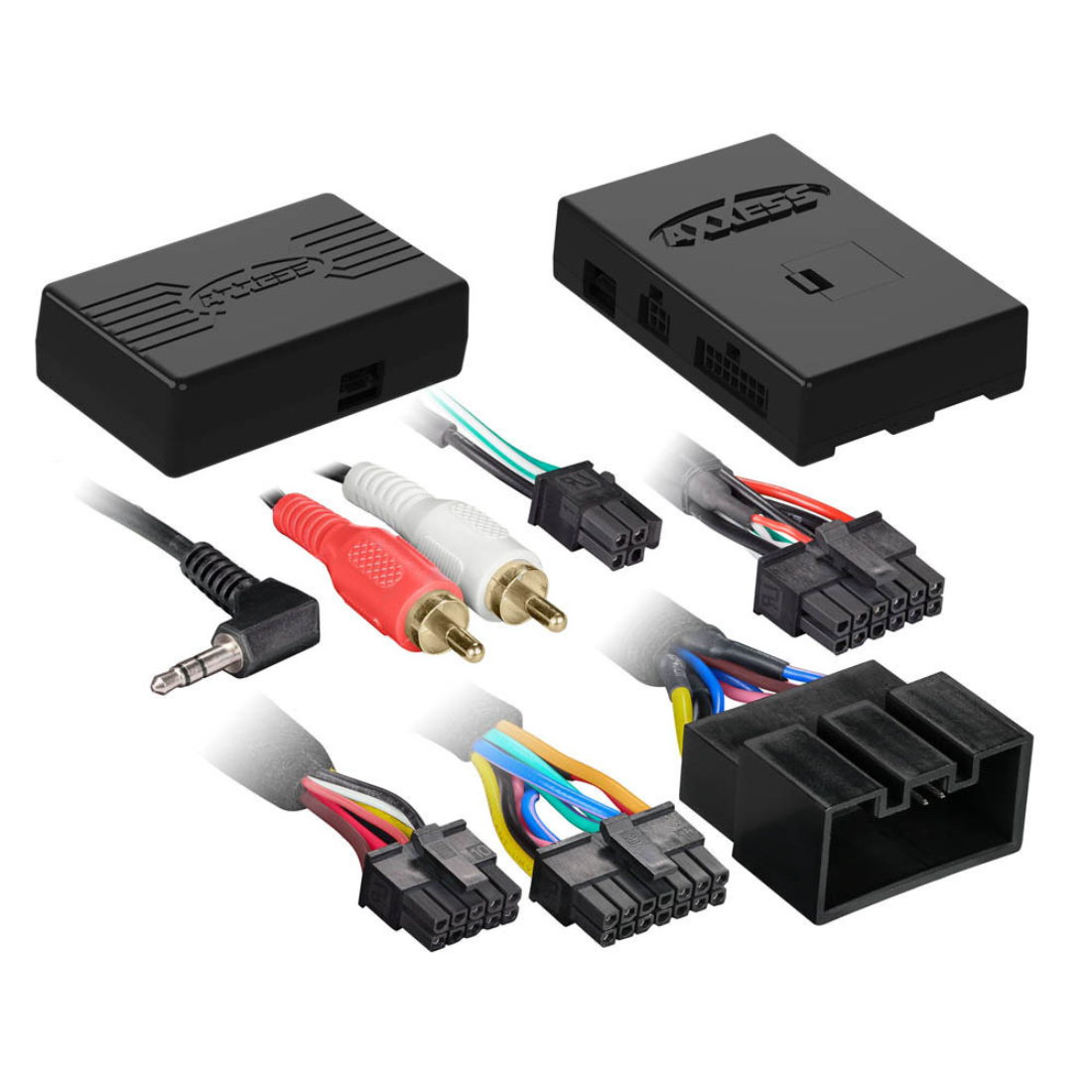

Axxess AXDIS-LR82 Land Rover Range Rover Vogue w/MOST25 Amp 2006-2012

KEY FEATURES AND SPECIFICATIONS

·        Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions

·        Provides accessory (12-volt 10-amp)

·        Retains R.A.P. (retained accessory power)

·        Retains chimes

·        Provides NAV outputs (parking brake, reverse, mute, V.S.S.)

·        Integrated steering wheel control interface for direct plug in to aftermarket radio

·        Retains memory settings even after battery disconnection or interface removal (non volatile memory)

·        Retains the 3.5mm AUX-IN jack

·        Includes 5v factory amplifier step-down

·        High level speaker input

·        USB updatable

CONNECTIONS:

·        Yellow - 12V Constant

·        Red - 12V Accessory

·        Black - Ground

·        Orange/White - Dash Light Dimmer/Illumination

·        Blue/White - Amplifier turn on

·        Brown - Mute connection

·        Light green - (-) Parking brake lead

·        Blue/Pink - VSS (Vehicle speed sensor)

·        Black/Yellow - OnStar volume adjustment

·        White RCA - Left Auxiliary input

·        Red RCA - Right Auxiliary input

·        Green/Purple - (+) Reverse trigger

·        Green - Left Rear Speaker (+)

·        Green with Black Stripe Left Rear Speaker (-)

·        White - Left Front Speaker (+)

·        White with Black Stripe - Left Front Speaker (-)

·        Purple - Right Rear Speaker (+)

·        Purple with Black Stripe - Right Rear Speaker (-)

·        Gray - Right Front Speaker (+)

·        Gray with Black Stripe - Right Front Speaker (-)

·        White RCA - Left Subwoofer signal

·        Red RCA - Center Channel signal

Note:

If this jack is not present on the aftermarket radio, just leave be. Only the center channel speaker will be lost.
