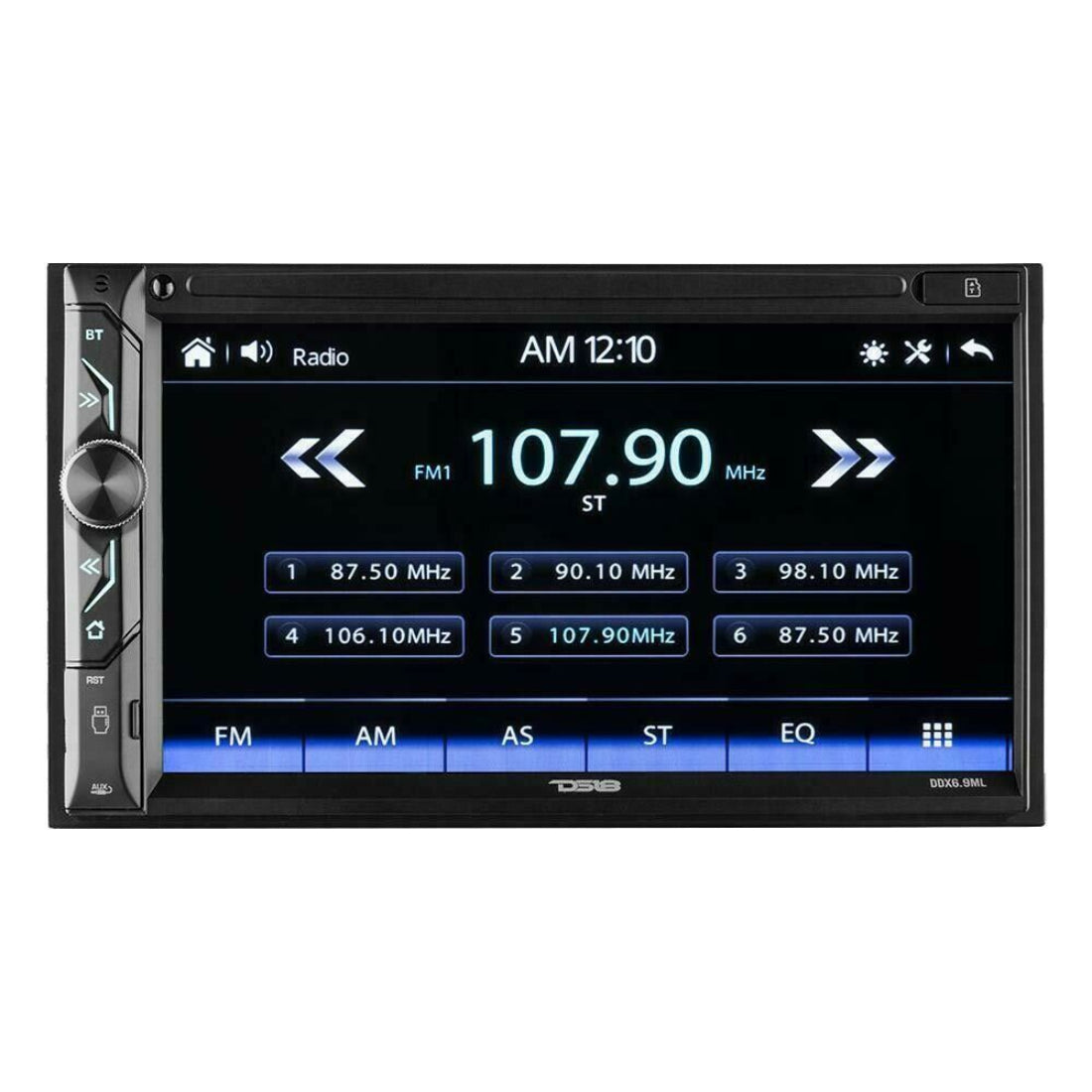

DS18 DDX69ML 6.9" Touchscreen Mechless Double-Din Headunit
DS18 DDX69ML 6.9" Touchscreen Mechless Double-Din Headunit
DS18 DDX69ML 6.9" Touchscreen Mechless Double-Din Headunit

DS18 DDX69ML 6.9" Touchscreen Mechless Double-Din Headunit

Regular price $189.95
/
Shipping calculated at checkout.

Brand New


DS18 DDX69ML


6.9" Touchscreen Mechless Double-Din Headunit


Key Features:


6.9-inch (16:9) 1080p (1024x600 pixels) double din touchscreen to maximize your viewing in a small space.

Full 16 Band EQ and Subwoofer LPF accessible via our DS18 DDXRC app on google play.

4.5a preamp outputs (Front, and Rear)

Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)

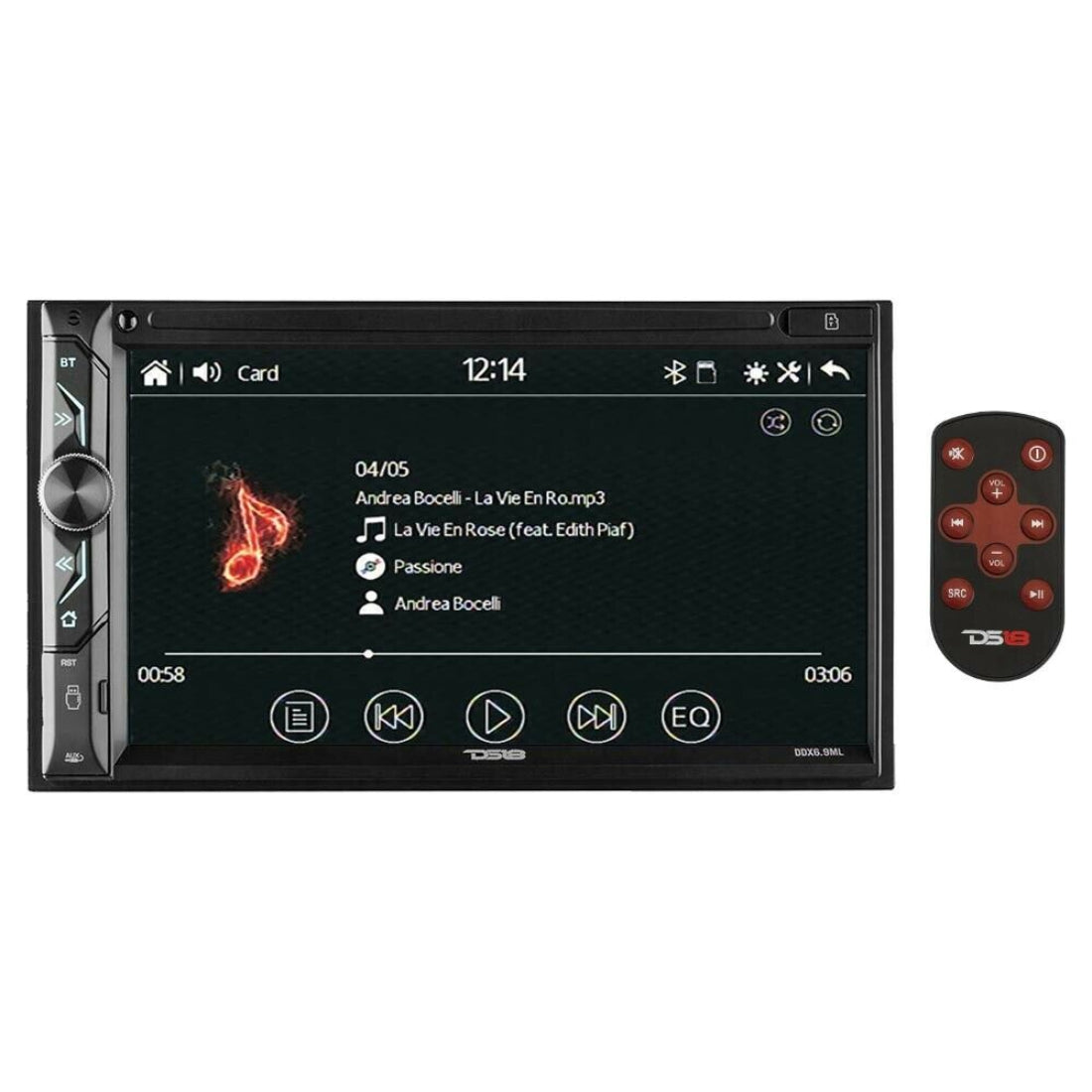

Wireless remote control for easy operation.

RCA inputs so you can view external sources video easily via source.

MIC in options for easy phone operation and built in controls.

APP control with the DS18 DDXRC app easily found on Google Play or the Apple store.

Camera Inputs included so you can plug and play most types of back up cameras.

Apple and Android compatible


Specifications:


Rated power source: 14.4V DC (10.8V to 15V operation)

Maximum Current Consumption: 10 Amp

Dimensions (W x H x D): Chassis: 178mm x 100mm x 135mm

Bezel frame: 170mm x 96mm x 5mm

Weight: 820 grams

Screen Size / Aspect Ratio: 6.9 inch / Wide 16:9

Pixels 1024 x 600

Display Type: TFT / WSVGA / Capacitive Touch Screen

Temperature Operation: -20o C to +60o C (14o F to 140o F

Maximum Power Output: 40W x 4 Ch / 4 ohm

Continuous Power Output: 15W x 4 Ch / 4 ohm

Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)

Equalizer: 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz) +/- 12dB

Gain: +/- 12dB

Audio Control: Volume / Balance / Fader / Loudness

Frequency Range: FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz

Presets Memory: 30 Stations (18 FM/12 AM)

Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)

Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)

Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS

Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX

Resolution Supported: 1080P Video

Memory Size Reader: up to 64 Gb

Max Current Supply: 1.5 Amp (USB)

Number of USB Ports: 2 (1 x Front, 1 x Rear)

Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls

Camera Input: RCA Analog Video up to HD 720p (Front/Rear)

Video Output: Dual RCA (1 Volt/75 ohm)

A/V Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio

Microphone: 3.5mm Jack external MIC Input

Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input

Package Dimensions: 8 x 6 x 3 inches
