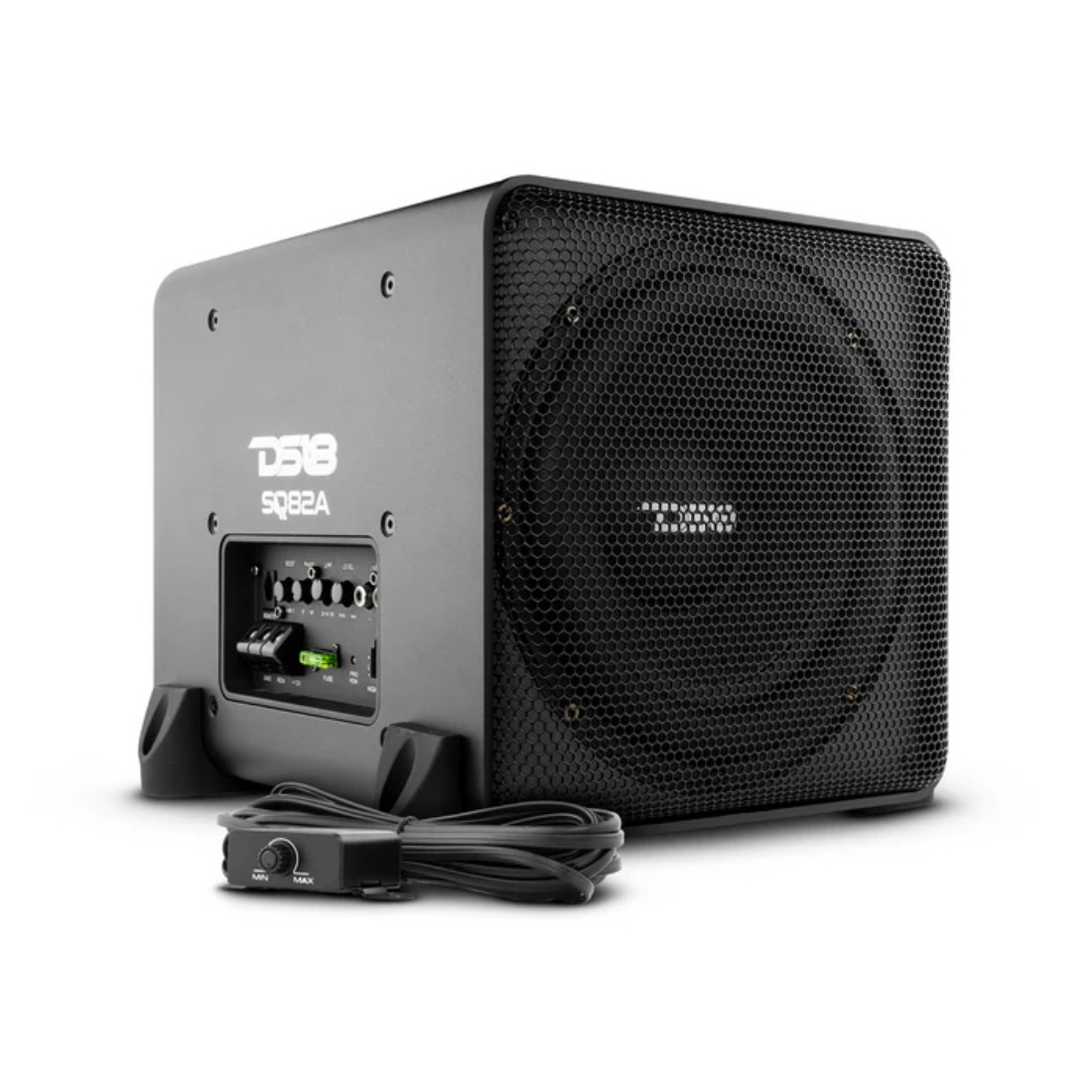

• DS18 SQ82A Dual 8" 1200 Watts Peak 2-Ohm Amplified Loaded Subwoofer Enclosure
1 1

DS18

DS18 SQ82A Dual 8" 1200 Watts Peak 2-Ohm Amplified Loaded Subwoofer Enclosure

DS18 SQ82A Dual 8" 1200 Watts Peak 2-Ohm Amplified Loaded Subwoofer Enclosure

$429.95 USD
$429.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 SQ82A

Dual 8-inch 1200 Watts Peak 2-Ohm High-End Aluminum Loaded Subwoofer Enclosure

The SQ82A is engineered for vehicles that demand extraordinary bass but have limited room for large subwoofers and enclosures. This compact powerhouse combines an 8-inch active subwoofer with an 8-inch passive woofer, working harmoniously to enrich the tone and elevate the bass levels in a remarkable high-end aluminum enclosure.

Key Features:

  • Subwoofer Enclosure
  • 1 X 8" Active  + 1 X 8" Passive
  • Amplified with Subwoofer Control Knob
  • RMS Power: 300 Watts (1200 Watts Peak)
  • Impedance: 2 Ohm
Specifications:

  • SKU: SQ82A
  • Speaker Type / Size: 8" Active + 8" Passive
  • Total Impedance: 2 Ohm
  • Total RMS Power Handling: 300W
  • Total MAX Power Handling: 1200W
  • Sensitivity (1w/1m): 83dB
  • Frequency Response: 30-350Hz
Speaker Specifications:

  • Voice Coil Diameter: 1.52" / 38.6mm
  • Voice Coil Former Material: Aluminum
  • Winding Material: Copper
  • Cone Material: Non-Press Cone
  • Dust Cap Material: Paper
  • Surround Material: Rubber
  • Basket Material: Steel
  • Magnet Material: Ferrite
  • Magnet Weight: 32 Oz / 914.0g
Amplifier Specifications:

  • Amplifier Class: Class D
  • Amplifier Type: Subwoofer Monoblock
  • Number of Channels: 1
  • Minimum Impedance: 2 ohm
  • Signal to Noise Ratio: >80dB
  • Efficiency @ 4ohm: 75%
  • Damping Factor:
  • Total Harmonic Distortion (THD): <0.5%
  • Low-Level Input Range: 200mv - 6V
  • High-Level Input: 2-9V
  • Auto Turn-On: Yes (Hi-Level Input)
  • Selectable X-Over: LPH Fixed
  • X-Over Filter Range: 35-180Hz
  • Bass Boost Range: 0-12dB
  • Bass Boost Frequency: 50Hz
  • Infrasonic Filter: No
  • Phase Selector: 0??180?
  • Led Indicator: Power / Protection
  • Power Input Terminal Size: 8Ga
  • Fuse Size: 30A
  • Remote Level Control: Yes (Dash Mount Included)
  • Cooling Fan: No
  • Voltmeter: No
  • Thermal Protection: Yes (>75?)
  • Over-Load Protection: No
  • DC Output Protection: Yes (>2V)
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (>17vdc)
  • Clipping Protection: No
Box Specifications:

  • Internal Volume: 10.8L / 0.38ft3
  • Box Tune FB: 50Hz
  • Load Configuration: Parallel In
  • Box Type: Passive Active (Sealed)
  • Box Material: Aluminum
  • Finish Material: Anodic Black
  • -3Db Dropping Point F3: 35Hz
Measurement:

  • Overall Height: 9" / 230mm
  • Overall Width: 9" / 230mm
  • Overall Depth: 12" / 304mm
  • Gross Single Unit Weight: 8.3KG
  • Single Unit Box Dimensions W x L x H: 336mm x 282mm x 262mm
Extra Features:

  • Very Strong Aluminum Box for better sound, heat dissipation, and lightweight construction: Yes
  • High-Efficiency Digital Amplifier Built-In: Yes
  • Auto Turn-On Function when using Hi-Level Input for easier installation: No
  • Remote Level Knob to get easy amount of Bass control: Yes
  • Passive Radiator Design for deeper and louder sound output in a smaller enclosure: Yes
