BRAND NEW

DS18 ZXI.4

4-Channel 2200 Watts Peak 2-4 Ohm Stable Full Range Class-D Amplifier

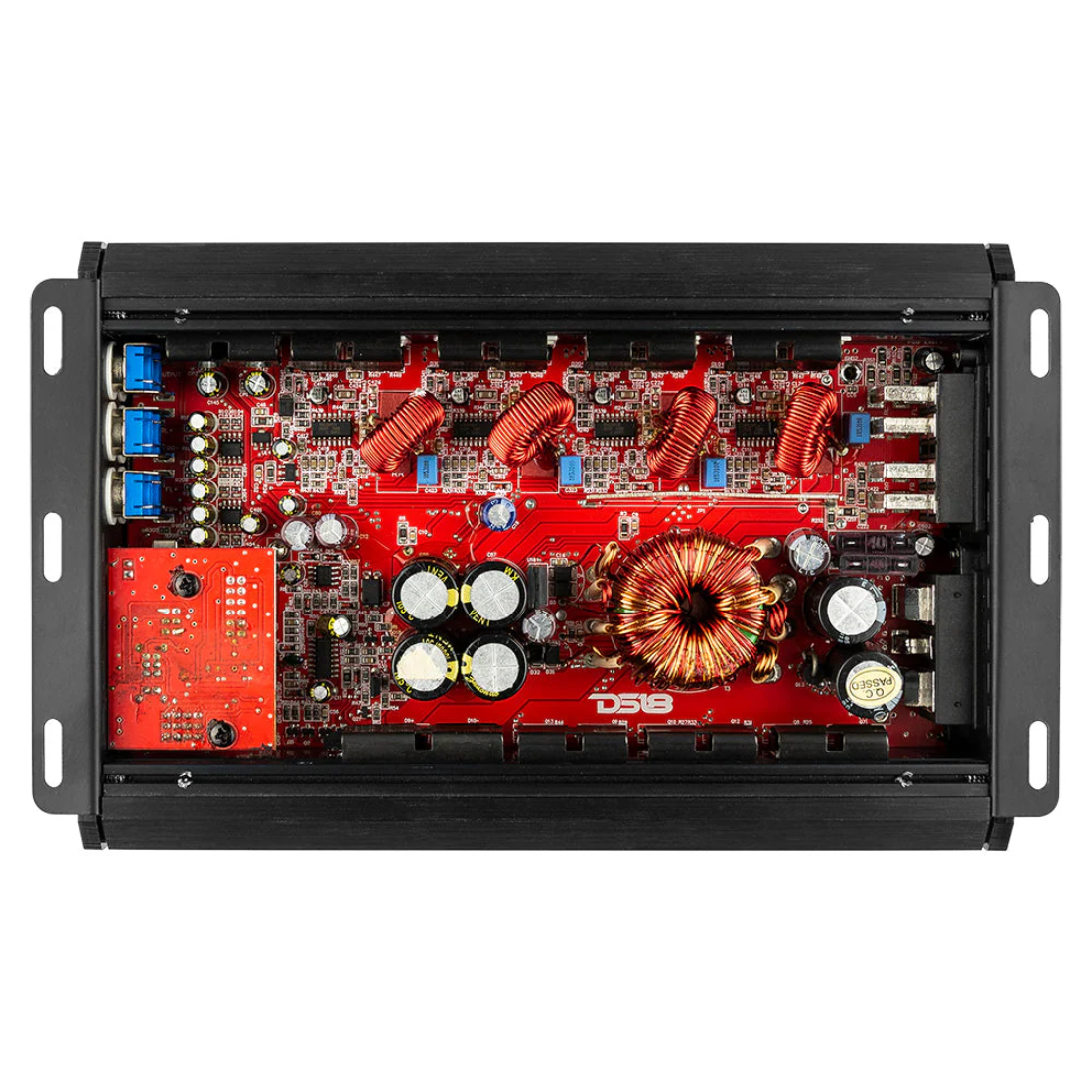

The DS18 ZXI.4 is more than just an amplifier; it's an elegantly designed powerhouse that effortlessly blends aesthetics with durability. Its sleek, modern design hides the high-efficiency heat sinks and high-quality circuit board that keep it cool under the most demanding conditions, ensuring uninterrupted performance when you need it most.

Key Features:

  • Amplifier Class: Digital
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 4
  • Minimum Impedance: 2 ohm (Stereo) / 4 ohm (Bridge)
  • Led Indicator: Power/Protection/Clip
  • Power Input Terminal Size: 4ga
  • Fuse Size: 2 x 40A
  • Remote Level Control: No
  • Cooling Fan: No
  • Voltmeter: No
  • Thermal Protection: Yes (>160°F / 71°C)
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (8.5-16.8V)
  • Clipping Protection: Yes
  • Body Color / Finish: Black Aluminum Brush
General Specs:

  • SKU: ZXI.4
  • Total Watts (Peak): 2200W
  • RMS Power @ 4 Ohm: 4 x 125W
  • RMS Power @ 2 Ohm: 4 x 185W
  • RMS Power @ 1 Ohm: N/A
  • RMS Power @ 4 Ohm Bridge: 2 x 370W
Audio Features:

  • Frequency Response: 20Hz-20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency @ 4 Ohm: >85%
  • Damping Factor: >200
  • Total Harmonic Distortion (THD): <0.1%
  • Low-Level Input Range: 0.2 - 6v
  • High-Level Input: No
  • Selectable X-Over: LPF/FULL/HPF
  • X-Over Filter Range: 40Hz-4KHz
  • Bass Boost Range: No
  • Bass Boost Frequency: No
  • Infrasonic Filter: No
  • Phase Selector: No
Extra Features:

  • Tiffany RCA connectors: Yes
  • Input Selector: Yes (2ch/4ch)
  • Compact Size to Easy Installation for Any Applications: Yes
  • Stable/Reliable Two Layers Traces PCB Design: Yes
  • Quality Control Verification using Audio Precision Instruments: Yes
Measurement:

  • Overall Length: 9.5" / 241.3mm
  • Overall Width: 5.66" / 144mm
  • Overall Height: 1.9" / 48.5mm
  • Heatsink Length: 8.7" / 221.3mm
  • Gross Single Unit Weight (Lb): 5
