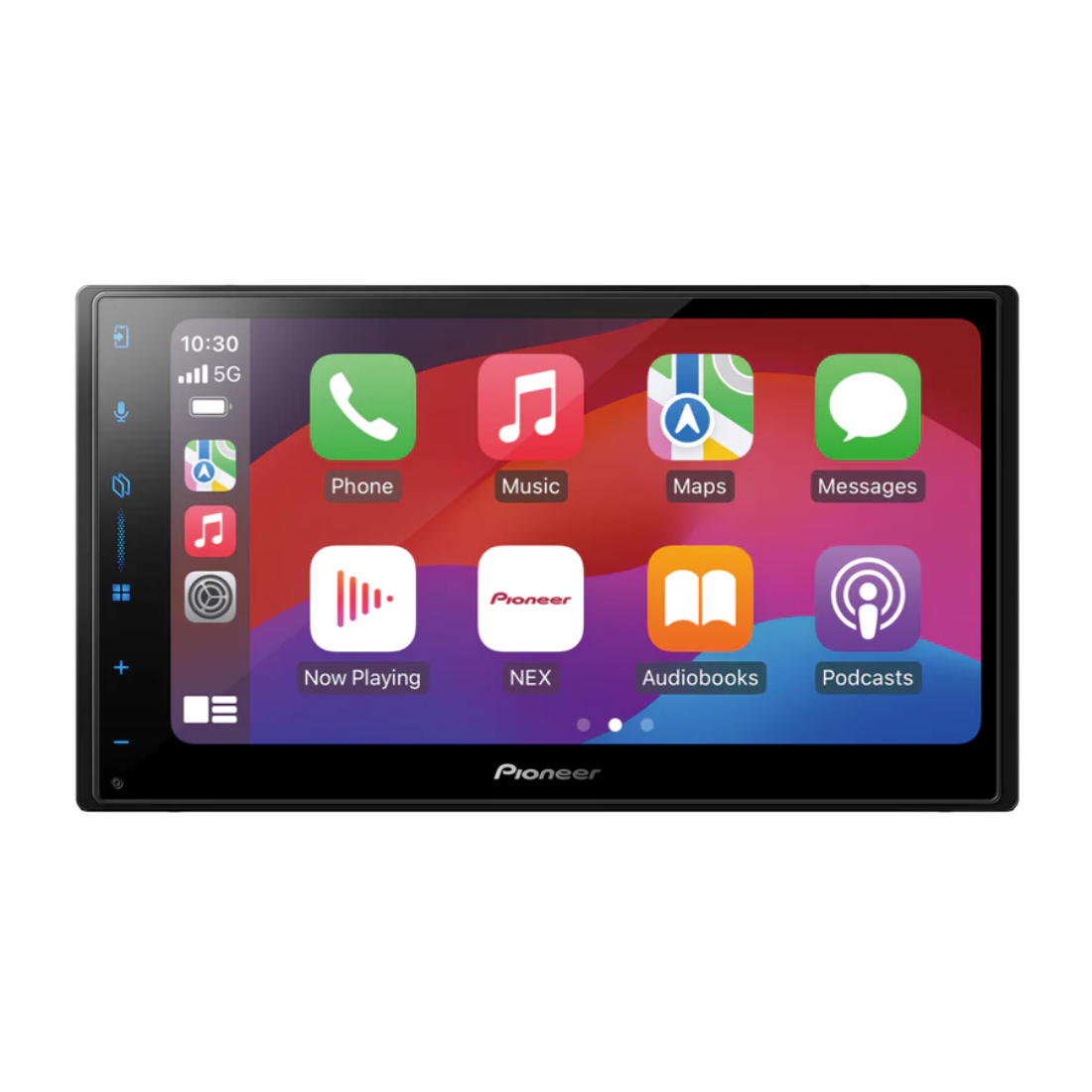

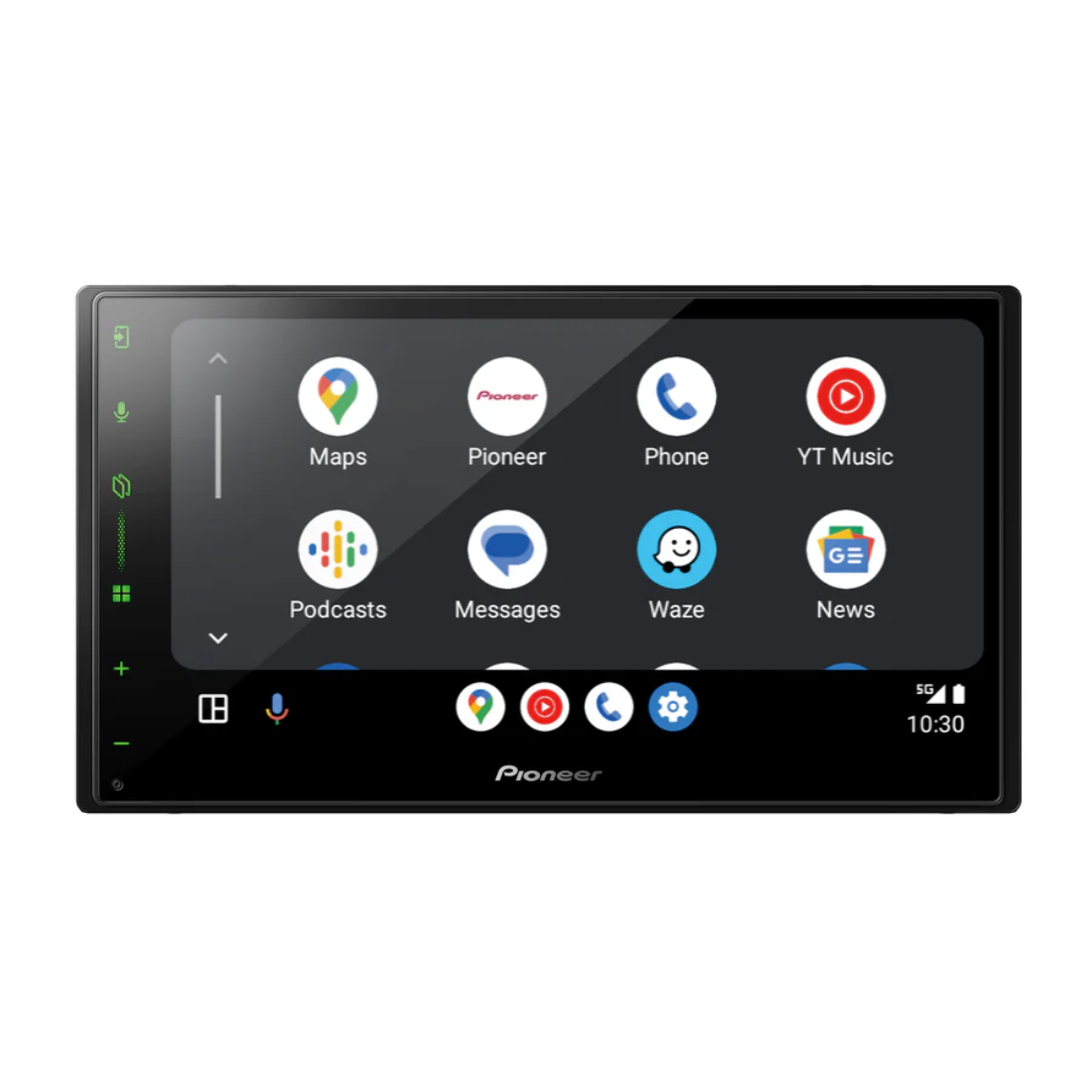

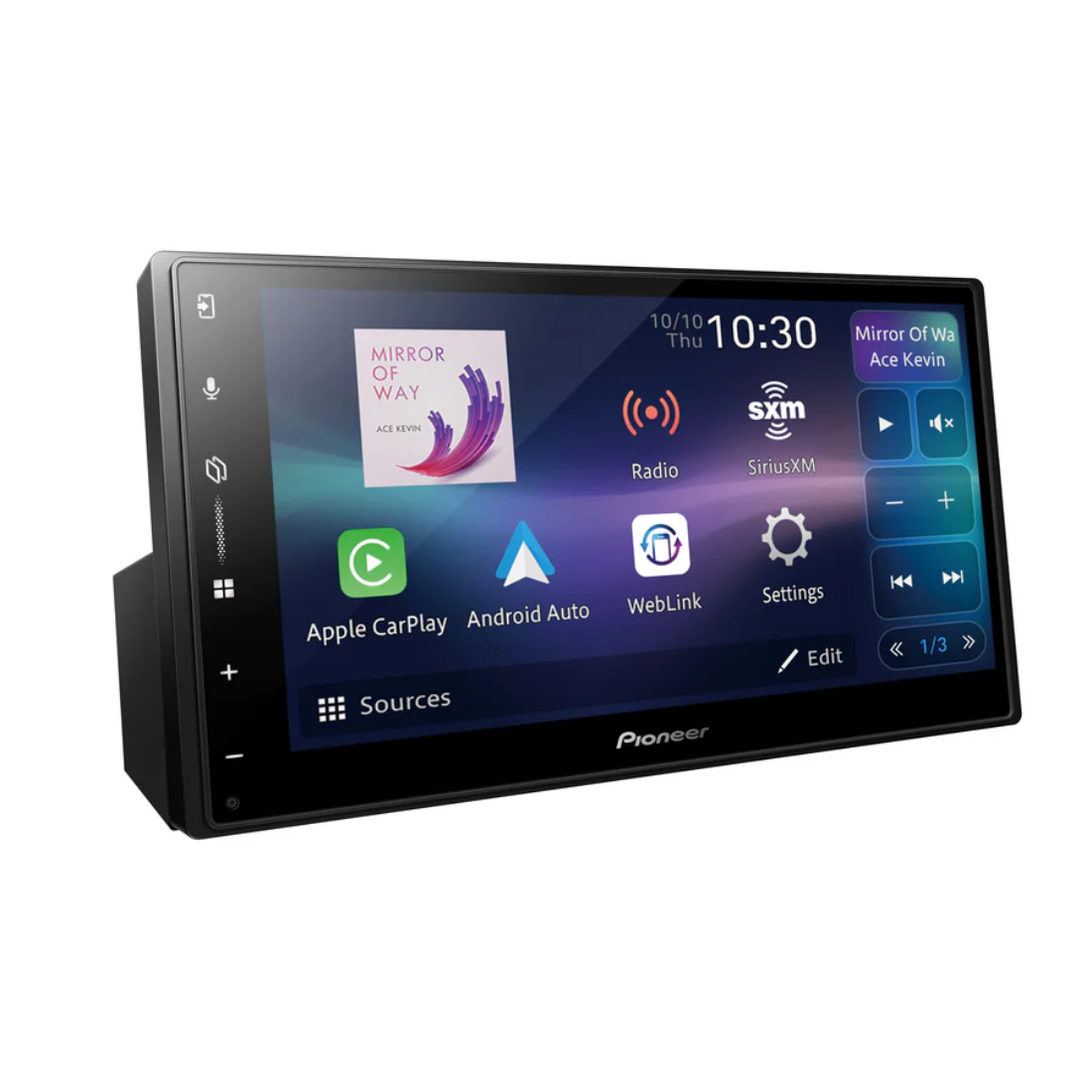

Pioneer DMH-W3000NEX 6.8" Digital Media Receiver w/ Apple CarPlay & Android Auto

• 6.8 Inch WVGA Touchscreen (Capacitive) Upgrade your ride with a capacitive WVGA touchscreen The Display with built-in LED backlight, color customization, and illumination timer, dimmer setting, and brightness control.
• ARM Cortex® processor This AV receiver uses a highly integrated system-on-chip (SoC) for In-Vehicle Infotainment applications based on an ARM Cortex® processor. The main processor works in partnership with an N13 coprocessor and integrates 1 GB of DDR2 internal memory to achieve high-quality audio/video performance and high-quality user interfaces. It is manufactured with an advanced silicon process and offers higher CPU performance and DRAM bandwidth than typical processors.
• QuickSwipe Access Minimize distractions with the new direct access buttons located on the left side of the unit. Perform quick interactions like making calls, initiate voice actions, go to app screens, and return to the main menu in 1-click instead of 2 to 3 times more interactions.
• Wireless connectivity This Pioneer Receiver supports a cable free connection between your smartphone using Built-in Wifi® and built-in Bluetooth® for wireless connectivity and is compatible with Android Auto and Apple CarPlay. It’s your choice, wireless or wired.
• Apple CarPlay® (Wired, Wireless) This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.
• Android Auto™ (Wired, Wireless) This receiver features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all Android smartphones.
• Weblink® Smartphone Interface (Wired) WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.
• Pioneer Vozsis with Alexa app Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access your Amazon Prime Music, Audible audiobooks, Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.
• Bluetooth This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
• Siri® Eyes Free - touchscreen Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers, helping you keep your eyes on the road and your hands on the wheel. (For select iPhones.)
• SiriusXM Ready Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.
• Back up camera input (1-camera) Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
• Wired Remote Input This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
• FLAC Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
• Velvet Sound™ For Cars VELVET SOUND is both the brand and philosophy of AKM's highest tier of audio devices. An authentic listening experience must be free of noise and distortion. VELVET SOUND technology strives to eliminate those distractions in the pursuit of Real Live Sound: a faithful re-creation of the original experience, as if you were there.
• The dedicated audio DSP used in this NEX model is a highly integrated digital signal processor, including a 24-bit stereo ADC with input selector, three 24-bit stereo DACs, four stereo sampling rate converters supporting sampling frequencies up to 192kHz, and an audio DSP.
• Flexible Audio Output Management The Pioneer Standard (2-Way) / Network (3-Way) function allows you to divide the audio signal into different frequency bands. You can then make precise adjustments with low-pass, high-pass, and band-pass filters, as well as level, phase, and other parameters to match the characteristics of each speaker unit. Select STD for a Sub/Rear/Front setup, or NTW for a Low/Mid/High setup.
• Audio Equalizer The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
• Time alignment This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. No need for any acoustics degree to do the job, simply measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.

Audio Performance

• Continuous Power Output: 22 W x 4-channel
• RMS Power Output (CTA-2006): 14 W RMS x 4-channel @ 4 Ohm
• Max Power Output: 50 W x 4-channel @ 4 Ohm
• Load Impedance Range: 4 Ohm (4–8 Ohm allowable)
• Built-in Amplifier: MOSFET 50 W x 4
• RCA Preamp Outputs: 6-channel
• RCA Preout Voltage: 4V
• Subwoofer Control: Yes
• Digital Signal Processor (DSP): Built-in
• DA Converter: 24-bit
• Custom EQ: 13-band Graphic Equalizer
• Easy EQ (EEQ): Yes
• Loudness Control: High / Mid / Low / Off
• Crossover Settings: HPF/LPF (Standard), HPF/Band Pass/LPF (Network Mode)
• Bass Boost: Yes
• Balance / Fader Control: Yes
• Listening Position Selector: Yes

Display & Interface

• Screen Size: 6.8"
• Resolution: WVGA (800 x 480)
• Aspect Ratio: 16:9
• Touchscreen: Capacitive
• Backlight: LED
• Brightness Control: Yes
• Color Customization: 5 key colors
• Dimmer Control: Auto (vehicle-based) / Manual
• Display Off Mode: Yes
• Monitor Mechanism: Fixed
• Home Screen Customization: Yes
• Faceplate: Fixed

Connectivity & Integration

• Bluetooth Version: Built-in (v1.6)
• A2DP / AVRCP: Yes (AVRCP 1.6)
• Dual Phone Bluetooth Connection: Yes
• Microphone: Included
• Phone Registration: Up to 5 devices
• Secure Simple Pairing (SSP): Yes
• Wi-Fi: Tethering / Hotspot support
• USB: Rear Type-A (5V, 1.5A)
• USB Direct Control: iPhone 5s and newer
• Steering Wheel Control Ready: Yes (adapter sold separately)
• External GPS Antenna: Yes
• Audio/Video AUX Input: 1x Mini-jack
• Backup Camera Input: Dedicated
• Firmware Upgradability: Yes
• Parking Assist Lines: Yes

Smartphone Integration

• Apple CarPlay: Wireless & Wired
• Android Auto: Wireless & Wired
• Mirroring: USB (Android only)
• Amazon Alexa: Via Pioneer Vozsis app
• Siri® Eyes Free: iPhone only
• Voice Control: Yes
• Spotify / Pandora®: Via Apple CarPlay or Android Auto
• Weblink® Version: 2.0
• Mobile OS Compatibility: Android (wired/wireless) / iOS (wired/wireless)

Media Playback

• Audio via USB: WMA, MP3, WAV (Hi-Res), AAC, FLAC (Hi-Res)
• Video via USB: .3gp, .avi, .divx, .f4v, .m4v, .mkv, .mov, .mp4, .mpeg/.mpg, .wmv/.asf, H.263, H.264
• Image via USB: BMP, JPEG, PNG

Tuner

• Presets: 18 FM / 12 AM
• RDS (Radio Data System): Yes
• Local Seek / PS Scan: Yes
• Best Station Memory: Yes
• SiriusXM Ready: Yes (tuner sold separately)

General Features

• Chassis Design: 2-DIN L-Shaped Modular
• Detachable Face: No (Fixed)
• Multi-Language Display: English, French, Spanish, Portuguese, Chinese (Simplified)
• Music Browser: USB
