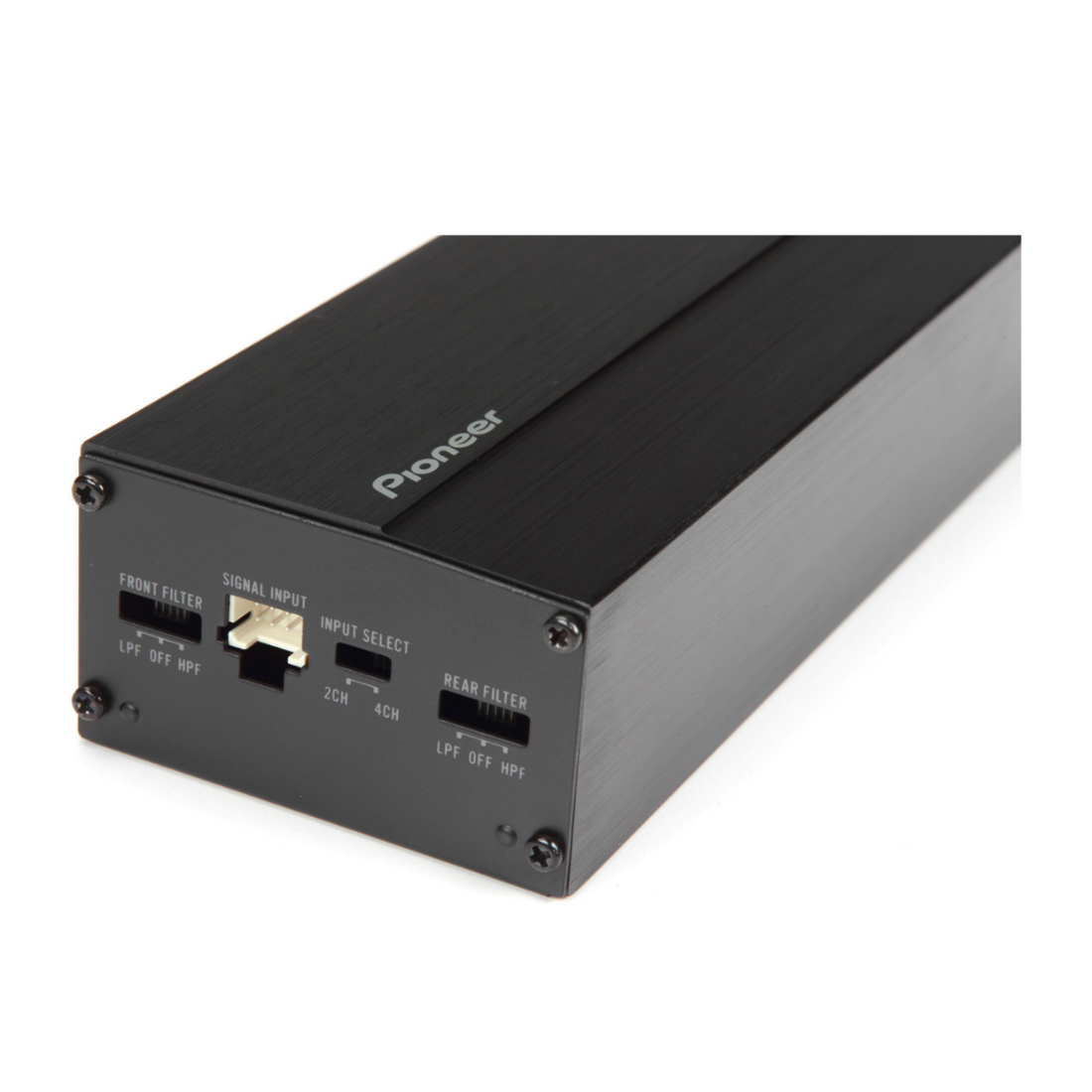

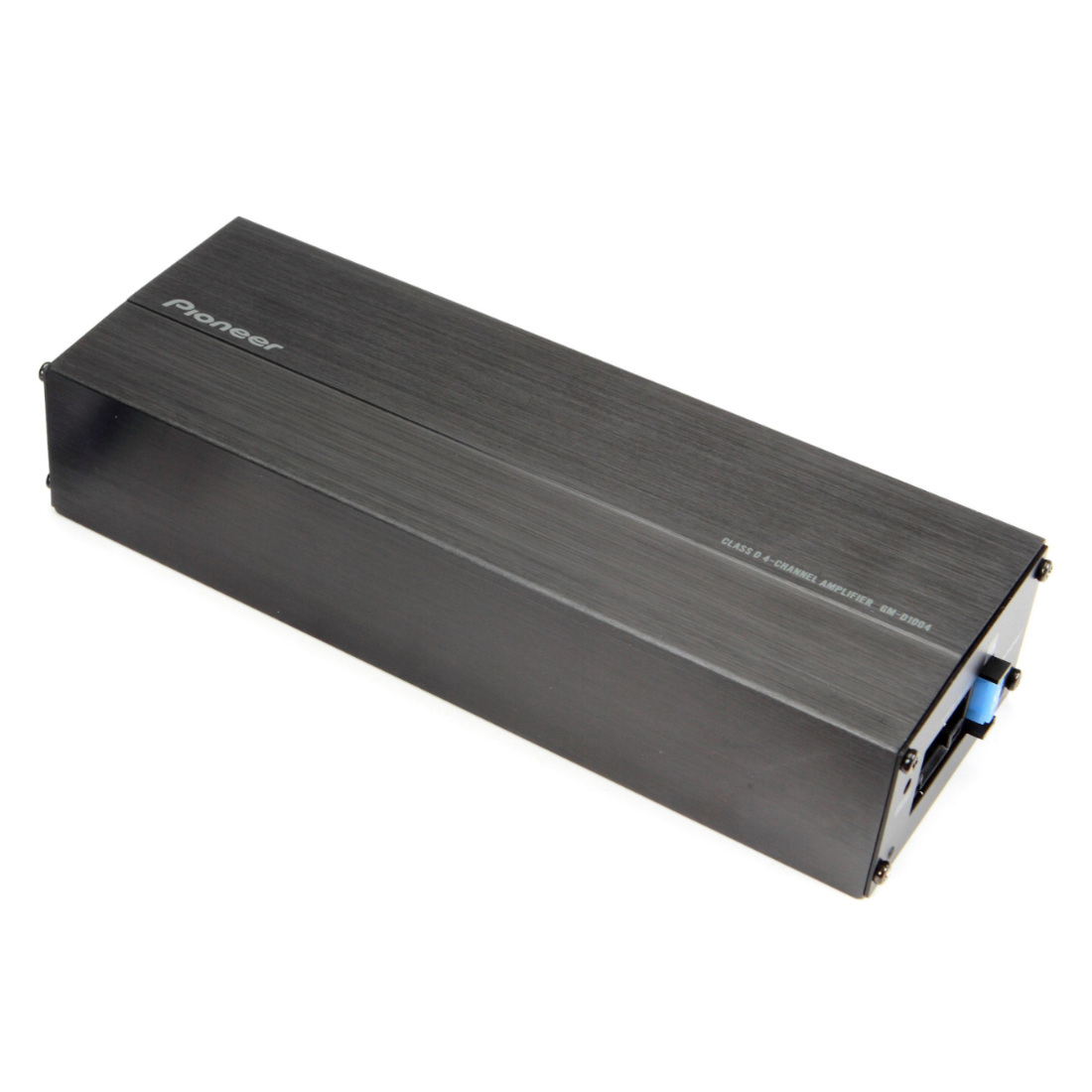

Pioneer GM-D1004 4-Channel 400W Max Class-FD Car Compact Bridgeable Amplifier
Pioneer GM-D1004 4-Channel 400W Max Class-FD Car Compact Bridgeable Amplifier
Regular price
$152.99 USD
Regular price
Sale price
$152.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
REFURBISHED
PIONEER GM-D1004
4-Channel 400 Watts Max Class-FD Compact Bridgeable Amplifier
Key Features:
- Bridgable: Yes
- Class: FD
- Grounding System: Negative
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Terminal Type: Removable
- Unit Weight: 1.2 lbs
- CEA-2006 Compliant: Yes
Performance:
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2 Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
- Bass Boost: 75 dB
- Continuous-Power-Output: 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
- Crossover Network Channel: LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
- Crossover Network Channel Slope: -12db/oct (A/B Ch)
- Crossover Network Subwoofer Channel: 80 Hz
- Crossover Network Subwoofer Slope: -12 dB/octave
- Frequency Response – Subwoofer Channel: 10 Hz to 40 kHz
- Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB) A/B Ch
- Fuse Rating: 15 A
- Maximum Power Output: 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
- RCA Input: 4-Channel
- Signal to Noise: 74 dBA (Reference: 1 W into 4 ohm)
- Speaker Line input Sensor: Yes
- THD - Subwoofer: < 0.05% (1 kHz)
- THD-A/B/C Channel: < 0.05% (1 kHz) A/B Ch
